Related Manuals for Fusion MS-IP700i
Summary of Contents for Fusion MS-IP700i

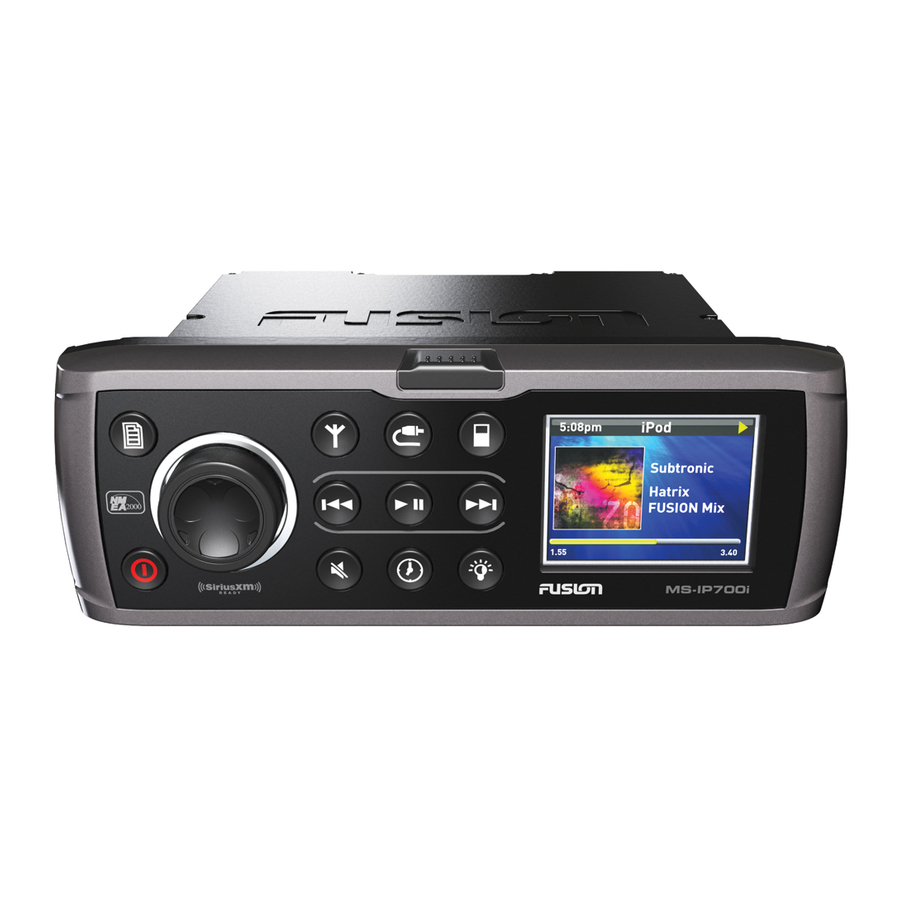

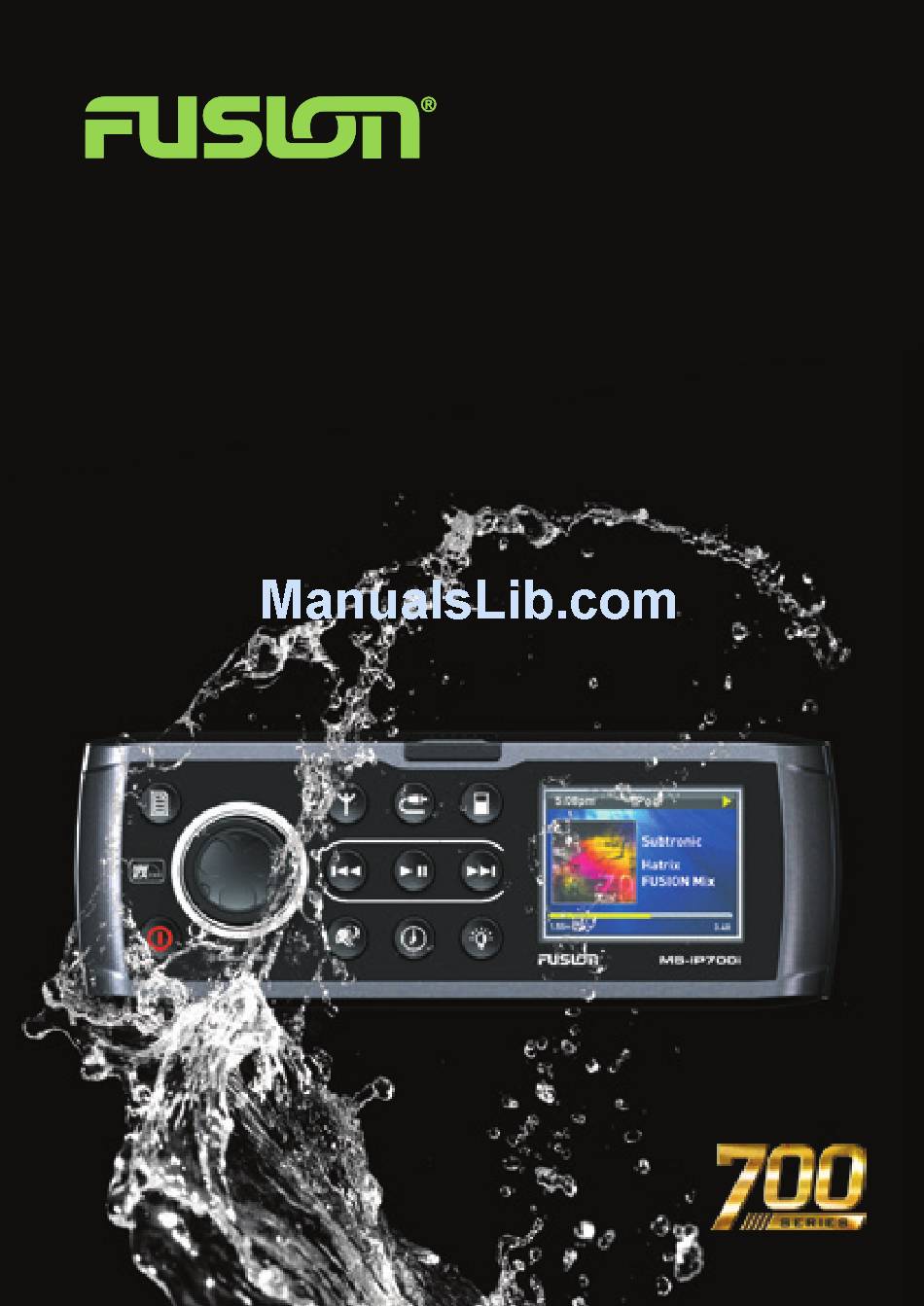

- Page 1 700 Series Manual MARINE ENTERTAINMENT SYSTEM MS-IP700i True Marine Entertainment System for iPod MS-AV700i True Marine DVD Entertainment System...
- Page 2 As with all products exposed to the harsh marine environment, a little care will help preserve the finish. FUSION recommends that you clean any salt water and/ or salt residue from the stereo with a damp cloth soaked in fresh water.
- Page 3 All FUSION True Marine Products are backed by a 3 Year Limited Consumer Warranty and by registering your product you can be assured that if the unexpected occurs we’ll have your details and be ready to help.
-
Page 4: Table Of Contents
FUSION MS-NRX200I Remote Control ........26... - Page 5 MS-IP700i Model ........
-
Page 6: User Interface And Controls
USER INTERFACE AND CONTROLS CONTROL PANEL LAYOUT BUTTON DESCRIPTION PRIMARY SOURCE MS-AV700i Menu Tuner Auxiliary iPod source Rewind Play/Pause Forward Power Mute Clock Brightness... -
Page 7: Rotary Encoder And Menu Key
ROTARY ENCODER AND MENU KEY Although the controls of the 700 Series are designed to be intuitive to use, we recommend that you familiarize yourself with the operation of the Encoder and Menu key before using the unit. ROTARY ENCODER OPERATION The Encoder can be used in three ways to control the operation of the 700 Series: Rotary Encoder turn Encoder press Encoder press and hold down for at least one second MENU KEY OPERATION You can use the Menu key to open or to exit from menus: Press the Menu key to open a menu. -
Page 8: Using The Encoder And Menu Key
USING THE ROTARY ENCODER AND MENU KEY You can use the Rotary Encoder and Menu key to adjust levels, access menus and open control screens. Adjusting levels Use the Encoder and Menu key to adjust levels on the 700 Series. For example, to adjust the volume level: Turn Encoder to Turn Encoder to Menu exit. See “Menu open the Volume adjust the level. Press Key Operation” on page screen Encoder to move highlight. -
Page 9: Getting Started
Power • When the unit is on, momentarily press the Power key to power off the unit. INPUT SOURCE SCREENS The 700 Series supports a wide range of input source types, depending on model: • MS-IP700i AM/FM/VHF/SiriusXM; iPod/iPhone via internal dock; USB and iPod/iPhone/MTP devices (Android) via external dock or cable; auxiliary; Bluetooth. • MS-AV700i AM/FM/VHF/SiriusXM; CD/DVD; USB and iPod/iPhone/MTP devices (Android) via external dock or cable; auxiliary; Bluetooth. -
Page 10: Adjusting Volume Level
Both models are also SiriusXM-Ready (USA only). Requires optional SiriusXM Connect Vehicle Tuner. For further details of setting up SiriusXM options see “SiriusXM Satellite Radio” on page 45. When you select one of these sources, the 700 Series displays a source screen, similar to the AM source screen shown in Figure 1 below. The title bar always shows the current time and source name. -
Page 11: Muting Output
To adjust the volume level: 1. Turn the Encoder. • The Volume screen is displayed with the Current Zone Selection Highlighted (remembered from previous use). • The volume is adjusted in the highlighted Zone (or Zones) only. 2. If required, press the Encoder to highlight the next Zone to adjust its volume level. While the Volume screen is displayed, each press of the Encoder will highlight available Zones in the following order: Zone 1 Zone 2 Zone 3 Zone 4 All Zones 3. When finished, press the Menu key (or leave to time out) to save the current volume level and exit. MUTING OUTPUT To mute and unmute the volume: • Press the Mute key to mute the audio output. The Mute icon is displayed... -
Page 12: Adjusting Sub Level And Tone
ADJUSTING SUBWOOFER LEVEL AND TONE Use the Sub level and Tone screens to set the sub-woofer levels and tone. Sub-woofer level can be adjusted for each Zone individually, but tone adjustments affect all Zones. Menu key Encoder To set sub-woofer levels or tone: 1. Press and hold down the Encoder for at least one second. The Sub level screen is displayed. -
Page 13: Displaying The Clock
4. Turn the Encoder to left or right to adjust the Bass level, if required. 5. Press the Encoder to highlight each tone control, and adjust as required. When you press the Encoder on the Treble tone control, the Sub level screen is displayed again. 6. Press any key to exit DISPLAYING THE CLOCK Use the Clock key to display the current time. If the time is incorrect, see “Clock Setting” on page 44. Note: The current time is also displayed in the title bar of each input source screen. -
Page 14: Setting And Clearing The Alarm
SETTING AND CLEARING THE ALARM Use alarm mode to turn on the 700 Series at a pre-defined time. When the alarm is activated, your 700 Series will play the last selected input source at the volume level in use when the unit was turned off. Menu key Encoder To set the alarm:... -
Page 15: Adjusting Screen Brightness
ADJUSTING SCREEN BRIGHTNESS Note: LCD and button backlight brightness can be linked to the ambient lighting level. For further details, see “Installing the 700 Series” on page 34. Brightness To adjust the brightness of the display screen: 1. Press the Brightness key. The Brightness screen is displayed. 2. Turn the Rotary Encoder to adjust the brightness setting. -
Page 16: Tuner
TUNER LISTENING TO THE TUNER To select one of the available tuner bands: • Press the Tuner key to select input from each of the following in turn: AM, FM, VHF or SiriusXM (USA only) requires optional SiriusXM Con- nect Vehicle Tuner. The applicable input source screen is displayed for each band. Tuner TUNER SOURCE SCREENS AM/FM/VHF An example of a typical tuner input source screen is shown in Figure 2 below. -
Page 17: Siriusxm
SiriusXM An example of the SiriusXM input source screen is shown in Figure 3 below. Figure 3 – Example SiriusXM input source screen TUNING METHODS You can use three methods to tune the 700 Series: manual, automatic and preset. Encoder Menu key Play / Rewind... - Page 18 Tuning Method Applies to… When tuning with this method… Manual All bands • Press the Forward or Backward key to step through the range of frequencies or channels one at a time. • Press and hold down the key for rapid scanning of frequencies or channels. Manual SiriusXM • Press the Forward or Backward key to step through all channels one at a time. Category SiriusXM • Press the Play / Pause, Forward or Backward key to step through the channels in the selected category. • Only available when a category is selected in the Category menu item.
-
Page 19: Adding And Removing Presets
ADDING AND REMOVING PRESETS The 700 Series allows you to set up your favorite AM/FM stations, VHF or SiriusXM channels as presets for easy recall. Note: Up to 15 presets can be stored for each radio band. Encoder Menu key Play / Rewind Fast Tuner Pause Forward To add a new preset: Do one of the following. 1. Tune the 700 Series to the required frequency or channel. -
Page 20: Playing Music Content
FLASH drive: ANDROID (MTP) SUPPORT: MTP is a standard developed for connecting media (music) devices over USB. It has been adopted on a number of platforms including Android. FUSION currently supports a range of smartphones utilising MTP. Refer to www.fusionelectronics.com for the latest list of support devices. -
Page 21: Ipod, Mtp, Bluetooth And Usb Source Screens
Bluetooth. Note: For Bluetooth a FUSION Bluetooth module MS-BT200 is required. CONTROLLING iPod PLAYBACK Selecting tracks from a playlist There can be thousands of tracks on an iPod, so you need to select the tracks you wish to play from one of the groupings available (such as Playlists, Artists, Albums). For example, to select tracks by artist:... -
Page 22: Controlling Bluetooth And Mtp Playback
Music Folder Structure FUSION recommends that folders contain no more than 300 files each. Exceeding this limitation may cause the phone to become unresponsive and the FUSION Stereo to reset the USB link to the phone. Music files must be located in a folder using one of the following names. The folder must be located in the root directory of your device. - Page 23 Songs stored in MP3 and M4A format (see note below) can be played on the FUSION Stereo. The FUSION Stereo will display your music collection in groupings of Songs, Albums and Artists allowing you to browse in these categories. In addition to the above groupings your music collection can be browsed according to the folder structure on your device.
-
Page 24: Changing Ipod Settings
Browsing Music Collections Over Bluetooth Not Supported Browsing music collections from the FUSION Stereo is not supported over Bluetooth. Initial song and Playlist selection must be done on the media device. However the FUSION Stereo does provide basic playback control with the Play / Pause, Next and Previous keys. Forward and Rewind functions are not supported CHANGING iPod SETTINGS Additional iPod control features are available through the iPod settings menu. -
Page 25: Changing Mtp Settings
Press the encoder to tick/untick the check box. Note: To prevent interruption to audio streaming over Bluetooth it is recommended that the Discoverable feature is turned off after pairing your device to the FUSION Stereo. • Remove Devices. Select this option to display the current list of paired devices. Select the device to be removed by rotating and pressing the rotary encoder. -
Page 26: Auxiliary Source Screen
You can control one or more FUSION-Link capable stereo units from a single location on the boat with the touch of a button. FUSION-Link operates over existing industry standard networks including Ethernet, NMEA2000 and WiFi. -
Page 27: Total Audio Control Via Nmea2000
TOTAL AUDIO CONTROL VIA NMEA 2000 NMEA 2000 is the most popular marine standard for data communication within vessels. It has become the standard for sending navigation and engine management data within vessels. FUSION introduces an industry-first product by incorporating NMEA 2000 functionality in its audio remote control devices. This will enable the user to monitor a series of available NMEA sentences. Visit www.fusionelectronics.com for a full list of supported NMEA sentences. FUSION MS-NRX200I REMOTE CONTROL (SOLD SEPARATELY) The 700 Series Marine Stereo can be controlled by MS-NRX200i wired remote controls installed in the audio Zones throughout the vessel. The remote Control has a full-featured user interface. -
Page 28: Infrared (Ir) Remote
INFRARED (IR) REMOTE MS-AV700i model only You can use the IR remote to navigate through most functions in all sources DVD source selected. The following keys work the same way as the matching Head unit keys in all sources. Power On / Off Mute all sound Play / Pause Display clock Skip back Skip forward The following keys work the same way in all sources. - Page 29 The following keys work for the SiriusXM source Skip channels Forward /Back Press to select Manual or Preset tuning methods. Press to display the SiriusXM menu that provides access to control options. Press Menu key to exit current menu screen. Use the arrow keys to navigate through menus. Press select (SEL) to choose the highlighted menu item.
-
Page 30: Installing The 700 Series
INSTALLING THE 700 Series Dimensions are in millimetres (mm) and inches (”). Not to scale. Figure 7 – Dimensions - top view CONTENT OF BOX 1 x MS-AV700i or MS-IP700i Stereo 4 x Mounting Screws 1 x Protective Dust Cover 2 x Mounting Brackets 1 x FUSION Drop Cable CAB000851. - Page 31 Figure 8 – Dimensions - side view Figure 9 – Dimensions - front view...
-
Page 32: Connections
When connecting the Dim input ensure the wire gauge used is suitable for the fuse supplying the circuit being connected to. ANTENNA CONNECTION Connect an AM/FM marine antenna. Note: Do Not Connect to a VHF splitter AUX INPUT Connect an Auxiliary source to the left and right RCA (White = L, Red = R). VIDEO CONNECTION (MS-IP700i iPod/iPhone video only, MS-AV700i DVD video only) Connect the composite video output (Yellow = Video) to a TV / LCD monitor (MS-IP700i iPod/iPhone video is only available if device is inserted in internal dock). USB CONNECTION Connect an Apple sync cable (not included), or USB Flash Drive (not included) or connect the MS-UNIDOCK Portable Media Device Dock (not included) NMEA2000 / WIRED REMOTE For connection to a MS-NRX200i Remote (not included). -
Page 33: Siriusxm Satellite Radio
ETHERNET CONNECTION TO PARTNERED MFD For connection to a DHCP Ethernet Router or FUSION-Link partnered Multi Function Displays. SiriusXM SATELLITE RADIO (A) Connect to SiriusXM Connect Vehicle Tuner (not included) (For use in USA only) (B) Connect the MS-BT200 module (not included) ZONE CONNECTIONS Zone 1 White = Speaker Left Positive White / Black = Speaker Left Negative Grey = Speaker Right Positive Grey / Black = Speaker Right Negative Zone 2 Green = Speaker Left Positive Green / Black = Speaker Left Negative Purple = Speaker Right Positive Purple / Black = Speaker Right Negative Note: Speaker connection (2 Ohm Stereo minimum). 2 pairs of 4 Ohm speakers per channel can be connected in parallel to achieve 2 Ohm configuration... - Page 34 REMOTE CONTROL (NMEA2000) USB CONNECTION USB CONNECTION (iPod, iPhone, MTP device, USB (MS-AV700 ONLY) storage device or FUSION dock) (USB storage device or FUSION dock) SiriusXM Tuner SiriusXM ETHERNET CONNECTION MS-BT200 Bluetooth module ANTENNA L (white) ZONE 1 R (RED)
-
Page 35: Installation
INSTALLA TION ELECTRICAL WIRING Caution: The MS-IP700i and MS-AV700i are designed for vessels with a 12C DC Negative ground electrical system. -
Page 36: 700 Series Connection Example
700 Series CONNECTION EXAMPLE OPTIONAL SiriusXM TUNER OR BLUETOOTH MODULE MS-UNIDOCK EXTERNAL DOCK MS-IP700i or MS-AV700i... -
Page 37: Setting Up The 700 Series
SETTING UP THE 700 Series ZONES Zone 1 and 2 are powered by the on board Class-D amplifier. External amplifiers are required to utilize the 4 line outputs and 4 subwoofer outputs. You can pre-set the balance, volume limit, sub-woofer level and name for each of the four Zones available on the 700 Series. If required, you can also: • Enable or disable Zones 2, 3 and 4 (Zone 1 is always enabled). • Enable or disable volume control (Zones 3 and 4 only). • Link Zones 1 and 2. For further details, see instructions below. Rotary Menu key Encoder Selecting and setting up a zone To select a Zone and modify its settings: 1. - Page 38 Important: If a Zone is disabled, you cannot change any of the following settings for that Zone. Disable Internal Amplifiers Disable the internal amplifiers for Zones 1 and 2. For example, if external amplifiers are used for Zones 1 and 2 the internal amplifiers can be disabled to reduce power consumption.
- Page 39 Balance To specify the balance for the selected Zone: a. Select the Balance menu item. b. Turn the Encoder to the left or right to adjust the Balance for the selected Zone. c. Press any key to exit Volume limit This feature is useful to limit the volume level to prevent excessive noise levels in specific Zones. To specify the volume limit for the selected Zone: a.
-
Page 40: Preparing For Ipod, Mtp Device Or Usb Connection
Check and obey all marine laws in association with use. ANDROID (MTP) SUPPORT: MTP is a standard developed for connecting media (music) devices over USB. It has been adopted on a number of platforms including Android. FUSION currently supports a range of smartphones utilising MTP. -
Page 41: Ms-Ip700I Model
“Not connected” is displayed on the screen. Important Note: Connecting Supported iPods and iPhones to a MS-IP700i Stereo The MS-IP700i provides two connection options for iPod and iPhone users. Supported devices may be either inserted into the internal dock or connected to the external USB connector. - Page 42 2. Insert your iPod in its sleeve (see iPod compatibility sheet supplied separately). Make sure that the device is firmly pushed onto the connector socket. 3. Close the control panel door firmly. 4. Select the audio source, as required. MS-AV700i and MS-IP700i Models The 700 Series stereos provide an external USB connector (rear cable assembly) for connection to external iPods, iPhones, MTP, USB storage devices or FUSION MS-UNIDOCK dock.
- Page 43 3. To connect your USB FLASH drive insert it directly into the USB internal connector. 4. Select the source (USB, MTP or iPod) from the FUSION Stereo, as required. To connect your iPod, MTP device or USB FLASH drive via the external USB cable: 1.
-
Page 44: Bluetooth Media Device
Radio socket is not available the FUSION MS-BT100 audio onlyBluetooth module is recommended. The MS-BT200 supports control (Play/Pause/Next/Back) of the media device from the FUSION Stereo. Song information such as song title, artist name and duration are displayed, depending on the capability of your phone and music application. The MS-BT200 does NOT provide phone call control. Hands free operation of the phone is not supported from the FUSION stereo. -
Page 45: Clock Setting
Adjusting Auxiliary input level Many different types of auxiliary device (TV, DVD, Game Console, Media player) can be connected to the 700 Series, and these devices will have either a line output or headphone output jack. To allow for the wide range of input levels from these devices, the AUX input has adjustable input gain. This should be adjusted to achieve a similar volume level to the other (fixed gain) input sources on the 700 Series. -
Page 46: Siriusxm Satellite Radio
When USA Tuner region is selected, press the menu button and select Settings>Sources>Accessory then select the source to enable SiriusXM. Activating your SiriusXM tuner You must activate the SiriusXM tuner before you can begin to receive the SiriusXM Radio Service. In order to activate your radio subscription, you will need the SiriusXM ID (SXID) which uniquely identifies your tuner. The 8 digit SXID is displayed on the LCD on initialization. MS-IP700i and MS-AV700i will display the SXID on Channel 0. - Page 47 Power on your system and make sure that you are receiving good signal, you are able to hear audio on the SiriusXM Preview channel (Channel 1) To listen to SiruisXM Satellite Radio, a subscription is required. Activate the SiriusXM Vehicle Tuner using one of the two methods below: Online: Go to www.siriusxm.com/activatenow Phone: Call 1-866-635-2349 SiriusXM menu options Press the Menu key to display the SiriusXM menu that provides access to various control options. Read on to learn...
- Page 48 Padlock icon • The padlock icon means the channel is locked or considered mature content. If you select this channel you will be asked to unlock parent mode, if it is not already unlocked. Category You can use the Category menu item to control which categories of channels are available (Rock, for example) when you are using the Category tuning method (see “Tuning Methods” on page 16. To select a Category: 1.
- Page 49 • To disable the Category tuning method, press the Encoder to select All channels. The SiriusXM Source Screen is displayed with the Tuning mode indicated set to ‘Manual’. 4. Press the Menu key to exit the current menu or press and hold the Menu key to close the menu completely. Parental mode Parental mode provides a way of preventing access channels marked by SiriusXM as “Mature” or “Locked”. You must enter a 4-digit access code to...
- Page 50 3. Enter the old (current) access code by turning the Encoder to change the highlighted digit, then press the Encoder to select the next digit. When you have entered all four digits correctly, you will be prompted to enter the new access code. 4. Enter the new access code by turning the Encoder to change the highlighted digit, then press the Encoder to select the next digit. When you have entered all four digits correctly, you will be prompted to enter the new access code for a second time. 5. Press the Menu key (or leave to time out) to save the new code and exit.
-
Page 51: Advanced Settings
To lock or unlock a channel: 1. Press the Menu key. 2. (if required) turn and then press the Encoder to select Parental > Unlock. Enter your access code. 3. Select the Lock/Unlock menu item. 4. Turn the Encoder to highlight a channel then press the Encoder to lock ( ) or unlock ( ) the channel, as required. 5. Press the Menu key (or leave to time out) to exit. ADVANCED SETTINGS The settings described in this section are usually set up when the unit is installed and not changed again. - Page 52 4. Press the Encoder to save the setting and exit. 5. Press any key to exit Searching If your music device contains more than 100 artists, songs or albums, you can use FUSION Alpha Search Technology (FAST) to quickly navigate by letter or number. Use this option to control when to display the FAST menu. • Off. The song/album list is displayed but not the FAST menu. • 100–800. Display the FAST menu when your device contains more than the selected number of items.
- Page 53 Tel mute Use this option to control which action is taken when the 700 Series is connected to a cellphone hands-free kit. To change the Tel mute setting: 1. Press the Menu key. 2. Turn and then press the Encoder to select Settings > Tel mute. 3. Turn the Encoder to select the required option: • Mute.
- Page 54 Press the rotary encoder to select. Press the `Previous’ button to delete characters. · To save changes press the `Play’ key. · To exit without saving any changes: press the Menu key. About This option displays the Stereo software version, remote control version and FUSION-Link software versions.
- Page 55 Static IP address function has been added allowing installers to configure the 700 Series either for dynamic (DHCP) or Static IP address allocation. WARNING: IF THE 700 SERIES STEREO IS CURRENLTY CONNECTED TO AN ETHERNET NETWORK APPLYING INCORRECT IP SETTINGS MAY CAUSE THE STEREO TO BECOME DISCONNECTED FROM THE NETWORK. To change the IP Setting: 1. Press the Menu key. 2. Turn and then press the Encoder to select Settings > IP Address. 3. Press and turn the Rotary Encoder to select one of the following settings. Static IP/DHCP For Ethernet networks with a DHCP router installed select DHCP (default setting). This function allows the network router to allocate a dynamic IP address to the FUSION Stereo. For installations requiring a Static IP address, select Static IP. A Static IP screen will be displayed with the following fields; Static IP Address Default GW (Gateway) IP Address Mask 000.000.000.000 000.000.000.000 000.000.000.000 1. Use the Forward/Rewind keys to select the IP field. 2. Turn the Encoder to display the required value.
-
Page 56: Appendices
As with all products exposed to the harsh marine environment, a little way to prevent care will help to preserve the finish. FUSION recommends that you clean corrosion on any salt water and/or salt residue from the front panel with a damp my 700 Series cloth soaked in fresh water. - Page 57 Bluetooth short breaks. module. To prevent interruption to audio streaming over Bluetooth it is recommended that the Discoverable feature is turned off after pairing your device to the FUSION Stereo.
- Page 58 Should your Apple iPhone or iTouch shut down due to exceed- ing the operating temperature please carefully remove it from the MS-IP700i and allow it to cool down before using again. Using your Apple device in a low charged state will increase the heat generated whilst it is charging.
- Page 59 FUSION recommends that folders contain no more than 300 files each. device become Exceeding this limitation may cause the phone to become unresponsive unresponsive? and the FUSION Stereo to reset the USB link to the phone. Note: Different operating systems and phones provide varying levels of support for MTP. Please refer to www.fusionelectronics.com for device compatibility information.
-
Page 60: Specifications
SPECIFICA TIONS FCC compliance statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: • this device may not cause harmful interference, and • this device must accept any interference received, including interference that may cause undesired operation. General specifications Operating voltage ........10.2–16 VDC negative ground Fuse rating .............15 amp DVD player Laser power ..........Class I... -
Page 61: Licensing
SiriusXM Trademark of the Radio Inc. All rights National Marine Apple Computer, Inc., reserved. Electronics registered in the US Association, Inc. and other countries. SUPPORT, SALES AND SERVICE FUSION Electronics in New Zealand + 64 9 369 2900 FUSION Electronics Australia + 61 1300 736 012 FUSION Electronics Europe +31 76 572 3632 FUSION Electronics USA +1 623 580 9000 Website: www.fusionelectronics.com... -
Page 62: Index
................................See keys control panel, layout ................................. 5 control screens, opening ............................... 8 FUSION-Link ..................................25 infrared remote control .............................. 27 wired remote control ..............................30 display screen brightness, adjusting ........................14 docking unit, for iPod or USB flash drive ......................42... - Page 63 700 Series ........................... 26 FAST menu search feature on iPod ........................23 FUSION-Link control system ............................ 25 gain value, adjusting for auxiliary input ......................44 infrared (IR) remote control ............................27 installing the 700 Series .............................. 34 iPod compatibility................................... 1 controlling playback ..............................
- Page 64 scan mode, tuning on............................... 19 settings AM/VHF sources, enabling/disabling ......................53 clock time, setting ................................ 44 key sound (beep) enable/disable ......................... 51 language for menu display, changing ......................51 power save option ................................. 51 sub filter, setting ................................51 tel mute setting ................................52 tuner region, setting ..............................52 VHF region, setting..............................
- Page 65 USB flash drive controlling playback ..............................22 format information ................................. 1 listening to your music .............................. 19 preparing for input ..............................39 selecting audio tracks ..............................21 settings, changing ................................ 24 background noise, minimizing ..........................18 region, setting ................................. 52 scan mode, turning on ...............................
- Page 66 NOTES ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 67 © Copyright 2013 by FUSION Electronics Limited. All rights reserved. Product specifications, design and prices are subject to change without notice. Product availability may vary between sales regions. “Made for iPod,” “Made for iPhone,” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note...
- Page 68 Specifications and design are subject to change without notice P/N MAN000001G...
