OPERATION

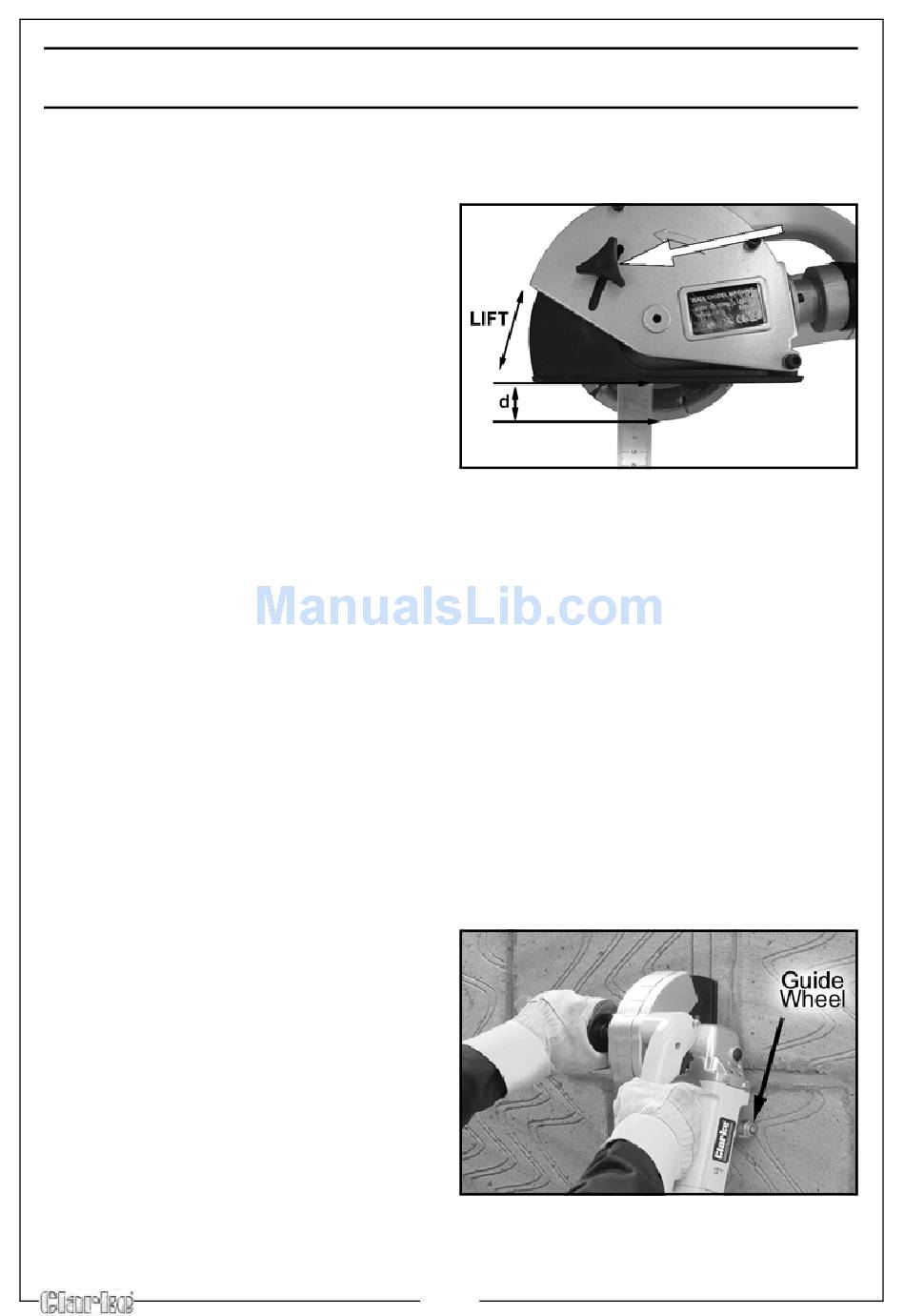

ADJUSTING THE CUTTING DEPTH

1. Loosen the depth adjustment
knob.
2. Raise/lower the baseplate.
3. Use a ruler as shown to measure
the depth of the blade (d).
4. Tighten the depth adjustment
knob.
NOTE: The depth of cut should be
3mm deeper than the
required slot depth, this is to compensate for any inaccuracies
when you break away the resulting fin after cutting.
SWITCHING ON / OFF
• To switch on the wall chaser, press the on/off switch
• To switch off the wall chaser, release the on/off switch

USING THE WALL CHASER

• Slots in structural walls are subject to the Standard DIN1053 Part1, or
country-specific regulations. These regulations are to be observed
under all circumstances.
• The permitted slot depth and width depends on the slot length, wall
thickness and the building material used.
1. Mark the surface to be worked.
2. Keep the wall chaser in an upright
position.
3. Move the wall chaser across the
surface using the guide wheel.
4. Move at a constant speed, do not
force the wall chaser.
5. Remove the remaining material
using the breakout chisel
supplied.
10
