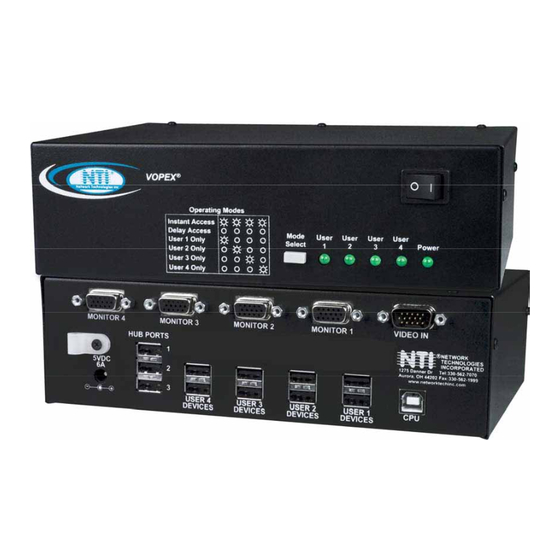

- Page 1 ® VOPEX Series VOPEX-USBV-2/4 USB Keyboard, Video, and Mouse Splitter/Hub Installation and Operation Manual Front and Rear View of VOPEX-USBV-4 MAN034 Rev Date 12/16/2010...
- Page 2 Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION................................1 LIMITATIONS .................................. 1 MATERIALS ..................................1 FEATURES AND FUNCTIONS............................2 INSTALLATION................................3 Monitor Connection..............................3 Mouse Connection............................... 3 Keyboard Connection ..............................3 CPU Connection ................................4 Hub Ports ..................................4 Power-Up ..................................4 OPERATION ................................... 5 Keyboard Command Mode............................ -
Page 4: Introduction
INTRODUCTION The VOPEX-USBV-2/4 (VOPEX) is a USB KVM Splitter and 3-Port Hub. It enables the control of one USB enabled CPU through two (or four) separate USB keyboards, USB mice, and VGA monitors and it enables the connection of 3 additional USB devices (other than keyboards or mice). -
Page 5: Vopex-Usbv
NTI VOPEX-USBV-2 KVM SPLITTER FEATURES AND FUNCTIONS Power Switch- to power up or power down the VOPEX. Power LED- for visual indication of splitter's power status Mode Status LED’s- for visual indication of splitter's operating mode Mode Switch- press to manually switch between operating modes... -
Page 6: Installation
NTI VOPEX-USBV-2 KVM SPLITTER INSTALLATION FYI: It is not necessary to disconnect power to the CPU and monitor(s) before installation. Monitor Connection Disconnect the monitor cable at the CPU and reconnect it to the "MONITOR 1" port on the VOPEX. (See Fig. 1) Plug a second monitor (or optional VEXT-xx extension cable) into the "MONITOR 2"... -
Page 7: Cpu Connection
NTI VOPEX-USBV-2 KVM SPLITTER CPU Connection Connect the male USB type A connector end of the USB-AB-1M-ST cable into the device port on the CPU. Connect the male USB type B connector of the same cable to the "CPU" port on the VOPEX. -
Page 8: Operation
OPERATION Mode Selection The VOPEX comes equipped with four (VOPEX-USBV-2) or six (VOPEX-USBV-4) modes of operation. To manually toggle between modes, depress the MODE button once each time a mode change is desired. The VOPEX will cycle through the modes of operation, then return to the first mode (1 to 2, 2 to 3, 3 to 4, etc). -
Page 9: Mice And Trackballs With Macs
NTI VOPEX-USBV-2 KVM SPLITTER The following functions exist while in Command Mode: Key Combination Description of Function <X>-<key>-<Y> Select a new key sequence to use to enter Command Mode – Replace <key> with the desired key to follow <Ctrl> with. -
Page 10: Hub Ports
NTI VOPEX-USBV-2 KVM SPLITTER Hub Ports The three connections labeled "Hub Ports" can be used to connect any USB device, such as a printer, scanner, camera, etc. for continuous operation at USB 2.0 compliant (low or full) speeds. These ports are not controlled by the VOPEX. -
Page 11: Troubleshooting
NTI VOPEX-USBV-2 KVM SPLITTER TROUBLESHOOTING PROBLEM SOLUTION • • Keyboard error Check cable connections on CPU and VOPEX • • Mouse not working Check cable connections on CPU and VOPEX • • No Video Make sure a monitor is connected to “MONITOR 1”...
