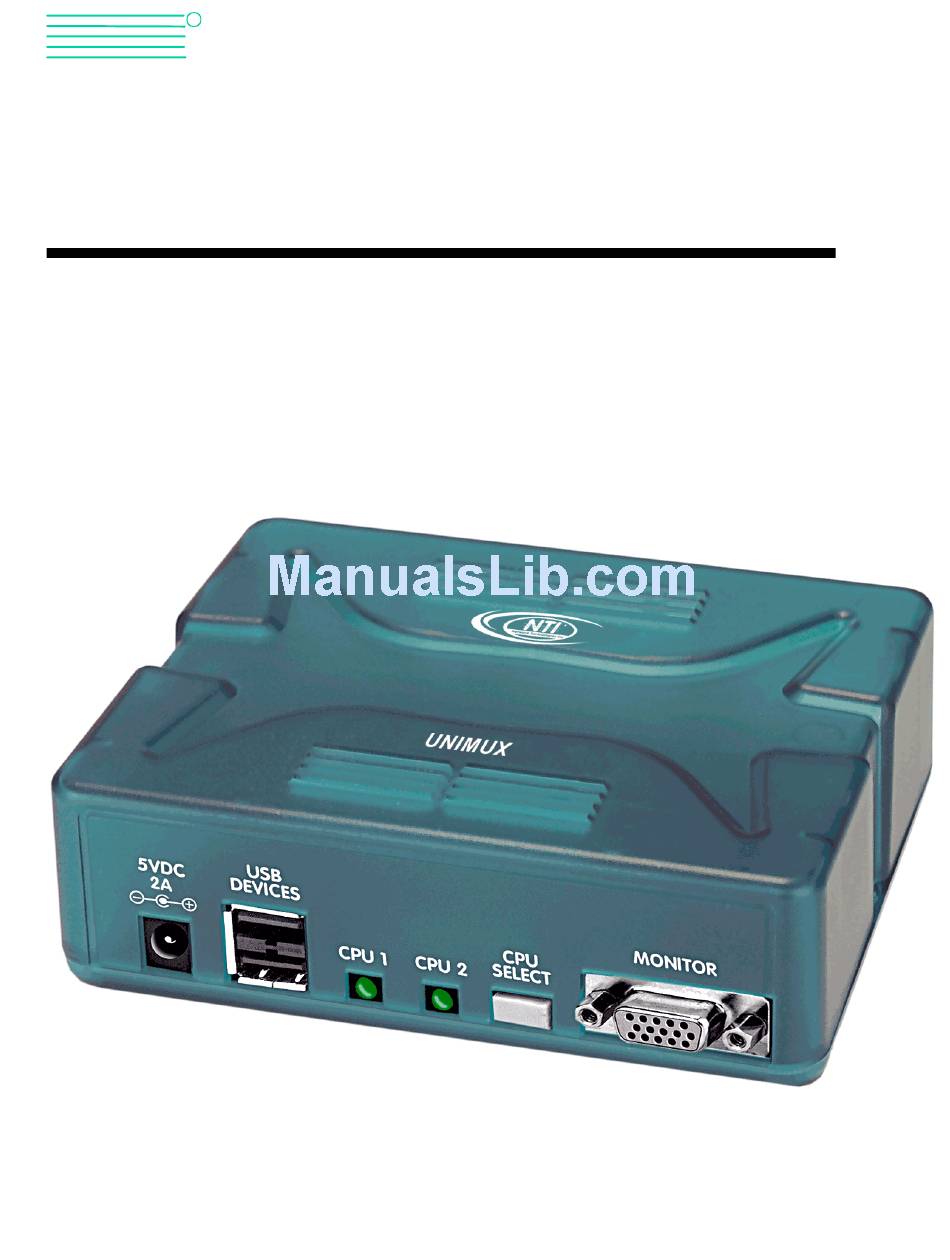

- Page 1 NETWORK Tel:330-562-7070 1275 Danner Dr TECHNOLOGIES Aurora, OH 44202 Fax:330-562-1999 INCORPORATED www.nti1.com UNIMUX-USBV-2 (2-Port USB KVM Switch) INSTALLATION / USER GUIDE MAN027 Rev Date 1/14/2003...
-
Page 2: Table Of Contents
A return authorization number is required for all repairs/returns. COPYRIGHT Copyright © 2003 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,... -
Page 3: Introduction

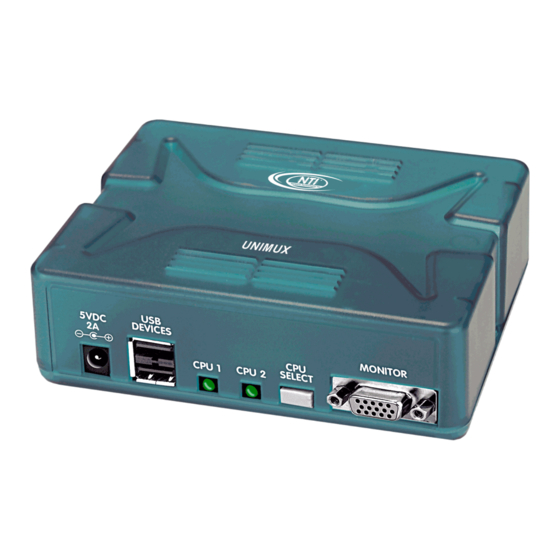

INTRODUCTION INTRODUCTION The UNIMUX-USBV-2 (formerly referred to as KEEMUX-USBV-2U) USB KVM switch allows one user to access two USB CPUs with only one USB keyboard, USB mouse, and 15HD VGA monitor. Internal microprocessors allow both CPUs to boot simultaneously and error-free. Port selection is accomplished by a front panel push button or commands typed on the keyboard. -
Page 4: Features And Functions
N e t w o r k T e c h n o l o g i e s I n c s I n g i e o l o T e c o r k U N I M U X FEATURES AND FUNCTIONS FEATURES AND FUNCTIONS 1. -
Page 5: Installation
INSTALLATION INSTALLATION It is not necessary to turn OFF power to either of the CPUs that will be connected to the UNIMUX-USBV-2 USB KVM switch before connecting or disconnecting any cables. NOTE: If a CPU needs to identify a keyboard, it will be necessary to power ON the CPU after it is connected to the UNIMUX-USBV-2 USB KVM switch and only after the keyboard is connected and the UNIMUX-USBV-2 USB KVM switch is powered ON. - Page 6 Using a VEXT-xx-MM connect the video port of the same USB CPU connected in step 5 to the female 15HD port labeled "VIDEO 1" on the UNIMUX-USBV-2 USB KVM switch . Be sure to tighten the two screws on the cable connector to the UNIMUX-USBV-2 USB KVM switch securely.
-
Page 7: Using The Nti Switch
POWER-UP SEQUENCE The UNIMUX-USBV-2 USB KVM switch can be powered at any time. The CPUs can be powered at any time although if a CPU needs a keyboard and/or mouse at power-ON it should be powered after connecting to and powering-ON the UNIMUX-USBV-2 USB KVM switch. -
Page 8: Command Mode
Default factory-set values for Command Mode entry key, Scan dwell time and country code can be restored by following this procedure: 1. Disconnect power from the UNIMUX-USBV-2 USB KVM switch 2. Press and hold the CPU SELECT button on the switch 3. -
Page 9: Scan Mode
Normal Mode The UNIMUX-USBV-2 USB KVM switch is in Normal Mode when only the LED for the active CPU is illuminated solid (not flashing as in Scan Mode). When in Normal Mode, the user is controlling only the CPU to which the user is connected through the UNIMUX-USBV-2 USB KVM switch. -
Page 10: Keyboard Features
KEYBOARD FEATURES The keyboard configuration of each CPU is saved in the NTI UNIMUX-USBV-2 USB KVM switch. For example, if the CPU attached to Port 2 had CAPS LOCK and NUM LOCK selected the last time that CPU was accessed, then they will automatically be set when that CPU is accessed again. - Page 11 Sun keyboard, follow this procedure: 1. Disconnect the CPU from the UNIMUX-USBV-2 USB KVM switch 2. Connect the international keyboard to be used to the UNIMUX-USBV-2 USB KVM switch 3. Disconnect power to the UNIMUX-USBV-2 USB KVM switch for at least 3 seconds 4.
-
Page 12: Country Codes
It is also possible to configure the UNIMUX-USBV-2 USB KVM switch to emulate a specific international Sun keyboard regardless of what actual keyboard is connected. This is recommended when the CPU needs the layout code (i.e. a SUN CPU) and the keyboard doesn't have an explicit layout code (i.e. some Windows keyboards). To do this, manually set the UNIMUX-USBV-2 USB KVM switch to indicate the international keyboard identification number to the CPU using the following procedure;... -
Page 13: Technical Specifications
• reboot the CPU If the NTI UNIMUX-USBV-2 USB KVM switch still seems work improperly, help may be found in the Frequently Ask Questions (FAQ’s) section of our website at http://www.nti1.com or call us directly at ( 800) 742-8324 (800-RGB-TECH) or... - Page 14 MODEL NO: UNIMUX-USBV-2 SERIAL NO.: DATE: INSPECTED BY:...
