RACKMUX-V15/17-N-PRIMUX

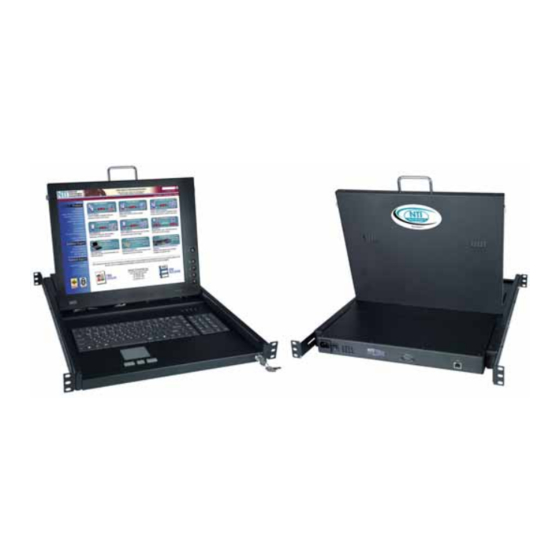

RACKMUX KVM DRAWER WITH PRIMUX

What's in the Box

•
NTI RACKMUX-V15/17-N-PRIMUX
•
Line cord, country specific
•
Terminating Plug (for last Host Adapter in chain)
•
CDROM w/ Owner's Manual and Quick Start Guide (pdf files)
•
This Quick Start Guide

What's also needed (sold separately)

•
NTI Host Adapter(s) HA-PS2 / HA-USB / HA-SUN (see chart on page 4)
•
CAT5/5e/6 unshielded twisted-pair cable(s) terminated with RJ45 connectors wired straight thru (pin 1 to pin 1, etc.)
1275 Danner Dr
Tel:330-562-7070
Aurora, OH 44202
Fax:330-562-1999
www.networktechinc.com
RACKMUX
KVM SWITCH VIA CAT5
Quick Start Guide
(Host Adapter sold separately)
®
