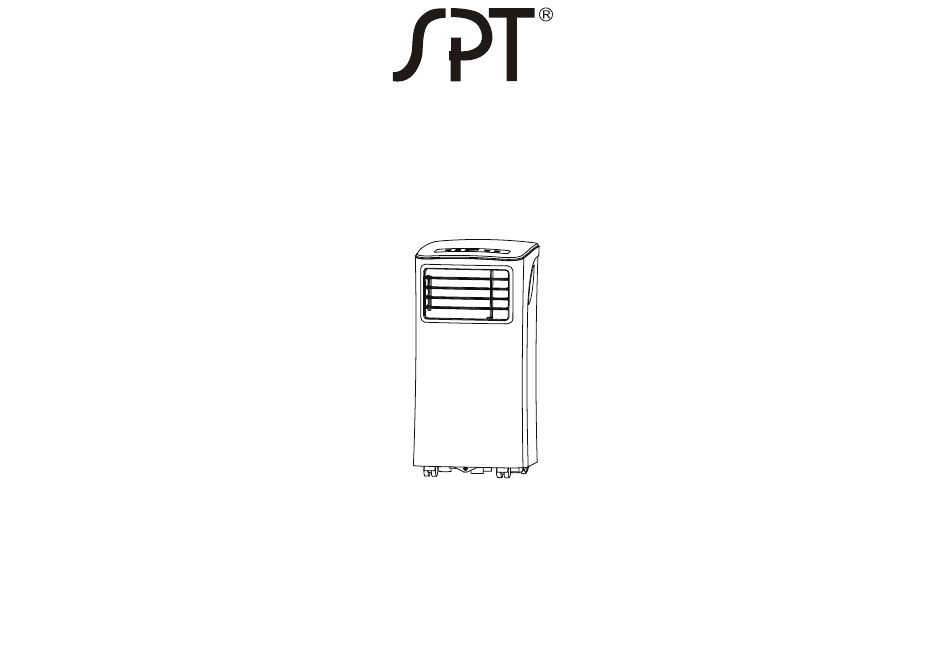

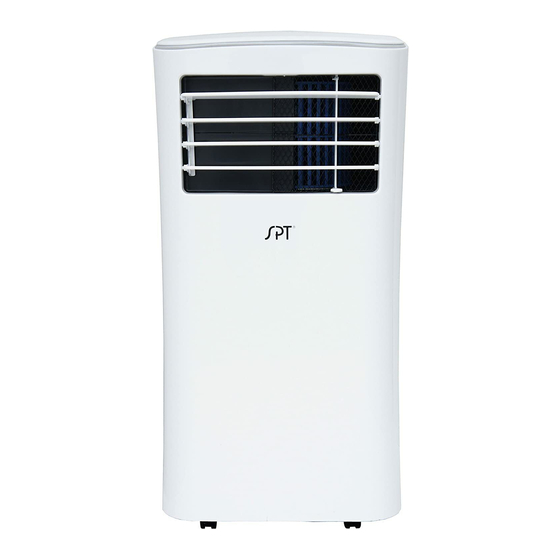

- Page 1 Portable Air Conditioner Instruction Manual WA-1288E Thank you for purchasing our Portable Air Conditioner. Before using your air conditioner, please read this instruction manual carefully and keep it for future reference. READ AND SAVE THESE INSTRUCTIONS!
-
Page 2: Table Of Contents
Contents P a r t s I d e n t i f i c a t i o n - - - - - - - - - - - - - - - - - - - - - S a f e t y P r e c a u t i o n s - - - - - - - - - - - - - - - - - - - - - C a u t i o n s... -
Page 3: Parts Identification
Parts Identification control panel remote signal receptor handle horizontal louver control (both sides) lever(adjust manually) air filter (behind the grille) vertical louver control upper air intake lever(adjust manually) drain outlet Exhaust air outlet lower air intake bottom tray Caster drain outlet f r o n t r e a r... -
Page 4: Safety Precautions
Safety Precautions This symbol indicates that ignoring instructions may cause death or serious injury. WARNING: To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage. -Installation must be performed according to the installation -DO NOT install your air conditioner in a wet room such as instructions. -
Page 5: Cautions
Cautions Cautions -This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play the appliance. Cleaning and user maintenance shall not be made by children without supervision. -
Page 6: Installation
Installation Choosing The Right Location Recommend Installation 50cm 19.7inch Your installation location should meet the following requirements: -Make sure that you install your unit on an even surface to minimize noise and vibration. -The unit must be installed near a grounded plug, and the bottom tray drain outlet (found on the back of the unit) must be accessible. - Page 7 Installation Tools Needed Window Installation Kit -Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors; -Saw (optional, to shorten window adaptor for narrow windows) Step One: Preparing the Exhaust Hose assembly Accessories Press the exhaust hose into the window slider adaptor and unit adaptor, clamp automatically by elastic buckles of the adaptors.
- Page 8 Installation Note: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following two installation methods. Type 1: Hung Window Installation Foam seal B (Adhesive type-shorter) Insert the window slider adaptor Window slider B Window slider A (if required) into the hole of the window slider.
- Page 9 Installation Foam seal C (Non-adhesive type) Security Bracket 2 Screws Cut the non-adhesive foam If desired, install the security seal C strip to match the bracket with 2 screws as shown. window height. Insert the foam seal between the glass and the window frame to prevent air and insects from getting into the room.
-
Page 10: Operation
Operation MODE button Power button Selects the appropriate operating mode. Power switch on/off. Each time you press the button, a mode is selected in a sequence that goes from LED display COOL, FAN and DRY .The mode indicator Shows the set temperature while on cool mode. While on DRY light illuminates under the different mode and FAN modes, it shows the room temperature. -
Page 11: Operation Instructions
Operation Operation Instructions AUTO-RESTART COOL operation If the unit breaks off unexpectedly due to the power cut,it will restart -Press the "MODE" button until the "COOL" indicator light comes on. with the previous function setting automatically when the power -Press the ADJUST buttons "+" or "-" to select your desired room resumes. -
Page 12: Water Drainage
Operation Handling the remote controller Water drainage Location of the remote controller -During dehumidifying modes, remove the drain plug from the back of the unit, install the drain connector(5/8" universal female mender) with Use the remote controller within a distance of 8m (26 ft) from the 3/4"... - Page 13 Operation CAUTION 1. ON/OFF Button Fig.22 - Do not mix old and new batteries of a different type. Power button, press to turn unit ON/OFF. - Remove batteries if the remote controller is not to be used for 2. MODE Button extended period of time.
- Page 14 Operation Transmission Indicator 6. FAN SPEED Button Indicator lights up whenever remote is transmitting signals to the AC unit. Press to select the fan speed in three steps: LOW - MED - HIGH. Mode Indicator 7. TIMER Button Indicates the current operating mode: Used to program TIMER ON or TIMER OFF.
- Page 15 Operation DRY (Dehumidifying) operation Setting the Clock Ensure the unit is plugged in and power is available. Set the clock before you start operating the air conditioner. The clock 1. Press the MODE button to select DRY mode. will be displayed on the remote control panel regardless if air conditioner 2.
- Page 16 Operation Examples of Timer Setting COMBINED TIMER (Timer-Off -> Timer On) TIMER-ON: this feature is useful when you want the This feature is useful when you want the unit to stop unit to automatically turn on at a certain time (like after you go to bed and to start again in the morning before you return home from work).
-
Page 17: M A I N T E N A N C
Maintenance Clean the Unit WARNING: Clean the unit using a damp, lint-free cloth and mild detergent. Dry the -Always unplug the unit before cleaning or servicing. unit with a dry, lint-free cloth. -DO NOT use flammable liquids or chemicals to clean the unit. -DO NOT wash the unit under running water. -
Page 18: T R O U B L E S H O O T I N
Troubleshooting Please check the machine according to the following form before asking for maintenance: Problem Troubleshooting Possible Cause The Bottom Tray is full. P1 Error Code Turn off the unit, drain the water Unit does not turn from the Bottom Tray and restart the unit. on when pressing ON/OFF but ton... -
Page 19: D E S I G N A N D C O M P L I A N C E N O T E
Design and Compliance Notes Design Notice Exhaust hose installation The exhaust hose and adaptor must be installed or In order to ensure the optimal performance of our products, the design specifications of the unit and remote control are subject removed in accordance with the usage mode. to change without prior notice. -
Page 20: W A R R A N T
WARRANTY Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: •... - Page 21 CP027IU-PH(US)XBDOE...
