05-03-457 A029-OK.PDF

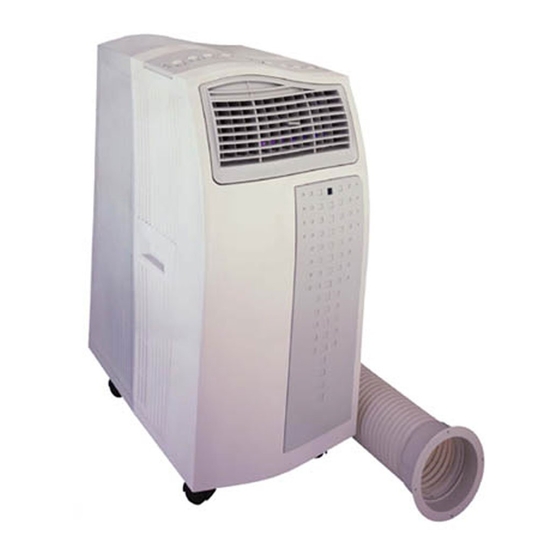

Instruction Manual
P O R T A B L E
Air Conditioner
Model No.
Model No.
Sales: 800-934-9194
WA-1300E Model No. WA-1310E
WA-1300H Model No. WA-1310H
It is important that you read these
instructions before using your new
purchase and we strongly
recommend that you keep them in a
safe place for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SPT WA-1300E
Summary of Contents for SPT WA-1300E
-
Page 1: Air Conditioner
05-03-457 A029-OK.PDF Instruction Manual P O R T A B L E Air Conditioner Sales: 800-934-9194 Model No. WA-1300E Model No. WA-1310E Model No. WA-1300H Model No. WA-1310H It is important that you read these instructions before using your new purchase and we strongly recommend that you keep them in a safe place for future reference. -
Page 2: Table Of Contents
05-03-457 A029-OK.PDF TABLE OF CONTENTS THANK YOU ENERGY SAVING TIPS………..……………………………………………….. 2 SPECIFICATIONS..……………………………………………………………….3 BEFORE USE……….……………………………………………………………. 4 PARTS………..…………………………………………………………………….5 INSTALLATION.…………………………………………………………………...6 MOUNTING OF THE EXHAUST PIPE ………………………………………... 7 INSTALLATION OF THE CARBON FILTER…………………………………... 8 OPERATION ……………………………………………………………………… 9 NOTICE.…………………………………………………………………………..12 DRAINAGE………………………………………………………………………. 13 MAINTENANCE…………………………………………………………………. 15 TROUBLE SHOOTING…………………………………………………………. 16 DEFECTIVE NOTICE…………………………………………………………... -
Page 3: Thank You
05-03-457 A029-OK.PDF THANK YOU Thank you for choosing the portable air conditioner from SPT , a leading brand in indoor air treatment. We would like you to enjoy the many benefits this unit offers, so please take the time to read this manual carefully and take full advantage of the many advanced features that your SPT Conditioner offers you. -
Page 4: Specifications
05-03-457 A029-OK.PDF SPECIFICATION WA-1300E WA-1300H Model no. WA-1310E WA-1310H Cooling capacity 13000 BTU/hr 13000 BTU/hr 13000 BTU/hr Heating capacity Power/Ampere 1071W/ 9.4A 1071W/ 9.4A consumption for cooling* Power/Ampere 1071W/ 9.4A consumption for heating* Air volume (max. speed) 580m 580m 98 Pts/day 98 Pts/day Humidity removal capacity Recommended room size... -
Page 5: Before Use
05-03-457 A029-OK.PDF BEFORE USE Important! Transport the unit in an upright position only or leave in upright position for at least 2 hours before use. Keep at least 20 inches away from the wall. (Figure 1 & 4) Always place the unit on an even surface. Make sure the unit is connected to a correctly grounded power supply (refer to the rating label located at the back of the unit). -
Page 6: Parts
05-03-457 A029-OK.PDF PARTS Front Back FIG. 5 FIG.6 1. Control Panel 5. Air filter 2. Air outlet 6. Air inlet 3. Carrying handle 7. Exhaust air outlet 4. Caster 8. Water stopper / drainage point 9. Cord storage Accessories 10. Inward adaptor - for insertion over hose and connect to back of the air conditioner. -
Page 7: Installation
05-03-457 A029-OK.PDF INSTALLATION EXHAUST PIPE INSTALLATION The unit is a portable air conditioner that may be moved from room to room. 1. Using the foam strips / Window installation Used to cover the window gap and can be cut to size if necessary. Foam strips FIG.8 •... -
Page 8: Mounting Of The Exhaust Pipe
05-03-457 A029-OK.PDF Mounting of the exhaust pipe • Use only the hose provided. Attach hose to back of unit by connecting the adaptor. • Avoid kinks and sharp bends in the exhaust hose as this will cause expelled moist air to build up and the unit will overheat and shut FIG.11 down. -
Page 9: Installation Of The Carbon Filter
05-03-457 A029-OK.PDF Installing the Carbon Filter 1. Remove the filter frame from the unit. 2. Unclip and remove one side of the frame. 3. Remove the active carbon filter from its plastic bag. 4. Insert the active carbon filter into the filter frame. -
Page 10: Operation
05-03-457 A029-OK.PDF OPERATION Control panel FIG.17 1. Automatic mode indicator 14. UV-Tio2/Ionizer switch (only for models 2. Cooling mode indicator with UV-Tio2 or Ionizer function) 3. Fan mode indicator 15. Sleep function button 4. Heating mode indicator (for cool & heat 16. -
Page 11: Auto Mode
05-03-457 A029-OK.PDF Auto Mode When this mode is selected, the unit is preset to the following temperature settings and unit will only start to: Cool when room temperature is higher than 75°F Heat when room temperature is lower than 68°F (WA-1300H &WA-1310H models only) If room temperature is between 68°F and 75°F, unit will stay in Fan mode. -
Page 12: Setting Timer
05-03-457 A029-OK.PDF Setting ventilation speed Press SPEED button to choose the desired ventilation speed: High, Medium or Low. The indicator respective speed will light on at the same time. If the unit is in AUTO mode, it will choose the ventilation speed automatically according to the ambient temperature (the related indicators will light on), at this time, this button is invalid. -
Page 13: Notice
05-03-457 A029-OK.PDF Regulating air flow direction Adjust louver on the air vent horizontally to control air flow direction. FIG. 19 NOTICE ! The compressor will start approximately 3 minutes after the compressor is turned off (this will help prolong the life of the compressor). After switching the unit off, please wait at least 3 minutes before turning the unit back on. -
Page 14: Drainage
05-03-457 A029-OK.PDF DRAINAGE During the process of cooling or heating, some water will be extracted from the air. Most of this water is used to cool the cooling coils and make the unit run more efficiently. This is a feature not found in most other portable air conditioners. - Page 15 05-03-457 A029-OK.PDF Original drain NOTE Extended The drain tube must be at or below the drain tube outlet level. (OD: 3/4in) Water Full (full water) indicator will not FIG.23 function in this mode of drainage. If you wish to extend the water tube, please connect with another tube (outside diameter 3/4").
-
Page 16: Maintenance
05-03-457 A029-OK.PDF .MAINTENANCE Always unplug the unit before cleaning and maintenance. Cleaning the Housing Use a soft, damp cloth to wipe the body clean. Never use strong chemicals, oil-based products, detergents, chemically treated cloths or other cleaning solutions. These could possibly damage the cabinet. Cleaning the Filter First remove the black active carbon filter from the frame, tap lightly to remove loose dust and dirt. -
Page 17: Trouble Shooting
05-03-457 A029-OK.PDF .TROUBLE SHOOTING Is the machine plugged in? Is the main power supply on? Is room temperature within working The unit doesn’t run or only runs in fan temp range? mode Is unit set in Auto mode? Select Cool or Heat mode and set to proper temperature. -
Page 18: Defective Notice
05-03-457 A029-OK.PDF .DEFECTIVE NOTICE If this product is defective or not working properly Please DO NOT return to your retail store Please contact us directly with any Service or Technical Assistance Contact us toll free at: 1-800-330-0388 Sales: 800-934-9194 REPLACEMENT FILTERS: To purchase Replacement Filters for this unit, contact SPTUSA at 1-800-330-0388 and request model number WA-1300F. -
Page 19: Guarantee
All replacement parts or units will be new or reconditioned. Parts or units, which are replaced, become the property of SPT The warranty applies to the use of this product in the United States. Freight charge is not included in the warranty. -
Page 20: Safety Power Supply Cord
05-03-457 A029-OK.PDF SAFETY POWER SUPPLY CORD: This Portable Air Conditioner is provided with a Leakage Current Detection and Interruption circuit (LCDI) built into the plug of the power supply cord. This device provides protection to reduce the risk of fire due to arcing faults in the power-supply cord.
