GET TO KNOW YOUR PRINTER, cont'd.
The paper stock compartment becomes accessible when the
right-hand and front doors are swung open. Although the printer
is operable when the doors are left opened or completely
removed, you are strongly recommended to keep them closed
during normal operation, so as to prevent the printer mechanism
from being exposed to dust.

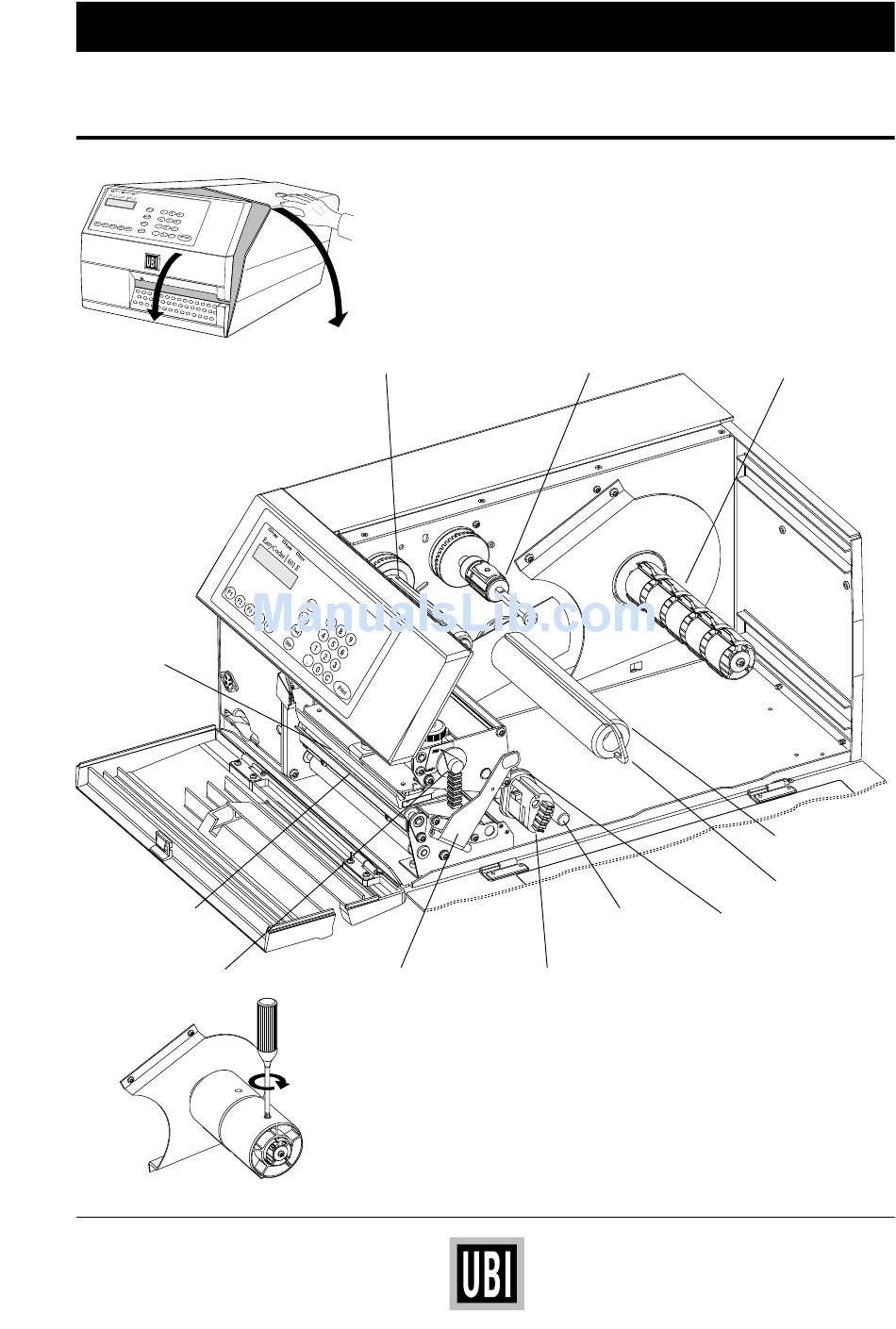

Transfer Ribbon Supply
Paper Supply Spool
Transfer Ribbon Take-Up
Thermal
Printhead
Backing Paper
Take-Up
Clip
Dispenser Edge
Guide Ring
Guide
Shaft
Printhead Lift Knob
Locking Arm Slack Absorber
Two adapters for 76 mm (3") paper roll cores are included in the
delivery and can be fitted on the paper supply spool.
Lock each adapter by means of the screw, making sure that the
screw hits the evenly rounded plastic surface, rather than the leaf
spring or the cam.
