The paper stock compartment becomes accessible when the
right-hand and front doors or cutter are swung open. Although
the printer is operable when the doors are left opened or
completely removed, you are strongly recommended to keep
them closed during normal operation, so as to prevent the printer
mechanism from being exposed to dust.
Paper Supply Spool
Slack Absorber
Thermal
Printhead
Paper Cutter
(incl. LTS)
Tear-Off Edge

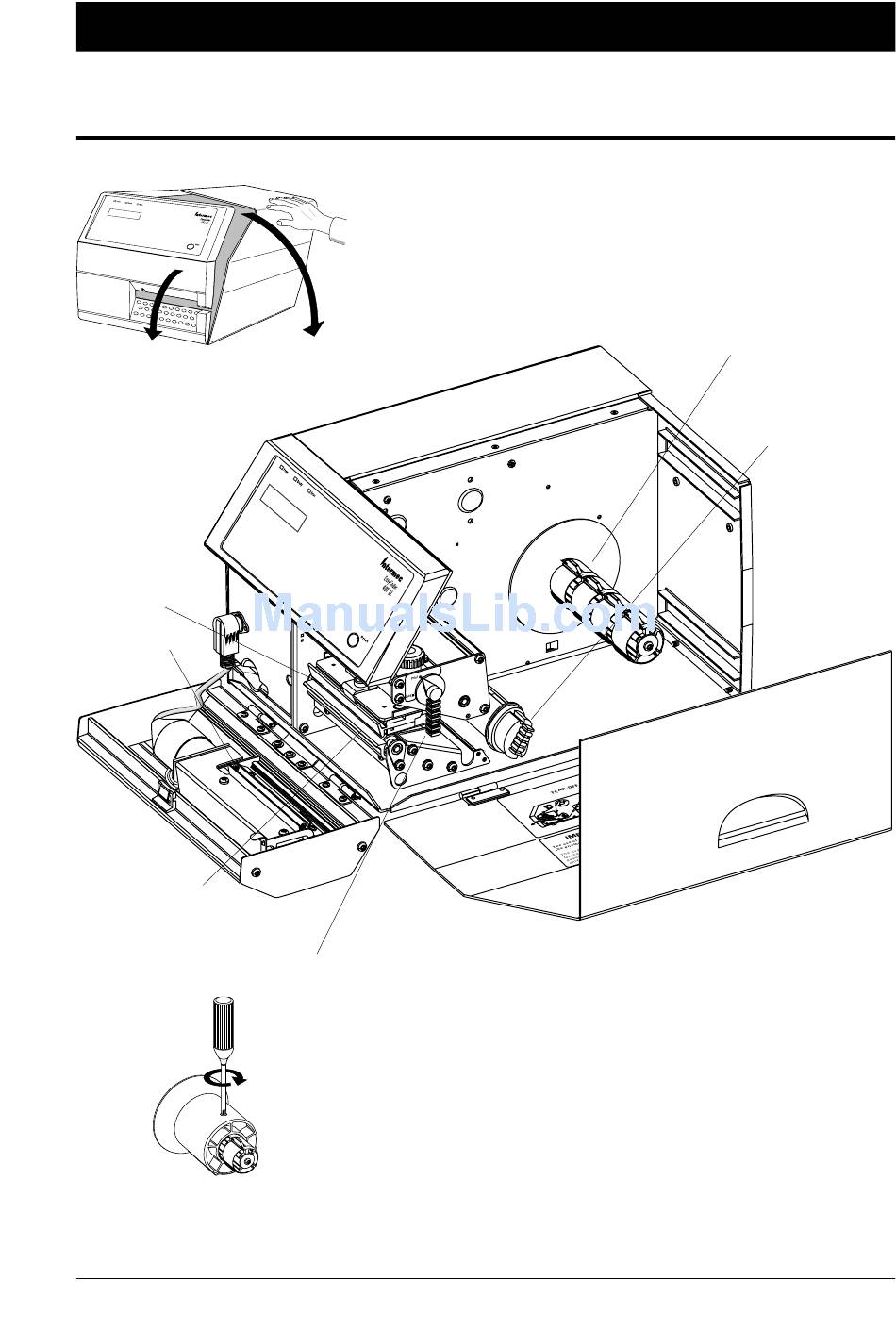

This illustration shows an EasyCoder 401 LLC printer.
Printhead Lift Knob
An adapter for 76 mm (3") paper roll cores is included in the
delivery and can be fitted on the paper supply spool.
Lock the adapter by means of the screw, making sure that the
screw hits the evenly rounded plastic surface, rather than the leaf
spring or the cam.
