UBI EasyCoder 601 E – User's Manual

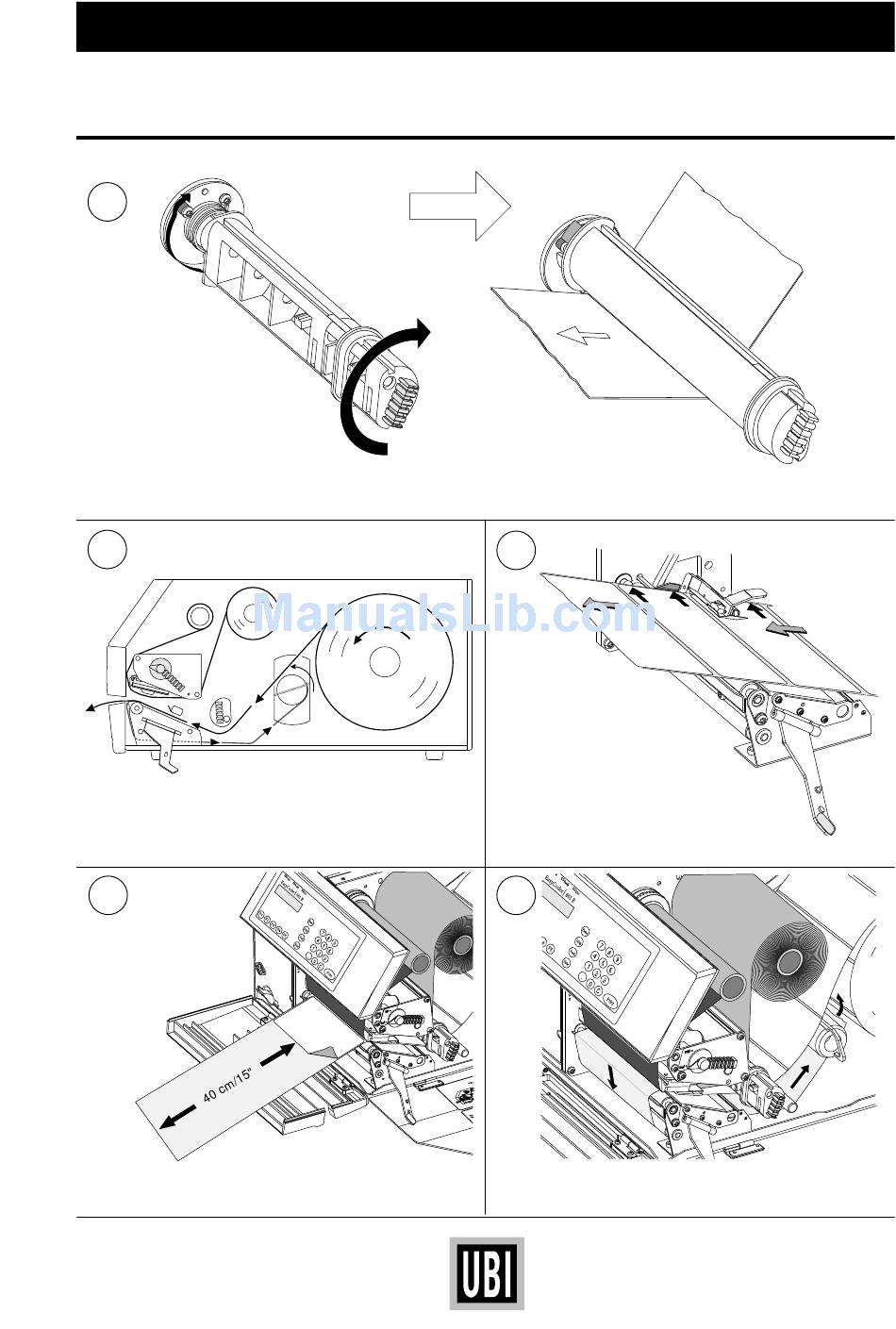

PAPER LOAD – PEEL OFF, cont'd.
7
Rotate the label slack absorber 180˚ clockwise to open position (snap-lock). Then thread the label web underneath the
8
This diagram shows the path of the label web and the
backing paper.
10
Pull out approx. 40 cm (15") of label web and remove the
labels from the backing paper.
slack absorber and under the guide plate of the label stop sensor.
9
Push the label web inwards as far as it will go.
11
Thread the backing paper around the print roller and
dispenser edge and rearwards under the print unit.
