UBI EasyCoder 601 E – User's Manual

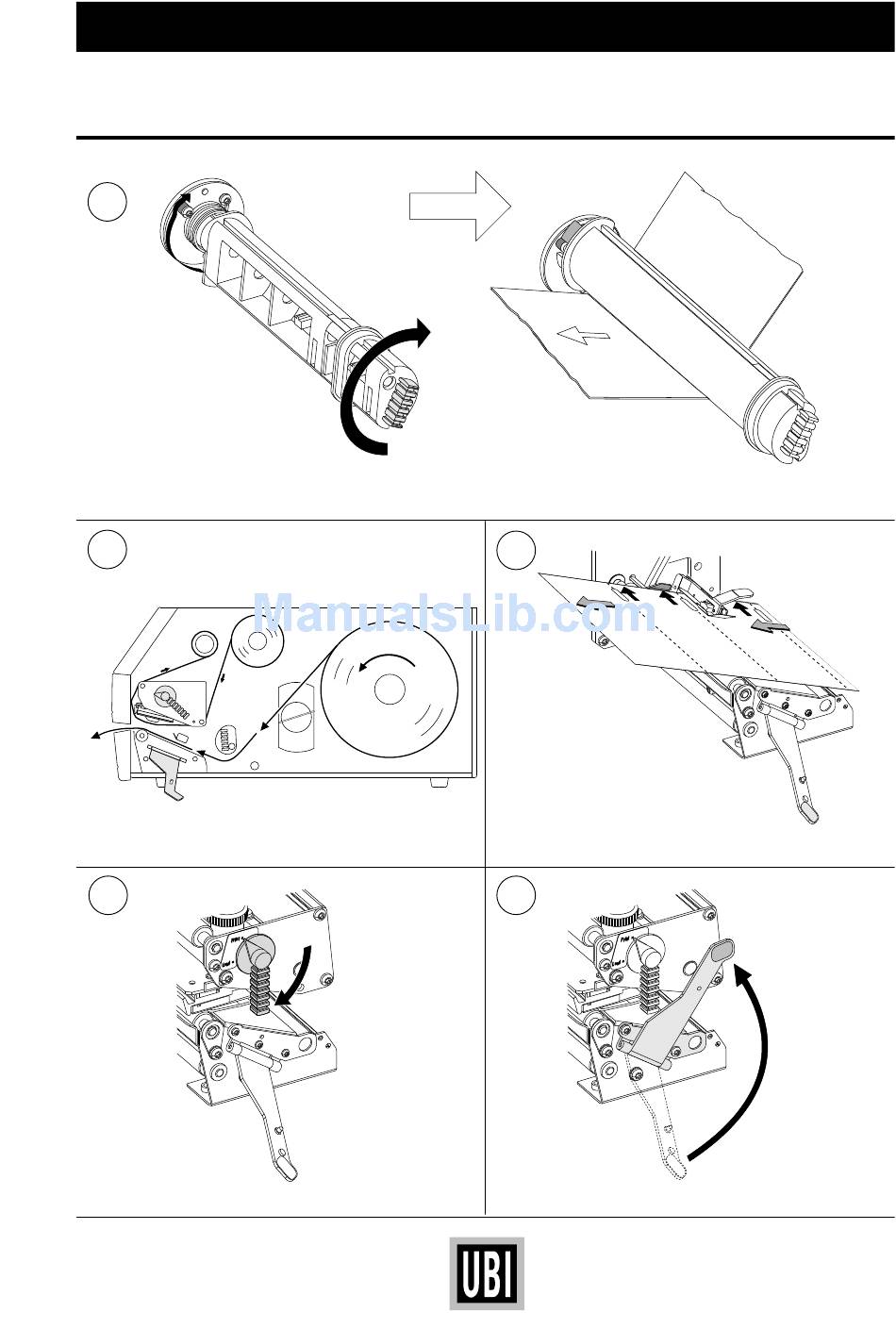

PAPER LOAD – TEAR OFF, cont'd.
6
Rotate the label slack absorber 180˚ clockwise to open position (snap-lock). Then thread the paper underneath the
slack absorber and under the guide plate of the label stop sensor.
7
8
This diagram shows the path of the paper web.
Push the paper inwards as far as it will go.
9
10
Turn the printhead lift knob to "Print" position.
Return the locking handle to closed position.
