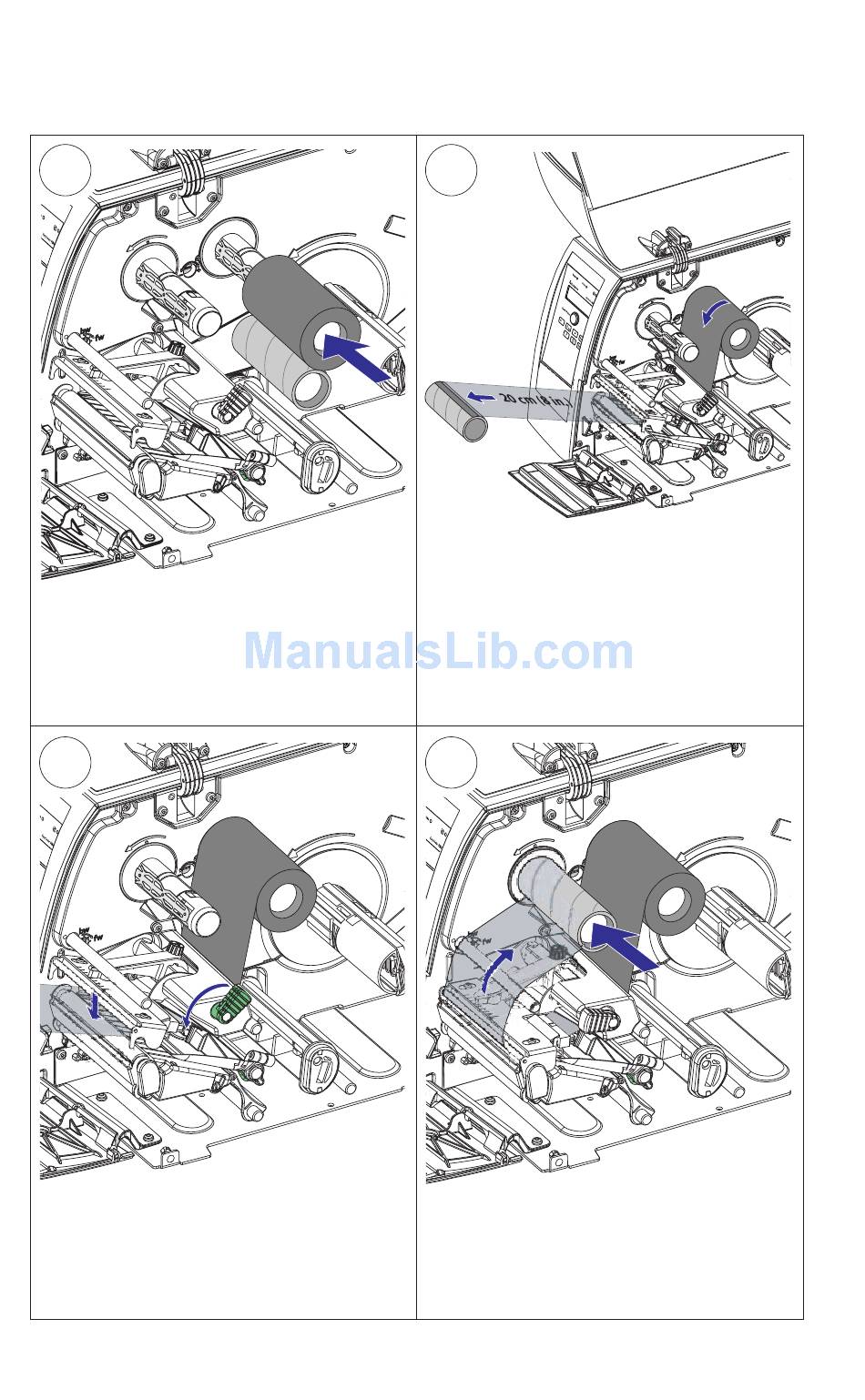

Chapter 5—Thermal Transfer Printing
Ribbon Load, cont.
5
Slide the ribbon roll onto the supply hub
so the ink-coated side faces down when
the ribbon is routed through the print
mechanism.
7
Without releasing the ribbon, turn the
printhead lift lever counterclockwise
to engage the printhead and lock the
ribbon.
38
6
Route the ribbon through the
print mechanism underneath the
transparent upper LSS guide and pull
out approximately 20 cm (8 inches) of
ribbon leader.
8
Slide the empty cardboard core onto
the ribbon rewind hub so the ribbon
is wound up when the hub rotates
counterclockwise.
