Chapter 4—Media Load

Rotating Media Supply

The EasyCoder PM4i can, as an alternative to the standard media
supply roll post, use an optional rotating media supply hub, regardless of
tear-off, cut-off, or peel-off operation.
The rotating media supply hub can be supplemented by an adapter for
media rolls with a 76 mm (3 inches) core, a media roll retainer which
prevents the media roll from uncoiling, and a paper low sensor, that can
detect when the remaining supply of media reaches a predetermined
level. Also refer to Chapter 6, "Setting Up the Printer" and Chapter 8,
"Options."
Media loading correponds to the use of a media supply roll post, but the
media roll needs to be pressed sideways onto the hub, making sure that it
becomes fl ush with the disc at the inner end of the hub.

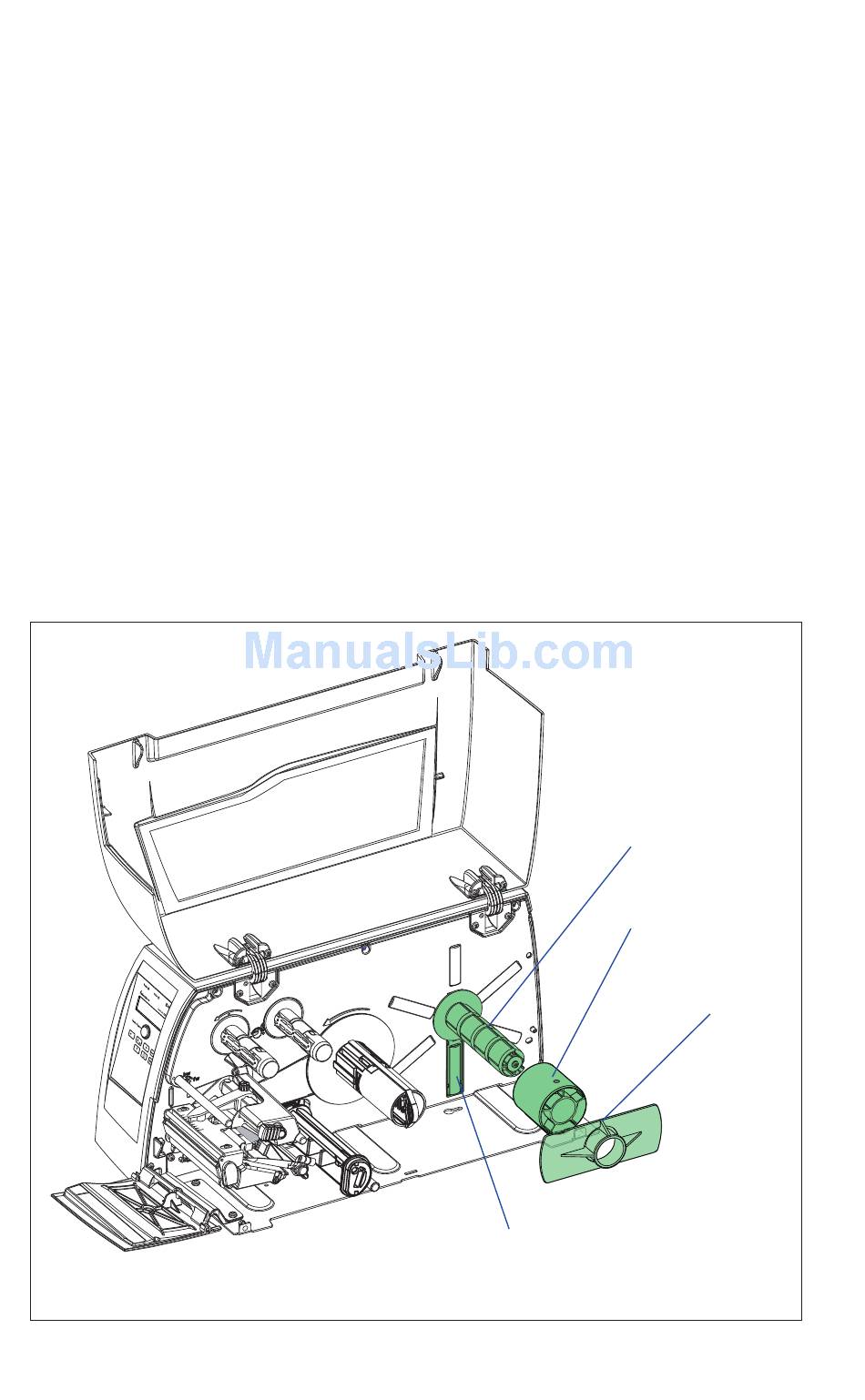

This illustration shows the various options used with the rotating media supply hub.
34 Intermec EasyCoder PM4i—User's Guide (IPL version)
Rotating hub
3-inch adapter
Paper sensor
Retainer
