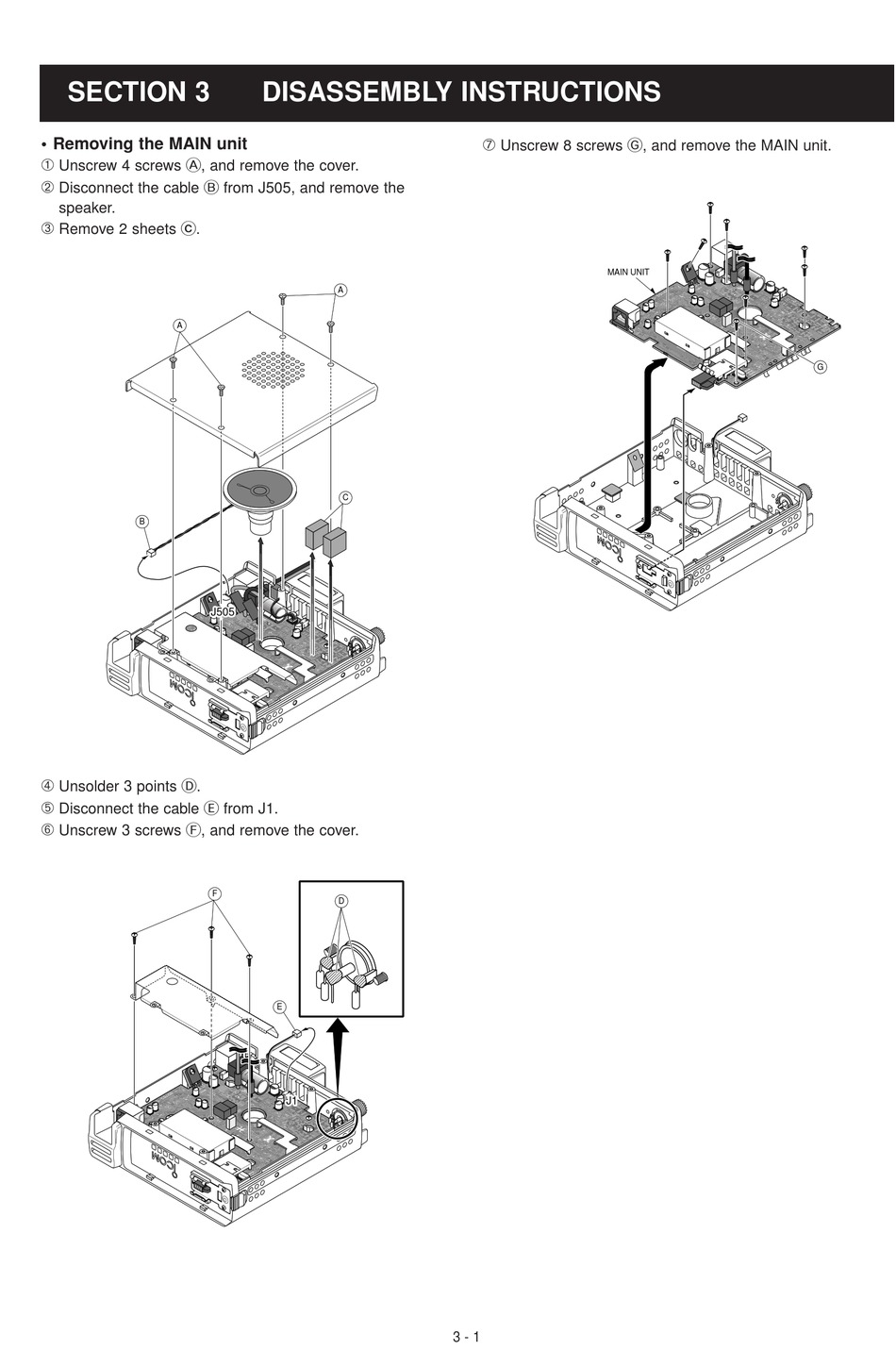

SECTION 3
• Removing the MAIN unit
Unscrew 4 screws A, and remove the cover.
Disconnect the cable B from J505, and remove the
speaker.
Remove 2 sheets c.
A
B
J505
J505
Unsolder 3 points D.
Disconnect the cable E from J1.
Unscrew 3 screws F, and remove the cover.
F
DISASSEMBLY INSTRUCTIONS
A
C
D
E
J1
J1
Unscrew 8 screws G, and remove the MAIN unit.
MAIN UNIT
3 - 1
G
