Icom IC-208H Service Manual page 44

Vhf/uhf fm transceiver
Hide thumbs Also See for IC-208H:
Table of Contents

Advertisement

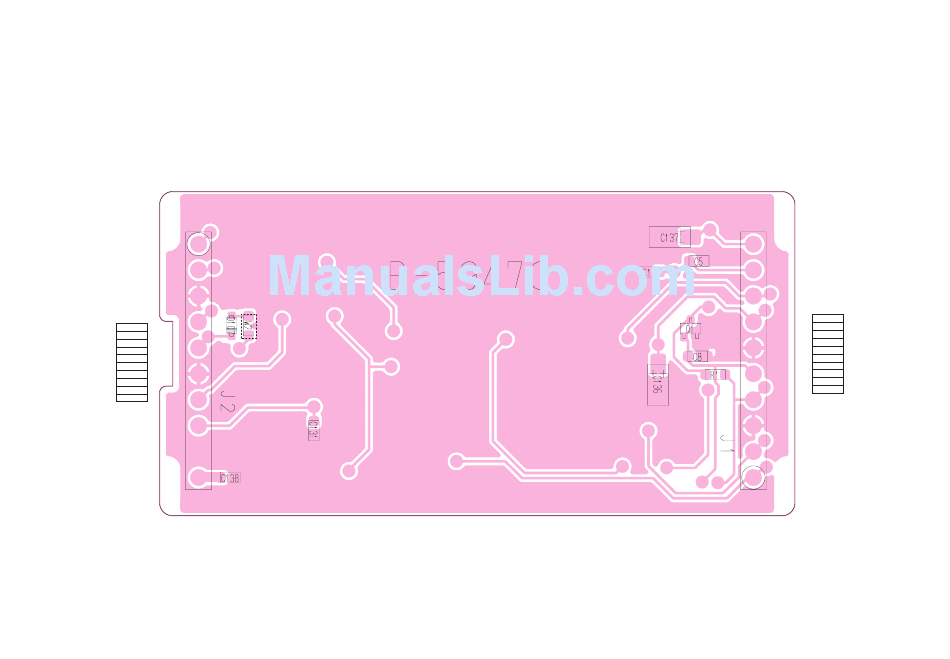

• BOTTOM VIEW (VCO BOARD)
J2
1
V_TXLO
V_RXLO
GND
U_TXLO
U_RXLO
GND
UR5
800R5
GND
PLLOUT
10
to MAIN unit
*Mounted R128 in place of W2 ([USA], [E208] only)
*
J1
1
V_LV
V_VCO8
VCO_SHIFT
U_LV
GND
MMUTE
MOD
GND
U_VCO8
10
8V
to MAIN unit
9 - 6
