Pro-Form XP200 User Manual page 6

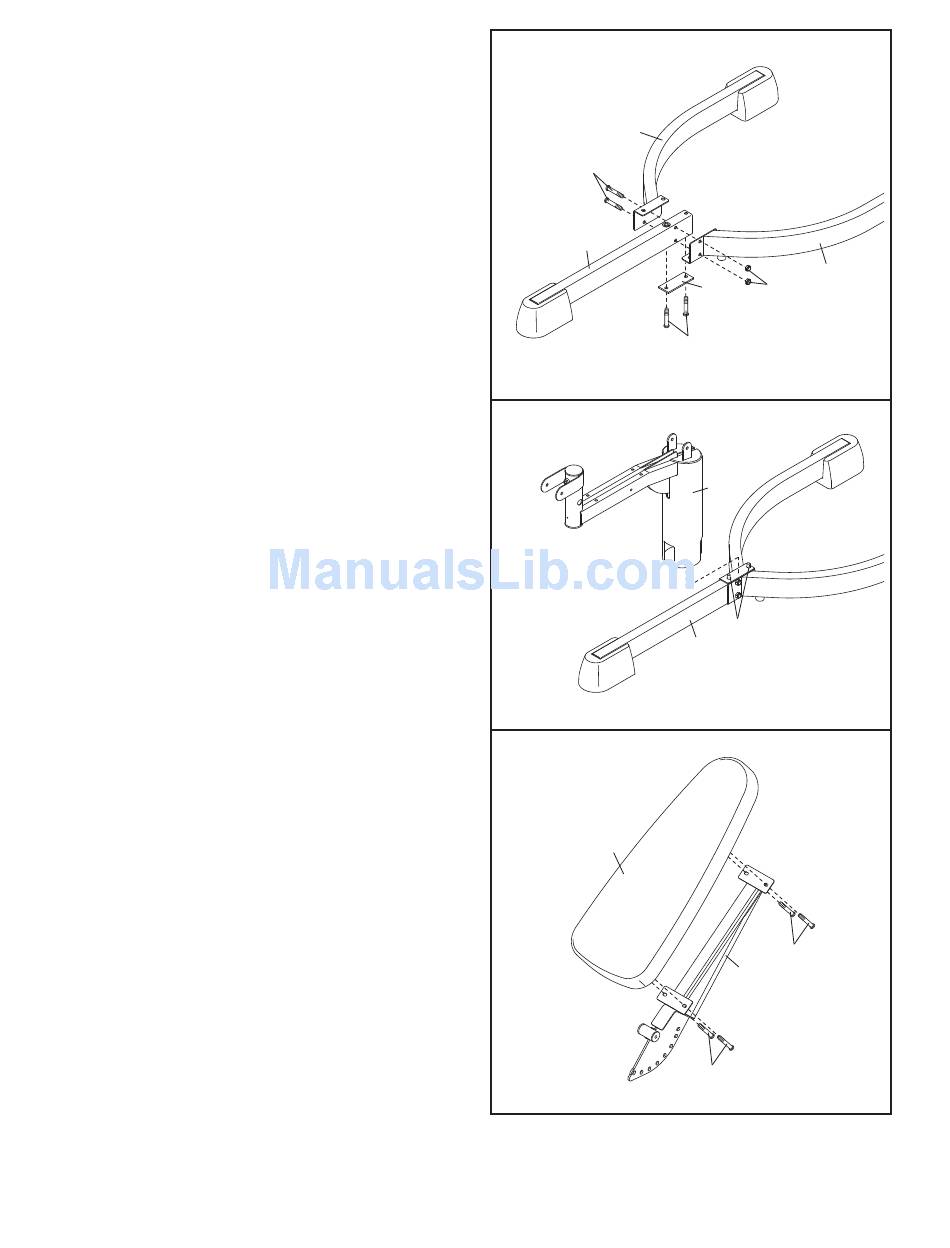

3. Insert two M10 x 100mm Screws (45) up through
the Base Plate (34), the Seat Base (1), and the
Right and Left Seat Bases (2, 3).
Attach the Right and Left Seat Bases (2, 3) to the
Seat Base (1) with two M10 x 58mm Button Bolts
(48) and two M10 Nylon Locknuts (74).
4. Attach the Seat Frame (5) to the Seat Base (1)
with the indicated two M10 x 100mm Screws (45).
5. Attach the Backrest (11) to the Backrest Frame
(8) with four M6 x 15mm Button Screws (40).
3
2
48
1
4
5
11
6
3
74
34
45
5
45
1
40
8
40
