Page 1: User Manual
Microflex Wireless Series ® User Manual ©2014 Shure Incorporated 27WG20831 (Rev. 3) -
Page 2: Important Safety Instructions
This symbol indicates that dangerous voltage constituting a risk of conve- electric shock is present within this unit. • Do not charge or use battery packs with other than specified Shure conve- This symbol indicates that there are important operating and mainte-... -
Page 3: Table Of Contents
Hardware Description Advanced Setup Access Point Transceiver (APT) Software Audio Network Interface (ANI) Networked Charger (NCS) Shure Web Device Discovery Application Microphone Transmitters MXW System Control Software Rechargeable Batteries Control Software for the MXW Audio Network Interface Dante Software by Audinate... -
Page 4: System Overview

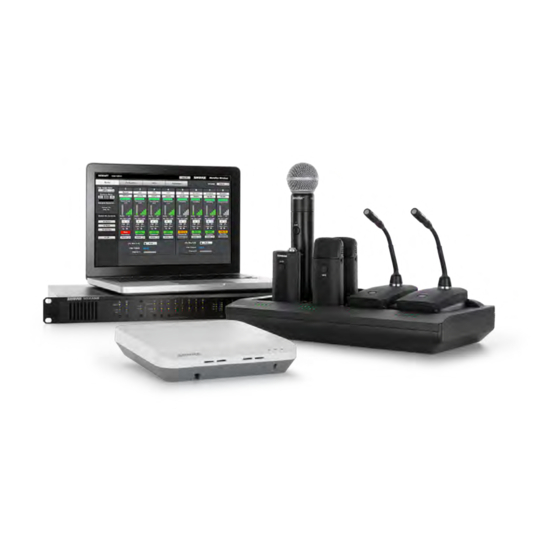

System Overview ■ General Description ■ Features Legendary Shure Quality Advanced Networking and Control ■ Component Overview Microphone Transmitters Access Point Transceiver (MXWAPT4, MXWAPT8) Audio Network Interface (MXWANI4, MXWANI8) Networked Charging Station (MXWNCS4, MXWNCS8) MXW Control Software ■ Basic System Concepts... -
Page 5: General Description
Lithium-Ion chemistry and intelligent Shure circuitry results The MXW Series uses automatic frequency coordination to quickly set up all of the microphones and achieve reliable, uninterrupted wireless in a rechargeable battery with no memory effect. -
Page 6: Component Overview
MXW System control software, used for Handheld (MXW2) monitoring, configuration, and remote control of The handheld enables presenters to the system. communicate using legendary Shure SM58, SM86, BETA58 and VP68 microphone cartridges. Desktop Gooseneck Base Boundary (MXW6/C, MXW6/O) Important: Microphones (MXW8) occupy two charging slots. -
Page 7: Basic System Concepts
| hold to mute Technology Overview of the Audio Path The MXW System combines Shure's legendary audio quality with advanced digital networking technology. The following is an overview of the audio path: Wireless Audio Digital Audio Network... -
Page 8: Hardware Description
Hardware Description ■ Access Point Transceiver (APT) Directional Antennas ■ Audio Network Interface (ANI) Front Panel Back Panel ■ Networked Charger (NCS) Connecting Microphones ■ Microphone Transmitters Description Microphone Transmitters Hybrid Bodypack (MXW1) Handheld (MXW2) Boundary (MXW6/C, MXW6/O) Desktop Gooseneck Base (MXW8) ■... -
Page 9: Access Point Transceiver (Apt)
Hardware Description Access Point Transceiver (APT) Directional Antennas The access point transceiver is the hub of the audio signal flow and manages the RF stability of each microphone in the group. The APT performs the following functions: The access point contains multiple directional antennas to provide steady, reliable wireless communication with •... -
Page 10: Audio Network Interface (Ani)
Hardware Description Audio Network Interface (ANI) The ANI performs the following functions: • Converts digital audio from the network into analog audio to connect to a sound reinforcement system or recording device • Four-port gigabit switch can connect an entire MXW system (up to eight channels) and power the MXW access point •... -
Page 11: Back Panel
Port 4 • Uplink Mode: only transports control data. This • On = network link established (Uplink) mode blocks network audio and data for Shure Web • Flashing = network link active Discovery Application, Dante Controller and Dante Virtual Soundcard. -
Page 12: Networked Charger (Ncs)
Hardware Description Networked Charger (NCS) The MXW networked charging station enables battery charging and ① channel linking from a single location. When a charger is associated to ② a group, its channel slots are mapped to access point audio channels. Microphones can then be placed in the slots to Link to these channels. -
Page 13: Microphone Transmitters
Hardware Description Microphone Transmitters Description ⑧ ⑦ ⑩ ⑨ ③ ③ ① ④ ⑥ ⑤ ② ⑥ ③ ② ⑤ ① ③ ② ④ ② ① ⑤ ① ⑥ ⑥ MXW8 MXW6 MXW1 MXW2 ① Power Button ⑦ Handheld Cartridge MXW6, MXW8: Press and hold the dedicated power button for three MXW2 transmitter is compatible with the following cartridge types: seconds to turn the transmitter on or off. -
Page 14: Wearing The Bodypack Transmitter
13 mm (.5 in.) Handheld (MXW2) The handheld enables presenters to communicate using legendary Shure SM58, SM86, BETA58 and VP68 microphone cartridges. Placement • Hold the microphone within 12 inches from the sound source. For a warmer sound with increased bass presence, move the microphone closer. - Page 15 Hardware Description Boundary (MXW6/C, MXW6/O) The boundary transmitter sits on a table or desk to transmit speech while discreetly blending into any conference environment. MXW6/O MXW6/C MXW6 MXW8 2.5 cm (1 in) Desktop Gooseneck Base (MXW8) The gooseneck base is compatible with 5, 10, and 15” Microflex gooseneck microphones. MXW8 MX405, MX410 &...
-
Page 16: Rechargeable Batteries
Hardware Description Rechargeable Batteries MXW lithium-ion rechargeable batteries use advanced chemistry that maximizes transmitter runtime with zero-memory effect. Power management from the control software provides detailed visibility to critical battery parameters such as charge status, battery capacity, and cycle count. Batteries can be charged to 50% capacity in one hour and to full capacity in two hours using the MXW Networked Charging Station. -
Page 17: Battery Replacement
Battery Replacement Lithium Ion Batteries have no “memory effect”, and instead experience a more linear reduction in capacity. Shure recommends establishing a battery replacement schedule customized to the client requirements and replacing batteries when the capacity is no longer acceptable. -
Page 18: Installation
Installation ■ Additional Equipment ■ Rack Installation ■ Securing the Networked Charging Station Required Equipment Installation Steps ■ Mount the Access Point Transceiver Select a Location Securing to a Wall or Ceiling External Cover for Painting ■ Power the Hardware Fully Charge the Transmitters ■... -
Page 19: Additional Equipment
Installation Additional Equipment Network Cables Use shielded Cat5e (or higher) Ethernet cables, limiting cable runs to 100 meters maximum between network devices. Audio Cables Reference the hardware kit user guide supplied with the MXW Audio Network Interface to assemble audio cables to the connectors. Gigabit DHCP Router (systems with >1 APT) For systems with more than one APT, a DHCP router is recommended to connect equipment. -
Page 20: Mount The Access Point Transceiver
Installation Mount the Access Point Transceiver The directional antennas of the APT send and receive the RF signal in a cardioid pattern with the greatest sensitivity toward the face of the device. Always aim this side toward the microphone coverage area. Select a Location Securing to a Wall or Ceiling The access point is typically mounted to a ceiling or wall near the... -
Page 21: Power The Hardware
① Installation ③ Power the Hardware ② ① Audio Network Interface (ANI) Connect the IEC power cable from the back panel to an AC power source. Turn on the power switch. ② Access Point Transceiver (APT) Connect a shielded Cat5e cable from the MXWAPT to network Port 1 of the MXWANI. If using an external gigabit switch, ensure Class 0 PoE provides at least 6.5W of power to the APT. -
Page 22: Connect The Components
③ Port 3 (Optional) Additional NCS ④ Port 4* Computer *When Port 4 is set to Uplink mode, Shure Discovery Application support is restricted. Multiple Group System (>1 Access Point) ① When an installation requires more than eight channels, additional MXW components can be connected to expand the system. Depending on the RF spectrum Class 0 PoE availability, a system can contain up to 40 channels in North America and 80 channels in Europe. -
Page 23: Accessing The Mxw Control Software
4. Launch the Shure Web Device Discovery application. Open the application to view all Shure devices on the network that feature an embedded server for control software (MXWAPT, MXWANI and SCM820). Use the Identify button to flash a device's LEDs for easy identification. -
Page 24: Setting Up The System
Setting Up the System ■ Overview of Groups and Configurations Groups of Components Configurations: Managing Multiple Groups ■ Starting a System Configuration Open and Associated Devices ■ Associating Components to a Group Channel Mapping for Devices in a Group Automatic Group ■... -
Page 25: Overview Of Groups And Configurations
Configuration. If the Configuration Master is manually removed by deselecting the Access Point from the Group on the Configuration tab, there will be a pop- up warning "Are You Sure?". If Yes is selected, the browser will close and a new Configuration Master is automatically selected. Use the Shure Discovery... -
Page 26: Starting A System Configuration
Configuration: 1. Open the Shure Web Device Discovery Application. 2. Select the Access Point that will be used for the new Configuration and open its control software. The APT must be open (not already assigned to a group) in order to start a new configuration. -
Page 27: Associating Components To A Group
This sends a signal to the device to flash its LEDs for easy identification. 1. Open a Configuration Use the Shure Web Discovery application to view all MXW Access Point Transceivers (APTs) on the network. Double-click on an APT to open the software, and go to the Configuration tab. -
Page 28: Channel Mapping For Devices In A Group
Setting Up the System Channel Mapping for Devices in a Group Audio is routed from the microphones to the analog outputs according to the Group setup in the Configuration tab. The following diagram displays channel mapping for devices in eight- and four-channel Groups. Networked Charging Station Audio Output Device An additional charging station is required when filling a... -
Page 29: Linking Microphones
Setting Up the System Linking Microphones Use the Networked Charging Station (NCS) to Link microphones to Access Point channels. Slots in the charger are mapped to the APT according to the Group setup from the Configuration tab. Once the Link procedure is complete, audio will route to the corresponding channel in the Group. Linking will map any microphone placed in the charging station to the APT channels. -
Page 30: Exchanging Or Removing A Component
Setting Up the System Exchanging or Removing a Component Exchanging a Transmitter The same Link procedure is done to exchange a transmitter in a group. Place the new transmitter in the charger slot that corresponds to the desired channel and perform the Link procedure. This will map the new transmitter to that channel, and remove any Link from the old transmitter. If an NCS channel slot is not connected to a transmitter during the Link procedure, the channel and current transmitter Link will remain unaffected. -
Page 31: Wireless Management
Wireless Management ■ Overview of Channel Coordination ■ Scanning Available RF Spectrum Performing a Scan ■ Setting RF Power... -
Page 32: Overview Of Channel Coordination
Wireless Management Overview of Channel Coordination In North America, up to 40 Microflex Wireless channels can operate in the unlicensed 1920–1930 MHz frequency bands. In Europe, up to 80 channels can operate simultaneously in the 1880–1900 MHz frequency range. The frequency spectrum is divided into time-slots that carry an MXW channel (audio and control data). -
Page 33: Setting Rf Power
Wireless Management Setting RF Power The RF radius of a configuration can be limited to allow another MXW system to re-use the frequency time-slots. It is best practice to use the lowest setting that supports the installation. Perform a walk-around test with the transmitters to ensure that the coverage setting is sufficient. The RF Power is set from the Preferences tab of the control software. -
Page 34: Networking
Networking Networking ■ Networking Best Practices ■ Description of the Network Interfaces Configuring IP Settings ■ Advanced Setup Manually Assigning Static IP Address Isolating Audio and Control Networks Operating the Control Software over Wi-Fi Dedicate a Device for Master Clock Setting Latency... -
Page 35: Networking Best Practices
MXW components are designed as a plug-and-play system, discovering each other automatically when connected over standard Ethernet equipment. Components are then grouped together to transport two types of data: Shure Control and Network Audio. Both interfaces use the same network jack and cable for transport. -
Page 36: Advanced Setup
Networking Advanced Setup For more information on configuring advanced MXW networks, reference the Microflex Wireless Networking whitepaper located at www.shure.com. Wi-Fi routers typically support 802.11b, 802.11a/g, and/or 802.11n Manually Assigning Static IP Address standards. By default, many Wi-Fi routers are configured to allow older To manually assign IP addresses to the MXW system, follow these steps: 802.11b devices to operate over the network. -
Page 37: Software
Software ■ Shure Web Device Discovery Application ■ MXW System Control Software Log On Page Control Bar Monitor Tab Configuration Tab Utility Tab Preferences Tab ■ Control Software for the MXW Audio Network Interface Log On Page Control Bar Inputs/Outputs Tab Preferences Tab ■... -
Page 38: Shure Web Device Discovery Application
Shure Web Device Discovery Application The Shure Web Device Discovery application finds all Shure devices on the same network that have an embedded web server. These devices contain a control software that open on a web browser from any computer connected to the network. -
Page 39: Mxw System Control Software
• Configuration: Manage groups and IP settings ④ Shure Link • Utility: View details of each MXW device on the network Links to the Shure website at www.shure.com. • Preferences: Assign microphone and system behavior ⑤ Language Selection ② Security Level Selects the language for the control software interface. -
Page 40: Monitor Tab
Software Monitor Tab ① ④ ⑤ ② ⑥ ⑦ ⑧ ③ ⑨ ⑩ ⑪ ⑫ ⑬ ⑮ ⑪ Low-Pass Filter ① Access Point Selection Engages a 6 dB-per-octave filter above 12 kHz for attenuating Determines which Access Point is displayed on the tab. undesired high frequencies, sometimes caused by sibilant vocals or ②... -
Page 41: Configuration Tab
Networking section for configuring each MXW device. associate chargers and audio output devices to form each Group. ⑧ ID Button • Control: Shure control (software interface operation, firmware updates, Shure Device Discovery application). Commands the selected device's LEDs to flash for easy identification. -
Page 42: Utility Tab
⑫ ① Export Button ⑦ IP Address Control Exports MXW device data to a text file. Displays the IP Address of the control network interface (Shure control data). ② Configuration Filter ⑧ IP Address Network Audio When checked, the table displays data for only the devices that belong to the Configuration or are open for association. -
Page 43: Preferences Tab
• Local Mute - All: All transmitters mute when any transmitter is muted. the Configuration. • External Mute: Transmitter audio is on, and muted from a 3rd-party controller. ⑬ Register the Product Link Links to Shure website for product registration. -
Page 44: Control Software For The Mxw Audio Network Interface
Software Control Software for the MXW Audio Network Interface The MXW Audio Network Interface features a control software to mange the analog inputs and outputs of the MXW system, in addition to the 4-port gigabit switch on the back panel of the network interface. By default, all MXW devices have the password 'admin' applied to the control software. -
Page 45: Inputs/Outputs Tab
Software Inputs/Outputs Tab ① ① ② ⑤ ③ ⑥ ⑦ ④ ④ ⑧ ① Channel Name ⑥ Output Audio Meter Channel name is customizable by clicking in the text box. Names can Displays output audio levels prior to the digital-to-analog converter. be up to 12 characters long. -
Page 46: Preferences Tab
• Switched Mode (default): Full Ethernet support on port 4. • Uplink Mode: Only control data is transported. Multicast traffic for ⑤ Register This Product Link Dante digital audio and the Shure Web Device Discovery application is Click to register the device at www.shure.com to receive product and restricted. -
Page 47: Dante Tm Software By Audinate
Software Dante Software by Audinate Audinate software provides additional function and control of the Dante digital audio network. Visit Audinate's website for instructions for download and installation. Dante Controller Dante Controller (DC) is free software by Audinate that is used to configure and manage a network of Dante devices. Use it to route channels between Dante- enabled devices and to monitor the status of the device, clock, and network. -
Page 48: Shure Firmware Update Manager
The format for Shure device’s firmware is MAJOR.MINOR.PATCH. (Ex. 1.6.2 where 1 is the Major firmware level, 6 is the Minor firmware level, and 2 is the Patch firmware level.) At minimum, devices that operate on the same subnet should have identical MAJOR and MINOR release numbers. -
Page 49: Additional Topics
Additional Topics ■ Connecting to an External Control System ■ NCS Mounting Template ■ Troubleshooting Factory Reset Additional Resources ■ MXW Accessories and Part Numbers... -
Page 50: Connecting To An External Control System
The MXW System connects to an AMX or Crestron control system via the Ethernet. Use only one controller per system to avoid messaging conflicts. For a comprehensive list of MXW command strings, visit: http://shure.custhelp.com/app/answers/detail/a_id/5207 • Connection: Ethernet (TCP/IP; MXW is the client) •... -
Page 51: Troubleshooting
For additional Troubleshooting assistance or further information on complex installations, contact Shure to speak with a support representative. In the Americas region, call Systems Support group at 847-600-8541. For users in other locations, go to www.shure.com to find support contact for your region. -
Page 52: Factory Reset
If a device isn't appearing on the network after trying troubleshooting methods, perform a reset on the specific hardware to return the device to default settings. Factory default settings are designed for automatic compatibility with other Shure networked devices. Note: A factory reset will clear any MXW Group and Link associations. The password to access the software will reset to... -
Page 53: Mxw Accessories And Part Numbers
MXW Accessories and Part Numbers Component Accessory Part Number 8-Channel Access Point Transceiver MXWAPT8 4-Channel Access Point Transceiver MXWAPT4 USB Drive (Shure Web Device Discovery application, Shure Firmware Access Point Transceiver 90A20081 Update Manager application, User manuals) Mounting Plate 65A20096 Paintable Cover 65A20030... - Page 54 Additional Topics Gooseneck Options Microphone Description Polar Pattern Length Part Number Cardioid 5" (12.7 cm) MX405LP/C Supercardioid 5" (12.7 cm) MX405LP/S Cardioid 10" (25.4 cm) MX410LP/C Bi-color LED status indicator Supercardioid 10" (25.4 cm) MX410LP/S Cardioid 15" (38.1 cm) MX415LP/C Supercardioid 15"...
-
Page 55: Mxw System
Transmitter MXW1, MXW6, MXW8 Up to 9 hours Microphone Connector MXW2 Up to 15 hours 6-pin connector for Shure MX405/10/15 Calculated with a new battery. Runtimes vary depending Configuration on battery health. MXW2 Handheld Transmitter Unbalanced Charge Connector... -
Page 56: Access Point Transceiver (Apt)
Microflex Wireless Specifications Access Point Transceiver (APT) Network Interface Dimensions RJ45: Gigabit Ethernet, Dante digital audio 24 mm x 170 mm x 170 mm (1.35 in. x 6.7 in. x 6.7 in.), H x W x D Without mounting plate or cover Plenum Rating Weight UL 2043... -
Page 57: Networked Charging Station (Ncs)
Microflex Wireless Specifications Networked Charging Station (NCS) Housing Charge Time Molded Plastic, Cast Zinc MXW1, MXW6, MXW8 50%=1 hour; Dimensions 100%=2 hours NCS8 68 mm x 343 mm x 184 mm (2.7 in. x 13.5 MXW2 50%=1.5 hour; in. x 7.25 in.), H x W x D 100%=3 hours NCS4 68 mm x 191 mm x 184 mm (2.7 in. -
Page 58: Safety Information
CE marking. 20 centimeters from the human body. These mobile transmitters are The CE Declaration of Conformity can be obtained from Shure Incorporated exempt from the testing requirements of international radiation exposure or any of its European representatives. For contact information please visit standards due to their proximity to the body of the user in their intended www.shure.com... - Page 59 United States, Canada, Latin Asia, Pacific: Europe, Middle East, Africa: America, Caribbean: Shure Asia Limited Shure Europe GmbH Shure Incorporated 22/F, 625 King’s Road Jakob-Dieffenbacher-Str. 12, 5800 West Touhy Avenue North Point, Island East 75031 Eppingen, Germany Niles, IL 60714-4608 USA...
