Summary of Contents for Shure Microflex Wireless Series

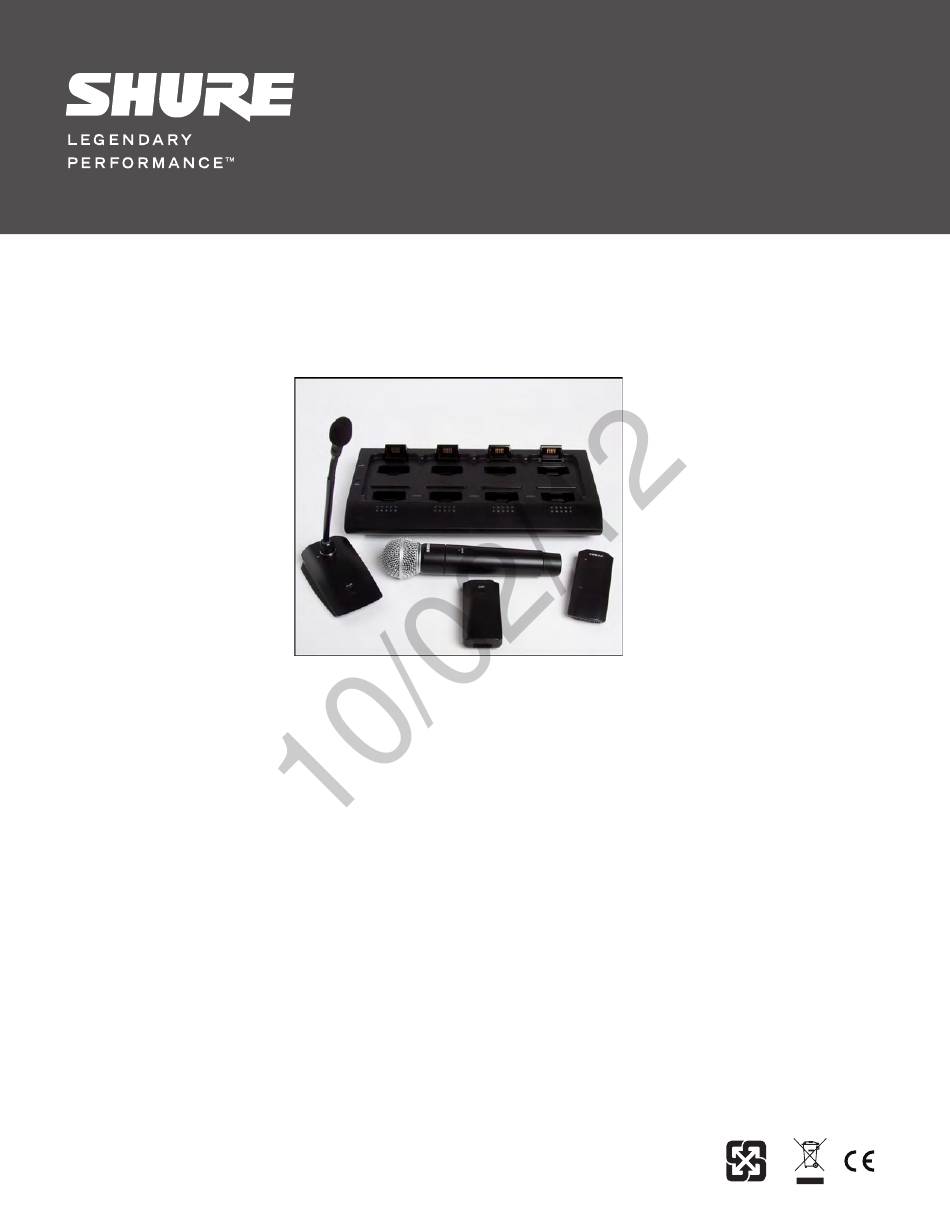

- Page 1 MXW Wireless Conference System ©2012 Shure Incorporated 27WG20831 (Rev. 1)
- Page 3 IMPORTANT SAFETY INSTRUCTIONS 14. REFER all servicing to qualified service personnel. Servicing is required when the ap- paratus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been READ these instructions.
- Page 4 ВАЖНЫЕ ИНСТРУКЦИИ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ 13. ОТСОЕДИНЯЙТЕ прибор ОТ СЕТИ во время грозы или если он не используется длительное время. ПРОЧИТАЙТЕ эти инструкции. 14. ПОРУЧИТЕ все обслуживание квалифицированному техническому персоналу. СОХРАНИТЕ эти инструкции. Обслуживание требуется при каком-либо повреждении прибора, например, при ОБРАЩАЙТЕ...
- Page 5 CONSIGNES DE SÉCURITÉ IMPORTANTES 13. DÉBRANCHER l'appareil pendant les orages ou quand il ne sera pas utilisé pendant longtemps. 14. CONFIER toute réparation à du personnel qualifié. Des réparations sont nécessaires LIRE ces consignes. si l'appareil est endommagé d'une façon quelconque, par exemple : cordon ou prise CONSERVER ces consignes.
-
Page 6: Table Of Contents
Dedicate a Device for Master Clock System Setup Software Introduction Install and Power the Hardware Additional Equipment Requirements Shure Device Discovery Application Rackmount the ANI Opening the MXW GUI Mount the APT MXW System Graphical User Interface (GUI) Power the Hardware... -
Page 8: User Manual
"CAUTION"—depending on the imminence of the 20. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure. • Do not charge or use battery packs with other than specified Shure arized product failure. -
Page 9: System Overview
System Overview System Overview... -
Page 10: General Description And Features

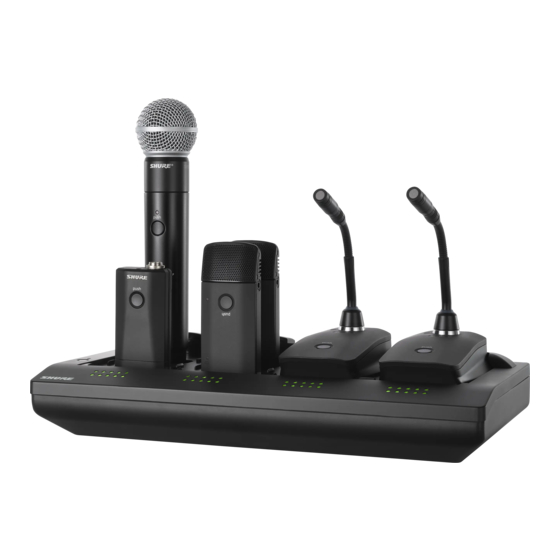

General Description and Features The Microflex Wireless Series (MXW) is a complete solution for meeting room and presentation applications. Developed with Audinate's Dante technology, the system routes digital audio over standard IP equipment across a network of access points, digital-to-analog converters and computers. Access points mount to a ceiling or wall to communicate wirelessly with the microphones, distributing audio to the Dante network. -
Page 11: Theory Of Operation
Network The network is core communication pathway of the MXW system. It transports Dante digital audio with Shure control data over standard IP/Ethernet equipment. When an MXW device joins the network, it automatically configures to compatible IP settings. Gigabit Switch with DHCP For systems with more than eight channels, a gigabit switch is required to create a network of additional access points, chargers and audio output devices. - Page 12 • Perform an RF spectrum scan to accurately Note: The ANI can be substituted with the Shure ② Access Point Transceiver (APT) survey a site's spectrum activity over a SCM820 Digital IntelliMix Mixer.
-
Page 13: System Setup
System Setup System Setup... -
Page 14: Install And Power The Hardware
The access point contains multiple directional antennas to provide steady, reliable wireless communication. The cardioid radiation pattern is strongest from the top of the face plate. Use the following guidelines when mounting the access point: www.shure.com MXWANI8 • Direct the antenna toward the intended coverage area. ++++++++... -
Page 15: Connect The Components To Form A Network
The following are two setup examples for the MXW system. See Networking section for more details on Dante digital audio and networking best practices. Single Group System (Automatic Configuration) www.shure.com MXWANI8 ++++++++ Use a Cat5e cable to connect the charger and APT to one of four ports of... -
Page 16: Access The Mxw System Interface
GUI. 1. Load and install the Discovery Application. This automatically installs the required Bonjour device discovery tool to the computer. 2. Launch the application. The app displays all Shure devices on the network. Model Name DNS name... -
Page 17: Assign Components To A Group
System Setup Assign Components to a Group Components must be assigned to a group to form the communication link of audio and control data. On the Configuration tab, select the following components to form a group of up to 8 channels: 1. -
Page 18: Set Up Microphones
System Setup Set Up Microphones 1. Arrange microphones in the charger. Microphones are linked to channels according to the arrangement in the charger. For gooseneck mics 8-Channel Charger 4-Channel Charger (NCS8) (NCS4) For bodypacks, handhelds and boundary mics. Charger Slots Correspond to Channels Connecting the Microphone to the Charger Slot 2. - Page 19 System Setup 15V 0.6A power 3. Remove mics from the charger. The microphone status LEDs will flash, and will remain steady once the audio is ready. 4. Set mic gain Mic gain is adjusted on the Monitor tab of the GUI. Signal indicator Gain...
-
Page 20: Microphone Placement
System Setup Microphone Placement For best low-frequency response and rejection of background noise, place the microphone on a large, flat surface, such as a floor, table, or lectern. To reduce reverberance, avoid reflective surfaces above or to the side of the microphone, such as beveled sides of pulpits or overhanging shelves. -
Page 21: Hardware Interface Description
Hardware Interface Description Hardware Interface Description... -
Page 22: Access Point Transceiver (Apt)
Hardware Interface Description Access Point Transceiver (APT) ① Power LED Illuminates green when Power over Ethernet (PoE) is provided. ② Network Audio LED • Solid Green: Sending or receiving a digital audio signal. • Flashing Green: Cannot establish a connection. ③... -
Page 23: Audio Network Interface (Ani)
Hardware Interface Description Audio Network Interface (ANI) ① ② ④ ⑤ ④ ⑤ ⑩ ⑪ ⑫ ⑬ ⑭ Audio Network Interface INPUT OUTPUT power line line ethernet network audio sig/clip sig/clip HEADPHONE mute mute lockout push to solo | hold to mute adjust ③... -
Page 24: Back Panel
LAN without network audio traffic. When Port 4 Port 4 (Uplink) Uplink is enabled from the GUI, it only provides access to the GUI, blocking data to the Shure Discovery Application, Dante Controller and Dante Virtual Soundcard. -
Page 25: Networked Charger (Ncs)
Hardware Interface Description Networked Charger (NCS) ① ① Charging Slots (USB 2.0 Type A Plug) Store, recharge and link microphones in the USB slots. Slots are ② associated to channels in an APT according to the system setup in the GUI. -
Page 26: Microphones
Hardware Interface Description Microphones Description ① Power Button Press button to turn the microphone on; the microphone LED will flash green and red until turning a solid color (color depends on state specified in GUI). Press and hold for 3 seconds to power off. Note: The bodypack does not have a dedicated power button. -
Page 27: Microphone Types And Applications
Hardware Interface Description Microphone Types and Applications Choosing a Microphone Type For each event, select microphones that will best serve the arrangement of participants and presenters. The following is a chart of each microphone and its primary use: Type Placement Notes Sits on a desk or podium with an Gooseneck extended neck for close talking... -
Page 28: Rechargeable Microphone Batteries
Rechargeable Microphone Batteries MXW microphones feature the Shure rechargeable Lithium-ion battery. Lithium-Ion chemistry and intelligent Shure battery circuitry results in a rechargeable battery with no memory effect. It can be recharged at any time; a complete discharge is not necessary. -
Page 29: Networking
Dante technology uses standard IP over Ethernet and safely coexists on the same network as IT and control data. It provides an integrated solution to transport two types of data over the same network cable: Shure Control, and Dante Audio and Controller. -
Page 30: Networking Best Practices
Networking Networking Best Practices Use the following best practices when setting up a network to ensure reliable communication: • Always use a "star" network topology • Use only 1 DHCP enabled server per network. Disable DHCP addressing on additional servers • When using an AXT620 Ethernet Switch, turn on the switch first before turning on additional components connected to the network • To expand the network, use multiple Ethernet switches in a star topology... -
Page 31: Multiple Ethernet Switch Setup #2
Networking Multiple Ethernet Switch Setup #2 Each networked device needs an individual connection to the switch. AXT620 with front panel switch set to DHCP Ethernet Switch Server AXT610 ShowLink Access Point Client Multiple Ethernet Switch (Wi-Fi) Setup #3 Each networked device needs an individual connection to the switch. Wi-Fi Router (DHCP enabled) AXT620 with front panel switch set to... -
Page 32: Configuring Firewalls For Mac Or Windows Operating Systems
Most routers will increase the multicast transmission rate to 6Mbps when operating in ‘g-mode’ thereby providing adequate bandwidth to Wireless Workbench. Important: For best performance, use a Wi-Fi router that does not limit the multicast rate to 1-2 Mbps. Shure recommends the following Wi-Fi router brands: • Cisco • Linksys... -
Page 33: Troubleshooting
If a device isn't appearing on the network, perform a hard reset to return the device to default settings. Factory default settings are designed for automatic com- patibility with other Shure networked devices. Use following instructions to reset each device: Access Point Transceiver Press and hold the reset button for 10 seconds. -
Page 34: Software Introduction
The following software components are used with the MXW series: • Shure Device Discovery Application: Uses Bonjour networking technology to display all Shure devices on the network that include a graphical user interface (GUI). • MXW Series GUI: Hosted from the APT webserver and accessed from a typical web browser, this GUI is used to manage the network of MXW components. -
Page 35: Shure Device Discovery Application
Shure Device Discovery Application The Device Discovery application finds all Shure devices on the same network that have an embedded web server. These devices network with a computer to access the The Discovery app is included on the CD-Rom supplied with the APT and can be downloaded from the Shure website. -
Page 36: Mxw System Graphical User Interface (Gui)
Software Introduction MXW System Graphical User Interface (GUI) A graphical user interface (GUI) is software that allows comprehensive system control and monitoring from a computer. It is hosted from an embedded server built into the APT, and is accessible when properly networked to a computer or 3rd party control device. All hardware functions can be adjusted using the GUI. GUI Description The following is a description of each tab of the GUI: ①... - Page 37 ⑤ RF Power Max Determines the maximum distance that an APT will transmit. ⑥ IP Address Control • Low: ??' Displays the IP Address of the control network interface (Shure GUI • Medium: ??' control). • Medium High: ??' ⑦ IP Address Network Audio • High: ??'...
-
Page 38: Control Bar
③ Firmware Version Displays the current firmware version of the device. ④ Reset Button Reboots the device with factory default settings. ⑤ Register This Product Link Click to register the device at shure.com to receive product and software updates. ⑥ Networking Mode... -
Page 39: Dante Software By Audinate
Software Introduction Dante Software by Audinate Audinate software provides additional function and control of the Dante digital audio network. Visit Audinate's website for instructions for download and installation. Dante Controller Dante Controller (DC) is a free software by Audinate that is used to configure and manage a network of Dante devices. -
Page 40: Optimizing The System
Optimizing the System Optimizing the System... -
Page 41: Site Survey: Rf Spectrum Scan
Optimizing the System Site Survey: RF Spectrum Scan The APT features a scanning tool to survey the RF spectrum prior to the installation. It should be conducted during typical hours of activity to identify the avail- ability of the RF spectrum. The channel count limit will be determined by the availability of clear spectrum. During a scan, the APT turns off all associated microphones in order to survey the spectrum of the room for interference from devices such as cordless phones, walkie-talkies, or intercoms. -
Page 42: Setting Rf Gain For Installation
Optimizing the System Setting RF Gain for Installation Dynamic RF Power Control RF Level and Coverage Area By default, the MXW system automatically adjusts the RF power level based on the distance between an APT and the microphones. This prevents signal dropout if a microphone is taken outside of the radius of the coverage of the Level 3: 100' current RF level. -
Page 43: Removing/Exchanging A Component From The Group
Optimizing the System Removing/Exchanging a Component from the Group To exchange a microphone, place the new microphone in the charger slot that corresponds to the desired channel. Press and hold the link button for 10 seconds to link the microphone to the channel. The old microphone will no longer be a part of the system and no change will occur for the remaining channels. Important: Always note the charger slot and channel when replacing microphones. -
Page 44: Firmware Updates
Perform the following steps to update the firmware for the MXWANI: CAUTION! Ensure the device has a stable network connection during the update. Do not turn off the device until the update is complete. 1. Download Firmware Update Manager from http://www.shure.com and install the software. 2. Open the software. -
Page 45: Troubleshooting
Firmware Updates Troubleshooting Audio Networking Control Software Control Command Strings... -
Page 46: Safety Information
CE marking. centimeters from the human body. These mobile transmitters are exempt The CE Declaration of Conformity can be obtained from Shure Incorporated from the testing requirements of international radiation exposure standards or any of its European representatives. For contact information please visit due to their proximity to the body of the user in their intended use case www.shure.com... -
Page 47: Specifications
Firmware Updates Specifications... - Page 48 United States, Canada, Latin Europe, Middle East, Africa: Asia, Pacific: America, Caribbean: Shure Asia Limited Shure Europe GmbH Shure Incorporated 22/F, 625 King’s Road Jakob-Dieffenbacher-Str. 12, 5800 West Touhy Avenue North Point, Island East 75031 Eppingen, Germany Hong Kong Niles, IL 60714-4608 USA...
