- Page 1 KRAMER ELECTRONICS, Ltd. USER MANUAL VGA/XGA Twisted Pair Transmitter and Receiver Models: TP-15 TP-16 IMPORTANT: Before proceeding, please read paragraph entitled "Unpacking and Contents:"...
-
Page 2: Table Of Contents
HOW DO I GET STARTED? UNPACKING and CONTENTS Optional Accessories TWISTED PAIR LINE TRANSMITTERS AND RECEIVERS Getting to Know Your TP-15 VGA/XGA Line Transmitter INSTALLATION How to Setup a Twisted-Pair System? CONNECTING TO VGA/XGA SOURCE AND ACCEPTOR Connecting to the Line Transmitter / Receiver... -
Page 3: Power Connect Feature
ADDENDUM: Included with user manuals for machines with a CAT5 connector This addendum describes the Power Connect feature used with Kramer machines, and the choice between STP and UTP CAT5 cables. Power Connect Feature The Power Connect feature lets you power a transmitter / receiver system by connecting just one power adapter to either the transmitter or the receiver. -
Page 4: Introduction
In addition to the Kramer line of high quality Twisted Pair Interfaces, such as you have just purchased, Kramer also offers a full line of high quality distribution amplifiers, switchers, processors, interfaces, controllers and computer-related products. This manual... -
Page 5: Factor Affecting Quality Of Results
Interference from neighboring electrical appliances - These can have an adverse effect on signal quality. Balanced audio lines are less prone to interference, but unbalanced audio should be installed far from any mains power cables, electric motors, transmitters, etc. even when the cables are shielded. -
Page 6: Specifications
Power consumption 5.2 VA Power Source 230VAC, 50/60 Hz, (115VAC, U.S.A.) KRAMER ELECTRONICS LTD. TP-16 5 twisted pair sets, UTP on detachable terminal block connectors. 1 VGA/XGA - Analog R, G, B - 0.7 Vpp/75 ohms, H, V syncs TTL level on HD 15F connector 16.5cm x 12cm x 4.5cm... -
Page 7: How Do I Get Started
VP-22 - (VGA / XGA Line Amplifier & Processor) can be serially inserted either between the VGA/XGA source and the input of the TP-15, or between the output of the TP-16 and the input of the VGA/XGA acceptor, for signal processing. It is a full bandwidth, looping Line Amplifier &... - Page 8 Signal bandwidth of 365MHz ensures that the VP-222 remains transparent even in the most critical applications. The VP-222 is part of the Kramer TOOLS family of compact, high quality and cost effective solutions for a variety of applications. It is full bandwidth, designed for computer and presentation applications.
-
Page 9: Twisted Pair Line Transmitters And Receivers

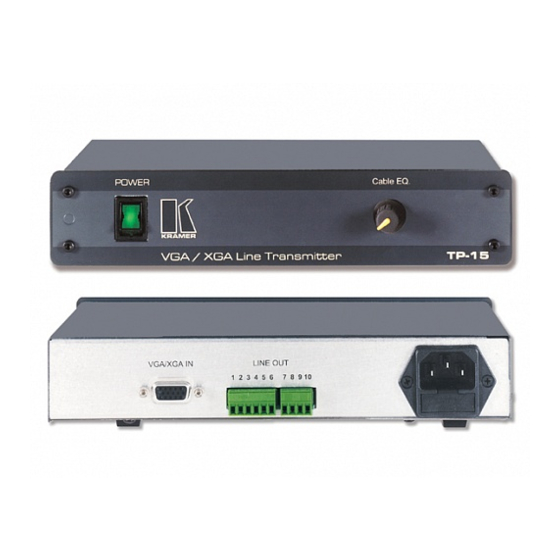

Getting to Know Your TP-15 VGA/XGA Line Transmitter The Kramer TP-15/TP-16 is set of VGA/XGA-to-twisted pair transmitter and receiver. The TP-15, the transmitter, allows for cable equalization and signal amplification of the VGA/XGA signal, up to distances exceeding 300 ft. (100 meters) using simple CAT5, unshielded wires (UTP). The machine uses 5 pairs of wires, amplifying the analog RGB signals as well as stabilizing and correcting the Horizontal and Vertical sync signals. -
Page 10: Getting To Know Your Tp-15 Vga/Xga Line Transmitter
The Kramer TP-15/TP-16 is a set of VGA/XGA-to-twisted pair transmitter and receiver. The TP-16, the receiver, decodes the twisted pair signals, sent from the TP-15 transmitter, back to VGA/XGA standard signals, appropriate for standard VGA/XGA acceptors. The machines have detachable terminal block connectors for easy connection and system wiring. -
Page 11: Installation
5-pair wire set of the CAT5 type, preferably unshielded (UTP). The LINE OUT socket on the TP-15 and the LINE IN socket of the TP-16 are marked with pin numbers. Each connection (pin) number must be connected to the appropriate number on the pair unit, (pin 1 of the TP-15 to pin 1 of the TP-16, etc.) Failing to do so may result in system malfunction. -
Page 12: Using The Vga/Xga Twisted Pair Set
Press the toggle switch of both the TP-15 and the TP-16 on the far-left front panel to the up position. In the up position, the toggle switch glows. Operate the acceptors. - Page 13 Connect a VGA/XGA acceptor to the twisted pair line receiver (TP-16) output. Adjust received signal quality using the Cable EQ. control of the TP-15. If needed, insert a line amplifier (TP-17) at the end of the twisted pair line for range extension.
-
Page 14: Taking Care Of Your Twisted Pair Machines
Check if the twisted pair cables are connected properly, conforming to the same pin number on both input and output. Use the Kramer VP-800 (instead of the PC graphics card source) to check whether the line and receiver are functioning properly. -
Page 15: Limited Warranty
Any product which is not distributed by Kramer or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site www.kramerelectronics.com. - Page 16 EXCLUSION OF DAMAGES Kramer’ s liability for any defective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com. Updates to this user manual may be found at http://www.kramerelectronics.com/manuals.html. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
