1 General Introduction

Thank you for your purchase of our product LIGHT COPILOT II.
This is a high-performance lighting controller with many useful functions. 8 Channels output and
16 Channels output are available for your application. AUDIO and CHASE control are available by
this unit. A built-in microphone is provided for easy audio control. The "LATCH" function can
override the chase function to remain an individual channel "on", while the other maintain their
chase sequence normally. There are 16 built-in programs for chasing effect which can be
operated in MANUAL mode or in AUTO mode. This manual contains important information for
user, please read it carefully before use.
Warning
Keep the unit dry, do not expose it to water or high levels of humid.
•
Reduce the risk of electric shock or fire during operation.
•
Do not attempt to dismantle or modify the unit.
•
Do not make any inflammable liquids, water or metal objects enter the unit.
•
No user serviceable parts inside, always consult qualified personnel for repairs.
•
Turn off the power if not using this unit for a long period.
•
This product can be used by adults only, do not allow children to play with it.
•

2 Controls and Functions

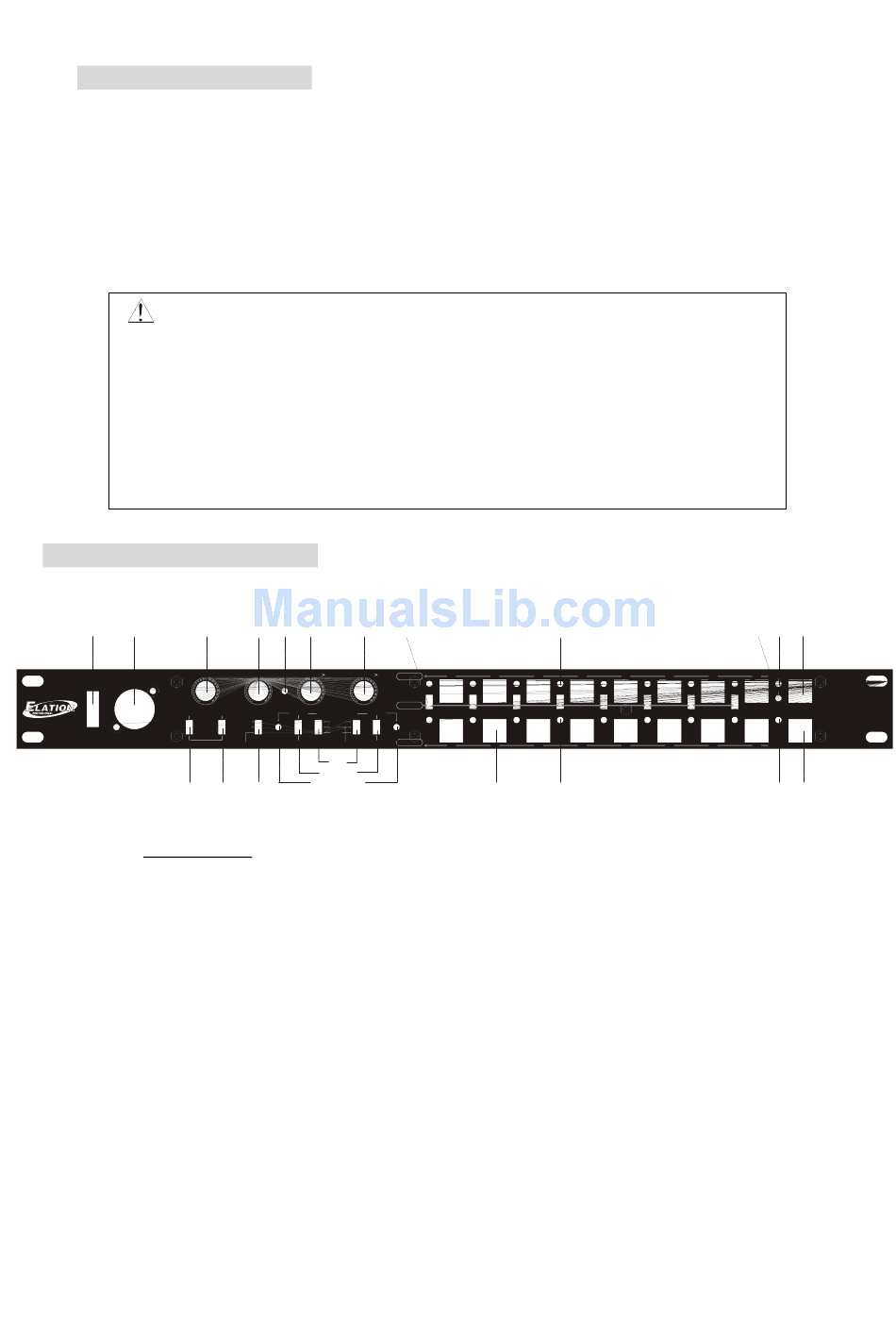

2.1

Product View

2 3
1
AUDIO
POWER USB LIGHT
Min Max
CH1 - 8 FLASH
CH1-16 LATCH
8 9

2.1.1 Front panel

1. Power switch:
Used to turn on / off the main power.
2. USB LIGHT connector:
To connect with the USB LIGHT.
3. Audio sensitivity adjuster:
To adjust the audio sensitivity the unit will react to.
4. FLASH SPEED adjuster:
To control and adjust the flashing frequency of the strobes.
5. FLASH LED:
To indicate relevant working states of the strobes.
6. SPEED adjuster upon CH1-4 / CH9-12:
This adjuster is used to control the Chase speed for 1-4 channels and 9-12 channels.
Chase speed adjustment for 9-12 channels can be available under 16 channels output
mode only. You can get higher speed levels while adjusting the knob towards "Max" ,
and get lower levels towards "Min".
4 5 6 7
14
SPEED SPEED CH1-4 / SPEED Ch5 - 8 /
LATCH
CH9-12 CH13-16
EFFECT
Min Max Min Max Min Max
FLASH MANUAL 16 PRE PROGRAMS MANUAL
AUDIO AUDIO
FLASH x 1
10min
FLASH
OFF AUTO CHASE AUTO
13
12
11
10
16
1 2 3 4
ON ON ON ON
OFF OFF OFF OFF
9 10 11 12
15 16
2
19 20 21
5 6 7 8
ON ON ON ON
OFF OFF OFF OFF
13 14 15 16
Heating
Ready
FOG LIGHT COPILOT II
MACHINE
STAND BY
17 18
