Elation ChaseBar User Instructions

Product Descriptions

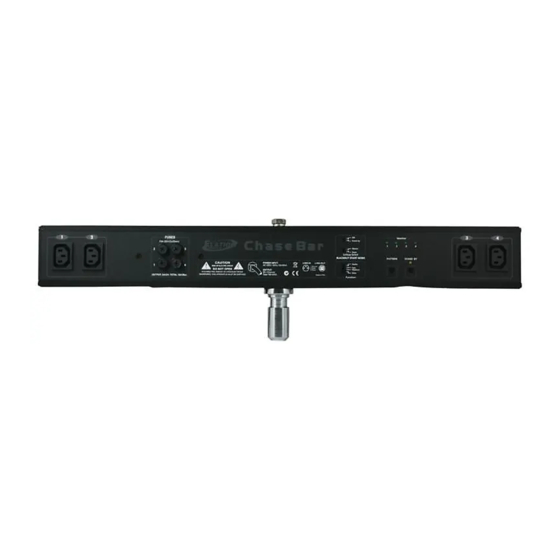

This is a T-bar 4 channels chaser, features 17 built-in chase patterns and 7 fixed scenes,
each pattern has four operating modes: Audio, Fast, Medium and Slow. When linkup, this unit
can be used as a either a Master or Slave. A DMX controller or a foot controller(supplied) can
be used to control this unit after proper connection.
Control & Functions
1 2
1
1. Channel Output: 5A/CH., Total 15A max.
2. Channel Fuse: F6A 250V 5x20mm
3. Blackout Selector: Moving this slider will enable or disable Stand by function when power is
.
4. Linkup Selector: Move this slider to select between Master and Slave.
5. Function Selector: This slider is used to select Audio/Fast/Medium/Slow mode for the patterns.
6. Channel LEDs: These LEDs indicate the intensity of corresponding channel or activity of the
7. Stand By Button: This button serves several functions. In Master mode, tap this button to
8. Pattern Button: In Master mode, use this button to select chase pattern or scene.
9. Power Cable: AC 120V~60Hz, 15 A max.
10. Link In: In Master mode, this connector can be plugged in a foot controller(supplied) for
remote control. In DMX mode, this connector is used to receive an incoming
DMX signal from either a DMX controller or Link out(11) on another unit.
11. Link Out: This connector can be used to link to next unit.
User Instructions
FUSES
F6A 250V(5x20mm)
2 3
CAUTION
1 4
RISK OF ELECTRIC SHOCK
DO NOT OPEN
N'OUVREZ PAS..RISQUE DE CHOCELECTRIQUE
WARNING:
OUTPUT: 5A/CH, TOTAL 15A Max. THIS APPARATUS MUST BE EARTHED
2
switched on.
pattern or scene.
activate or deactivate Stand By(its LED flashes when Stand By is active).
Pressing this button for three seconds can activate 17 chase patterns or 7
fixed scenes. When chase patterns are activated, each tap of Pattern button
will select a chase pattern. When the scenes are activated, each tap of Pattern
button will forward a scene step by step.
4 3
Linkup Select
POWER INPUT: LINK IN LINK OUT
AC 120V~60Hz,15A MAX.
1 = Ground
OUTPUT: 2 = Data-
3 = Data+
5A / Channel
Total 15A MAX.
Made in PRC
Function
9 10 11 5
6
ON
Monitor
Stand by
Master
Slave
PATTERN STAND BY
Audio
Fast
Medium
Slow
8 7
3 4
24-004-1535
Rev 1.0
