ELED FRESNAL
User Instructions
10/08
Elation Professional
©
6122 S. Eastern Ave.
Los Angeles CA. 90040
www.elationlighting.com

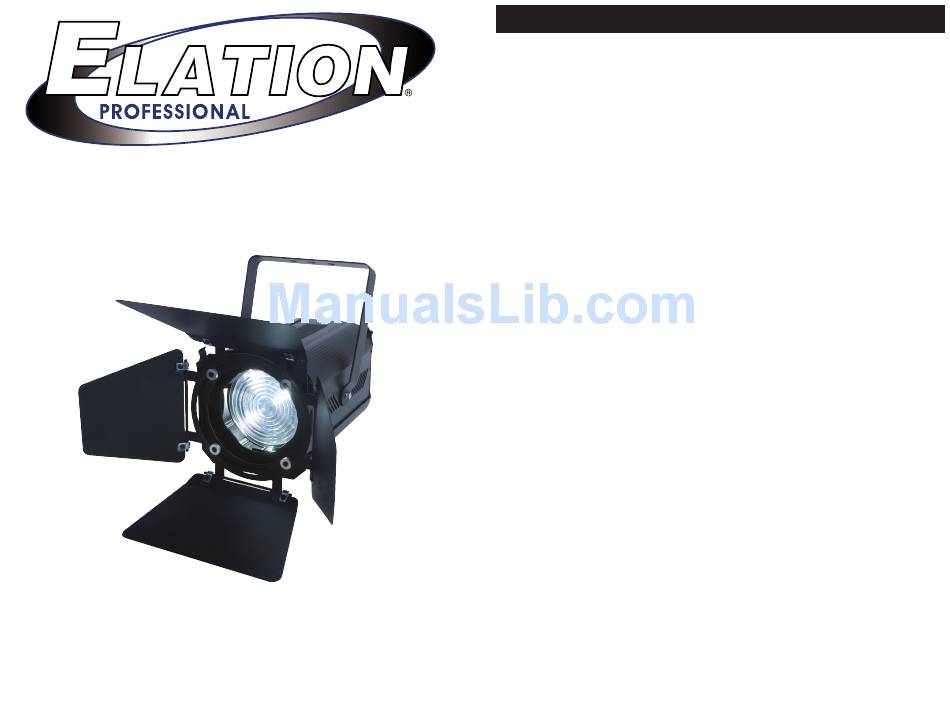

ELED Fresnel
Unpacking:
Thank you for purchasing the ELED Fresnel by Elation
Professional
. Every ELED Fresnel has been thoroughly tested and has
®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are missing,
please contact our customer support number for further instructions.
Do not return this unit to your dealer without first contacting customer
support.
Introduction:
The ELED Fresnel is part of Elation Professionals
tinuing pursuit for creating high quality affordable intelligent fixtures.
The ELED Fresnel is a powerful DMX intelligent LED spot. The unit can
be controlled manually or via DMX controller.
Customer Support:
provide set up help and to answer any question should you encounter
problems during your set up or initial operation. You may also visit us
on the web at www.elationlighting.com for any comments or sugges-
tions. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m.
Pacific Standard Time.
Voice:
Fax:
E-mail:
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
Elation customer support.
©
PLEASE recycle the shipping carton when ever possible.
®
Elation Professional - www.elationlighting.com - ELED Fresnel Instruction Manual Page 2
Elation
provides a customer support line, to
©
®
(323) 582-3322
(323) 832-9142
support@elationlighting.com
Introduction
con-
®
