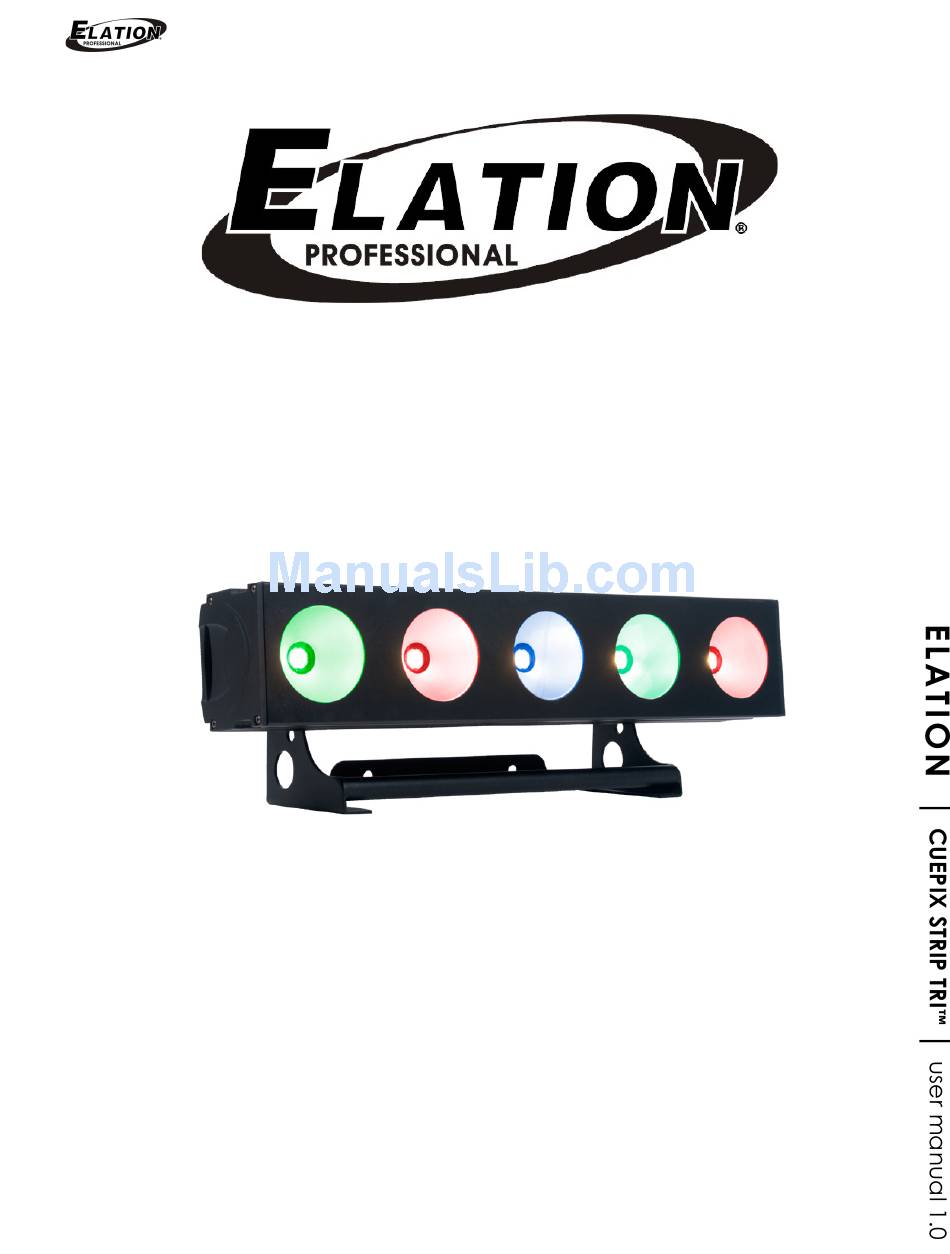

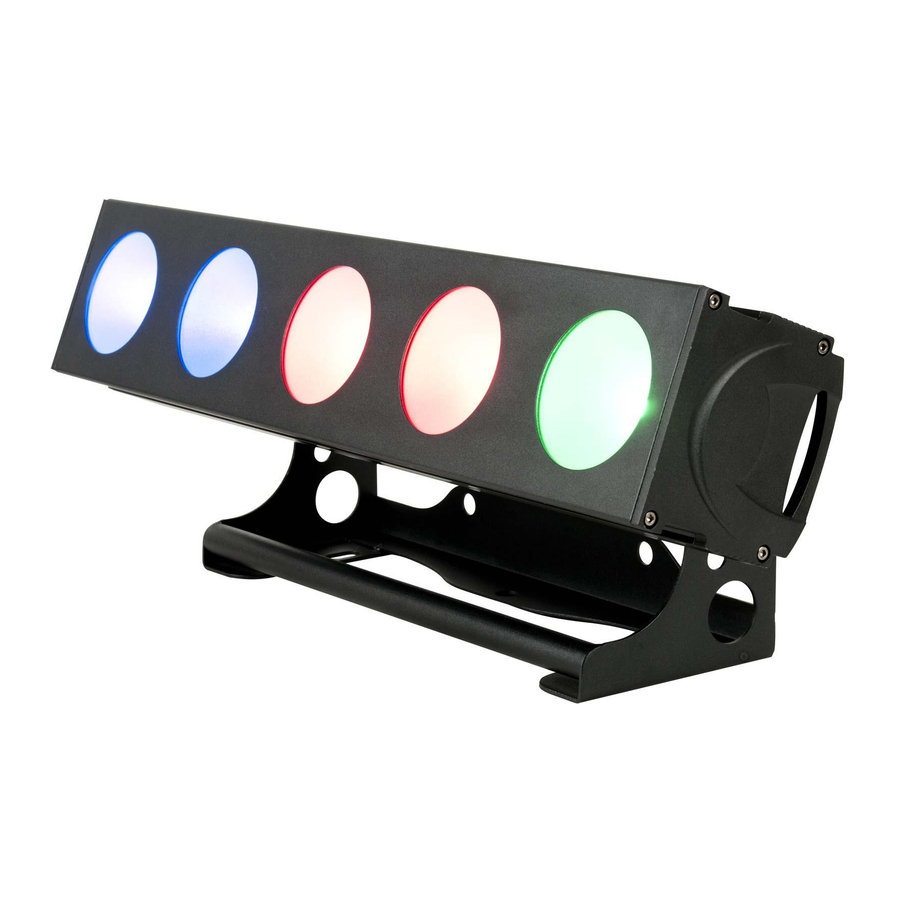

Page 1: User Manual
. e l a t i o n l i g h t i n g . c o m CUEPIX STRIP TRI™ user manual 1.0 CUEPIX S TRIP T RI 1 U ser ... - Page 2 . e l a t i o n l i g h t i n g . c o m ©2013 by ELATION PROFESSIONAL. All Rights Reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ELATION PROFESSIONAL logo and identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL.
-
Page 3: Box Contents
Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. These instructions contain important information regarding safety during use and maintenance. UNPACKING Thank you for purchasing the CUEPIX STRIP TRI ™ by Elation Professional®. Every CUEPIX STRIP TRI ™... -
Page 4: Customer Support
. e l a t i o n l i g h t i n g . c o m CUSTOMER SUPPORT Elation Professional® provides a customer support line, to provide set up help and to answer any question should you encounter problems during your set up or initial operation. You may also visit us on the web at www.elationlighting.com... - Page 5 B. For warranty service, send the product only to the Elation Professional® factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional®...
- Page 6 . e l a t i o n l i g h t i n g . c o m S A F E T Y I N S T R U C T I O N S The CUEPIX STRIP TRI ™...
- Page 7 w w w . e l a t i o n l i g h t i n g . c o m S A F E T Y I N S T R U C T I O N S - C O N T I N U E D Always disconnect from main power source before performing any type of service and/or cleaning •...
- Page 8 w w w . e l a t i o n l i g h t i n g . c o m F I X T U R E O V E R V I E W 1.
-
Page 9: Mounting Points
w w w . e l a t i o n l i g h t i n g . c o m I N S T A L L A T I O N T he el ec tri c c onnec ti on m ust onl y b e c arri ed out b y a qu al if i ed el ec tri c i an. CAUTIONS The recommended temperature for this fixture is 14°F to 113°F (-10°C to 45°C). -
Page 10: Dmx Mode
w w w . e l a t i o n l i g h t i n g . c o m F I X T U R E M E N U OPERATING INSTRUCTIONS 1) STATIC COLOR / BUILT-IN 15 MACROS 2) AUTO RUN 3) MASTER / SLAVE 4) DMX MODE... - Page 11 w w w . e l a t i o n l i g h t i n g . c o m Built-In Macros (15 Macros) STATIC COLOR CL:RGB Blackout, Red-Green-Blue-Yellow-Cyan-Purple-White FLASH 00-99 Flash Rate Adjustable DREAM Seven Color Dreaming Effect SPEED 00-99 Speed Rate Adjustable FLASH 00-99...
-
Page 12: Slave Mode
w w w . e l a t i o n l i g h t i n g . c o m Built-In Macros - C O N T I N U E D FLOW 8 Seven Color Chase SPEED 00-99 Speed Rate Adjustable FLASH 00-99... -
Page 13: Dmx Modes
w w w . e l a t i o n l i g h t i n g . c o m DMX MODES Channel Modes: (3CH, 6CH, 7CH, 15CH, 19CH) 3 Channel Mode: (All 5 COB Module Sections) Channel: Value: Function:... - Page 14 w w w . e l a t i o n l i g h t i n g . c o m 7Channel Mode: (All 5 COB Module Sections) 0-15 (0-255) (0-255) (0-255) 16-23 R 24-31 G 32-39 B 40-47 RG 48-55 GB...
- Page 15 w w w . e l a t i o n l i g h t i n g . c o m 15 Channel Mode: (Every 1 COB module as 1section, the fixture has a total of 5 sections) 19 Channel Mode: (Every 1 COB Module as 1section, the fixture has a total of 5 sections) CH3...
- Page 16 w w w . e l a t i o n l i g h t i n g . c o m CUEPIX S TRIP T RI 16 U ser ...
