Summary of Contents for Elation CUEPIX BATTEN

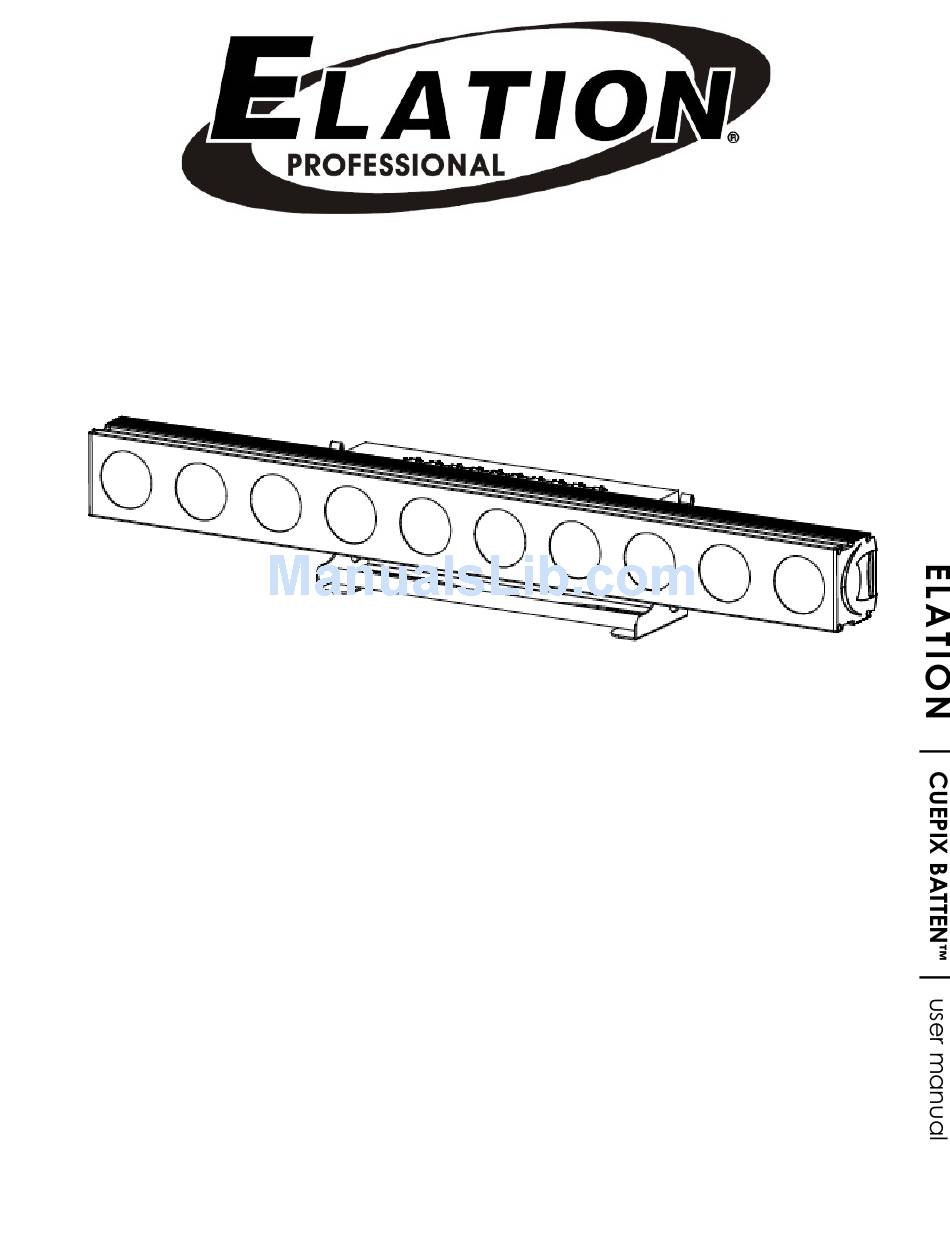

- Page 1 CUEPIX BATTEN™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | TRIw.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
C O N T E N T S General Information Warranty Safety Instructions General Guidelines Fixture Overview Fixture Installation Understanding DMX Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories CUEPIX BATTEN™ User Manual Ver. 1... -
Page 4: General Information
INTRODUCTION Congratulations, you have just purchased one of the most innovative and ™ reliable lighting fixtures on the market today! The CUEPIX BATTEN has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. - Page 5 You may also visit us on the web at TRIw.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If • the power cord is damaged, replace it immediately with a new one of similar power rating. CUEPIX BATTEN™ User Manual Ver. 1... -
Page 8: General Guidelines
• Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power • and allow approximately 15 minutes for the fixture to cool down before replacing or serving. CUEPIX BATTEN™ User Manual Ver. 1... -
Page 9: Fixture Overview
3. 3pin DMX IN 4. 5pin DMX IN 5. RJ45 NET IN 6. MODE, UP, DOWN, ENTER Buttons 7. RJ45 NET OUT 8. 5pin DMX OUT 9. 3pin DMX OUT 10. powerCON OUT LCD Menu Control Display CUEPIX BATTEN™ User Manual Ver. 1... -
Page 10: Fixture Installation
The CUEPIX BATTEN provides an integrated yoke/rigging bracket. When mounting this fixture to truss be sure to secure an appropriately rated clamps to the yoke/rigging bracket using a M10 screw fitted through the center hole. CUEPIX BATTEN™ User Manual Ver. 1... - Page 11 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. CUEPIX BATTEN™ User Manual Ver. 1...
-
Page 12: Understanding Dmx
1 to that fixture no matter where it is located in the DMX chain. The CUEPIX BATTEN™ can be controlled via DMX-512 protocol and the DMX address is set via the control menu. - Page 13 Connect the provided XLR cable to the female XLR output of your controller and the other side to the male XLR input of the CUEPIX BATTEN™ The diagram below illustrates a typical DMX-512 connection when the fixture is in the 60 Channel Mode.
- Page 14 5pin XLR fixtures may be implemented in a 3pin XLR DMX line. When inserting standard 5pin XLR connectors in to a 3pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The following chart details a proper cable conversion. CUEPIX BATTEN™ User Manual Ver. 1...
- Page 15 In the case of the CUEPIX BATTEN™, when in the 60 Channel Mode you should set the starting DMX address of the first unit to 1, the second unit to 61 (1 + 60), the third unit to 121 (61 + 60), and so on.
-
Page 16: Fixture Menu
F I X T U R E M E N U ON-BOARD SYSTEM MENU The CUEPIX BATTEN™ comes with an easy to navigate system menu. The next section will detail the functions of each command in the system menu. LCD MENU CONTROL PANEL The control panel (see image below) located on the top of the fixture allows you to access the main menu and make all necessary adjustments to the CUEPIX BATTEN™. - Page 17 Fixture ID 000-255 Set DMX Universe number. Universe Ethernet Set Kling-Net, ArtNet Set Protocol. Protocol Set Ethernet Set ON, OFF Set Network switch. Network Switch Set Color Macro. Color Macros 00-32 See COLOR MACRO MENU. CUEPIX BATTEN™ User Manual Ver. 1...
- Page 18 Speed & Flash Adjustable Speed00-99 Flash00-99 2 Color Chase 14.FLOW 9 CL:BLAC, R, G, B, RG, GB, RB, RGB Speed & Flash Adjustable Seven Color Chase 15.FLOW 10 Speed00-99 Flash00-99 Speed & Flash Adjustable CUEPIX BATTEN™ User Manual Ver. 1...
- Page 19 Dimmer PIXEL FLIP Select the desired starting COB module and chase direction from one of the following modes below via UP/DOWN buttons and then press ENTER to confirm. Flip = OFF Flip = ON CUEPIX BATTEN™ User Manual Ver. 1...
- Page 20 IP Address, Subnet Mask, and the DMX Universe. This software application is Windows XP ™ and Windows 7 ™ compatible and is free of charge and available via download here. (See link below) http://artisticlicence.com/index.php?mode=products&sub=overview&action=&product_id=351 CUEPIX BATTEN™ User Manual Ver. 1...
-
Page 21: Dmx Channel Functions And Values
*GREEN - COB MODULE 2 0-255 0 to 100% *GREEN FINE - COB MODULE 2 0-255 GREEN FINE Adjustment *BLUE - COB MODULE 2 0-255 0 to 100% *BLUE FINE - COB MODULE 2 0-255 BLUE FINE Adjustment CUEPIX BATTEN™ User Manual Ver. 1... - Page 22 *GREEN - COB MODULE 5 0-255 0 to 100% *GREEN FINE - COB MODULE 5 0-255 GREEN FINE Adjustment *BLUE - COB MODULE 5 0-255 0 to 100% *BLUE FINE - COB MODULE 5 0-255 BLUE FINE Adjustment CUEPIX BATTEN™ User Manual Ver. 1...
- Page 23 *GREEN - COB MODULE 8 0-255 0 to 100% *GREEN FINE - COB MODULE 8 0-255 GREEN FINE Adjustment *BLUE - COB MODULE 8 0-255 0 to 100% *BLUE FINE - COB MODULE 8 0-255 BLUE FINE Adjustment CUEPIX BATTEN™ User Manual Ver. 1...
- Page 24 *GREEN - COB MODULE 10 0-255 0 to 100% *GREEN FINE - COB MODULE 10 0-255 GREEN FINE Adjustment *BLUE - COB MODULE 10 0-255 0 to 100% *BLUE FINE - COB MODULE 10 0-255 BLUE FINE Adjustment CUEPIX BATTEN™ User Manual Ver. 1...
- Page 25 32-95 Flash / Strobe Effect SLOW to FAST 96-127 LEDs ON 128-159 Pulse Effect In Sequence SLOW to FAST 160-191 LEDs ON 192-223 Random Flash / Strobe Effect SLOW to FAST 224-255 LEDs ON CUEPIX BATTEN™ User Manual Ver. 1...
- Page 26 FLOW Macro 8 241-255 FLOW Macro 9 CHASE MACRO SPEED 0-255 Chase Macro Speed SLOW to FAST DIMMING CURVE MODES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THEATRE 101-255 Default to Unit Setting CUEPIX BATTEN™ User Manual Ver. 1...
-
Page 27: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 28: Technical Specifications
5°F to 113°F (-15°C to 45°C) APPROVALS / RATINGS CE | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. CUEPIX BATTEN™ User Manual Ver. 1... -
Page 29: Photometric Data
. e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. CUEPIX BATTEN™ User Manual Ver. 1... -
Page 30: Optional Accessories
6' (1.8m) powerCON PRO Link Cable AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable CAT005 5’ (1.5m) CAT6 Ethercon Cable CAT010 10’ (3m) CAT6 Ethercon Cable Additional Cable Lengths Available CUEPIX BATTEN™ User Manual Ver. 1...
