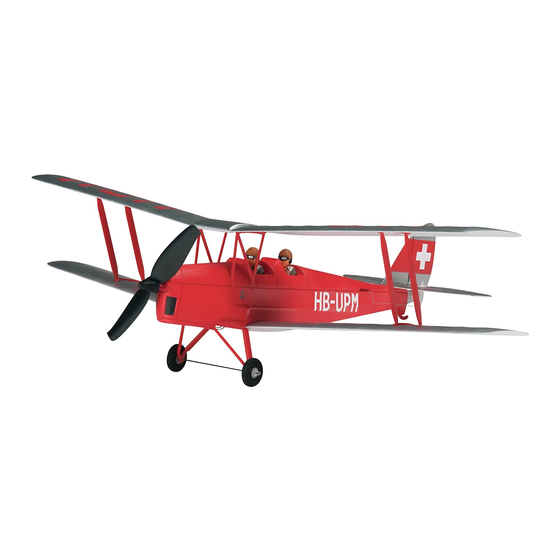

Flyzone Tiger moth User Manual

Flyzone Tiger moth User Manual

Rtf plane

Advertisement

ASSEMBLE ONLY WITH ADULT SUPERVISION
Please read through this instruction booklet to THOROUGHLY familiarize yourself with the assembly of this airplane prior to assembly.
Please inspect all parts carefully before starting assembly! If any parts are missing, broken or defective, or if you have any questions about
the assembly or flying of this airplane, please call us at (217) 398-8970 and we'll be glad to help.
This product is suitable only for people of 14 years and older.
Hobbico
®
Inc. guarantees this kit to be free from defects in both material and workmanship at the date of purchase. This warranty does not
cover any component parts damaged by use or modification. In no case shall Hobbico's liability exceed the original cost of the
purchased kit. Further, Hobbico, Inc. reserves the right to change or modify this warranty without notice. In that Hobbico, Inc. has no
control over the final assembly or material used for final assembly, no liability shall be assumed nor accepted for any damage resulting from
the use by the user of the final user-assembled product. By the act of using the user-assembled product, the user accepts all resulting
liability. If the buyer is not prepared to accept the liability associated with the use of this product, the buyer is advised to return this kit
immediately in new and unused condition to the place of purchase. To make a warranty claim send the defective part or item to Hobby
Services at the address below:
Hobby Services
3002 N. Apollo Dr. Suite 1
Champaign IL 61822 USA
© 2013 Hobbico
®
, Inc. All rights reserved.
Include a letter stating your name, return shipping address, as much contact information as possible
(daytime telephone number, fax number, e-mail address), a detailed description of the problem and a
photocopy of the purchase receipt. Upon receipt of the package, the problem will be evaluated as quickly
as possible.
Printed in China
WARRANTY
FLZA2062

Advertisement

Table of Contents
loading

Summary of Contents for Flyzone Tiger moth

  • Page 1 ™ ASSEMBLE ONLY WITH ADULT SUPERVISION Please read through this instruction booklet to THOROUGHLY familiarize yourself with the assembly of this airplane prior to assembly. Please inspect all parts carefully before starting assembly! If any parts are missing, broken or defective, or if you have any questions about the assembly or flying of this airplane, please call us at (217) 398-8970 and we’ll be glad to help.
  • Page 2: Included Items

    INCLUDED ITEMS Check the parts against those shown. If any parts are damaged or missing, please call Hobby Services at: (217) 398-8970. Note: Tx-R version (FLZA2062) does not include transmitter. It does include a 1S charger. *Included pilot figure unpainted FCC AND ETSI This device complies with part 15 of the FCC rules.
  • Page 3 4. Although the Micro Tiger Moth is designed to be successfully flown by the first time pilot, you may still benefit from the assistance of an experienced pilot for your first flights. If you’re not a member of an R/C club, your local hobby shop has information about clubs in your area whose membership includes experienced pilots.
  • Page 4: Prepare The Ttx402 Transmitter

    ● Center of Gravity (C.G.): Point at which the aircraft must balance in order to fly properly. ● Glide Slope: The proper path for an airplane approaching a landing strip. PREPARE THE TTX402 TRANSMITTER For more information on the Tactic Radio System included with the Micro Tiger Moth visit www.tacticrc.com Leave the TTX402 unpowered.
  • Page 5 CHARGE THE 3.7V 140MAH LIPO BATTERY Do not use the charge feature while flying the Micro Tiger Moth! Push and slide to open the charger cover. Leave the TTX402 unpowered. Insert battery to charge. Make sure the battery plug is oriented properly before inserting.
  • Page 6: Power The Ttx402 And Center The Trims

    POWER THE TTX402 AND CENTER THE TRIMS Illuminated red light indicates the TTX402 Leave the left stick is powered and transmitting. (throttle control) in the minimum position during setup. Center the rudder and elevator trims. Power switch “ON” . TRIM ADJUSTMENT Full extent.....
  • Page 7 Disconnect and remove the battery after use by holding the battery lead with two fingers and removing the battery from the lead with the other hand. Do not yank or jerk the battery from the aircraft. This could dislodge the RX board from the Micro Tiger Moth. CHECK THE CONTROL SURFACE DIRECTION...
  • Page 8: Center The Control Surfaces

    CENTER THE CONTROL SURFACES See bottom of page 5 for trim adjustment. Before flight, center rudder control Before flight, center elevator control surface with rudder trim adjustment. surface with elevator trim adjustment. REVERSE THE CONTROL THROWS (OPTIONAL) Unpower the model before attempting to reverse the control throws. RUDDER PREFERENCE: To move the rudder control function from the right stick to the left stick, (with the...
  • Page 9: Choose A Flying Site

    ADJUSTMENT OF LINKAGES: ELEVATOR AND RUDDER To alter the center position, or increase/decrease the control throws, follow these steps. Be sure to unpower the model before attempting to mechanically adjust the linkages. CHOOSE A FLYING SITE INDOOR FACILITY 5 minute flight times 8–10 minute flight times (outdoor) (indoor)
  • Page 10: Range Check

    RANGE CHECK With the transmitter powered and the battery plugged into the Micro Tiger Moth, walk 50' [15m] from the aircraft and check the control functions for proper and smooth operation. 50' [15m] FLYING THE MICRO TIGER MOTH If anytime during operation the controls or propeller become jammed or unresponsive, lower the power to the propeller, and land.
  • Page 11: Propeller Replacement

    REPLACEMENT PARTS To order replacement parts for the Micro Tiger Moth, use the order numbers in the list below. Replacement parts are available only as listed. Replacement parts are not available from Product Support, but can be purchased from hobby shops or mail order/Internet order firms.
  • Page 12 ™ ™...
