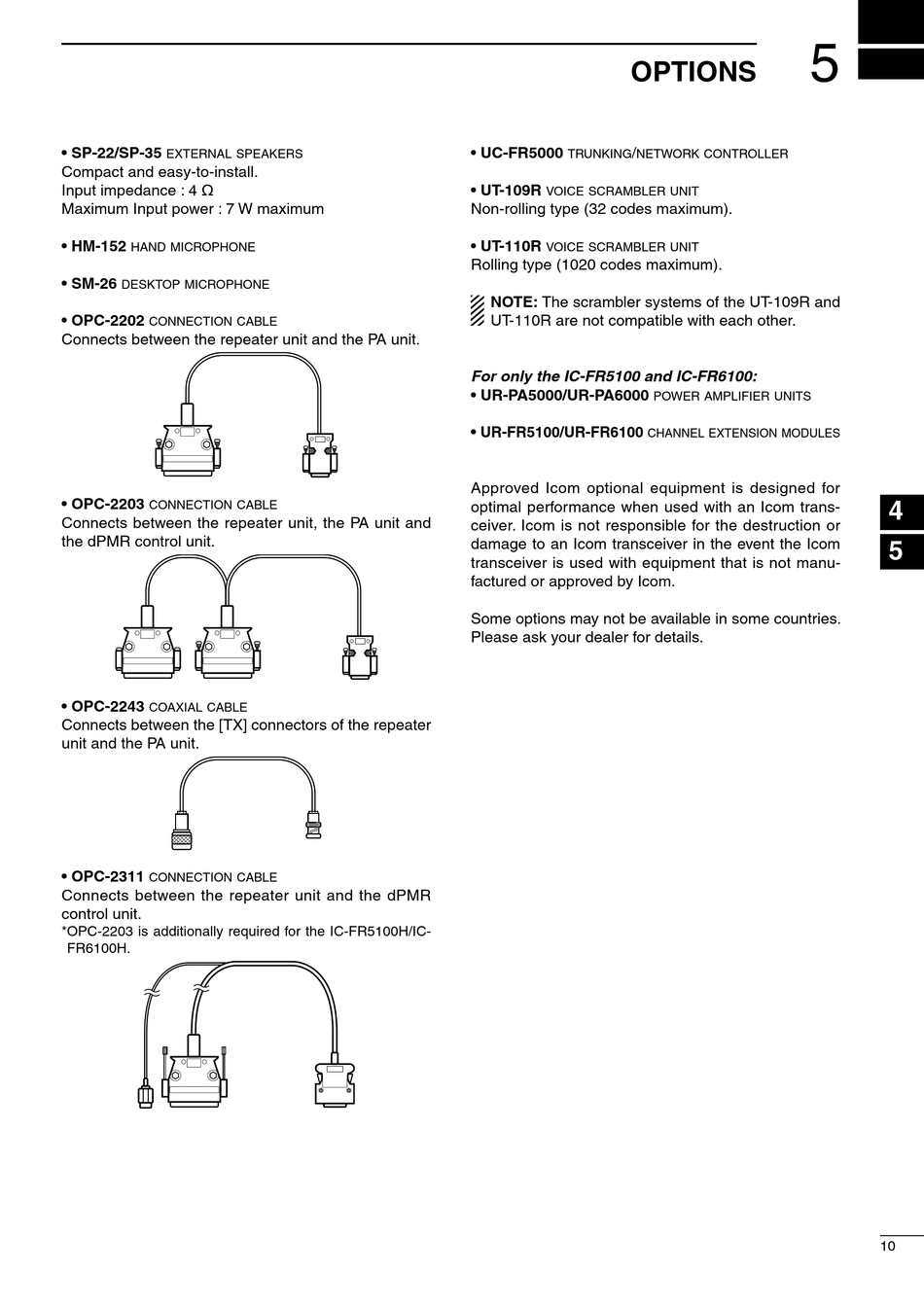

Options - Icom IC-FR5100 Instruction Manual

• SP-22/SP-35
external speakers
Compact and easy-to-install.
Input impedance : 4 ˘
Maximum Input power : 7 W maximum
• HM-152
hand microphone
• SM-26
desktop microphone
• OPC-2202
connection cable
Connects between the repeater unit and the PA unit.
• OPC-2203
connection cable
Connects between the repeater unit, the PA unit and
the dPMR control unit.
• OPC-2243
coaxial cable
Connects between the [TX] connectors of the repeater
unit and the PA unit.
• OPC-2311
connection cable
Connects between the repeater unit and the dPMR
control unit.
* OPC-2203 is additionally required for the IC-FR5100H/IC-
FR6100H.

OPTIONS

• UC-FR5000
/
trunking network controller
• UT-109R
voice scrambler unit
Non-rolling type (32 codes maximum).
• UT-110R
voice scrambler unit
Rolling type (1020 codes maximum).
NOTE: The scrambler systems of the UT-109R and
UT-110R are not compatible with each other.
For only the IC-FR5100 and IC-FR6100:
• UR-PA5000/UR-PA6000
• UR-FR5100/UR-FR6100
Approved Icom optional equipment is designed for
optimal performance when used with an Icom trans-
ceiver. Icom is not responsible for the destruction or
damage to an Icom transceiver in the event the Icom
transceiver is used with equipment that is not manu-
factured or approved by Icom.
Some options may not be available in some countries.
Please ask your dealer for details.
5
power amplifier units
channel extension modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
10
