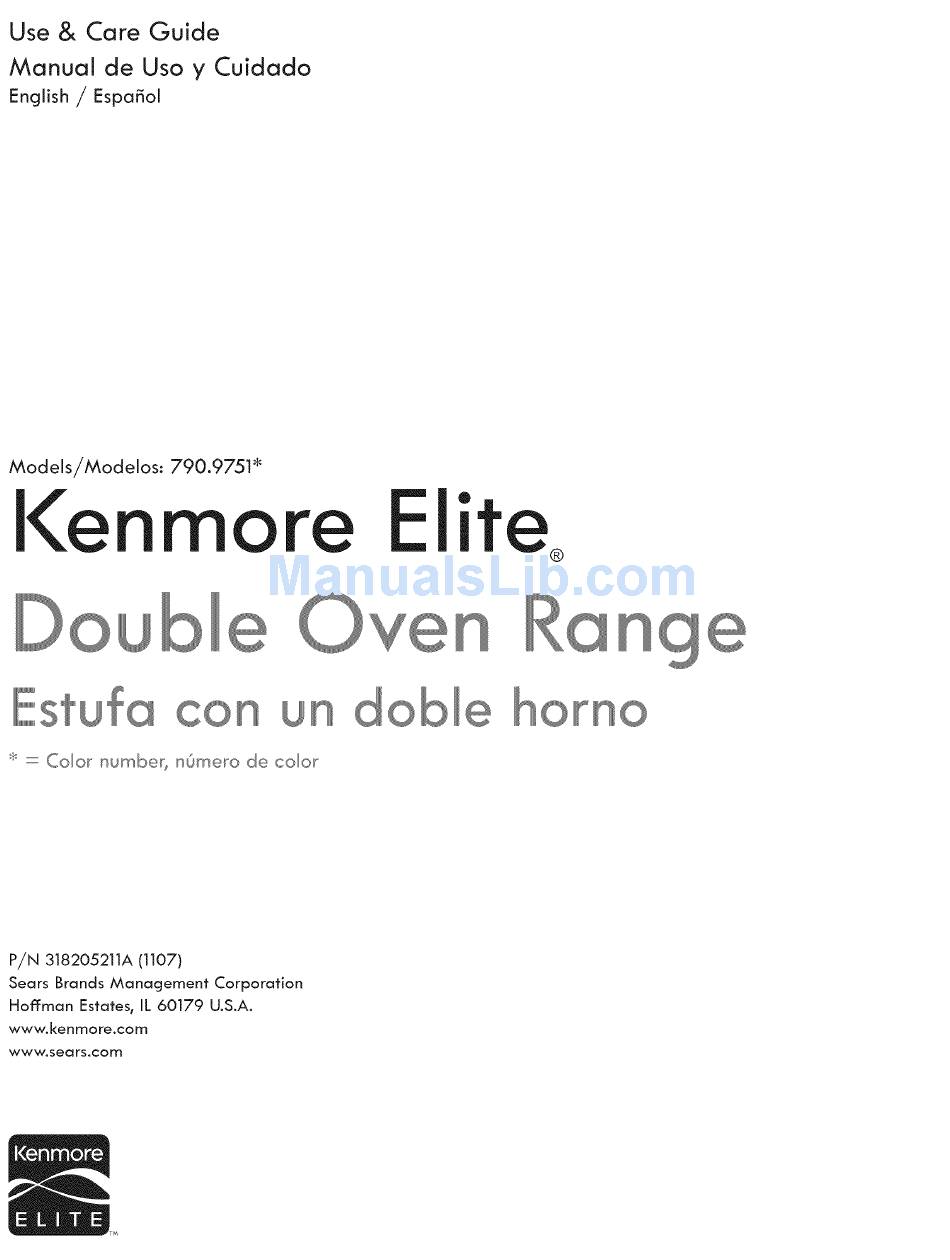

Use & Care Guide Manual de Uso y Cuidado English / Espa_ol Models/Modelos: 790.9751 l<e more _OFIO P/N 318205211A (1107) Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A. www.kenmore.com www.sears.com...
.............. Before Setting the Oven Controls ..........Sears Service ................Kenmore Elite Limited Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME®...
iMPORTANT SAFETY iNSTRUCTiONS Read all instructions before using this appliance. This manual contains important safety symbols instructions. Please attention to these symbols follow all instructions given. * Remove all tape and packaging before using * Never modify or alter the construction of an the appliance.
iMPORTANT SAFETY iNSTRUCTiONS Never leave surface units unattended * Wear Proper Apparel. Loose-fitting or hanging garments should never be worn while using Boilovers cause smoking and greasy the appliance. Do not let clothing or other accumulations that may ignite, or a pan that flammable materials contact...
iMPORTANT SAFETY iNSTRUCTiONS IMPORTANT INSTRUCTIONS • Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break. CLEANING YOUR OVEN Disconnect the appliance or shut off the power to * Clean the appliance regularly to keep all parts...
Range Features Your Range includes: Electronic oven control with kitchen timer. Left front element control and electronic display. Left rear element control and electronic display. Keep worm zone control. Right rear element control and electronic display. Right front element control and electronic display.
Before Setting Surface Controls About Ceramic Glass Cooktop The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Make sure the diameter of the pan matches the diameter of the element...
Before Setting Surface Controls Cco. d) To Set the Cooktop Lockout Feature cOOKTOP The COOKTOP LOCKOUT pad is used to activate the Cooktop Lockout feature which wiii lock aii surface elements from LOCI(OUT being accidentally turned ON. This feature will only loci< the cooktop. INSTRUCTIONS PRESS DISPLAY...
Setting Surface Controls The Electronic Surface Element Control (ESEC) The Electronic Surface Element Control (ESEC) feature provides a digital display the radiant surface elements on the cooktop. The ESEC display in combination with the touch pads is designed to replace conventional control knobs.
Setting Surface Controls <co.t,d> Operating Single Radiant Surface Elements The cooktop has 3 SINGLE radiant surface elements (figure 1): the RIGHT REAR position, the LEFT REAR position and the LEFT FRONT position. To Operate the Single Radiant Surface Elements: Place correctly sized cookware on the radiant surface element.
Setting Surface Controls (co.t,d) Operating the Triple Surface Element The cooktop is equipped with a Triple radiant surface element located at the right front cooktop position (Figure 1). Indicator lights on the control panel at that position are used to indicate what portions of the Triple radiant element will heat.
Setting Surface Controls (cont,d) Operating Warmer (Warm & Ready Zone The Worm & Ready zone radiant element is located at the center rear position (Figure 1). The purpose of the Warmer Zone is to keep hot cooked foods at serving temperature. the Warmer Zone to keep cooked foods hot such as: vegetables, gravies, casseroles, soups,...
Surface Cooking Selecting Surface Cooking Cookware incorrect Correct Cookware should hove flat bottoms that make good contact with the entire surface heating element. Check for flatness by rotating a ruler across the bottom of the cookware (See Figure 1). Be sure to follow the recommendations for using * Curved and warped pan...
Oven Controls Before Setting the Upper and lower Oven Vent Oven Vent Location See illustration on left side for venting location. When the oven is on, warm air is released through the vent. This venting is necessary for proper air circulation in the oven and good baking results.
Control Pad Features READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in fhls Use & Care Guide. NOTICE : The illustrations and instructions contained in this document...
Setting the Clock Seffing the Clock The Q pad is used to set the clock. The clock may be set for 12 or 24 hour time of day operation. The clock has been preset at the factory for the 12 hour operation. When the range is first plugged in_ or when the power supply to the range has been interrupted_ the timer in the display will flash.
Setting the Clock Setting Continuous Bake or 12 Hour Energy Saving Timer Flex The Set/Off and Cbon pads control the Continuous Bake or 12 Hour Energy Saving features. The oven control has a factory preset built-in 12 Hour Energy Saving feature that will...
Consumer Defined Control Note: The Consumer Defined Control features are adjustments to the control that wiii not affect cooking results. These include the Oven Lockout, Temperature Display and Silent Control Operation features. Seffing Oven Lockout Feature controls the Oven Lockout feature.
Consumer Defined Control Setting Temperature Display- Fahrenheit or Celsius The _ and CleanFlex pads control the Fahrenheit or Celsius temperature display modes. The oven control can be programmed to display temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit.
Setting Oven Controls Setting Preheat The Pre pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature and then indicate when Heat to place the food in the this feature when recipes call for preheating. Preheating is not necessary when roasting...
Setting Oven Controls Important Things to Know Before Setting any Basic Oven Cooking Function This appliance has been factory pre-set to start BAKE, CONV BAKE, CONV ROAST, PREHEAT, CAKES or BREADS function with the oven set temperature automatically set for 350°F. However if desired, the oven...
Setting Oven Controls Oven Baking For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously...
Setting Oven Controls Setting Cook Time The _ and COOkTime pads control the Cook Time feature. The automatic timer of the Cook Time feature wiii turn the oven OFF after cooking for the desired amount of time you selected. INSTRUCTIONS PRESS DISPLAY To program...
Setting Oven Controls Setting Delay Start will turn the oven The _ Cook and Delay control the Delay Start feature. The automatic timer of the Delay Start feature pads Time Start on and off at the time you select in advance. Note: If your clock is set for normal 12 hour display...
Setting Oven Controls Setting Broil The _ pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for even coverage. Broil temperature may be set between 400°F and 550°F. The broil pan and broil pan insert used together allow dripping grease to drain and be kept away from the high heat of the oven broiler.
Setting Oven Controls Setting the Food Categories Features Benefitsof Convection Bake: The _ and BreadsCakes pods may be used when cooking certain food items. --Multiple rock baking. These pads have been designed to give optimum cool< performance for the --Some foods cool<...
Setting Oven Controls Setting Convection Bake The CONVECTION BAKE _ pad controls the Convection Bake feature. circulation the Convection Bake feature when cooking iS desired. The oven speed during can be programmed for Convection baking at any temperature between Convection 170 °...
Setting Oven Controls Setting Convection Convert feature The CONY CONVERT Cony pad is used to automatically convert a standard Baking recipe for convection baking. When Convert properly, this feature is designed to display the oven set converted (reduced) temperature in the display. Convection Convert MUST be used with the Convection Bake keypad.
Setting Oven Controls Setting the Slow Cook Feature The Slowpad is used to activate this feature. The Slow Cook feature may be used to cook foods more slowly, at lower oven Cook temperatures and provides cooking results much the same way as a Stow Cooker or Crock-Pot. The Slow Cook feature ideal for roasting beef, pork &...
Setting Oven Controls Setting the Warm & Hold Feature The Warmpad turns ON the Warm & Hold feature and will maintain an oven temperature of 170°F (77°C). The Warm & Hold & Hold feature wiii keep oven baked foods warm for serving up to 3 hours after cooking has finished.
Setting Oven Controls To Set the Sabbath Feature (far use an the Jewish Sabbath & Holidays) The Cook and Delaypads are used to set the Sabbath feature. The Sabbath feature may only be used with the _ pad. Time Start The oven temperature may be set higher or lower after setting the Sabbath feature...
Setting Oven Controls To Set the Recipe Recall Feature This feature will ONLY recall a Bake, Convection Bake, Cakes, Breads, Convection roast, Slow Cook, Cook Time or a Cook Time with a Warm & Hold added setting. This feature will not work with any other function including a Delay Start, a Clean Cycle or a Broil setting.
Self-Cleaning Self-Cleaning Oven During the self=cleanlng cycle, the outside of the range can become A Self-Cleaning oven cleans itself with high temperatures (well above very hot to the touch. DO NOT leave small cooking temperatures) which eliminate soils completely or reduces them to a fine powdered ash you can wipe away with a damp cloth.
Self-.Cleaning _J__ To avoid possible burns use care when opening the oven door after the Self- To Start the Self-Clean Cycle Cleaning cycle. Stand to the side of the oven The FLEX CLEAN Cleon pad controls the Self-Cleaning feature. If you are when opening the door to allow hot air or steam planning to use the oven directly...
Self Cleaning Stopping or Interrupting a Self-Cleanlng Cyde If it becomes necessary to stop or interrupt a self-cleaning cycle due to excessive smoke or fire in the oven: Press 0" The oven door can only be opened after the oven has cooled down for approximately...
General Care & Cleaning Before cleaning any part of the oven, be sure all controls are turned OFF and the oven is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE EXTENT AND DIFFICULTY OF MAJOR CLEANING LATER.
General Care & Cleaning (cont'd) Ceramic Glass Cooktop Cleaning & Maintenance and proper cleanln e is essential to malntalning y0ur Ceramic glass cooktop Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement...
General Care & Cleaning Removing and Replacing the Lift-Off Oven Door The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. To Remove Oven Door: Open oven door completely (horizontal with floor - See Fig.
Before You Call Solutions fo Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION Oven Control Beeps and...
Before You Call Soluflons to Common Problems OCCURRENCE POSSIBLE CAUSE/SOLUTiON Scratches or abrasions on Coarse particles such as salt or sand between cooktop and utensils can cause scratches. cookfop surface. Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become...
Before You Call Solutions to Common Problems OCCURRENCE POSSIBLE CAUSE/SOLUTION Oven smokes excessively Oven door is closed. Door should be open during broiling. during broiling. Meat too close to the broiler unit. Reposition the rack to provide more clearance between the meat and the broiler.
