iNSTALLATiON AND SERVICEMUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT:
SAVE FOR LOCAL ELECTRICAL INSPECTOR'S
USE.
READ AND SAVE THESE iNSTRUCTiONS
FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other
flammable
vapors and liquicls in the vicinity
of this or any' other appliance.

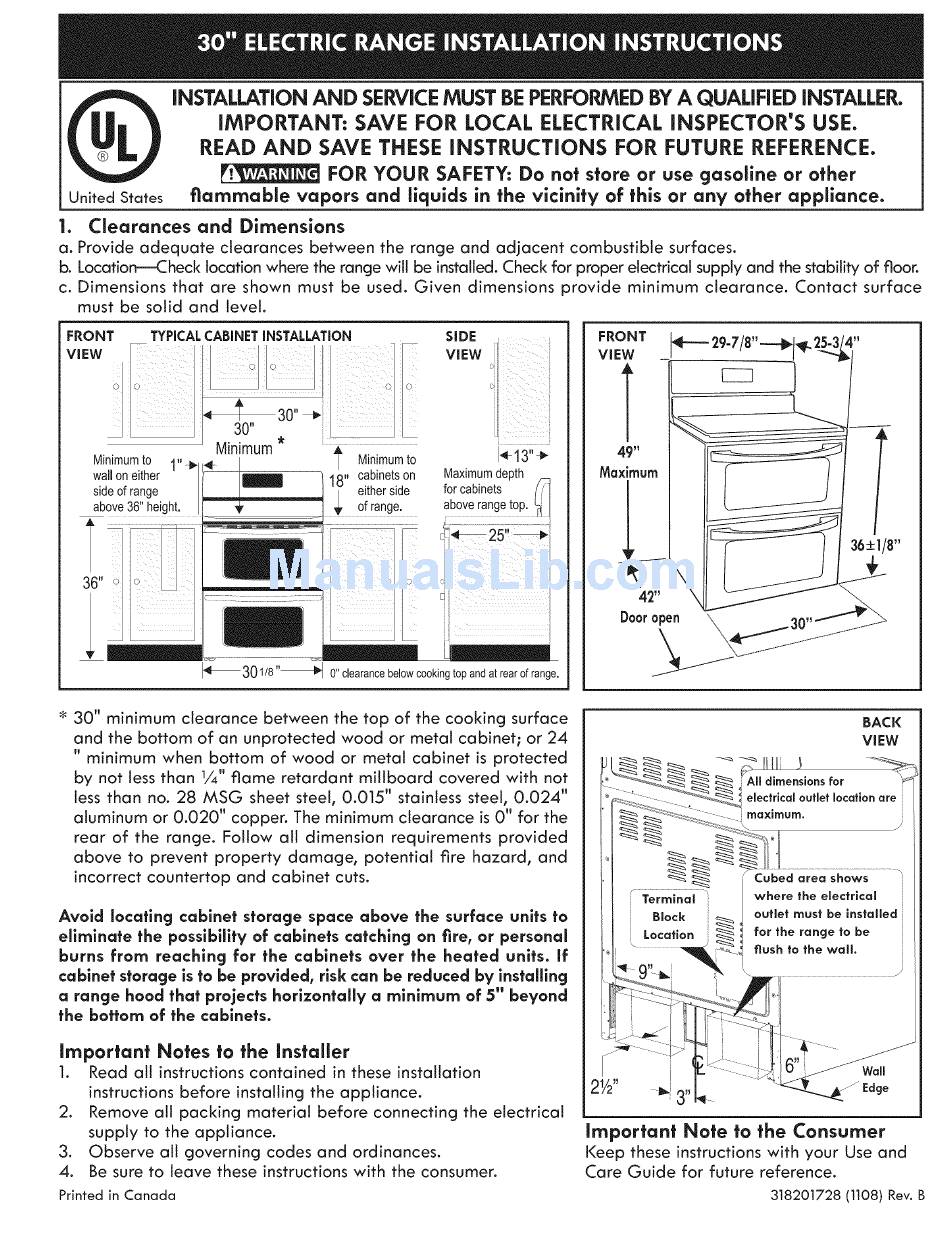

. Clearances
and Dimensions
a. Provide adequate
clearances
between the range and adjacent
combustible surfaces.
b. Location---Check location where the range will be installed. Check for proper electrical supply and the stability of floor.
c. Dimensions
that are shown must be used. Given dimensions
provide
minimum
clearance.
Contact
surface
must be solid and level.
United States
SIDE ()
VIEW,
i
[
)H )
()
Maximumdepth
for cabinets
//
above
[ange
!op:
30" minimum clearance
between the top of the cooking surface
and the bottom of an unprotected
wood or metal cabinet;
or 24
" minimum when bottom
of wood or metal cabinet is protected
by not tess than 1/4" flame retardant
millboard
covered with not
less than no. 28 MSG sheet steel, 0.015" stainless steel, 0.024"
aluminum or 0.020" copper. The minimum clearance
is 0" for the
rear of the range. Follow all dimension
requirements
provided
above to prevent property
damage,
potential
fire hazard,
and
incorrect
countertop
and cabinet cuts.
Avoid locating cabinet storage space above the surface units to
eliminate the possibility of cabinets catching on fire, or personal
burns from
reaching for the cabinets over the heated units.
If
cabinet storage is to be provided, risk can be reduced by installlng
a range hood thatprojects horlzontaiiy
a minimum of 5" beyond
the bottom of the cabinets.
Important
Notes fo the Installer
1.
Read all instructions contained
in these installation
instructions
before
installing the appliance.
2.
Remove all packing
material
before connecting
the electrical
supply to the appliance.
3.
Observe all governing
codes and ordinances.
4.
Be sure to leave these instructions with the consumer.
BACK
VIEW
- _ _-
_
_
_
i All dimensions for
_'
=, -
-........
'-- °_'_-,_Z, _ electrical
outlet Iocohon
are ::
_"_
::_::--__/mo,,_mum.
Terminal
"
where
the electrical
Block
_
outlet
must be installed
Locatlon_
for the range to be
_
flush to the wall.
l
i!
i/
Imporlant
Note fo the Consumer
Keep these instructions with your Use and
Care Guide for future reference.
Printed
in Canada
318201728
(1108) Rev. B
