Kenmore 790.9750 Series Use & Care Manual

Double oven range
Hide thumbs

Advertisement

Quick Links

Use & Care Guide
Manual
de Uso y Cuidado
English
/ Espa_ol
Models/Modelos:
790.9750
_
l<e more
e@
_OFIO
P/N 318205208A
(1006)
Sears
Brands
Management
Corporation
Hoffman
Estates, IL 60179
U.S.A.
www.kenmore.com
www.sears.com

Advertisement

loading

  Also See for Kenmore 790.9750 Series

  Summary of Contents for Kenmore 790.9750 Series

  • Page 1 Use & Care Guide Manual de Uso y Cuidado English / Espa_ol Models/Modelos: 790.9750 l<e more _OFIO P/N 318205208A (1006) Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A. www.kenmore.com www.sears.com...
  • Page 2 .............. Before Setting the Oven Controls ..........Sears Service ................Kenmore Elite Limited Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME®...
  • Page 3 iMPORTANT SAFETY iNSTRUCTiONS Read all instructions before using this appliance. This manual contains important safety symbols instructions. Please attention to these symbols follow all instructions given. * Remove all tape and packaging before using * Never modify or alter the construction of an the appliance.
  • Page 4 iMPORTANT SAFETY iNSTRUCTiONS Never leave surface units unattended * Wear Proper Apparel. Loose-fitting or hanging garments should never be worn while using Boilovers cause smoking and greasy the appliance. Do not let clothing or other accumulations that may ignite, or a pan that flammable materials contact...
  • Page 5 iMPORTANT SAFETY iNSTRUCTiONS IMPORTANT INSTRUCTIONS • Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break. CLEANING YOUR OVEN Disconnect the appliance or shut off the power to * Clean the appliance regularly to keep all parts...
  • Page 6 Range Features Your Range includes: Electronic oven control with kitchen timer. Left front element control and electronic display. Left rear element control and electronic display. Keep worm zone control. Right rear element control and electronic display. Right front element control and electronic display.
  • Page 7 Before Setting Surface Controls About the Ceramic Glass Cooktop The ceramic cooktop has radiant surface elements located below the surface of the glass. The the ceramic cooktop design outlines the area of the surface element underneath. Make sure the diameter of the pan matches the diameter of the element outline...
  • Page 8 Before Setting Surface Controls Cco.t'dl To Set the Cooktop Lockout Feature cOOKTOP The COOKTOP LOCKOUT pad is used to activate the Cooktop Lockout feature which wiii lock aii surface elements from LOCKOUT being accidentally turned ON. This feature will only loci< the cooktop. INSTRUCTIONS PRESS DISPLAY...
  • Page 9 Setting Surface Controls The Electronic Surface Element Control (ESEC) The Electronic Surface Element Control (ESEC) feature provides a digital display the radiant surface elements on the cooktop. The ESEC display in combination with the touch pads is designed to replace conventional control knobs.
  • Page 10 Setting Surface Controls Cco.t,d) Operating Single Radiant Surface Elements The cooktop has 3 SINGLE radiant surface elements (figure 1): the RIGHT REAR position, the LEFT REAR position and the LEFT FRONT position. To Operate the Single Radiant Surface Elements: Place correctly sized cookware on the radiant surface element.
  • Page 11 Setting Surface Controls (co.t,d) Operating the Triple Surface Elernenf The cooktop is equipped with a Triple radiant surface element located at the right front cooktop position (Figure 1). Indicator lights on the control panel at that position are used to indicate what portions of the Triple radiant element...
  • Page 12 Setting Surface Controls (cont,d) Operating Warmer (Warm & Ready Zone The Worm & Ready zone radiant element is located at the center rear position (Figure 1). The purpose of the Warmer Zone is to keep hot cooked foods at serving temperature. the Warmer Zone to keep cooked foods hot such as: vegetables, gravies, casseroles, soups,...
  • Page 13 Surface Cooking Selecting Surface Cooking Cookware incorrect Correct Cookware should hove flat bottoms that make good contact with the entire surface heating element. Check for flatness by rotating a ruler across the bottom of the cookware (See Figure 1). Be sure to follow the recommendations for using * Curved and warped pan...
  • Page 14 Before Setting the Oven Controls internal components at a cool temperature. The blower may keep running even if the oven has been turned off, until The lower oven is equipped with a blower which runs in baking and self-cleanlng mode to keep all the components have cooled down.
  • Page 15 Control Pad Features READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in fhls Use & Care Guide. NOTICE : The illustrations and instructions contained in this document...
  • Page 16 Setting the Clock Seffing the Clock The Q pad is used to set the clock. The clock may be set for 12 or 24 hour time of day operation. The clock has been preset at the factory for the 12 hour operation. When the range is first plugged in, or when the power supply to the range has been interrupted, the timer in the display...
  • Page 17 Setting the Clock Setting Continuous Bake or 12 Hour Energy Saving Timer Flex The Set/Off and Cbon pads control the Continuous Bake or 12 Hour Energy Saving features. The oven control has a factory preset built-in 12 Hour Energy Saving feature that will...
  • Page 18 Consumer Defined Control Note: The Consumer Defined Control features are adjustments to the control that wiii not affect cooking results. These include the Oven Lockout, Temperature Display and Silent Control Operation features. Seffing Oven Lockout Feature The o_ pad controls the Oven Lockout feature. The Oven Lockout feature automatically Jacks the oven door and prevents...
  • Page 19 Consumer Defined Control Setting Temperature Display- Fahrenheit or Celsius The _ and CleanFlex pads control the Fahrenheit or Celsius temperature display modes. The oven control can be programmed to display temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit.
  • Page 20 Setting Oven Controls Setting Preheat The Pre pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature and then indicate when Heat to place the food in the this feature when recipes call for preheating. Preheating is not necessary when roasting...
  • Page 21 Setting Oven Controls Important Things to Know Before Setting any Basic Oven Cooking Function This appliance has been factory pre-set to start BAKE, CONV BAKE, CONV ROAST, PREHEAT, CAKES or BREADS function with the oven set temperature automatically set for 350°F. However if desired, the oven...
  • Page 22 Setting Oven Controls Oven Baking For best cooking resuits_ heat the oven before baking cookies_ breads_ cakes_ pies or pastries_ etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times temperatures needed to bake a product vary...
  • Page 23 Setting Oven Controls Setting Cook Time The _ and COOkTime pads control the Cook Time feature. The automatic timer of the Cook Time feature wiii turn the oven OFF after cooking for the desired amount of time you selected. INSTRUCTIONS PRESS DISPLAY To program...
  • Page 24 Setting Oven Controls Setting Delay Start will turn the oven The _ Cook and Delay control the Delay Start feature. The automatic timer of the Delay Start feature pads Time Start on and off at the time you select in advance. Note: If your clock is set for normal 12 hour display...
  • Page 25 Setting Oven Controls Setting Broil The _ pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for even coverage. Broil temperature may be set between 400°F and 550°1:. The broil pan and broil pan insert used together allow dripping grease to drain and be kept away from the high heat of the oven broiler.
  • Page 26 Setting Oven Controls Benefits of Convection Bake: --Multiple rack baking. Setting the Food Categories Features --Some foods cool< faster, saving The _ (lower oven only) and BreadsCakes pads may be used when cooking certain food items. time and energy. These pads have been designed to give optimum cook performance for the foods selected in --No special...
  • Page 27 Setting Oven Controls Setting Convection Bake - Lower Oven Only The CONVECTION BAKE _ pad controls the Convection Bake feature. circulation the Convection Bake feature when cooking speed is desired. The oven can be during programmed for Convection baking at any temperature between 170 °...
  • Page 28 Setting Oven Controls Setting Convection Convert feature - Lower Oven Only The CONY CONVERT Cony pad is used to automatically convert a standard Baking recipe for convection baking. When Convert properly, this feature is designed to display the oven set converted (reduced) temperature in the display.
  • Page 29 Setting Oven Controls Setting the Slow Cook Feature The Slowpad is used to activate this feature. The Slow Cook feature may be used to cook foods more slowly, at lower oven Cook temperatures and provides cooking results much the same way as a Stow Cooker or Crock-Pot. The Slow Cook feature ideal for roasting beef, pork &...
  • Page 30 Setting Oven Controls Setting the Warm & Hold Feature The Warmpad turns ON the Warm & Hold feature and will maintain an oven temperature of 170°F (77°C). The Warm & Hold & Hold feature wiii keep oven baked foods warm for serving up to 3 hours after cooking has finished.
  • Page 31 Setting Oven Controls To Set the Sabbath Feature (far use an the Jewish Sabbath & Holidays) The Cook and Delaypads are used to set the Sabbath feature. The Sabbath feature may only be used with the _ pad. Time Start The oven temperature may be set higher or lower after setting the Sabbath feature...
  • Page 32 Setting Oven Controls To Set the Recipe Recall Feature This feature will ONLY recall a Bake, Convection Bake, Cakes, Breads, Convection roast, Slow Cook, Cook Time or a Cook Time with a Warm & Hold added setting. This feature will not work with any other function including a Delay Start, a Clean Cycle or a Broil setting.
  • Page 33 Self-Cleaning Self-Cleaning Oven During the self=cleanlng cycle, the outside of the range can become A Self-Cleaning oven cleans itself with high temperatures (well above very hot to the touch. DO NOT leave small cooking temperatures) which eliminate soils completely or reduces them to a fine powdered ash you can wipe away with a damp cloth.
  • Page 34 Self-.Cleaning _J__ To avoid possible burns use care when opening the oven door after the Self- To Start the Self-Clean Cycle Cleaning cycle. Stand to the side of the oven The FLEX CLEAN Cleon pad controls the Self-Cleaning feature. If you are when opening the door to allow hot air or steam planning to use the oven directly...
  • Page 35 Self Cleaning Stopping or Interrupting a Self-Cleanlng Cyde If it becomes necessary to stop or interrupt a self-cleaning cycle due to excessive smoke or fire in the oven: Press 0" The oven door can only be opened after the oven has cooled down for approximately...
  • Page 36 General Care & Cleaning Before cleaning any part of the oven, be sure all controls are turned OFF and the oven is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE EXTENT AND DIFFICULTY OF MAJOR CLEANING LATER.
  • Page 37 General Care & Cleaning (cont'd) Ceramic Glass Cooktop Cleaning & Maintenance proper cleanln e is essential to malntalning y0ur Ceramic glass coaktap Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement...

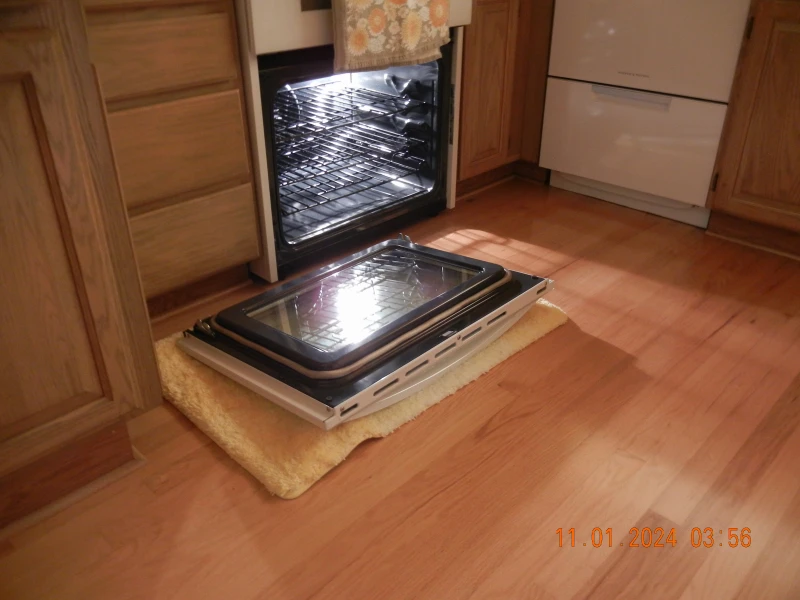

  • Page 38 General Care & Cleaning Removing and Replacing the Lift-Off Oven Door The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. To Remove Oven Door: Open oven door completely (horizontal with floor - See Fig.
  • Page 39 Before You Call Solutions fo Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION Oven Control Beeps and...
  • Page 40 Before You Call Soluflons to Common Problems OCCURRENCE POSSIBLE CAUSE/SOLUTiON Scratches or abrasions on Coarse particles such as salt or sand between cooktop and utensils can cause scratches. cookfop surface. Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become...
  • Page 41 Before You Call Solutions to Common Problems OCCURRENCE POSSIBLE CAUSE/SOLUTiON Oven smokes excessively Make sure the oven door is closed. Door should be closed during broiling. during brolllng. Meat too close to the broiler unit. Reposition the rack to provide more clearance between the meat and the broiler.
