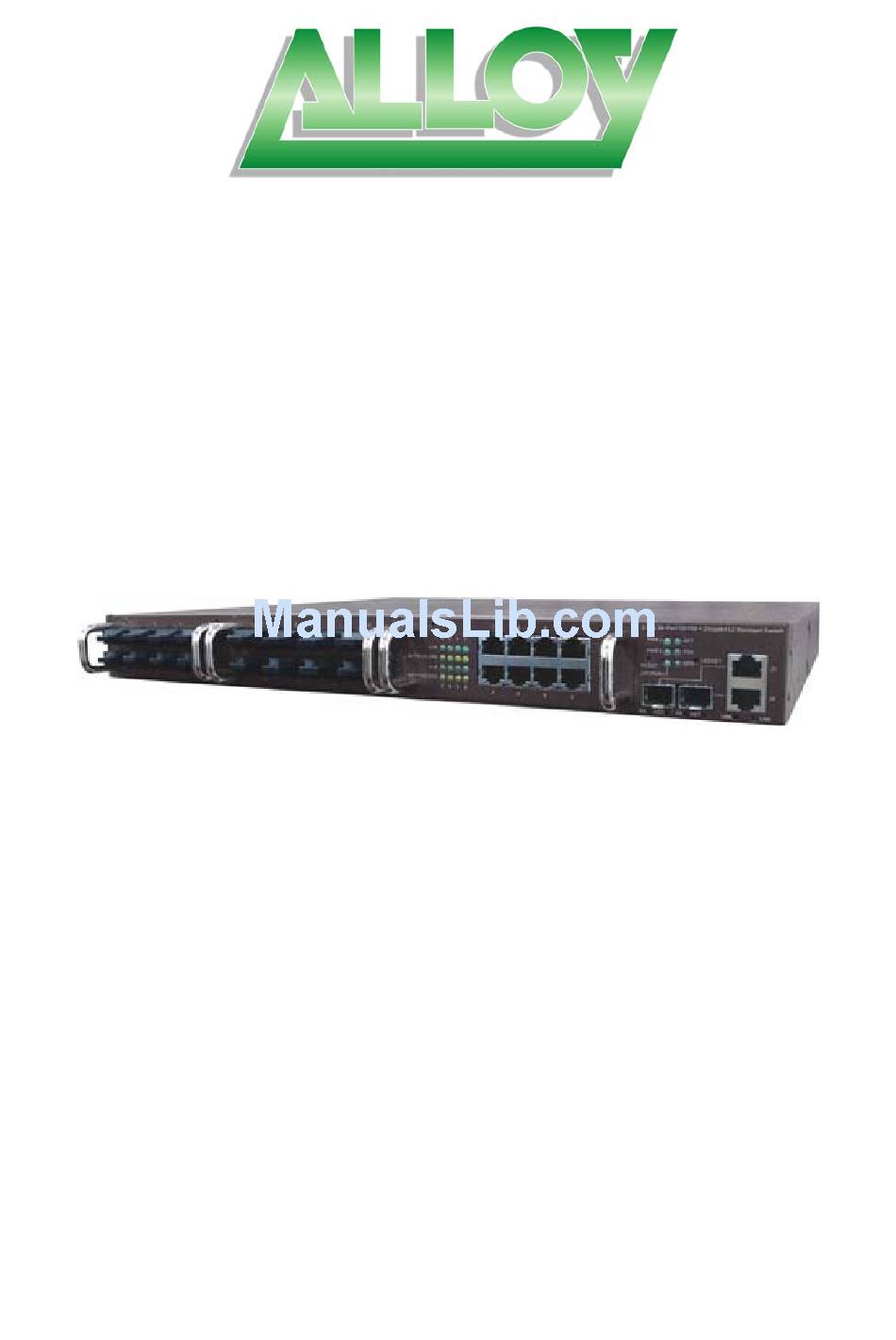

Page 1: User Manual

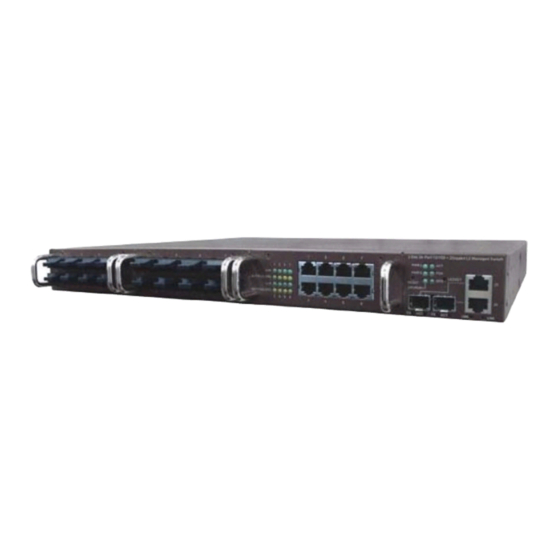

User Manual MS888G2 24 Port Modular SNMP Managed Switch Version: 1.01 June, 2006...
Page 2: Table Of Contents
2.1.2.2. Cabling Requirements for 100Base-FX Modules ............12 2.1.2.3. Cabling Requirements for 1000SX/LX/ZX SFP Modules..........12 2.1.3. Management options available with the MS888G2 ..........13 2.1.3.1. Configuring the MS888G2 through the RS-232 serial port ..........13 2.1.3.2. Configuring the MS888G2 through the Ethernet Port..........15 3-1. W ................18...
Page 3 OGOUT 4-1. CLI M ......................115 ANAGEMENT 4-1-1. Login ........................115 4-2. C CLI ....................116 OMMANDS OF THE 4-2-1. Global Commands of the CLI ................118 4-2-2. Local Commands of CLI ..................124 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 4: Caution
A EN60555-3 IEC1000-4-2(1995) 4K V CD, 8KV, AD IEC1000-4-3(1995) 3V/m IEC1000-4-4(1995) 1KV – (power line), 0.5KV – (signal line) Australian C-Tick Compliance. This equipment is compliant with the required Australian C-Tick standards Alloy Computer Products Pty Ltd Copyright ©2006...
Page 5: About This User Manual
MS888G2 User Manual About this User Manual This User Manual will guide you on procedures to install, configure and monitor the Alloy MS888G2 24 port Modular SNMP Managed Switch utilising the built-in web management interface and also the CLI. Overview of the User Manual •...
Page 6: Overview Of Ms888G2 Snmp Managed Switch
1. Introduction 1.1. Overview of MS888G2 SNMP Managed Switch The MS888G2 Switch is a high performance web and SNMP managed switch that provides a modular solution for 100Mbps networking in Fibre and Copper termination. The MS888G2 modular 3 slot chassis design supports 24x 10/100Mbps copper or 100Mbps fibre ports with 2 built-in Gigabit paired dual media ports for Gigabit uplink.
Page 7 • Key Features of MS888G2 SNMP Managed Switches QoS: The MS888G2 offers powerful Quality of Service (QoS) functions. This feature adds support of TOS fields within the IP packet header (equal DSCP low 3 bits) on Layer 3 of the network framework and 6 types of network transmission events on Layer 4.
Page 8: Checklist
The MS888G2 supports IGMP version 2 (RFC 2236). Note: * See Appendix A “Technical Specifications” for further details 1.2. Checklist Before you start installing your switch, verify that the package contains the following: •...
Page 9: Features
MS888G2 User Manual 1.3. Features The Alloy MS888G2 provides a comprehensive range of features: • Hardware • Supports 3x Modular 8 port 10/100Mbps Copper or 8 port 100Mb Fibre interfaces with a variety of fibre terminations. • 2 Paired 10/100/1000Mbps or 1000Mbps SFP Mini-GBIC Ports •...
Page 10: Overview Of The Ms888G2 Switch
1.4.1. User Interfaces on the Front Panel (Button, LED's and Plugs) There are 3 module slots for use with one of the many available modules for the MS888G2. The modules include 8 ports of 10/100Mbps copper or 8 ports of 100Mbps Fibre in a variety of fibre termination types.
Page 11: User Interfaces On The Rear Panel
1.4.2. User Interfaces on the Rear Panel Module Slot for optional redundant power supply RS-232 DB-9 Serial Port AC Line 100-240V 50/60 Hz Fig. 1-3: Rear View of the MS888G2 Switch Alloy Computer Products Pty Ltd Copyright ©2006...
Page 12: Overview Of The Optional Sfp Modules
1.5. Overview of the Optional SFP Modules With the MS888G2, the SFP ports are paired with RJ-45 copper ports 25 and 26. Only one of any given paired port can be used. In this manner, these paired ports can be seen as ‘Dual Media’...
Page 13: Starting The Ms888G2 Modular Snmp Managed Switch
MS888G2 User Manual 2. Installation 2.1. Starting the MS888G2 Modular SNMP Managed Switch This section provides a quick start guide for: • Hardware and Cable Installation • Management Station Installation • Software booting and configuration 2.1.1. Hardware and Cable Installation Please Note: ⇒...
Page 14 RJ-45 ports will automatically be configured to suit the characteristics of the device at the remote end of the link. ⇒ The RJ-45 ports on the MS888G2 support Nway auto-negotiation; the ports will automatically be configured to be compatible with the speed and duplex settings of the device at the remote end of the link.
Page 15 • Power On Please Note: ⇒ The Alloy MS888G2 uses a 100-240 VAC, 50-60 Hz power supply. The power supply will automatically convert your local AC power source to DC power for use by the switch. 1. Ensure that the power switch is turned off before connecting mains power.
Page 16: Cabling Requirements
SC, ST, MT-RJ and WDM SC. The following table lists the types of fibre optic cable that are supported by modules installed in the Alloy MS888G2. Other cable types not listed here may be supported; please contact the supplier of your switch for details.
Page 17: Management Options Available With The Ms888G2
2.1.3.1. Configuring the MS888G2 through the RS-232 serial port When configuring the MS888G2 via the RS-232 console please connect the switch via the provided serial cable to a DCE device such as a PC. Once you have connection run a terminal emulation program such as Hyper Terminal.
Page 18 Enter. 4. Type save start to save the new switch configuration as the startup configuration for the switch. 5. Type logout to exit the switch’s management. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 19: Configuring The Ms888G2 Through The Ethernet Port
Fig. 2-4 2.1.3.2. Configuring the MS888G2 through the Ethernet Port There are three different methods of configuring the MS888G2 through the Ethernet Port. They are CLI, Web Browser and via SNMP Management Software. We will not cover SNMP management in this manual as it will vary depending on the Network Management Software that is being used.
Page 20 You will now be prompted to log into the switch, the default username and password is shown below: Username: admin Password: admin Fig. 2.5 Note: The CLI configuration will be covered in detail in Chapter 4. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 21 Username: admin Password: admin Once you have entered the IP address of the MS888G2 into a web browser you will be prompted with a login screen where you will need to enter a valid username and password to gain access to the switch.
Page 22: Web Management Home Overview
Model Name, System Description, Location, Contact, Device Name, System Up Time, Current Time, BIOS Version, Firmware Version, Hardware-Mechanical Version, Serial Number, Host IP Address, Host MAC Address, Device Port, RAM Size and Flash Size. Fig. 3-2 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 23 At the left hand side of the screen is the main menu tree. This menu is used to navigate your way around the switch’s web interface. The image below shows the menu tree for the web interface: Fig. 3-4 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 24: System Information
Click the <apply> button to update. (Read/Write) Device Name: Specify a descriptive device name for the switch. Location name can be up to 36 Alphanumeric Characters long. Click the <apply> button to update. (Read/Write) Alloy Computer Products Pty Ltd Copyright ©2006...
Page 25 Specifies the port density and types of ports on the switch. (Read Only) RAM Size: The size of the DRAM in this switch. (Read Only) Flash Size: The size of the flash memory in the switch. (Read Only) Alloy Computer Products Pty Ltd Copyright ©2006...
Page 26: Ip Configuration
MS888G2 User Manual 3-1-2. IP Configuration The IP configuration is used to set the IP settings in the switch. The MS888G2 supports either a static IP address allocated to them via the system administrator or can be assigned an IP address dynamically from a DHCP server on your network.
Page 27 DNS address in the switch. A DNS Server address should be given to you from your ISP. Enter the required DNS Server in the space provided. Click the <apply> button to update. Default: 0.0.0.0 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 28: Time Configuration
MS888G2 User Manual 3-1-3. Time Configuration The MS888G2 provides two methods to keep the switch’s time settings correct, they are via manual input and via a Time Server on the internet. If you are manually entering your time settings enter the “Year”, “Month”, “Day, “Hour”, “Minute” and “Seconds” into the space provided.
Page 29 Click the <apply> button to update. Default: 0 Default values for starting and ending date: Start: Month = 1, Day = 1, Hour = 0 End: Month = 1, Day = 1, Hour = 0 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 30: Account Configuration
The account configuration is used to create or modify guest and administrator accounts. The MS888G2 allows the administrator to create up to 5 guest accounts. Accounts can only be created by the administrator. When a Guest user logs into the switch they will not be able to modify any parameters, they only have read only rights to the switch.
Page 31 Please enter a username for the administrator or guest account, a maximum of 15 alphanumeric characters only. Password: Please enter a password for the administrator or guest account, a maximum of 15 alphanumeric characters only. Confirm Password: Please confirm the password. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 32: Management Security Configuration
Web Management, Telnet or SNMP access. Fig. 3-9 Function Name: Management Security Configuration Function Description: Create rules based access to the management features of the MS888G2. Parameter Description: Name: Please enter a descriptive name for the Rule. VID: If you wish to lock the management down to a particular VLAN group please highlight the Custom radio button and enter the VID.
Page 33 If you have an existing rule that you want to edit select the rule from the list, make your changes and click on the edit button. Delete: Select a rule from the list and click the Delete button to remove that rule. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 34: Virtual Stack Configuration
The Virtual Stack function allows multiple MS888G2 switches to be managed from a single IP Address. One MS888G2 will be configured as a Master and all other MS888G2 switches will be configured as Slaves. You can then apply a group name to the virtual stack, only one master switch can exist within the same group name.
Page 36 If the port does not have an active link and is configured to run in auto-negotiation mode then Auto will be displayed. Flow Control: Shows the port’s flow control status. The MS888G2 supports both Backpressure flow control for Half Duplex and Pause flow control for Full Duplex. Default: Enabled...
Page 37 Baud Rate: Displays the maximum speed the SFP module supports. Vendor OUI: Displays the manufacturers OUI code which is assigned by the IEEE. Vendor Name: Displays the company name of the SFP module manufacturer. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 38 Shows the current working voltage of the SFP module. Mon1(Bias) mA: Shows the Bias current of the SFP module. Mon2(TX PWR): Shows the transmit power of the SFP Module. Mon3(RX PWR): Shows the receive power of the SFP Module. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 39: Port Configuration
Is used to set the speed and duplex settings for a particular port. If Auto is displayed the port is running in auto-negotiation mode. If you are connecting to a device that is having trouble linking when running in Auto mode you made need Alloy Computer Products Pty Ltd Copyright ©2006...
Page 40 Duplex (1G/Full). Default: Auto Flow Control: Shows the port’s flow control status. The MS888G2 supports both Backpressure flow control for Half Duplex and Pause flow control for Full Duplex. Select Enable to enable flow control and Disable to disable flow control.
Page 41: Simple Counter
TX Byte: Displays the total transmitted bytes. RX Byte: Displays the total received bytes. TX Packet: Displays the total amount of packets transmitted. RX Packet: Displays the total amount of packets received. TX Collision: Alloy Computer Products Pty Ltd Copyright ©2006...
Page 42 This is measured in seconds and ranges from 3 – 10. Default: 3 seconds. Reset: The reset button is located at the top right hand side of the screen and is used to reset the counters back to zero. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 43: Detail Counter
RX Octets: Displays the total number of received bytes. RX Errors: Displays the total number of received packets with errors. RX Unicast Packets: Displays the total number of Unicast packets received. RX Broadcast Packets: Alloy Computer Products Pty Ltd Copyright ©2006...
Page 44 Displays the total number of long frames (>1024 bytes) received with valid CRC. TX Collision: Displays the total number of collisions transmitted. TX Single Collision: Displays the total number of single collisions transmitted. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 45 3 – 10. Default: 3 seconds. Reset: The reset button is located at the top right hand side of the screen and is used to reset the counters back to zero. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 46: Snmp Configuration
SMI syntax. The SNMP agent is running on the switch to respond to requests issued by an SNMP manager. The MS888G2 allows the administrator to turn the SNMP agent on or off. If SNMP is set to “Enable”, the SNMP agent will be started. All supported MIB OIDs, including RMON MIB, can be accessed via an SNMP manager.
Page 47 Default port number: 162 Trap: In the MS888G2, there are six trap hosts supported. Each of them has its own community name and IP address; which are user-definable. To configure a Trap host you will need a network management System to receive the Trap messages from the switch.
Page 48: Dhcp Boot
MS888G2 User Manual 3-4. DHCP Boot The MS888G2 supports DHCP Broadcast Suppression allowing the switch to suppress broadcast traffic. If a network loses power and then regains power and all computers on the network boot at the same time, a lot of broadcast traffic is generated especially if all nodes on your network are using DHCP.
Page 49: Igmp Snooping
The MS888G2 supports all functions of IGMP Snooping including query, report and leave. IGMP Snooping is used by the switch to learn who belongs to a multicast group and also update the multicast table within the switch with new multicast members.
Page 50 Shows the IP addresses of all multicast groups that have been registered on the switch. VLAN ID: Shows the VLAN ID for each multicast group. Member Port: Shows the member ports of each multicast group, a group may contain a single host or multiple hosts. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 51: Allowed Group
MS888G2 User Manual 3-5-2. Allowed Group The MS888G2 allow the administrator to lock down multicast members by IP Range, VLAN ID, and port number. If the administrator only wants to enable IGMP Snooping on ports 1, 2, 3 and 4 then this can be done in this section.
Page 52: Vlan (Virtual Local Area Network)
MS888G2 User Manual 3-6. VLAN (Virtual Local Area Network) The MS888G2 supports both 802.1q Tagged based VLAN’s and Port-based VLAN’s. VLAN’s are used to logically separate your network into smaller more defined networks. VLAN’s help to reduce broadcast traffic across your network as all broadcast traffic will be limited to the VLAN group in which it belongs.
Page 53 In addition this method enables customers to maintain their desired tag, without concern that other organisations will share the same ID. Service providers avoid potential problems by simply adding a second ID per customer in addition to the shared tag. Default: Disabled Alloy Computer Products Pty Ltd Copyright ©2006...
Page 54: Tag-Based Group
Used to create a new tag-based VLAN group, enter the name and the VID. You will now have to select what ports you would like to belong to this group. Click the Apply button for the settings to take effect. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 55 Highlight the VLAN group you wish to delete and click the Delete button to remove the VLAN group from the table. Fig. 3-24 Edit: Highlight the VLAN group you wish to edit and click the Edit button to modify the selected VLAN group. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 56: Pvid
The administrator can apply a VID to each port of the switch; the valid range of the VID is from 1 to 4094. A Priority level from 0 through to 7 can also be applied to each port, as Alloy Computer Products Pty Ltd Copyright ©2006...
Page 57: Port-Based Group
3-6-4. Port-based Group Fig. 3-27 Function name: Port-based Group Configuration Function description: Shows information of the existing port-based VLAN groups, the administrator can also Add, Delete and Edit VLAN’s using the function buttons provided. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 58 Click the Apply button for the settings to take effect. Fig. 3-28 Delete: Highlight the VLAN group you wish to delete and click the Delete button to remove the VLAN group from the table. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 59 MS888G2 User Manual Fig. 3-29 Edit: Highlight the VLAN group you wish to edit and click the Edit button to modify the selected VLAN group. Fig. 3-30 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 60: Mac Table
Select an entry from the MAC table; the MAC address from that entry will be displayed. Alias: Set up an Alias for the selected MAC address. Set Alias: Saves the Alias to the MAC address selected. Search: Alloy Computer Products Pty Ltd Copyright ©2006...
Page 61 The port in which the MAC addresses were found. VID: VLAN group in which the searched MAC address exists. State: Displays the method used to discover the MAC address, this can either be Static or Dynamic. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 62: Mac Table Maintenance
– 65535 seconds. This time-out value does not apply to Static MAC entries. Default: 300 seconds Learning Limit: Each port can be configured to allow only a certain number of MAC addresses to be learnt. The valid range is 0 through to 8191. Default: 8191 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 63: Static
Port number that the MAC address will be associated with. VID: VLAN Identifier, this will only be used if tagged VLAN’s are applied. Valid range is 1 – 4094. Alias: Alias name of the MAC address that has been assigned. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 64: Mac Alias
Create/Edit button. If you wish to Delete an entry, highlight the MAC address and click the Delete button. Parameters description: MAC: Enter the MAC address you wish to assign a user friendly name to. Alias: Enter a user friendly name for the MAC address. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 65: Gvrp
Is used to configure each ports GVRP operation mode, in which seven parameters can be configured. Parameters description: GVRP State Setting: Used to enable or disable the GVRP function. Select your option from the drop down box and click the Apply button. Default: Disable Alloy Computer Products Pty Ltd Copyright ©2006...
Page 66 This function is used to restrict the creation of a dynamic VLAN when this port receives GVRP BDU. There are two modes Enabled and Disabled. Disabled: The dynamic VLAN will be created when this port receives a GVRP BDU. This is the default setting. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 67: Gvrp Counter
The total number of GARP BPDU with Leave All Messages received by the GARP application. Join Empty Message Packets: The total number of GARP BPDU with Join Empty Messages received by the GARP application. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 68 Leave Empty Message Packets: The total number of GARP BPDU with Leave Empty Messages transmitted by the GARP application. Empty Message Packets: The total number of GARP BPDU with Empty Messages transmitted by the GARP application. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 69: Gvrp Group Information
When you have created a GVRP group, you can use the Administrative control function to change the Applicant and Registrar modes of the GVRP group. Refresh: Click the refresh button to get current GVRP group status. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 70: Stp
Shows the switches bridge ID, which is usually the MAC address of the switch. Bridge Priority: Shows the switches current bridge priority. Default: 32768 Designated Root: Shows the root bridge ID for this network segment. If this switch is the root Alloy Computer Products Pty Ltd Copyright ©2006...
Page 71 Time Since Last Topology Change: Shows the accumulated time in units of seconds since the last STP Topology Change was made. When a Topology Change is initiated again, this counter will be reset to 0. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 72: Stp Configuration
The lower the bridge priority value is, the higher the priority it has. Usually, the switch with the highest bridge priority is the root. If you wish the MS888G2 to be the root bridge you will need to ensure that other bridges on your network have a higher bridge priority than that of this switch.
Page 73 MS888G2 User Manual Max. Age: If the MS888G2 is the root bridge, the whole network will apply this figure as their maximum age time. When a switch receives a BPDU message originating from the root bridge and if the message age exceeds the maximum age of the bridge, the bridge will treat the root bridge as malfunctioned and issue a Topology Change Notification (TCN) BPDU to all other bridges.
Page 74: Stp Port Configuration
Path Cost Status: Determines the shortest path to the root bridge, the smaller the path cost value the more possible the port will become the root port. Configured Path Cost: Alloy Computer Products Pty Ltd Copyright ©2006...
Page 75 STP BPDU at the next transmission. The only benefit of this operation is to make the port quickly act as an RSTP port. Click the <M Check> button to send a RSTP BPDU from the port you specified. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 76: Trunking Configuration
Using Static trunking at both ends of the link is highly recommended. The MS888G2 allows up to 3 LACP trunk groups and another additional 3 trunk groups for static trunking. Only 3 groups can be used at one time. Each trunk group can contain a maximum of 4 member ports.
Page 77: Trunk Port Settings/Status
This field will only be used when using LACP. Active: An Active LACP port will send LACPDU to its link partner right after the LACP protocol entity has started to take control of the port. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 78 This aggregator port is usually the port with the smallest port number within the trunking group. Status: This field represents the status of a port belonging to a trunking group. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 79: Aggregator View
ID is the same as its own port number. Method: Shows the method the port uses to aggregate with other ports. Member Ports: Shows all member ports of an aggregator. Ready Ports: Shows only the ready member ports within an aggregator. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 80: Lacp Detail
Shows the key value of the aggregator. The key value is determined by the LACP protocol entity and can’t be set through the management. Trunk Status: Shows the trunk status of a single port. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 81: Lacp System Configuration
1 to 65535. Default: 32768 Hash Method: Select the appropriate Hash Method used for your LACP configuration. Options available are SA (Source Address), DA (Destination Address) or DA & SA. Default: DA & SA Alloy Computer Products Pty Ltd Copyright ©2006...
Page 82: Configuration
Authentication server: A device that provides the authentication service, through EAP, to an authenticator by using authentication credentials supplied by the supplicant to determine if the supplicant is authorised to access the network resource. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 83 Supplicant’s Authentication Authenticator’s System System Server’s System Services Offered by Authenticator Supplicant Authenticator Authentication (e.g Bridge Relay) Server Controlled port Uncontrolled port Port Authorize MAC Enable Fig. 3-45 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 84 Authentication server Authenticator Fig. 3-46 Only MultiHost 802.1X authentication is supported in the MS888G2. In this mode devices connected to an 802.1x enabled port, can access network resources once the supplicant has been authenticated. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 85: State
The secret key is used to authenticate the RADIUS server with the Authenticator. The secret key is an ASCII based string with a length of 1 – 31 characters, with no blank spaces allowed. Default: Radius Alloy Computer Products Pty Ltd Copyright ©2006...
Page 86: Mode
There are two modes that can be selected, they are Disabled and Multihost mode. Disable: The selected port will not use 802.1x authentication. Multihost: Once the supplicant has been authenticated they can then access network resources through that port. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 87: Security
If the port has been authorised, authorised will be displayed in the ports status section, if the user has not been authorised, then unauthorised will be displayed. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 88: Parameter Setting
Auto: The controlled port will determine its authorisation state depending on the result of the authentication between the authentication server and the supplicant. Default: Auto reAuthMAx (1-10): The number of authentication attempts that are permitted before the port becomes unauthorised. Default: 2 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 89 Valid range: 1 – 65535. Default: 30 serverTimeout (1- 65535 sec.): A time out condition in the exchange between the authenticator and the authentication server. Valid range: 1 – 65535. Default: 30 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 90: Alarm Configuration
MS888G2 User Manual 3-12. Alarm Configuration The MS888G2 supports a number of trap messages that can be sent to an administrator if certain events occur on the switch. The switch offers 24 different trap events that can be sent to the administrator in 3 different ways;...
Page 91 Tick the required trap method check box to enable a trap to be sent when a LACP Port has failed. GVRP Disabled: Tick the required trap method check box to enable a trap to be sent when GVRP has been disabled. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 92 Module has been removed. Dual Media Swapped: Tick the required trap method check box to enable a trap to be sent when the dual media port has been swapped from fibre to copper or vice versa. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 93: Email/Sms Configuration
The Alarm Configuration is used to configure who should receive the trap messages via Email, SMS or both which have been sent from the MS888G2. Up to 6 email addresses can be entered as well as 6 SMS mobile phone numbers. If using SMS you will need to enter the SMS ISP details.
Page 94 MS888G2 User Manual Password: Enter the password required by the SMS server. Email Address 1 – 6: Enter the mobile phone number(s) that will receive the trap messages. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 95: Configuration
MS888G2 User Manual 3-13. Configuration The MS888G2 has support for multiple configuration files to be used by the administrator including the default configuration, start configuration and user configuration. In this section the administrator can save the switch’s configuration, restore the switch to factory default and also save the current configuration as the startup configuration when the switch is re-booted.
Page 96: Config File
Enter the file path of where you would like to import the configuration file from. Import Start: After configuring the import path click on the import start button to import the startup configuration file. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 97: Security
User-Conf configuration file. 3-14. Security The Mirror function of the MS888G2 is used to capture data from a particular port on the switch. Any port on the switch can be selected as the monitoring port; this port will be used to capture data from another port on the switch using third party data capturing software.
Page 98: Isolated Group
Parameter Description: Mode: Select to enable or disable the isolated group function. Isolated Group: Select the ports that you wish to belong to the isolated group. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 99: Restricted Group
Select to enable or disable the restricted group function. Ingress: Select the ports that you wish to belong to the Ingress Restricted group. Egress: Select the ports that you wish to belong to the Egress Restricted group. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 100: Bandwidth
MS888G2 User Manual 3-15. Bandwidth The Bandwidth Management function of the MS888G2 is used to limit the bandwidth a port may use when sending or receiving data. When limiting received data you can limit the bandwidth on a particular type of data, including all Traffic or Multicast and Broadcast Traffic.
Page 101: Egress
Pause frames are also generated to stop the discarding of packets if Flow Control is enabled. The Ingress Rate Limiting will limit all data including unicast, broadcast and multicast traffic. Valid range is 66 ~ 1024000. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 102: Storm
MAC addresses that have not yet been learnt by the switch. Broadcast, Multicast and Unknown Unicast Storm Control: Enables bandwidth storm control for all traffic. Storm Rate: Used to set the storm control limit. Valid values are 1 – 100%. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 103: Qos (Quality Of Service)
Tick the appropriate tick boxes to enable the type of priority methods to use.. Scheduling Method: Select the type of scheduling method that you would like to use. The default vale is WRR. Weight (1 – 55): Alloy Computer Products Pty Ltd Copyright ©2006...
Page 104: Vip
5 will have a higher priority than all other ports on the switch. Parameter Description: VIP Port: Select the port(s) that you wish to have a high priority and click the apply button. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 105 Queue 0, Priority 2 is mapped to Queue 1, Priority 3 is mapped to Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 106: D-Type Tos
Queue 0, Priority 2 is mapped to Queue 1, Priority 3 is mapped to Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 107: T-Type Tos
Queue 0, Priority 2 is mapped to Queue 1, Priority 3 is mapped to Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 108: R-Type Tos
Queue 0, Priority 2 is mapped to Queue 1, Priority 3 is mapped to Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 109: M-Type Tos
Queue 0, Priority 2 is mapped to Queue 1, Priority 3 is mapped to Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 110: Dscp Setting
DSCP Setting Function Description: The MS888G2 allows the administrator to configure priority levels based on the 6-bit field in the DSCP of the IP packet. The 6-bit field allows a total of 64 different traffic classes in which you can set a High or a Low priority.
Page 111: Diagnostics
MS888G2 User Manual 3-17. Diagnostics Three Diagnostic tools are supported in the MS888G2 including Diagnostics, Loopback test and Ping test. 3-17-1. Diag Fig. 3-69 Function name: Diagnostics Function description: Provides a basic set of Diagnostic functions to allow the administrator to diagnose whether the switch is working correctly.
Page 112: Loopback Test
Loopback Test Function description: The MS888G2 has support for two types of loopback tests including an Internal and an External loopback test. The internal loopback test is an internal test and no test signal is sent out of the switch. The external loopback test will send the test signal to its link partner to check if the port has got an active link.
Page 113: Ping Test
Fig. 3-71 Function name: Ping Test Function description: The MS888G2 supports a ping test function to allow the switch to test communication between other IP based devices. Parameters description: IP Address: Enter an IP Address that you would like to test connectivity between.
Page 114: Tftp Server
MS888G2 User Manual 3-18. TFTP Server Fig. 3-72 Function name: TFTP Server Function description: Used to set the IP address of the TFTP Server. Parameters description: Server: Enter the IP address of the TFTP Server. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 115: Log
Function description: The Trap Log Data displays all SNMP Private trap events, SNMP Public traps and all other user logs. The MS888G2 supports up to 120 log entries. Parameters description: Displays the order number of all entries in the log.
Page 116: Firmware Upgrade
MS888G2 User Manual 3-20. Firmware Upgrade The MS888G2 allows the administrator to upgrade the firmware to improve the features and capabilities of the switch. The firmware is upgraded via a TFTP server using any Ethernet port on the switch. Fig. 3-74...
Page 117: Reboot
MS888G2 User Manual 3-21. Reboot The MS888G2 allows the Administrator to reboot the switch from the web management you can also reboot the switch using the reset button on the front panel of the switch. Fig. 3-75 Function name: Reboot...
Page 118: Logout
Click the Logout button to log out of the management interface. Auto Logout: The Web management interface allows the user to be automatically logged out after a predetermined period of the time. Default: 3 minutes Alloy Computer Products Pty Ltd Copyright ©2006...
Page 119: Cli Management
4-1. CLI Management Refer to chapter 2 for basic installation. When configuring the MS888G2 via the RS-232 console please connect the switch via the provided serial cable to a DCE device such as a PC. Once you have connection run a terminal emulation program such as Hyper Terminal.
Page 120: Commands Of The Cli
Fig. 4-1 4-2. Commands of the CLI To display the list of commands that are supported on the MS888G2 Switches CLI type “?” and press enter. All commands on the switch are divided into 2 groups Global commands and Local commands.
Page 122: Global Commands Of The Cli
Use this command to return to the root menu. Unlike the exit command which will take you back to the previous menu, the end command will take you directly to the root menu. Argument: None. Possible value: None. Example: MS888G2# alarm MS888G2(alarm)# events MS888G2(alarm-events)# end MS888G2# Alloy Computer Products Pty Ltd Copyright ©2006...
Page 123 Show a list of previously run commands logout Logout of the system save start Save as start config save user Save as user config restore default Restore default config restore user Restore user config MS888G2(ip)# Alloy Computer Products Pty Ltd Copyright ©2006...
Page 124 4. MS888G2# 5. ? 6. trunk 7. exit 8. alarm 9. events 10. end 11. ip 12. help 13. ip 14. history MS888G2(ip)# history 3 Command history: 13. ip 14. history 15. history 3 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 125 When you enter this command, the CLI will save your current configuration into the non-volatile FLASH as the start up configuration. Argument: None. Possible value: None. Example: MS888G2# save start Saving start... Save Successfully MS888G2# Alloy Computer Products Pty Ltd Copyright ©2006...
Page 126 If you select “N” or “n” you will return to the previous screen. Argument: None. Possible value: None. Example: MS888G2# restore default Restoring ... Restore Default Configuration Successfully Press any key to reboot system. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 127 If you select “N” or “n” you will return to the previous screen. Argument: None Possible value: None Example: MS888G2# restore user Restoring ... Restore User Configuration Successfully Press any key to reboot system. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 128: Local Commands Of Cli
Host IP Address : 192.168.1.1 Host MAC Address : 00-00-8C-02-10-51 Device Port : UART * 1, TP * 8, Fibre*16, Combo* 2 RAM Size : 16 M Flash Size : 2 M set location Alloy Computer Products Pty Ltd Copyright ©2006...
Page 129 MS888G2 User Manual Syntax: set location <location string> Description: Enter a descriptive location for the MS888G2. Argument: String length up to 32 characters. Possible values: a, b, c, d, ... ,z and 1, 2, 3, …. etc. Example: MS888G2(system)# set location Canberra...
Page 130 To set the IP address of a DNS server. Argument: <ip address> : dns ip address Possible value: 168.95.1.1 Example: MS888G2(ip)# set dns 168.95.1.1 : Sets the MS888G2 switches DNS Server address to 168.95.1.1 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 131 : Enables DHCP function and sets DNS server via manual mode. disable dhcp Syntax: disable dhcp Description: Disables the DHCP function in the Switch. Argument: None Possible value: None Example: MS888G2(ip)# disable dhcp : Disables the DHCP function. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 132 None Possible value: None Example: MS888G2(ip)# show DHCP : Disable IP Address : 192.168.2.65 Subnet mask : 255.255.255.0 Gateway : 192.168.2.252 DNS Setting : Manual DNS Server : 168.95.1.1 Current IP : 192.168.2.65 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 133 Used to set up the current time via a NTP server. Argument: : ntp server ip address or domain name timezone : time zone (GMT), range: -12 to +13 Possible value: Timezone: -12,-11…,0,1…,13 Example: MS888G2(time)# set ntp 210.59.157.10 8 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 134 : daylight saving start month/day/hour : daylight saving end month/day/hour : Month (01-12) : Day (01-31) : Hour (00-23) Example: MS888G2(time)# set daylightsaving 3 10/12/01 11/12/01 Save Successfully show Syntax: show Description: To show the time configuration, including “Current Time”, “NTP Server”,” Timezone”, ”...
Page 136 MS888G2(account)# add Freddy Password: Confirm Password: Save Successfully Syntax: del <name> Description: Used to delete an existing account. Argument: <name> : existing user account Possible value: None. Example: MS888G2(account)# del Freddy Account Freddy deleted Alloy Computer Products Pty Ltd Copyright ©2006...
Page 137 Password changed successfully. show Syntax: show Description: Displays the current users configured in the switch. Argument: None. Possible value: None. Example: MS888G2(account)# show Account Name Identity --------------- -------- admin : Administrator guest : guest Alloy Computer Products Pty Ltd Copyright ©2006...
Page 138 MS888G2(port)# set speed-duplex 5 auto : Sets port 5 to auto negotiation mode. show status Syntax: show status Description: Used to display the port’s current status. Argument: None Possible value: None Example: MS888G2(port)# show status Alloy Computer Products Pty Ltd Copyright ©2006...
Page 139 Used to display a detailed traffic counter for each port. Argument: <range>:syntax 1,5-7, available from 1 to 24 Possible value: 1 to 24 Example: MS888G2(port)# show detail-counter 5 : Displays the detailed counter for port 5 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 140 <port> Description: Used to display the SFP module information. Argument: <port>: available 25, 26 Possible value: 25, 26 Example: MS888G2(port)# show sfp 25 : Displays the SFP module information for port 25. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 141 Description: Used to enable the port. Argument: range syntax: 1,5-7, available from 1 to 24 Possible value: <range>: 1 ~ 24 Example: MS888G2(port)# enable state 3-12 : Enables ports 3 through to 12. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 142 <range> Description: Used to Disable the port. Argument: range syntax: 1,5-7, available from 1 to 24 Possible value: <range>: 1 ~ 24 Example: MS888G2(port)# disable state 12 : Disables port 12. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 143 Used to disable flow control on a particular port. Argument: range syntax: 1,5-7, available from 1 to 24 Possible value: <range>: 1 ~ 24 Example: MS888G2(port)# disable flow-control 6 : Disables flow control for port 6. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 144 <#>: the monitoring port that is chosen for the mirror function. Only one port can be the monitoring port. Possible value: None Example: MS888G2(mirror)# set monitoring-port 2 : Enables port 2 to become the monitoring port which will capture all packets received by the monitored port. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 145 Show Description: Displays the status of the mirror function. Argument: None Possible value: None Example: MS888G2(mirror)# show Mirror Mode : rx Monitoring Port : 2 Monitored Port : 3 4 5 7 10 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 146 <range>:syntax 1,5-7, available from 1 – 24 <data_rate>: 0-1000Mbps. Possible value: <range>: 1 to 24 <data_rate>: 0-1000Mbps. Example: MS888G2(bandwidth)# enable storm-rate 1-16 150 : Enables the broadcast storm rate on ports 1 through to 16 at 150. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 147 Argument: <range>:syntax 1,5-7, available from 1 – 24 Possible value: <range>: 1 to 24 Example: MS888G2(bandwidth)# disable ingress-rate 1-24 : Disables the Ingress rate control for all ports from 1 through to 24. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 148 Used to disable the egress-rate of the port. Argument: <range>:syntax 1,5-7, available from 1 – 24 Possible value: <range>: 1 to 24 Example: MS888G2(bandwidth)# disable egress-rate 1-24 Disable the egress rate control on all port from 1 through to 24. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 149 Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Alloy Computer Products Pty Ltd Copyright ©2006...
Page 150 Syntax: set default <class> Description: Used to set a priority class on all packets that won’t be affected by QoS. Argument: class: class of service Possible value: setting. 1: high, 0: low Alloy Computer Products Pty Ltd Copyright ©2006...
Page 151 Used to set a priority level based on vlan tag QoS. Argument: <port-range>: port range <tag-range>: tag priority level <class>: class of service Possible value: <port-range>: syntax: 1,5-7, available from 1 to 26 <tag-range>: priority level, syntax: 1,5-7, available from 0 to 7 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 152 <class>: class of service setting. 1: high, 0: low Example: MS888G2(qos)# set pri-tag 1-10 1-2 1 : Sets a high priority level to all packets containing a VLAN tag of 1 or 2 to all ports from 1 through to 10.
Page 153 <ds-range>: syntax: 1,5-7, available from 0 to 63 <class>: 1: high, 0: low Example: MS888G2(qos)# set diffserv 0-20 1 :Sets all classes of traffic with a diffserv value from 1 through to 20 with a high priority. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 155 Used to disable the SNMP function. Argument: None. Possible value: None. Example: MS888G2(snmp)# disable snmp : Disables the SNMP function in the switch. MS888G2(snmp)# disable set-ability : Disables the private community of the SNMP function. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 156 MS888G2(snmp)# set set-community private : Sets the set-community name to private. MS888G2(snmp)# set trap 1 192.168.1.1 162 public : Sets trap 1 host IP address of 192.168.1.1 using port number 162. The community name is set to public. Any SNMP traps will be sent to the IP address specified above.
Page 157 Trap Host 3 IP Address: 0.0.0.0 Port: 162 Community: public Trap Host 4 IP Address: 0.0.0.0 Port: 162 Community: public Trap Host 5 IP Address: 0.0.0.0 Port: 162 Community: public Trap Host 6 IP Address: 0.0.0.0 Port: 162 Community: public Alloy Computer Products Pty Ltd Copyright ©2006...
Page 158 Display’s the IGMP snooping mode and IP Multicast Table. Argument: None Possible value: None Example: MS888G2(igmp)# show Snoop Mode: Active IP Multicast: 1) IP Address : 224.1.1.1 VLAN ID Member Port : 22 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 159 : Sets the DHCP Broadcast Suppression delay time to 30 seconds. show Syntax: show Description: Display’s the status of DHCP Broadcast Suppression. Argument: None Possible value: None Example: MS888G2(dhcp-boot)# show Dhcp Boot : Enable Second : 10 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 160 Q-in-Q function Possible value: <disable | port | tag>: disable, port, tag Example: MS888G2(vlan)# set mode port : Sets the VLAN mode for the switch to port-based mode Alloy Computer Products Pty Ltd Copyright ©2006...
Page 161 1 to 26 Example: MS888G2(vlan)# set tag-group 2 VLAN-2 2-5, 6 0 : Creates a Tag-based VLAN group with a VID of 2, and a group name of VLAN-2. The ports that will belong to this group are 2 to 5 and 6, sym vlan set to symmetric.
Page 162 Possible value: Range: available from 1 to 26 pvid: available from 1 to 4094 Example: MS888G2(vlan)# set pvid 3,5,6-8 5 : Sets ports 3, 4, 5, 6, 7, 8 with a PVID of 5. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 163 : which port(s) you want to configure. Possible value: range: available from 1 to 26 Example: MS888G2(vlan)# disable sym-vlan 5-10 : Disables sym-vlan on all ports ranging from 5 through to 10. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 164 Possible value: range: available from 1 to 26 Example: MS888G2(vlan)# disable drop-untag 5-10 : Creates a rule so that all untagged frames received on ports 5 through to 10 will not be dropped. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 165 Description: Used to delete the port-based vlan group. Argument: name: which vlan group you want to delete. Possible value: name: port-vlan name Example: MS888G2(vlan)# del port-group VLAN-2 : Deletes port-based VLAN group VLAN-2 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 167 Access 1 Disable Disable Access 1 Disable Disable Access 1 Disable Disable Access 1 Disable Disable Access 1 Disable Disable Access 1 Disable Disable Access 1 Disable Disable Access 1 Disable Disable Access Alloy Computer Products Pty Ltd Copyright ©2006...
Page 169 Syntax: Show Description: Used to display all MAC table information. Argument: None Possible value: None Example: MS888G2(mac-table-information)# show MAC Table List Alias MAC Address Port VID State ---------------- ----------------- ---- ---- ----------------- Alloy Computer Products Pty Ltd Copyright ©2006...
Page 170 MS888G2(mac-table-information)# search 1-16 ??-??-??-??-??-?? ? MAC Table List Alias MAC Address Port VID State ---------------- ----------------- ---- ---- ----------------- 00-00-8C-88-00-06 1 0 Dynamic : Searches ports 1 through to 16 for any MAC address with an VID. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 171 Description: Used to delete all of the MAC's that have been learnt dynamically. Argument: None Possible value: None Example: MS888G2(mac-table-maintain)# set flush : Flushes all learnt dynamic MAC addresses from the MAC table. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 172 Possible value: None Example: MS888G2(mac-table-static-mac)# add 00-02-03-04-05-06 3 0 Test : Adds a static MAC entry with MAC address 00-02-03-04-05-06 fro port 3 with a VID of 0 and a Alias name of Test. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 173 Description: Used to display the static forward table. Argument: None Possible value: None Example: MS888G2(mac-table-static-mac)# show forward Static Forwarding Entry: (Total 1 item(s)) 1) MAC: 00-02-03-04-05-06, port: 3, vid: -, alias: aaa Alloy Computer Products Pty Ltd Copyright ©2006...
Page 174 <mac> : mac address, format: 00-02-03-04-05-06 <alias> : mac alias name, max 15 characters Possible value: None Example: MS888G2(mac-table-alias)# set 00-44-33-44-55-44 Test : Create a MAC Alias of Test for MAC address 00-02-03-04-05-06 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 175 Syntax: show Description: Used to display the MAC alias entries. Argument: None Possible value: None Example: MS888G2(mac-table-alias)# show MAC Alias List MAC Address Alias ----- ----------------- ---------------- 00-02-03-04-05-06 Test 00-33-03-04-05-06 Test1 00-44-33-44-55-66 Test2 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 176 Example: MS888G2(gvrp)# enable : Enables GVRP on the switch. disable Syntax: disable Description: Used to disable the GVRP function. Argument: None Possible value: None Example: MS888G2(gvrp)# disable : Disables GVRP on the switch. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 177 Leave Time must equal at least double the Join Time. Example: MS888G2(gvrp)# set timer 2-8 25 80 2000 : Sets the GVRP timer for ports 2 through to 8 with a join time of 25, a leave time of 80 and a leave all time of 2000.
Page 178 <range>: syntax 1,5-7, available from 1 to 26 <normal | fixed | forbidden>: normal, fixed or forbidden Example: MS888G2(gvrp)# set registrar 1-5 fixed : Sets ports 1 through to 5 as fixed mode. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 179 MS888G2(gvrp)# show counter 2 GVRP Counter port: 2 Counter Name Received Transmitted -------------------- -------- ----------- Total GVRP Packets Invalid GVRP Packets 0 ---- LeaveAll message JoinEmpty message JoinIn message LeaveEmpty message 0 Empty message Alloy Computer Products Pty Ltd Copyright ©2006...
Page 180 Disable 1000 Normal Normal Disable 1000 Normal Normal Disable 1000 Normal Normal Disable 1000 Normal Normal Disable 1000 Normal Normal Disable 1000 Normal Normal Disable 1000 Normal Normal Disable 1000 Normal Normal Disable Alloy Computer Products Pty Ltd Copyright ©2006...
Page 181 1000 Normal Normal Disable show group Syntax: show group Description: Used to show the GVRP group(s). Argument: none Possible value: none Example: MS888G2(gvrp)# show group GVRP group information VID Member Port ---- ------------------------------------------------- Alloy Computer Products Pty Ltd Copyright ©2006...
Page 182 Description: Used to enable the STP function. Argument: None Possible value: None Example: MS888G2(stp)# enable disable Syntax: disable Description: Used to disable the STP function. Argument: None Possible value: None Example: MS888G2(stp)# disable Alloy Computer Products Pty Ltd Copyright ©2006...
Page 183 <Max. Age>: 6 to 40. <Forward Delay>: 4 to 30. Example: MS888G2(stp)# set config 61440 2 20 15 : Configures the STP parameters as follows, Bridge Priority of 61440, Hello Time of 2, Max Age of 20 and a Forward Delay of 15.
Page 184 <admin p2p>: auto / true / false Example: MS888G2(stp)# set port 1-16 0 128 yes auto : Configures ports 1 through to 16 with a path cost of 0, priority of 128, edge port is set as yes and the admin P2P is set to auto.
Page 185 Bridge Priority: 61440 Designated Root: 00:00:8C:D8:09:1D Designated Priority: 61440 Root Port: Root Path Cost: Current Max. Age(sec): Current Forward Delay(sec): Hello Time(sec): STP Topology Change Count: Time Since Last Topology Change(sec) : 848 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 186 Possible value: None Example: MS888G2(stp)# show config STP State Configuration: Spanning Tree Protocol: Enabled Bridge Priority (0-61440): 61440 Hello Time (1-10 sec): Max. Age (6-40 sec): Forward Delay (4-30 sec): Force Version: RSTP Alloy Computer Products Pty Ltd Copyright ©2006...
Page 187 Auto 15 DISCARDING 2000000 Auto 16 DISCARDING 2000000 Auto 17 DISCARDING 2000000 Auto 18 DISCARDING 2000000 Auto 19 DISCARDING 2000000 Auto 20 DISCARDING 2000000 Auto 21 DISCARDING 2000000 Auto 22 DISCARDING 2000000 Auto Alloy Computer Products Pty Ltd Copyright ©2006...
Page 189 : set the LACP to passive mode Possible value: None Example: MS888G2(trunk)# set trunk 1-4 lacp 1 active : Sets up a LACP based trunk group containing ports 1 through to 4 using LACP active mode. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 190 Syntax: del trunk <port-range> Description: Delete trunk port Argument: <port-range> : syntax 1,5-7, available from 1 to 24 Possible value: None Example: MS888G2(trunk)# del trunk 1 : Deletes trunk group 1. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 191 None Active Ready LACP Active LACP Active LACP Active LACP Active LACP Active LACP Active LACP Active LACP Active LACP Active LACP Active LACP Active LACP Active LACP Active None Active None Active Alloy Computer Products Pty Ltd Copyright ©2006...
Page 192 Used to display the aggregator list. Argument: None Possible value: None Example: MS888G2(trunk)# show aggtr-view Aggregator 1) Method: None Member Ports: 1 Ready Ports:1 Aggregator 2) Method: LACP Member Ports: 2 Ready Ports: Alloy Computer Products Pty Ltd Copyright ©2006...
Page 193 --------------- ----------------- --------------- ----------------- 32768 00-00-8C-E8-00-02 32768 00-00-00-00-00-00 Port Trunk Status Port ------ -------- ----------------- --------------- ----------------- show lacp-priority Syntax: show lacp-priority Description: Used to display the value of LACP Priority. Argument: None Possible value: None Alloy Computer Products Pty Ltd Copyright ©2006...
Page 195 Possible value: <port-number> : 1~65535, default is 1812 Example: MS888G2(802.1x)# set state 192.168.1.115 1812 WinRadius : Configures the switch to use a RADIUS Server with an IP Address of 192.168.1.115 using port 1812 and a secret key of WinRadius. set mode Syntax: set mode <port-range>...
Page 196 <port range> : 1 to 24 <max>: 1-10, default is 2 Example: MS888G2(802.1x)# set reAuthMax 2 2 : Allows port 2 to have only 2 re-authentication attempts before the port will be set to unauthorised. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 197 <sec> : timer , range 0-65535 Possible value: <port range> : 1 to 26 <sec> : 0-65535, default is 60 Example: GS-2116C(802.1x)# set quiet-period 2 30 : Sets the quiet period for port 2 to 30 seconds. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 198 Possible value: <port range> : 1 to 26 <sec> : 1-65535, default is 3600 Example: MS888G2(802.1x)# set reAuthPeriod 2 3600 : Sets port 2 to re-authenticate with the RADIUS Server every 3600 seconds. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 199 <sec> : timer , range 1-65535 Possible value: <port range> : 1 to 26 <sec> : 1-65535, default is 30 Example: MS888G2(802.1x)# set suppTimeout 2 30 : Sets the suppTimeout value for port 2 to 30 seconds. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 200 : Sets the server timeout value for port 2 to 30 seconds. show state Syntax: show state Description: Shows the Radius server configuration. Argument: None Possible value: None Example: MS888G2(802.1x)# show state Radius Server: 192.168.1.115 Port Number : 1812 Secret Key : WinRadius Alloy Computer Products Pty Ltd Copyright ©2006...
Page 201 MS888G2 User Manual show mode Syntax: show mode Description: Displays what mode each port is using. Argument: None Possible value: None Example: MS888G2(802.1x)# show mode Port Mode ====== ============ Disable Multi-host Disable Disable Disable Disable Alloy Computer Products Pty Ltd Copyright ©2006...
Page 202 Syntax: show security Description: Displays the authentication status of each port. Argument: None Possible value: None Example: MS888G2(802.1x)# show security Port Mode Status ====== ============ ============== Disable Multi-host Unauthorised Disable Disable Disable Disable Alloy Computer Products Pty Ltd Copyright ©2006...
Page 203 : 30 Port. 2) port control : Auto reAuthMax txPeriod : 30 Quiet Period : 60 reAuthEnabled : ON reAuthPeriod : 3600 max. Request : 2 suppTimeout : 30 serverTimeout : 30 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 204 MS888G2(alarm-events)# set trap 1-3 MS888G2(alarm-events)# set all 1-3 : Sends an SMS, Email and trap event when alarms 1 to 3 occur. Alarms 1, 2 and 3 are “Cold Start”, “Warm Start” and “Link Down” respectively. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 205 1 to 26. Example: MS888G2(alarm-events)# del sms 1-3 MS888G2(alarm-events)# del email 1-3 MS888G2(alarm-events)# del trap 1-3 MS888G2(alarm-events)# del all 1-3 : Deletes all trap events configured including SMS, Email and SNMP Trap. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 206 15 GVRP Disabled 16 GVRP Enabled 17 VLAN Disabled 18 Port-based Vlan Enabled 19 Tag-based Vlan Enabled 20 Metro-mode Vlan Enabled 21 Double-tag Vlan Enabled 22 Module Inserted 23 Module Removed 24 Module Media Swapped Alloy Computer Products Pty Ltd Copyright ©2006...
Page 207 : Sets the username for the email account to admin. Password: 123 : Sets the password to 123 Confirm Password: 123 MS888G2(alarm-email)# set mail-address 1 test@alloy.com.au : Sets email recipient 1 of the trap events to test@alloy.com.au. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 208 None. Example: MS888G2(alarm-email)# show Mail Server : 192.168.1.6 Username : admin Password : **************** Email Address 1: test@alloy.com.au Email Address 2: Email Address 3: Email Address 4: Email Address 5: Email Address 6: Alloy Computer Products Pty Ltd Copyright ©2006...
Page 209 : Sets the username for the SMS account to admin. Password: 123 : Sets the password to 123 Confirm Password: 123 MS888G2(alarm-sms)# set phone-number 1 0411111111 : Sets SMS recipient 1 of the trap events to 0411111111 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 210 Possible value: None. Example: MS888G2(alarm-sms)# show SMS Server : 192.168.1.7 Username Password : **************** Mobile Phone 1: 0411111111 Mobile Phone 2: Mobile Phone 3: Mobile Phone 4: Mobile Phone 5: Mobile Phone 6: Alloy Computer Products Pty Ltd Copyright ©2006...
Page 211 MS888G2 User Manual show (alarm) Syntax: show Description: Display’s the configuration of Trap, SMS or E-mail. Argument: None. Possible value: None. Example: MS888G2(alarm)# show events MS888G2(alarm)# show email MS888G2(alarm)# show sms Alloy Computer Products Pty Ltd Copyright ©2006...
Page 212 None. Possible value: None. Example: MS888G2(diag)# loopback Internal Loopback Test : OK External Loopback Test : Port 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Fail Alloy Computer Products Pty Ltd Copyright ©2006...
Page 213 Description: Used to test connectivity between other IP based devices on your network. Argument: [ip] : ip address or domain name Possible value: IP address, e.g. 192.168.2.65 or domain name, e.g. alloy.com.au Example: MS888G2(diag)# ping 192.168.1.115 Gateway : 192.168.1.253 192.168.1.115 is alive.
Page 214 3) Wed Feb 13 11:58:31 2006 Login [admin] 4) Wed Feb 13 11:19:45 2006 Login [admin] 5) Wed Feb 13 11:19:37 2006 Logout [admin] clear Syntax: clear Description: Used to clear the log data. Argument: None. Possible value: Alloy Computer Products Pty Ltd Copyright ©2006...
Page 216 Description: Used to enable the auto-upload function. Argument: None. Possible value: None. Example: MS888G2(log)# enable auto-upload : Enables the auto-upload function so the log is automatically uploaded to the TFTP server. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 217 MS888G2 User Manual disable auto-upload Syntax: disable auto-upload Description: Used to disable the auto-upload function. Argument: None. Possible value: None. Example: MS888G2(log)# disable auto-upload : Disables the auto-upload function. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 218 MS888G2(firmware)# set upgrade-path ms888g2_v2.06.bin upgrade Syntax: upgrade Description: Used to upgrade the firmware in the switch for known issues or to add additional features. Argument: None Possible value: None Example: MS888G2(firmware)# upgrade Upgrading firmware ... Alloy Computer Products Pty Ltd Copyright ©2006...
Page 219 MS888G2 User Manual show Syntax: show Description: Display’s the TFTP server and upgrade-path information. Argument: None Possible value: None Example: MS888G2(firmware)# show TFTP Server IP Address: 192.168.1.100 Path and Filename : ms888g2_v2.06.bin Alloy Computer Products Pty Ltd Copyright ©2006...
Page 220 To set up the filepath and filename of a configuration file that will be imported into the switch. Argument: <filepath>: filepath and filename Possible value: <filepath>: filepath and filename Example: MS888G2(config-file)# set import-path log/21511.txt : Used to browse to a specific location to import the configuration file named 21511.txt. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 221 Possible value: None Example: MS888G2(config-file)# export start Export successful. export user-conf Syntax: export user-conf Description: Exports the user configuration of the switch. Argument: None Possible value: None Example: MS888G2(config-file)# export user-conf Export successful. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 222 Possible value: None Example: MS888G2(config-file)# import start Import successful. import user-conf Syntax: import user-conf Description: Imports the user configuration into the switch. Argument: None Possible value: None Example: MS888G2(config-file)# import user-conf Import successful. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 223 MS888G2 User Manual show Syntax: show Description: Display’s the config-file information. Argument: None Possible value: None Example: MS888G2(config-file)# show TFTP Server IP Address: 192.168.1.100 Export Path and Filename: log/21511.txt Import Path and Filename: log/21511.txt Alloy Computer Products Pty Ltd Copyright ©2006...
Page 224 : Sets the IP address of the TFTP Server to 192.168.1.100 show Syntax: show Description: Display’s the information of the TFTP server. Argument: None Possible value: None Example: MS888G2(tftp)# show TFTP Server : 192.168.1.100 Alloy Computer Products Pty Ltd Copyright ©2006...
Page 225 <time>: range 1 to 3600 seconds, 0 for auto logout off, current setting is 180 seconds. Possible value: <time>: 0,1-3600 Example: MS888G2# autologout 3600 : Sets the auto logout time to 3600 seconds Alloy Computer Products Pty Ltd Copyright ©2006...
Page 226 MS888G2 User Manual reboot reboot Syntax: reboot Description: Used to reboot the switch. Argument: None Possible value: None Example: MS888G2# reboot : Reboots the switch. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 227: Technical Specifications
MAC Address and Self-learning: 8K address table entries, 256 VLAN table entries, 256 IP multicast table entries Buffer Memory: Embedded 256KB packet buffers and 128KB control memory. Flow Control: IEEE802.3x compliant for full duplex Backpressure flow control for half duplex Alloy Computer Products Pty Ltd Copyright ©2006...
Page 228 Humidity 5% to 90% 44(H) × 442(W) × 366(D) mm Dimensions Comply with FCC Part 15 Class A & CE Mark Approval & C-Tick Note: Any specification is subject to change without notice. Alloy Computer Products Pty Ltd Copyright ©2006...
Page 229 The table below shows the pin assignments for the DB-9 cable. Function Mnemonic Carrier Receive Data Transmit Data Data Terminal Ready Signal Ground Data Set Ready Request To Send Clear To Send 9 Pin Null Modem Cable Reserve 9 Reserve Alloy Computer Products Pty Ltd Copyright ©2006...
