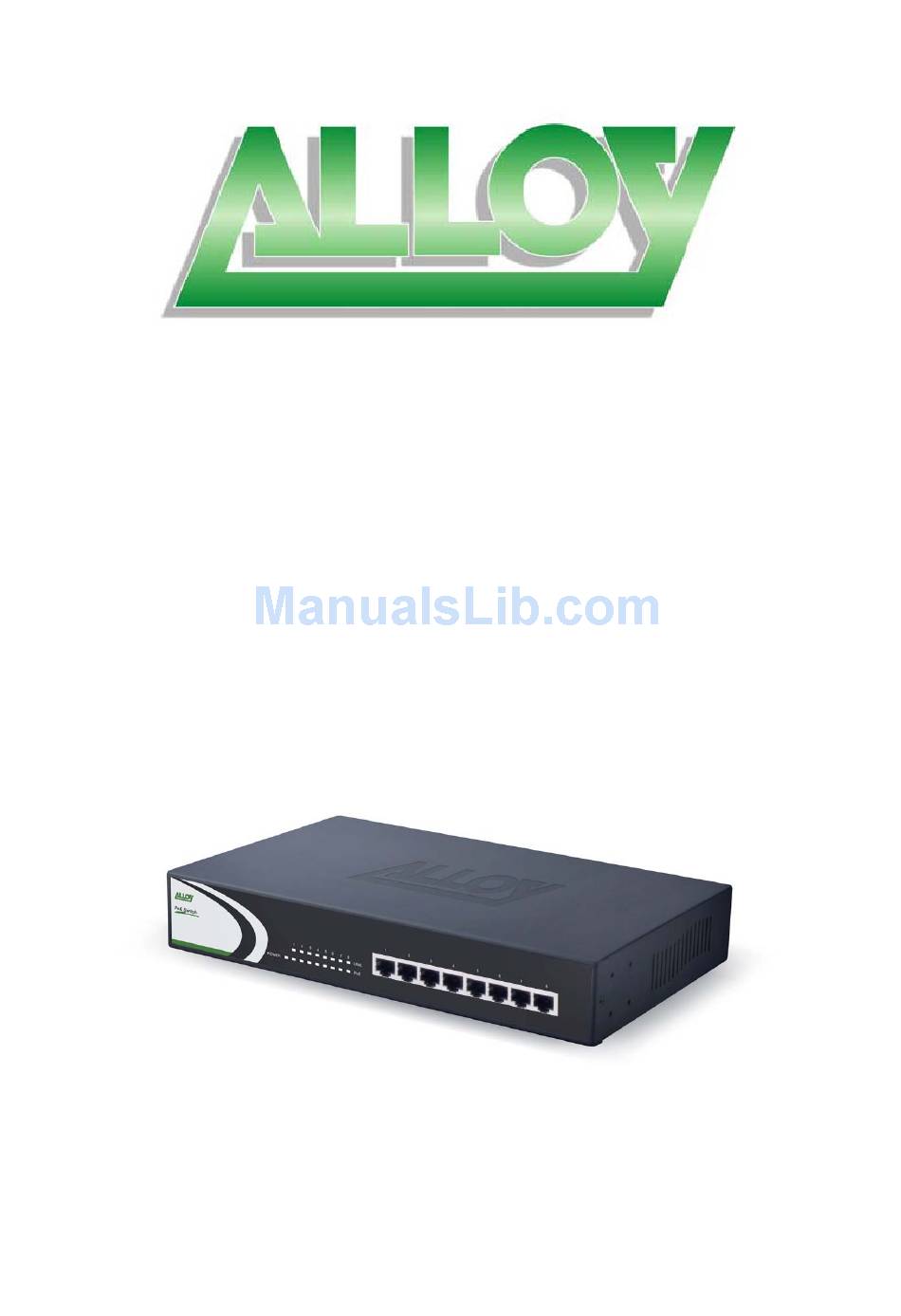

Page 1: User Manual
POEFE8T User Manual User Manual POEFE8T 8 Port Fast Ethernet PoE Switch Version 1.1 January 2011 Alloy Computer Products Pty Ltd Copyright ©2011... -
Page 2: Table Of Contents
POEFE8T User Manual Contents ............... 4 1. Introduction ..............4 2. Checklist ..............5 3. Installation 3.1 Installation Method ................. 5 3.2 Desktop or Shelf Installation ............ 5 3.3 Rack Installation ................ 5 ..........6 4. Powering on the Switch ............6 5. LED Description ............. 7 6. Network Connection ..........8 7. Technical Specifications ..........9 Appendix A. RJ‐45 Connections Alloy Computer Products Pty Ltd Copyright ©2011... - Page 3 Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. European Community (CE) Electromagnetic Compatibility Directive This equipment has been tested and found to comply with the protection requirements of European Emission Standard EN55022/EN60555‐2 and the Generic European Immunity Standard EN50082‐1. EMC: EN55022(1988)/CISPR‐22(1985) class A EN60555‐2(1995) class A EN60555‐3 IEC1000‐4‐2(1995) 4K V CD, 8KV, AD IEC1000‐4‐3(1995) 3V/m IEC1000‐4‐4(1995) 1KV – (power line), 0.5KV – (signal line) Australian C‐Tick Compliance. This equipment is compliant with the required Australian C‐Tick standards Alloy Computer Products Pty Ltd Copyright ©2011...
-
Page 4: Introduction
The POEFE8T is the ideal solution for adding low cost PoE capability to your newly deployed IP PBX and IP Phone infrastructure. Features Supports PoE power up to 15.4W for each PoE port Supports PoE power up to 65W for all PoE ports Supports PoE IEEE802.3af compliant PDs Supports IEEE802.3x flow control for Full‐duplex Mode and backpressure for Half‐ duplex Mode 2K MAC address with auto‐learning and auto‐aging LED indicators for monitoring power, link, activity and speed Internal universal power supply 2. Checklist Before you start installing your equipment, verify that the package contains the following: The POEFE8T – Fast Ethernet POE Switch Rack Mount kit with appropriate mounting screws Power Cable This Users Manual CD‐ROM Please notify your supplier immediately if any of the aforementioned items are missing or damaged. Alloy Computer Products Pty Ltd Copyright ©2011... -
Page 5: Installation
The site where you install the switch may greatly affect its performance. When installing, please take the following into consideration. ‐ Install the switch in a cool, dry place. See technical specifications for the acceptable temperature and humidity operating ranges. ‐ Install the switch on a secure, level surface that can support its weight, at least 5Kg. ‐ Before connecting the Power Cord please ensure the appropriate voltage switch is set, this switch can be found at the back of the POEFE8T. ‐ Leave at least 10cm of space at the front and rear of the switch to ensure adequate ventilation. 3.2 Desktop or Shelf Installation When installing the switch on a shelf on desktop please ensure guidelines are above are following, including level surface and adequate ventilation. 3.3 Rack Installation The POEFE8T is a rack mountable switch and can be installed in an EIA‐19 based equipment rack. First install the provided rack mount brackets onto each side of the switch using the screws provided. Using the screws provided with your rack mount the switch into your equipment rack. Fig. 1 Rack Mount kit installation Alloy Computer Products Pty Ltd Copyright ©2011... -
Page 6: Powering On The Switch
Fig. 2 Power Switch Note: Please double check and ensure power voltage is correctly configured, if set incorrectly damage to the switch is possible. 5. LED Description LED Colour Function On Appropriate power is supplied Power Off Power is not available On A valid link is established LINK Blink Traffic is present on port Off No link established PD PoE device has successfully connected On to the port. POE Off No POE device connected Alloy Computer Products Pty Ltd Copyright ©2011... -
Page 7: Network Connection
POEFE8T User Manual 6. Network Connection Fig. 3 Front panel of switch Connect your devices (computer, router, switch, IP Phone, Wireless Access Point, IP Camera etc.) to the ports with a CAT‐5/CAT‐5e/CAT‐6 network cable. Since the switch supports Auto MDI/MDI‐X you can use either a straight through or cross‐over network cable. Alloy Computer Products Pty Ltd Copyright ©2011... -
Page 8: Technical Specifications
Network Media 100BASE‐TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA‐568 100Ω STP (maximum 100m) Transfer Method Store‐and‐Forward Switching Capacity 1.6G MAC Address Table 2K Frame Filtering and 10Mbps: 14880pps Forward Rate 100Mbps: 148800pps Up to 15.4W per port POE 7.7W per port at full load POE Pins POE delivered on pins 4, 5, 7 and 8 Link per port LED indicators Power POE per port Dimensions (W × D × H) 280 x 179 x 44 (mm) Operating Temperature: 0°C ‐ 40°C Storage Temperature: ‐40°C ‐ 70°C Environment Operating Humidity: 10%~90% non‐condensing Storage humidity: 5%~90% non‐condensing Certification C‐Tick, CE, FCC, RoHS Alloy Computer Products Pty Ltd Copyright ©2011... -
Page 9: Appendix A. Rj-45 Connections
RX+ TX+ 4 not used not used 5 not used not used 6 RX‐ TX‐ 7 not used not used 8 not used not used Below is a diagram of a typical straight through and cross-over cable connection: Fig. 5 Straight Through Cable connection Fig. 6 Cross‐Over Cable connection Alloy Computer Products Pty Ltd Copyright ©2011...
