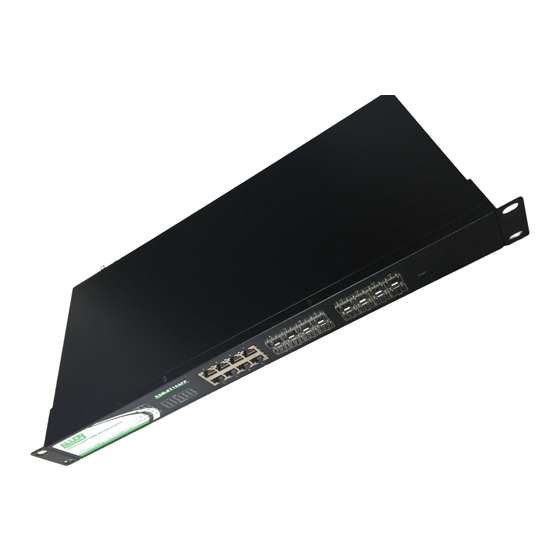

- Page 1 ALLOY 24-Port Gigabit Web Smart Switch GSS-24T2SFP (24x 10/100/1000Mbps ports + 2 paired SFP Ports) GSS-8T16SFP (8x 10/100/1000Mbps ports + 16 SFP Ports) User’s Manual Version: 1.1.0 January 31, 2005...
-
Page 2: Table Of Contents
Introduction... 4 Managing The Switch ... 6 Configuration of the Switch ... 7 Configuration ... 8 Port Status ... 8 Port Configuration... 9 About the Copper/Fibre Media Auto-Detection...11 Port Statistics... 12 Port-Based VLAN ... 14 2.5.1 Add Port-Based VLAN Groups ... 15 2.5.2 Delete Port-Based VLAN Groups... - Page 3 2.11.3 ARL Aging ... 50 2.12 User Management ... 51 2.13 Reset System ... 52 2.14 Command Line Interface (CLI) ... 53 2.14.1 Hyper Terminal Setup Options... 53 2.14.2 Switch Management Commands In Console... 53 Specifications ... 58...
-
Page 4: Introduction
1 Introduction The GSS-24T2SFP web smart switch is a high performance web-smart Layer 2 switch that provides users with switched 24 10/100/1000Mbps Ethernet ports, and 2 paired mini-GBIC ports. The mini GBIC ports are paired with ports 1 and 2 on the switch. This pairing is configured to ensure that fibre connections get higher priority over copper if both fibre and copper media exist. -
Page 5: Main Features
Main Features Utilizes Latest Broadcom Non-blocking, full-line speed, store-and-forward operation Support normal Ethernet frames and jumbo frames from 64 bytes to 9216 bytes Auto-negotiation and auto-MDIX on all 10/100/1000M copper ports 24x 10/100/1000 RJ-45 ports, 2 ports being shared with SFP mini-GBIC slots Auto-detection for copper/fibre media link on 2 combo ports 512 K bytes packet buffer 8K MAC entries, 4K VLAN entries... -
Page 6: Managing The Switch
1.1 Managing The Switch Plug-in the power source to power-up the switch. After the switch is powered-on and in a ready state (both the LED indicators POWER and DIAG are lit), you can use any in-band Ethernet port to remotely manage the system through a web browser, or use the RS-232 cable to plug-in the console port (on the rear panel) to locally perform simple system configuration (CLI). -
Page 7: Configuration Functions For The Switch
1.2 Configuration Functions for the Switch After the login is successfully validated, the switch’s home page will display. The left part of the page provides function menu options (shown as below). Select one of these options to activate to the individual configuration page. -
Page 8: Configuration
2.1 Port Status The Port Status page provides link status information. This page provides the following information: Port – to specify a port on the switch Link Status – displays the port link status: Up / Down Speed / Duplex – displays the current link speed (1G / 100M / 10M bps) and duplex mode (Full / Half) when the port is active. -
Page 9: Port Configuration
2.2 Port Configuration If you need to configure port parameters, then select the desired port by clicking the Port number in the Port Status page. The Port Configuration page (shown as below) for the selected port (e.g. port3) will be displayed: The following parameters will be provided and configured in the Port Configuration page: Port –... - Page 10 Speed / Duplex – to setup the link speed and duplex mode while in forced mode The options for this function can be selected only when the Auto Negotiation is Disabled (in forced mode) for copper media. There are 4 options for this parameter: 100Mbps Full –...
-
Page 11: About The Copper/Fibre Media Auto-Detection
2.3 About the Copper/Fiber Media Auto-Detection This switch provides an option to use either copper or fiber media for the first two combo ports - Port1 and Port2. This enables port configuration using either copper media or fiber media via use of the mini-GBIC ports and optional SFP (mini-GBIC) modules. -
Page 12: Port Statistics
2.4 Port Statistics Port Statistics function will let you to see the TX/RX packet counters for each port. Clear Counters button will clear all packet counters to 0. Refresh button will get port statistics again. You can drill down into more detailed port statistics by clicking the Port number. - Page 13 The table shown below provides a description for each column. UnicastPkts Number of good unicast packets transmitted. MulticastPkts Number of good multicast packets transmitted. BroadcastPkts Number of good broadcast packets transmitted. Number of packets in which the transmission experienced one collision Single Collision Multi Collisions Number of packets in which the transmission experienced over two collisions...
-
Page 14: Port-Based Vlan
2.5 Port-Based VLAN Port-based VLAN divides the switches ports into different Virtual LAN domain groups. After setting up port -based VLAN, ports allocated into different VLAN groups can not access each other. This is like creating virtual switches that do not connect to each other. The VLAN initial setting page is shown as below: Of course, you need to click the Enable/Disable link text to enable/disable port-based VLAN. -
Page 15: Add Port-Based Vlan Groups
Add Port-Based VLAN Groups To add a port-based VLAN group, select the Create New VLAN in VLAN NO dropdown of the Port-Based VLAN page shown as below: After selecting Create New VLAN, the page will change to the following: In the example page, VLAN NO will be auto assigned. The administrator simply needs to set VLAN Port Members. - Page 16 Below is an example page where the Administrator has set Ports1-12 to VLAN Group2 after clicking the Create button. There now exists a VLAN group No.2 with member Ports1-12. When group No.2 was created, all the members in group No.1 are removed ensure correct operation of the VLAN function.
-
Page 17: Delete Port-Based Vlan Groups
2.5.1 Delete Port-Based VLAN Groups To delete a port-based VLAN group, just select a desired group (e.g. No.2) to be removed and click the Remove This VLAN button to do the deletion. In this example after selecting the Remove This VLAN button, the resultant is all VLANs deleted, and the Default VLAN 1 - enabled. -
Page 18: Edit Port-Based Vlan Groups
2.5.2 Edit Port-Based VLAN Groups To edit the current port-based VLAN group, first select the group (e.g. group No. 3) that you want to edit. To add Port7 & Port8 as members, select these ports and click the Apply button to activate the setting. -
Page 19: 802.1Q Vlan
2.6 802.1Q VLAN IEEE 802.1q (tag-based) VLAN’s can add or strip 802.1q tags based on your parameters set for each transmitting port. Select the 802.1Q VLAN menu to activate the following page where this function can be configured. Currently the switch supports up to 32 tag-based VLAN groups for manual entry. The following pages will described in detail how to configure this feature. -
Page 20: Enable/Disable Vlan
In the 802.1Q VLAN page, you can enable/disable the tag-based VLAN function by clicking the (Enable) or (Disable) hyperlink beside the page header: Enable – to activate the tag-based VLAN function (this will disable the port-based VLAN function). Disable – to de-activate the tag-based VLAN function. (Any existing tag-based VLAN entries will be retained although tag-based VLAN functions will be disabled. -
Page 21: 802.1Q Vlan Port Configuration
Click the Port number to configure the port for 802.1q VLAN. The following figure shows the 802.1Q VLAN Port Configuration page by port. (e.g. Port10) You can select an individual port for configuring the 802.1q settings in the following fields: PVID –... -
Page 22: 802.1Q Vlan Config
The following figure displays the add/delete/edit function for 802.1q VLAN entries. Each VLAN entry has 3 parameters, VID, Tag Members and UnTag Members to be assigned. After selecting the Create New VLAN, the figure shown as below will display: VID – a unique VLAN ID, range is from 1 to 4094 Tag Members &... - Page 23 Here is an example on how to configure the 802.1q VLAN. Now there are four existing 802.1q VLAN entries shown as below. Note: You can delete 802.1q VLAN entries via the selecting the Vlan from the dropdown list and (e.g. VID = 200), then click the Remove This VLAN button to perform the deletion. Note the 802.1q VLAN table now shows the following entries: The VID entry (VID=200) is successfully deleted.
- Page 24 If you would like to edit the parameters of an 802.1q VLAN, just select a VID to be changed (e.g. VID =300), then make the required changes and click the Apply button : Port 17 and Port18 are selected to be the tag members of this group.
-
Page 25: Trunking
The GSS-24T2SFP web smart switch provides dynamic failover support within the trunk group. If a port within the trunk group fails, the other ports of the trunk group automatically assume the extra traffic load currently running through the link. -
Page 26: Trunking Rules
2.7.1 Trunking Rules The following rules determine your configuration for port trunking: The attributes of all trunk member ports in Port Configuration, Mirror, Rate Control, 802.1Q VLAN and Port-Based VLAN functions must be the same. All trunk member ports can not be a capture port or monitored port in the Mirror function. If Port1/Port2 is using fiber media and wants to be grouped with ports using copper (Port3 –... - Page 27 When the enabled trunk group is set to disabled, all trunk member ports will be released to ordinary ports and their functions can be configured individually. At that moment, their configuration attributes will be returned to their previous state. The following 3 figures show that the settings of a port while in a trunk group can be reverted back to normal once not in the trunk group any more.
-
Page 28: Get/Refresh The Latest Trunk Settings
2.7.2 Get/Refresh the Latest Trunk Settings Click the Trunk menu on the web page, the latest trunk settings on the switch will be displayed. -
Page 29: Enable Trunk
2.7.3 Enable Trunk Step 1: Choose the Distribution Criterion. Step 2: Choose the member port(s) up to 8 ports for each trunk group. Step 3: Click the Apply button to enable trunk settings. -
Page 30: Modify Trunk Settings
2.7.4 Modify Trunk Settings Step 1: Choose the Distribution Criterion. Step 2: Choose the member port(s) up to 8 ports for each trunk group. Step 3: Click the Apply button to modify trunk settings. -
Page 31: Disable Trunk
2.7.5 Disable Trunk Step 1: Click the Not Trunking hyperlink (the baseline option) Step 2: Click the Apply button to disable trunking. -
Page 32: Port Mirroring
Port mirroring allows ingress and/or egress traffic to be monitored by a single port. The single port is defined as the mirror capture port. The GSS-24T2SFP web smart switch can be configured to mirror the ingress and/or egress traffics of another port. Port monitoring is independent of L2 switching. -
Page 33: Get/Refresh The Latest Mirror Settings
Click the Mirror menu on the web page, the latest mirror settings on the switch will be displayed. The following parameters can be set: Mirroring Options – There are four options for each port: Disable Mirror – to disable mirror function. Mirror All Frames –... -
Page 34: Enable Mirror
2.8.2 Enable Mirror Step 1: Choose the Mirror option as Mirror All Frames. Step 2: Choose the Monitored Port (ie Port16) Step 3: Choose the Capture Port (ie Port8) Step 4: Click the Apply button to enable the mirroring settings. -
Page 35: Modify Mirror Settings
2.8.3 Modify Mirror Settings Step 1: Change the Mirror option as Mirror Outgoing Frames. Step 2: Change the Monitored Port to be Port3 Step 3: Change the Capture Port to be Port22. Step 4: Click the Apply button to modify the mirroring settings. -
Page 36: Disable Mirror
2.8.4 Disable Mirror Step 1: Choose the Mirror option as Disable Mirror. Step 2: Click the Apply button to disable mirroring. -
Page 37: Qos (Quality Of Service)
This can be critical for congestion sensitive traffic such as VOIP. The GSS-24T2SFP web smart switch provides three types of QOS. It can assign packets to one of four transmit queues according to 802.1P QOS. If the incoming packet is untagged, the GSS-24T2SFP web smart switch uses the priority field in the per-port Default Priority configuration screen (Port Config page) to assign the packet to one of four transmit queues. -
Page 38: Get/Refresh The Latest Qos Settings
Click the QOS menu on the web page, the latest QOS settings on the switch will be displayed. The following parameters can be configured: Scheduling Method Strict Priority – Sets the switch to transmit packets with Strict Priority algorithm Weighted Round Robin – Set the switch to transmit packets based on a Weighted Round Robin algorithm Priority/Queue Map To set the Priority and Queue map. -
Page 39: Enable Qos
2.9.2 Enable QOS Step 1: Choose the Scheduling Method (ie: Weighted Round Robin). Step 2: Set Priority/Queue map (ie: Priority1, 2, 3 and 4 belong to Queue0, Priority4 and 5 belong to Queue1, Priority6 belongs to Queue2, Priority7 belongs to Queue4). Step 3: If the scheduling method is Weighted Round Robin, assign a weight for every transmit queue (ex: Queue0 weight = 1, Queue1 weight = 3, Queue2 weight = 5, Queue3 weight = 7). -
Page 40: Modify Qos Settings
2.9.3 Modify QOS Settings Step 1: Change the Scheduling Method to be Strict Priority. Step 2: Change the Priority/Queue map (ie: Prirotiy0 belongs to Queue3, Priority1, 2 and 3 belong to Queue2, Priority4, 5 and 6 belong to Queue1, and Priority7 belongs to Queue0). Step 3: Click the Apply button to modify the QOS settings. -
Page 41: Broadcast Storm Control
2.10 Rate and Storm Control To improve overall system performance, the GSS-24T2SFP web smart switch provides rate and broadcast storm control. This can limit the per-port traffic rate and limit global broadcast storms from reducing the performance of the overall system. - Page 42 Select the port number to setup the per-port rate control value. In this page an ingress rate limit dropdown is shown as in the following figure, select one of 14 different rates to limit the rate or select “No Limit” to allow un-limited data rates for this port. After clicking the Apply button to activate the setting, the previous page will be displayed and the latest settings activated.
-
Page 43: Broadcast Storm Control
2.10.2 Storm Control In the Rate Limit and Storm Control page, the hyperlink (e.g. Disabled) on the row labeled Storm Control, shows the current setting for this function. Enabling or Disabling this function will globally affect to all ports in the system. Click the hyperlink to configure. In the Storm Control page, there are 2 fields to configure: Storm Control Type –... - Page 44 Storm Control Rate – this field provides 13 different control rates from 1fps (frames per second) to 15,000fps. This dropdown will be disabled while the Storm Control Type is disabled. After selecting the storm control type and rate, click the Apply button to activate the settings for this function.
-
Page 45: System Setup
2.11 System Setup System Setup page provides management information for the switch. The page shown below can be activated by clicking on the System Setup menu under the System section. The following parameters can be configured / displayed: Model Name – the model name of this switch (read-only) Chip Version –... -
Page 46: Firmware Update
2.11.1 Firmware Update The GSS-24T2SFP web smart switch provides a firmware update feature, customized requests and system fault recovery. The page for this is shown below can be activated by clicking the Update link in System Setup page. GSS-24T2SFP This system supports both BOOTP/TFTP and TFTP to update the firmware. The TFTP server IP address and firmware filename needs to be correctly provided to the switch to start the firmware updating if the TFTP method is selected. -
Page 47: Firmware Update Via Tftp
Firmware Update Via TFTP To perform the firmware update process, it is necessary to correctly prepare a TFTP server and the firmware file which will be uploaded to the switch by the TFTP server. (Please refer to the TFTP software vendor’s instruction guide for setting up the TFTP server) When the TFTP server and the firmware file are ready, enter the TFTP server IP address and firmware filename. -
Page 48: Firmware Update Via Bootp/Tftp
2.11.1.1 Firmware Update Via BOOTP/TFTP Before performing the firmware update, please correctly prepare a BOOTP/TFTP server and the firmware file which will be uploaded to the switch by the TFTP server. (Please refer to the TFTP software vendor’s instruction guide for setting up the TFTP server). When the BOOTP/TFTP server and the firmware file are ready, click the Apply button to start the firmware update through the any RJ-45 port on the switch. -
Page 49: Dhcp Client
2.11.2 DHCP Client The IP address of the GSS-24T2SFP web smart switch can be statically assigned by the system administrator or dynamically assigned by a DHCP server. 2.11.2.1 Assign a fixed IP address Change DHCP Client to be disabled. Enter a fixed IP address, Subnet mask and Gateway, and then click the Apply button. -
Page 50: Arl Aging
2.11.3 ARL Aging The GSS-24T2SFP web smart switch supports an auto aging timer for MAC address entries in address table. If ARL aging is enabled and aging time is 300 seconds, every MAC address entry learned from every front port will keep in the address table for 300 seconds. After 300 seconds, the switch will remove the MAC entry. -
Page 51: User Management
2.12 User Management The User management screen is used to maintain the username and password for login validation to access to the switch. The switch provides only one login account for configuration management. Click the User Management menu to activate the User Management page shown as below: New Username –... -
Page 52: Reset System
MAC address will not be changed) to default settings before rebooting the system. Means that any customized configurations will be lost and can not be recovered. The GSS-24T2SFP web smart switch also provides an alternative to Reset System by using the Reset button on the rear panel:... -
Page 53: Command Line Interface (Cli)
2.14 Command Line Interface (CLI) In addition to the web management interface, the GSS-24T2SFP web smart switch also provides a serial interface (RS-232) as a console port on the rear panel to manage the switch. A Windows Hyper Terminal session is recommended for use. This section will explain how to setup and use Hyper Terminal to manage this switch. -
Page 54: Help Menu
Help Menu Press “H”, “h” or “?” to show all management commands in console. Get System Information Press “IG” or “ig” to show model name and firmware version. Get Current Network Settings Press “NG” or “ng” to show DHCP client status, system IP address, network mask, gateway and MAC address. -
Page 55: Configure Network
Configure Network Press “NS” or “ns” to configure system network. If the Administrator wants to assign the switch an IP address by DHCP server, then enter “Y” or “y” to start DHCP process. If the Administrator wants to assign the switch a fixed IP address, then enter “N” or “n” to abort DHCP progress. -
Page 56: Reboot System
Choose “1” to update firmware via TFTP. Enter TFTP server IP address and firmware filename. Choose “2” to update firmware via BOOTP/TFTP. After the GSS-24T2SFP firmware upgrade process is finished. Press “IG” or “ig” to check firmware version after login. Reboot System... - Page 57 Reboot System After Write Default Press “RD” or “rd” to reset the switch to factory default settings. Logout Press “LO” or “lo” to logout system.
-
Page 58: Standards Compliance
Standards Compliance IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000Base Gigabit Ethernet IEEE 802.3x flow control both on half and full duplex IEEE 802.1q Tag-based VLAN Interfaces 24 1000BaseTX RJ-45 connector ports, 2 mini-GBIC ports 1 RS-232 terminal port Buffer Memory 512MB for packet buffers 8K entries for MAC... - Page 59 Power Input: 100-240VAC, 50/60Hz Power consumption: 40 Watts max. Dimensions 440mm (W) × 184mm (D) × 44mm (H) Weight 2.3 Kg Electromagnetic Emissions: Class A FCC, CE, VCCI, C-Tick Safety...
