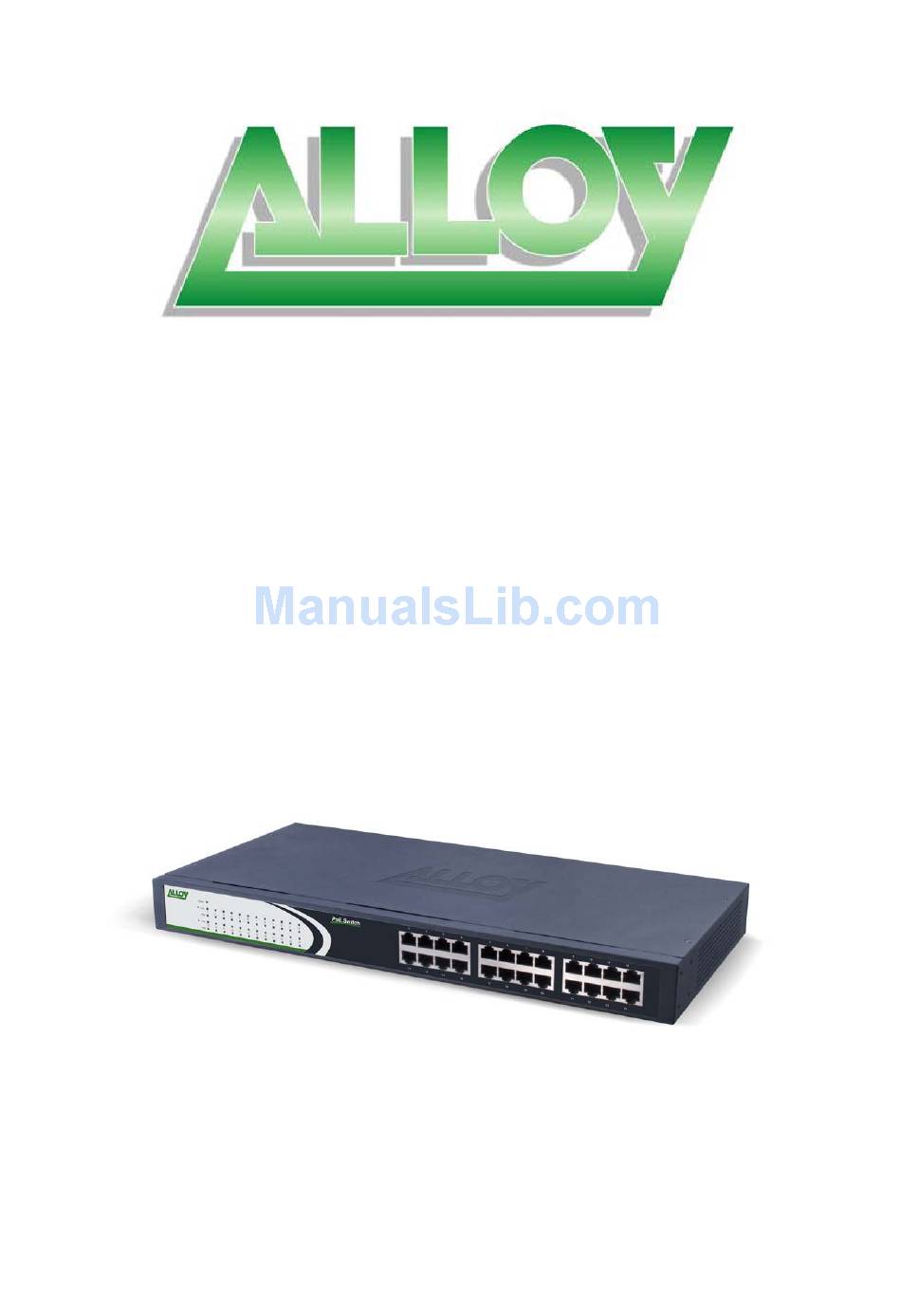

Page 1: User Manual

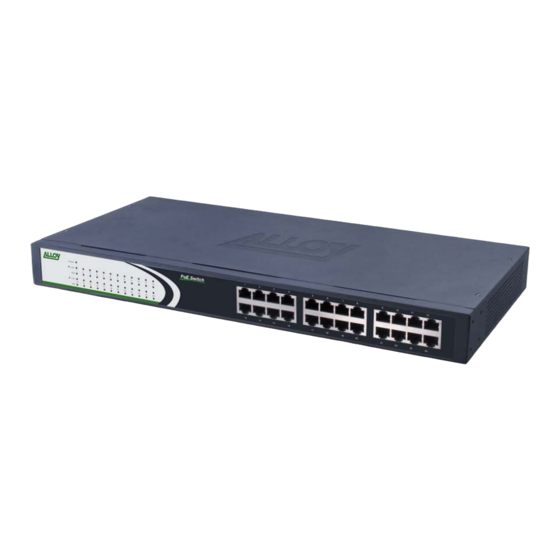

POEFE24T User Manual User Manual POEFE24T 24 Port Fast Ethernet PoE Switch Version 1.1 October 2010 Alloy Computer Products Pty Ltd Copyright ©2010... -
Page 2: Table Of Contents
3.3 Rack Installation ................5 4. Powering on the Switch ..........6 5. LED Description ............6 6. Network Connection ............. 7 7. Technical Specifications ..........8 Appendix A. RJ-45 Connections ..........9 Alloy Computer Products Pty Ltd Copyright ©2010... - Page 3 A EN60555-3 IEC1000-4-2(1995) 4K V CD, 8KV, AD IEC1000-4-3(1995) 3V/m IEC1000-4-4(1995) 1KV – (power line), 0.5KV – (signal line) Australian C-Tick Compliance. This equipment is compliant with the required Australian C-Tick standards Alloy Computer Products Pty Ltd Copyright ©2010...
-
Page 4: Introduction
15.4W of power, with the switch supporting 7.7W per port at full load. The POEFE24T supports up to 185W in total. The POEFE24T is the ideal solution for adding low cost PoE capability to your newly deployed IP PBX and IP Phone infrastructure. -
Page 5: Installation
3.3 Rack Installation The POEFE24T is a rack mountable switch and can be installed in an EIA-19 based equipment rack. First install the provided rack mount brackets onto each side of the switch using the screws provided. -
Page 6: Powering On The Switch
Power Power is not available A valid link is established LINK Blink Traffic is present on port No link established PD PoE device has successfully connected to the port. No POE device connected Alloy Computer Products Pty Ltd Copyright ©2010... -
Page 7: Network Connection
Connect your devices (computer, router, switch, IP Phone, Wireless Access Point, IP Camera etc.) to the ports with a CAT-5/CAT-5e/CAT-6 network cable. Since the switch supports Auto MDI/MDI-X you can use either a straight through or cross-over network cable. Alloy Computer Products Pty Ltd Copyright ©2010... -
Page 8: Technical Specifications
Dimensions (W × D × H) 441 x 208 x 44 (mm) Operating Temperature: 0°C - 40°C Storage Temperature: -40°C - 70°C Environment Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing Certification C-Tick, CE, FCC, RoHS Alloy Computer Products Pty Ltd Copyright ©2010... -
Page 9: Appendix A. Rj-45 Connections
Below is a diagram of a typical straight through and cross-over cable connection: Fig. 5 Straight Through Cable connection Fig. 6 Cross-Over Cable connection Alloy Computer Products Pty Ltd Copyright ©2010...
