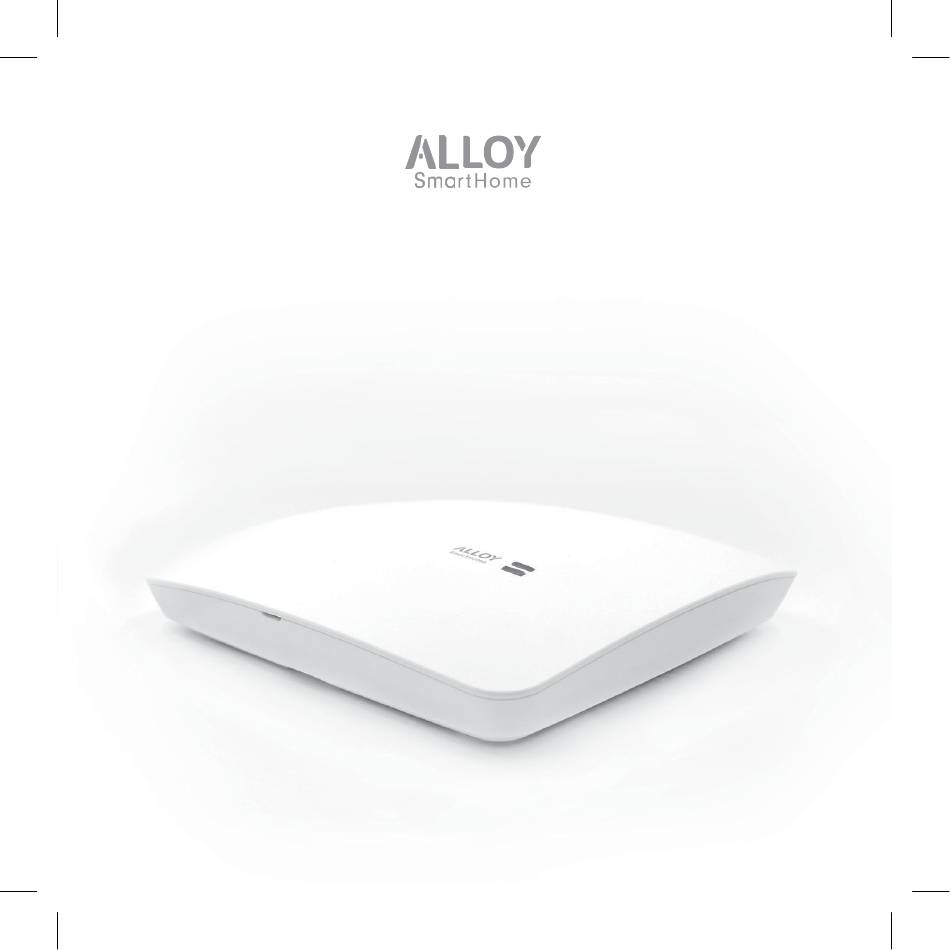

- Page 1 Alloy Hub3 Safety Instructions v1.0.
- Page 2 MEET YOUR ALLOY SMARTHOME HUB Alloy SmartHome Hub lets you easily monitor, regulate and secure your home from anywhere in the world. SMART HOME SERVER...
-
Page 3: Installation
The Ethernet port is located on the bottom of the Alloy SmartHome Hub. Alloy SmartHome Hub queries your DHCP server for an IP address. If you do not have a DHCP server in your local network, after 60 seconds Alloy SmartHome Hub will auto- configure itself with a link-local IPv4 address (in 169.254.0.0/16 range). - Page 4 If it succeeds connecting, LED will light up green (red means that there was a connection problem). In this case, reset the unit and try again, making sure the password is correct for the selected WiFi network. Reset the unit by holding Button 2 for 4 seconds.
- Page 5 01 | Steady blue light: Operating system is loading 02 | Blue light flashing: Application is loading | Alloy SmartHome Hub getting ready or offline: slowly flashing green light | Alloy SmartHome Hub ready: steady green light when stable internet connection is established...
-
Page 6: Power Down
Button 1 / LED indicator 1 Button 2 / LED indicator 2 1.4. POWER DOWN Disconnect the power cable. 1.5. RESET To reset Alloy SmartHome Hub, hold Button 2 for 4 seconds. -
Page 7: Wall Mounting
Use a flat blade screwdriver to open Alloy SmartHome Hub body. Place back of Alloy SmartHome Hub on the wall and mark 4 hole positions on the wall. Please make sure your device is placed straight (see the spirit level on the device) . -
Page 9: Specifications
3.0. | SPECIFICATIONS SYSTEM Power usage: Idle: 1.2W, Max: 2.4W ARM Cortex-A7 Quad-Core 1.3GHz CPU ENVIRONMENTAL 256MB RAM Temperature Range: 4GB FLASH Operating: 0° C to 40° C (32° F to 104° F) NETWORK Storage: -25° C to 70° C (-13° F to 158° F) Ethernet 100BASE-TX Humidity: 5% to 95% non- WiFi 802.11 a /c /b /g /n /ac... - Page 10 PHYSICAL DIMENSION WARRANTY 195 (L) x 195 (W) x 26 (H) millimeters 1 year standard 7.6 (L) x 7.6 (W) x 1.02 (H) inches AUTOMATION OPTION Remote automation software Online remote interface...
-
Page 11: Important Safety Instructions
• The Alloy SmartHome Hub power adapter is damaged and you suspect it needs to be serviced. Avoid installing the Alloy SmartHome Hub near or inside s o u r c e s of electromagnetic interference. 4.1. IMPORTANT SAFETY INSTRUCTIONS •... -
Page 12: Disposing And Recycling Your Product
Only use attachment sand accessories specified by the manufacturer. | DISPOSING AND RECYCLING YOUR PRODUCT (Waste Electrical & Electronic Equipment) At Alloy SmartHome, we understand and are committed to reducing any impact our operations (Applicable in countries with separate collection systems) and products may have on the environment. -
Page 13: One(1)Yearlimitedwarranty
OR(II)ANYAMOUNTSINEXCESSOFTHEPURCHASE a valid claim is received within the Warranty Period, PRICEFORTHEPRODUCT,INEACHCASEWHETHER then as your sole remedy (and Alloy SmartHome’ sole RESULTING FROM THE USE OF OR INABILITY TO liability), Alloy SmartHome will at its option either 1) USE THIS PRODUCT, OR ARISING OUT OF ANY... -
Page 14: Declaration Of Conformity
| DECLARATION OFCONFORMITY We, Alloy Alloy Hub3, Tri plus grupad.o.o., Banjavciceva 11, 10000 Zagreb, Croatia, declare that the product AlloyHub3isincompliancewithallthetechnicalregulationsapplicabletotheproductwithinthescopeofCouncil Directives2014/53/EU.Toaccesslatestcertificationpleasefollowthelink:smartrent.com/hardware/docs. Manufacturer’sName:Tri plus grupad.o.o. Address: Banjavciceva 11, 10000 Zagreb, Croatia Product name: AlloyHub3 Model：ah3.zw8eu.4G Operating Temperature: -10° C to 35° C... - Page 15 Warning: 1. The product shall only be connected to a USB interface of version USB2.0. 2. Adapter shall be installed near the equipment and shall be easily accessible. 3.The plug considered as disconnect device of adapter. 4. Accessories information: Model: KA1801A-1201500USL Input: 100-240V~50/60Hz 0.55A Max Output: 12.0V 1500mA...
- Page 16 All essential radio test suites have been carried out. ASPECTS STANDARD NUMBER ETSI EN 300 328 V2.2.2 (2019-07)， ETSI EN 301 893 V2.1.1 (2017-05)， Radio ETSI EN 300 440 V2.2.1 (2018-07)， ETSI EN 300 220-1 V3.1.1 (2017-02), ETSI EN 300 220-2 V3.2.1 (2018-06) EN IEC 62311:2020 ASPECTS STANDARD NUMBER...
- Page 17 • FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. • • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 18 • • L’émetteur/récepteur exempt de licencecontenudans le présentappareilestconforme aux CNR d’Innovation, Sciences et Développementéconomique Canada applicables aux appareils radio exempts de licence. L’exploitationestautorisée aux deux conditions suivantes : • L’appareil ne doit pas produire de brouillage; • L’appareildoitaccepter toutbrouillageradioélectriquesubi, mêmesi le brouillageest susceptible d’encompromettre le fonctionnement.
- Page 19 5. | SPECIFICATIONS Storage: -25° C to 70° C MODEL NUMBER (-13° F to 158° F) ah3.zw8us.4G/EG91 Humidity: 5% to 95% non-condensing SYSTEM LEDS ARM Cortex-A7Quad-Core 2 programmable buttons 1.3GHzCPU 2 programmable RGB LEDs 256MBRAM 4GBFLASH USB 2.0 downstream port NETWORK Ethernet 100BASE-TX REGULATORY COMPLIANCE...
