  • Page 1 ® AVerMedia IWH3216 Touch User Manual June 2010...
  • Page 2 The information contained in this documentation is subject to change without notice. In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

  • Page 3: Manual Conventions

    WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. GUARANTEE BECOMES VOID IN CASE OF ANY UNAUTHORIZED MODIFICATIONS INTO DOM CONTENTS. DO NOT REMOVE REMOVABLE HDD TRAY SHILE SYSTEM IN USE. IT WOULD DAMAGE DOM CONTENTS.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Chapter 1 Introduction ..................1 1.1 Package Contents ........................1 1.1.1 Optional Accessories ..................... 1 1.2 Specification ..........................2 1.3 Hardware Introduction ......................4 1.3.1 Front Panel ........................4 1.3.2 Back Panel ........................6 Chapter 2 Hardware Installation ..............7 2.1 Hard Disk Installation .......................
  • Page 5 4.2.4 Create a Camera Group ....................67 4.3 Recording Setting ........................69 4.3.1 Analog Camera ......................69 4.3.2 IP Camera ........................73 4.3.3 To Mask/Shield an area on the screen ................ 75 4.4 Network Setting ........................76 4.5 Schedule Setting ........................79 4.6 Backup Setting ........................
  • Page 6 6.6.2 To install PDAViewer from the Internet ..............140 6.6.3 To Use the PDAViewer ....................141 6.6.4 To Playback in PDAViewer ..................142 6.6.5 Using JavaViewer to Access DVR Server ..............143 6.6.6 To Use the JAVA-Viewer .................... 144 Chapter 7 iEnhance ..................

  • Page 7: Chapter 1 Introduction

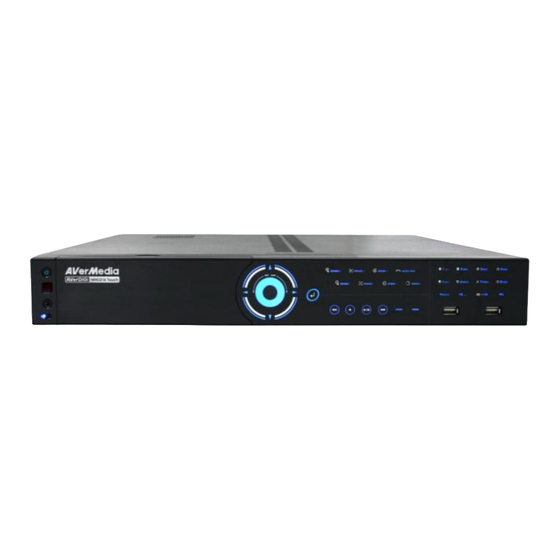

    Chapter 1 Introduction Package Contents  IWH3216 Touch unit  Power Cord ( *The power cord may vary according to the  AVerMedia optical USB mouse local electricity system.  Software CD (  Power Adaptor Manual and Quick Guide are included ...

  • Page 8: Specification

    Specification IWH3216 Touch Camera Inputs (analog) 16 BNC connectors via DVI cable Camera Inputs (IP) 16 CH: 16CH MPEG4/MJPEG /H.264 data streams from IP cam Video output 2 VGA out with D-sub connector SPOT out 2, support 1 ch output only, excluding IP cam...
  • Page 9 E-map Function Show the positions of cameras, sensors, relays and triggered status Powerful Search By date, time, camera, event, and log file Easily save links to particular locations of recorded data and play them Bookmark directly from the saved links Advanced Event Log Viewer Details complete event logs according to your selection on event, operation, system and network events.

  • Page 10: Hardware Introduction

    Hardware Introduction 1.3.1 Front Panel Touch the blue word, button center, blue arrow, and blue area to make a selection or functional Name Function (1) Power ON/OFF DVR unit (2) IR Sensor Receive signal from the remote control to operate the DVR unit (3) IR Sensor port For extended IR sensor cable(optional) System power status indicators.
  • Page 11 Name Function 2 x USB 2.0 ports for connecting USB device, ex: USB pen drive, external hard disk, (11) USB 2.0 port mouse…and so on. A functional key for multiple system control. Press to enable FN modes (The word “FN” will show up in the left bottom corner on screen). To exit FN modes, press again.

  • Page 12: Back Panel

    1.3.2 Back Panel Name Function (1) Video Loop Out(16CH) Output the video signal to a CCTV monitor (2) Video In Input the video camera signal and display it on channel 1~ 16 (3) Audio In & Spot Monitor Inputs the audio signal to audio input device (16 channels) and display video on the Spot monitor when receive a alarm video (2 channels).

  • Page 13: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Hard Disk Installation The DVR unit can support up to 3 hard disks. Follow the illustrated instructions below to install the hard disk: 1. Loosen all screws (2 sides and back) and push the 2. Loosen the screws of holder to make hard disk install cover backward and lift to open the case cover.
  • Page 14 7. Plug the power cables and SATA cables into all three hard disk. 8. Screw the holder. 9. Push the cover forward and secure the cover. 10. User may now connect all the cables and power on the DVR unit.

  • Page 15: Connecting Device

    Connecting Device The back panel of the DVR unit, user can connect up to 16 cameras of analog camera. The DVR unit also can connect 16 sensor devices, 4 alarm devices, and output video to 2 CRT/LCD monitor. Follow the illustration below to make the connection: For backup recorded video, plugging the pen drive or external hard disk through USB port, and then, use the bundled software enables user to playback and export video clip.

  • Page 16: Sensor/Relay Device Pinhole Allocation

    Sensor/Relay device pinhole allocation The I/O card enables you to connect 16 sensor inputs and 4 relay outputs. Just connect the external sensor and relay pin directly to the I/O card pinhole. Check the table below and locate which pinhole is assigned to sensor input and relay output.

  • Page 17: Chapter 3 Using The Dvr Software

    Chapter 3 Using the DVR Software Running the Unit for the First Time When the unit is turned on for the first time, the system will prompt you to enter the CD-Key. If user wants to power off the DVR system, click Shutdown button. To restart the DVR system, click Reboot button. After enter the CD-Key, the DVR will enter preview mode of DVR application.
  • Page 18 Name Function - About: Display current DVR program version. User also can update the DVR program (1) Exit firmware. Click the Update button and locate the firmware file to update. - Compact: Switch to compact mode - Guest: Switch to the guest mode. In guest mode, the functions are limited to preview and playback function only.
  • Page 19 Name Function (10) Playback Switch to Playback mode. This allows you to view the recorded video file. (see Chapter 3.3) (11) Camera Group To view the user defined channel group tree (see also Chapter 4.2.4). Click “+” of group to Tree extend group and drag the camera to surveillance screen to view.
  • Page 20 Name Function (14) Snapshot Catch a static recording image and save it as a BMP or a JPG file. Click it to pop-up the Event Log Viewer dialog to check Event, Operation, POS (Point of (15) Event log Sales), System and Network logs. You can select a desired date and a log item to show all logs data in the table.

  • Page 21: Using Event Log Viewer

    Name Function (20) Volume Adjust the audio volume to a proper volume. (21) On Screen If the keyboard is not available, you may use the Virtual Keyboard. Keyboard 3.2.1 Using Event Log Viewer Show the record of activities that take place in the system. 1.

  • Page 22: Using Posviewer

    3.2.1.1 Using POSViewer Name Function (1) POSDB Path The storage path for POS event log. Click to change the storage path. (2) Before/After Set a time period before and after of POS event log. (3) Channel Select the POS event log of channel (4) Search String Enter specific key word or word string to search the POS event log.

  • Page 23: Using Counting Log Viewer

    3.2.1.2 Using Counting Log Viewer Click Counting Log Viewer button on Event Log Viewer window to search and view the list and statistic report of object counting. If the object counting function is not enabling, there will be no any data to view. To setup object counting, please refer to Chapter 4.2.1.

  • Page 24: Using The Object Viewer

    3.2.1.3 Using the Object Viewer Click Object Log Viewer button on Event Log Viewer window to view and search FaceFinder log. If the FaceFinder function is not enabling, there will be no any data to search and view. To setup FaceFinder, please refer to Chapter 4.2.2.

  • Page 25: Familiarizing The Buttons In Playback Mode

    Familiarizing the Buttons in Playback Mode To switch in Playback mode, click Playback button at the lower right corner of Preview mode user interface Name Function (1) Split Screen Mode Select from 6 kinds of split screen type to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen.
  • Page 26 Name Function Select the date on the calendar and the time from 00 to 23 to where to start playing the (5) Archive recorded video file. – OPEN FILE: user can open the recorded file from HDD – Channel 01~ 16&Channel 17 ~ 32: Switch to different channel group of playback calendar.
  • Page 27 Name Function (10)iPOS Serach To find iPOS event by keyword or period. POSDB Path: where the iPOS data located. Start Time: select the search start time and date End Time: select the search end time and date Select Camera: select the camera for iPOS events search Keyword: enter a keyword to search iPOS event Match whole words exactly: the iPOS event must 100% match the keyword that user has entered.
  • Page 28 Name Function Use the entire area of the screen to only display the video. To return, press the right (13) Full screen button of the mouse or ESC on the keyboard or click the arrow icon on the screen. Click to exit from full screen mode When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple-screen mode or all.

  • Page 29: To Cut And Save The Wanted Portion Of The Recorded Video

    3.3.1 To Cut and Save the Wanted Portion of the Recorded Video Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to start the cut. Then, click Segment button ( ) to set the begin mark.

  • Page 30: To Bookmark A Section Of The Video

    3.3.2 To Bookmark a Section of the Video Click Bookmark. The video playback stops when the bookmark button is executed. In the Bookmark dialog box, you may do the following: Add: To include the new reference mark in the bookmark list. In Bookmark Editor window, user can assign a name for this mark.

  • Page 31: To Search Using The Visual Search

    3.3.3 To Search Using the Visual Search Click Visual Search. In the Visual Search Setting dialog box, select the Camera number and the date. Then click OK. When a series of frames appear by date, click on the frame to display another series of frames and search by every Hour of that date, every Minute of that hour, every 10 Seconds of that minute, every Second of that 10 seconds.

  • Page 32: To Search Using The Event Search

    3.3.4 To Search Using the Event Search Click on the video screen on where you want to search. Click Event Search. The Event Search text (red) would appear at the lower left corner of the screen. In the Event Search Setting dialog box, check the type of condition you want to search. If you select POS, in the Find Text box, type the word.

  • Page 33: To Search Using The Intelligent Search

    3.3.5 To Search Using the Intelligent Search Click on the video screen on where you want to search. Click Intelligent Search. The Intelligent Search text (red) would appear at the lower left corner of the screen. When the Intelligent Search Setting dialog box and motion detector frame appear, you may adjust the sensitivity bar and the motion detector frame size and location.

  • Page 34: Familiarizing The Buttons In Compact Mode

    Familiarizing the Buttons in Compact Mode To view in Compact mode, click Exit button. In the logout dialog box, click Compact. Name Function (1) Split Screen Mode Select from 6 kinds of split screen type to view all the camera, or one camera over the other or alongside on a single screen.

  • Page 35: Function Buttons In Ptz Camera Controller

    Function Buttons in PTZ Camera Controller Name Function (1) Close Exit PTZ camera controller. (2) Setup Configure PTZ cameras.(see Chapter 3.12) (3) AutoPan Operate the PTZ cameras automatically based on the selected camera group preset position number. (4) Focus +/- Adjust the focus manually to produce clear image.

  • Page 36: Setting Up And Using The Emap

    Setting Up and Using the EMAP EMAP can hold up to 8 maps in *.bmp/*.jpg format. You may locate the camera, sensor and relay on the map. 3.6.1 To Set Up the EMAP Click Emap. When the Emap screen appears, click the area number (1 to 8 buttons) on where you want to insert the map.

  • Page 37: To Use The Emap

    3.6.2 To Use the EMAP To use the EMAP: Click E-map. In the Emap screen, click the camera icon to switch on the area where the camera is located on the map and to display the video at the upper right corner of the Emap screen. At the lower right corner of the Emap screen, it lists all the warning message.

  • Page 38: To Setup The Ptz/Ip Ptz Camera

    To Setup the PTZ/IP PTZ Camera 3.7.1 Setup the PTZ Camera In the PTZ control panel, click Setup. When the PTZ Setup dialog box appears, select the camera number and check the Use PTZ box. Using this control panel to set the preset position In the Connection Settings section, select the COMPort where the PTZ camera is connected, PTZ ID number, BaudRate, and Protocol.
  • Page 39 15. When PTZ control icon has been click on, it will turn to red, the mouse cursor will become a red cross, and PTZ control bar will show up on the screen. - User can move the on screen PTZ controller to any position of screen - The on screen PTZ controller only display on a channel screen at a time.

  • Page 40: Setup The Ip Ptz Camera

    3.7.2 Setup the IP PTZ Camera 1. In the PTZ control panel, click Setup. 2. When the PTZ Setup dialog box appears, click IP PTZ tab. 3. Select the camera number and check the Use PTZ box. 4. In the Connection Settings section, select the Protocol and Model of PTZ camera that user wants to connect and enter the IP or URL of IP camera in IP Camera Site column.
  • Page 41 16. When PTZ control icon has been click on, it will turn to red, the mouse course will become a red cross, and PTZ control bar will show up on the screen. - User can move the on screen PTZ controller to any position of screen - The on screen PTZ controller only display on a channel screen at a time.

  • Page 42: Chapter 4 Customizing The Dvr System

    Chapter 4 Customizing the DVR System In the Preview/Advanced screen mode, click button to customize your DVR. When the DVR configuration setup selection appears, select and click the buttons you want to change the setting. System Setting In the System Setting dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory setting.
  • Page 43 In the Map Network Drive windows, select the Drive and fill in the network drive direction in Folder column if you know. Or click Browse to find the folder direction. Click Finish to complete the network drive mapping. After the network drive has been added, user needs to create a folder for network storage. In Browse For Folder windows, select the network drive and right click mouse button to add a new folder.
  • Page 44 (3)Language Customize the system to display the system, interface, and tool tips based on the selected language. By default the language is in English. (4) Video Standard Change and select the proper video system according to your camera video system. If the video system setting is wrong, the video would appear abnormal.
  • Page 45 - Status Report Send a daily system event and attention analysis report. To change the e-mail settings, click Setup. - Beep if no signal Make sound when the video signal is lost. - Mandatory Record Always record video when software is running. - Enable Overlay To enhance video signal for better video quality.
  • Page 46 (13) System Configuration Date/Time Setup 1. Select the Time Zone of DVR server located. 2. Select the Month and Date. Click arrow button can switch to different month. 3. Adjust the Time by click spin box arrow button. 4. Click OK to save the configuration. Display Setting Adjust resolution of display and adjust the touch monitor.
  • Page 47 Disk Management When DVR system detects a new hard disk, user can format and partition the hard disk in here. Also, user can re-partition the hard disk but the all files that recorded on the hard disk will be deleted. To format and partition the hard disk: 1.
  • Page 48 9. Now, user can assign formatted hard disk or partition as a storage path ( see also Chapter 4.1 System setting) Network Setting Configure the network setting (IP address, subnet, DNS, gateway) of the system.  Enable DHCP: To use DHCP server assigning DVR server an IP address. ...
  • Page 49 Network Driver in DVR server. Follow the below steps to map the network drive. Click Map Network Drive button. In the Map Network Drive windows, select the Drive and fill in the IP address and file folder of file server or NAS on your network in Folder. And then, click Finish to make the connection.
  • Page 50 Others Printer Setting Click Add Printer and following the wizard to install a printer. Regional/Language Setting When DVR application is using different language of UI besides English, user can select the corresponding region and language in order to make UI display correctly.
  • Page 51 Power Management To setup UPS configuration. Device Management To manage the DVR system devices.
  • Page 52 Network Connection To manage the connection of the network. Phone and Modem options To setup the modem dial-up settings. Usageinfo To view usage of the system CPU, memory, and network.
  • Page 53 (14) System Controller Setup To configure the parameters that is for communicating with the System Controller (an optional accessory). Also please refer to user manual of the System Controller. How to operate the System Controller, please refer to the user’s manual of the System Controller. ...

  • Page 54: To Set The Pos Setting

    4.1.1 To Set the POS Setting 4.1.1.1 General Setting 1. In the System Setting dialog box, POS section, click Setting. 2. In the POS Console Setting dialog box, click Add to set a new POS setting, Modify to change the POS setting, and Delete to remove the selected POS setting.
  • Page 55 (5) Port Setting: Select the Local or Remote port to where it is connected. Local: Select the COM port number which is connected. Remote: Use the UDP protocol for remote connection if POS system can broadcast to Internet. Enter the IP address of the remote station. (6) Setup…: Set the COM Properties.
  • Page 56 Setup POS Device There are some default POS devices. If user uses the POS device beside defaults, user can add new POS device and rules. The POS device can be added up to 50 include defaults. Setup Standard POS Device ...
  • Page 57 - Include: set a rule for a lime with a string or character to be displayed. - Exclude: set a rule for a line with a string or character to be concealed. - Bill End: set a rule to divide each transaction. 4.
  • Page 58 Setup XML POS Device XML can only work with the POS data is transmitting in XML format.  Device: select or add a new device. Only device that supports XML can be configured in here. Click Add to add a device. Enter device name and select Type as XML. The POS device can be added up to 50 include defaults.
  • Page 59 Please refer to the following example for more detail. <TicketStart> → Page Start <Header> → Root tag <MessageVersion>1.0</MessageVersion> <Date>20060317</Date> <Time>164216</Time> <RegisterID>3</RegisterID> → Sub tag <Shift>4</Shift> <CashierID>000000009</CashierID> <JrnlTransNum>3</JrnlTransNum> <JrnlID>0</JrnlID> </Header> </TicketStart> <Item> <SaleTotals> <Item> <SaleTotals> <Item> <SaleTotals> <TenderEvent> → Page End <TicketComplete>...

  • Page 60: Advanced Setting

    4.1.1.2 Advanced Setting To setup POS text display position, text font and color. 1. In the System Setting dialog box, POS section, click Setting >> Advanced Setting 2. Mark Show POS Text to allow POS data to be display on surveillance screen. 3.

  • Page 61: Pos Database Setting

    4.1.1.3 POS Database Setting User can export the POS database to another save location or storage device. Click to change the save path. Mark Remove POS data after the POS data will be delete from DVR hard disk on the day that user has setup.

  • Page 62: Camera Setting

    Camera Setting In the Camera Setting dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default1/ Default2 to revert back to original factory setting. (15) (13) (14) (10) (12) (11) (1) Camera Icons Select the camera number you want to adjust the video setting.
  • Page 63 (5) Input Select the type of video camera input you are using. - Analog Camera The video source is coming directly from camera that is connected to the SA Series DVR. - Remote DVR The video source is coming from another DVR server. In the Remote DVR dialog box, enter the server IP, port number, user ID, password and select the camera number.
  • Page 64 User can select Video size, Frame rate, Video and Quality Mode of camera. And scroll the bar to adjust the Quality, Brightness, Contrast, Hue, Saturation, and Sharpness of the camera. Recording Setting  - Save Original Format: Save the video that is compressed by IP camera’s compress mode. - Transcode by MPEG4 Encoder: DVR system is decoding the video and compress video again by using MPEG4 encoder.
  • Page 65 Click OK to exit and accept the setting and Cancel to exit without saving the setting. Relay Setting: To setup relay device that is embedded on the camera.  1. Click the drop-down list and select the relay ID number. 2.
  • Page 66 (6) Noise Reduction Reduce undesirable video signal and improve the quality of the video. Noise Reduction uses lots of CPU resource. Please use this feature only if it is really necessary. (7) Auto Brightness Control Automatically adjust the brightness. (8) Night View Automatically adjust the exposure to make the image more visible especially when the site is dark.

  • Page 67: Setup The Object Counting

    4.2.1 Setup the Object Counting The DVR system only supports 2 channels on object counting. 1. Click Detail to enter the object counting setup window. 2. Enable Detected Regions in Display section. This enables the object counting information show on the screen.
  • Page 68 8. Click OK to save the setting. Click Cancel to leave the setup window without saving. The object counting information will be display on the screen of upper part. Object Counting Information Display Region 1 Region 2 Object Size Frame...

  • Page 69: To Setup The Facefinder

    4.2.2 To Setup the FaceFinder To setup the human face detection and capturing from live video for security issue. Click Detail to enter the FaceFinder setup window. To set the value back to default, click Default button. - The face detection angle is around 30 ~ 45 degrees for both side of face and 25 ~ 30 degrees for look up and down side of face.
  • Page 70 - Reset Device Status After: Set the time period to reset activate device back to normal status. It works only when the activate status is set to trigger. After set up, click Start Test to test the configure result. When the system is detecting face, the red frame will show up on the screen.

  • Page 71: Setup Ptz Tracking

    4.2.3 Setup PTZ Tracking PTZ tracking allows user to setup a select range for PTZ camera to tracking the object automatically when object is out of selected rage. The PTZ tracking will be available when the camera is enabled PTZ function. 1.
  • Page 72 Minimum object size Maximum object size (6) Enable PTZ Auto Tracking: To restore PTZ tracking function after the camera has been manually control. The PTZ tracking will stop function when user has operated the PTZ camera manually. Therefore, user can enable this option to make sure the PTZ tracking will be restored after manually control of the PTZ camera.

  • Page 73: Create A Camera Group

    4.2.4 Create a Camera Group Follow the below steps to create a camera group. The maximum of group number is 64. The default group can be deleted and modified. 1. Click to add a new group. 2. Right-click on group to rename the group name. 3.
  • Page 74 4. Right-click the camera can rename, delete, display/no display video of camera, and enable/disable camera. 5. To add another group, do the step 1 to 4 again. 6. To delete the group, click or right-click the group and select Delete. 7.

  • Page 75: Recording Setting

    Recording Setting 4.3.1 Analog Camera In the Recording dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory setting. (1) Camera Icons Select the camera number you want to set the recording setting. To select all the cameras, enable the ALL check box.
  • Page 76 When the system starts recording a red triangle mark would appear at the upper left corner of the screen. The recording modes are listed below: - Always Recording Record the video from the selected camera and save it to the designated storage path (see also Chapter 4.1 #1).
  • Page 77 (5) Voice Detection Adjust the intensity of the audio detector. The system detects sound when it exceeds the intensity value. (6) Quality Adjust the video quality. The higher the value, the lower the compression level and uses more hard disk space.
  • Page 78 Disable Video Enhancement: To shutdown video enhancement function.  User also can select the Default Mode High/Medium/Low. Click ? button to view default mode definition. (12) Group Click to view the camera group that user has been setup in Camera setup (see also Chapter 4.2.4).

  • Page 79: Ip Camera

    4.3.2 IP Camera In the Recording dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory setting. (1) Camera Icons Select the camera number you want to set the recording setting. To select all the cameras, enable the ALL check box.
  • Page 80 When the system starts recording a red triangle mark would appear at the upper left corner of the screen. The recording modes are listed below: - Always Recording Record the video from the selected camera and save it to the designated storage path (see also Chapter 4.1 #1).

  • Page 81: To Mask/Shield An Area On The Screen

    (5) Group Click to view the camera group that user has been setup in Camera setup (see also Chapter 4.2.4). (6) Camera Click to view the camera live video on (7) Video Screen. (7) Video Screen Display the video of the selected camera. 4.3.3 To Mask/Shield an area on the screen In the Mask/Shield Edit section, activate the Enable Mask/Enable Shield check box.

  • Page 82: Network Setting

    Network Setting In the Network Setting dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory setting. (1) Server Name Assign a name for the DVR unit. Letters of the alphabet and numbers only. (2) Transmitting Cameras Select and click on the camera number in the Transmitting Camera section you want to make it accessible via internet using WebViewer, Remote Console, PDAViewer and HandyViewer (still image).
  • Page 83 client side that is when the WebCam 2-Way Talk button is activated. (see also Chapter 7.1 #6). Make sure that your Webcam Digital Signature is updated yearly; else you won’t be able to access the DVR server from the DVR WebViewer. To update/download your WebViewer Digital Signature, click Update WebViewer Digital Signature.
  • Page 84 - Network Bandwidth Limit By Channel: Set the network bandwidth by each channel. All: Set the total network bandwidth consumption limit.

  • Page 85: Schedule Setting

    Schedule Setting Schedule to record, backup, enable network, reboot and disable alarm of all the cameras either weekly or one time. The number from 00 to 23 represent the time in 24-hour clock. The left most column display the days in a week. To Set the Schedule Setting: Select the date in the calendar.
  • Page 86 Disable Alarm Deactivate the alarm at the set time temporarily. Turn on Relay # Active the relay at the set time. If there are no Relays are connected, Turn on Relay # function will not display in drag down list. The Relay number will depend on how many relays are connected. Specify to either schedule it weekly or one time.

  • Page 87: Backup Setting

    Backup Setting In the Backup Setting dialog box, the number from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 16 represent the camera number. When you back up the file, you may find QLogViewer and Player application included in the backup folder (see also Chapter 4.6.1...

  • Page 88: Setup Quick Backup

    Require Space: Show the total size of the selected file. Enable Auto partition and select to divide the file size into DVD-R or CD-R. DVR automatically backup and divide the file sizes to facilitate burning into DVD or CD disc. If you do NOT want to keep the recorded file in the storage folder, enable Delete files after Backup check box.

  • Page 89: Sensor Setting

    Sensor Setting The I/O device must be installed to use this function. Click the drop-down list and select the sensor ID number. Give a name to the sensor in Name column. Click External IO to configure external I/O device if it is available(see also Chapter 4.7.1) The system automatically detects the sensor and input relates information.

  • Page 90: 4.7.1 To Setup External I/O Box

    4.7.1 To Setup External I/O Box The DVR system can connect the external I/O box for more installed of I/O devices. 1. Click Add. 2. Mark Enable box to enable this external I/O box. 3. Select the Brand of external I/O box from drag down list. 4.

  • Page 91: Relay Setting

    9. All connected relays and sensors will be listed. User can click radio button to control relays’ status. And then, click OK to save the setting and click Cancel to exit and without saving. 10. All connected External I/O box and their modules will be listed as tree topology in External I/O Setup windows.

  • Page 92: Alarm Setting

    Alarm Setting In the Alarm Setting dialog box, click Add to insert and set new alarm setting, click Delete to remove the selected alarm setting, click OK to exit and save the setting, Cancel to exit without saving, and Default to revert back to original factory setting.
  • Page 93 In Video Loss, click the camera number to set the alarm condition when video is lost. Right click on the camera number to setup the Continuous trigger duration of Video Loss. Enter the time period for system to send out the alarm when video loss has continuous detected for a period. In Missing and Suspicious Object/Scene Change, click the camera number and select the certain object on the screen (right click on camera number for detailed setting), and when the certain object is missing or doubtful, the system will alarm.(see also...
  • Page 94  System Reboot: when the DVR system reboot without abnormal condition, the system will send out the alarm message.  Abnormal Reboot: when the DVR system reboot in irregular condition, the system will send out the alarm message.  Recording is switched off: when the recording has been stopped, the system will send out the alarm message.
  • Page 95  FaceFinder: Enable to send out the alarm when the selected channel has detected face. Only the camera has setup FaceFinder detection will be available for selecting.  Enable/disable the POS Keyword check box, to scan the data from the POS if it matches the keyword (see also Chapter 4.9.10).
  • Page 96 In (7) Action, you may now set the alarm action for the system to perform when the alarm condition is activated. Launch EMAP Display mini EMAP screen. TVOut1/TVOut2 Switch to only display the video on TV1/2 from where the alarm is activated. Select the camera from drop down list to specify which camera video to be displayed on TV when the alarm is triggered.
  • Page 97 Relay Output Set to enable/disable the relay operation when the alarm is activated and to extend additional time in second before it stops the relay operation (see also Chapter 4.9.1). IP Camera Relay To trigger on/off IP camera relay. Play Warning Sound Play alarm sound.

  • Page 98: To Setup Alarm Relay

    snapshot the channel video. Camera #: the selected channel would be snapshot when an alarm is occurred.  Video Size: select the size of snapshot picture. Number of picture: the number of picture that is going to be taken. Snapshot Interval: a time gap for next snapshot Save Path: a storage path for saving snapshot pictures.

  • Page 99: To Setup The Alarm Sound Setting

    4.9.2 To Setup the Alarm Sound Setting: Next to the Play Warning Sound check box, click Detail. In the Alarm Sound Setting dialog box, click to select other wav file from other source or folder, Play to listen, Record to make a new copy of a sound.

  • Page 100: To Setup Ftp Setting

    To check if it is working, click Test Account button. From: Enter the sender e-mail address. To and CC: Enter the recipient email address and separate it with comma or a semicolon (;). Subject: Enter the message title. Message: Type the message. (3) Email Notice Setting Notice Interval:Set the period of time before it sends another e-mail notice.

  • Page 101: To Setup Alarm Recording Setting

    4.9.5 To Setup Alarm Recording Setting: Next to the Start Recording check box, click Detail. In the Alarm Recording Setting dialog box, select the camera to enable/disable video recording. Enable All to select all cameras. In the Frame Rate selection, select As Setting to record the number of frames based on the Recording Setting or Max to record the maximum of frames based on the available speed.

  • Page 102: To Setup Ptz Preset Point

    In Local Phone Number text box, enter the GSM SIM card phone number. In Phone Num text box, enter the contact number. You may now set to send thru SMS &/or MMS. If you enable SMS setting, just enter the message in the text box.

  • Page 103: To Setup Cms Setting

    4.9.9 To Setup CMS Setting Next to the Send to CMS check box, click Detail. In the CMS Setting, select the camera to enable/disable sending the video to CMS. Enable All to select all cameras. Then, click OK to accept the new settings and Cancel to exit without saving.

  • Page 104: 4.9.11 Missing, Suspicious Object, And Scene Change Detected

    4.9.11 Missing, Suspicious Object, and Scene Change Detected Missing Object Select the certain object on the screen for the system to detect; when the object is disappear or move and the system will alarm. Click OK to exit and save the configuration. To exam the setup condition, click Start Test.
  • Page 105 To reset all object frames, click Clean. To clean an object frame, click right button of mouse and drag the object frame that user want to clean Scene Change When the camera has been moved, the system will alarm. Select the camera number and press right button on the mouse to call up the setup windows. And then, click the Scene Change Tab.

  • Page 106: 4.10 User Setting

    4.10 User Setting Only users with Administrator privileges can access User Setting. In the User Setting dialog box, click Add to insert a new user, Delete to remove the selected user, Edit to modify the user control right, OK to exit and accept the setting, and Cancel to exit without saving the setting.
  • Page 107 - IP Camera Enable/disable user to add new IP camera when using the Web Viewer. - Remote Access Time Enable Infinite check box to access DVR without time limit. If you want to set time limit, enter the number of minutes in Minute text box. (4) Visible Camera Select the camera number that would allow the user to access or view.

  • Page 108: Chapter 5 Backup Video Players

    Chapter 5 Backup Video Players You can playback the backup files using QPlayer applications. When you back up the recorded file, QPlayer applications are automatically included in the backup folder. With QPlayer, it is the same as in Playback mode and supports 6 different split screen types to view all the video at the same time.
  • Page 109 Name Function (6) Archive Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file. – OPEN FILE: user can open the recorded file from HDD – Channel 01~ 16&Channel 17 ~ 32: Switch to different channel group of playback calendar.
  • Page 110 Name Function (13) Event Log Show the record of activities that take place in the system. To filter the records, select and click the option button to only display Event, System, Operation, Network or POS. (14) Visual Search Search from a specific camera by Date, Hour, Minute, 10 Seconds and Second. (See also Chapter 3.9) (15) Find Next...

  • Page 111: Chapter 6 Using The Remote Programs

    Chapter 6 Using the Remote Programs You can use Microsoft Internet Explorer to access DVR server by entering the IP address or domain name. To use this feature, make sure that you are connected to the internet and the Network feature is enabled. Accessing this feature for the first time you will be prompted by your browser to install WebCamX.cab, allow the installation and you should be able to connect and login afterwards.

  • Page 112: Familiarizing The Webviewer Buttons

    Familiarizing the WebViewer Buttons Right-clicking on the webcam video screen, enables you to Start Recoding, Video Quality, Select Camera, Enable DirectDraw, and view Server Information. Name Function (1) DirectDraw Enhance the video quality. Not all graphic cards can support this function. (2) Received file size Indicate the size of the data being sent per second.
  • Page 113 Name Function (15) Select cameras Select to the view camera from different server. In Select Camera dialog box, Display to view column, click to enable/disable viewing the camera. In Video Quality column, click to select between High, Normal or Low. Click Add Server and select the server type between DVR and IP Cam to add.

  • Page 114: To Setup Remote System Setting

    6.1.1 To Setup Remote System Setting There are two type of remote setup mode – Basic Setting and Advance Setting. Select the setup mode and click OK to enter setup window. 6.1.1.1 Basic Setting Analog Camera Click OK to exit and save the setting and Cancel to exit without saving the setting. The setting here applies to Remote DVR only.
  • Page 115 Automatically adjust the brightness. (6) Night View Automatically adjust the exposure to make the image more visible especially when the site is dark. You can only use this function when the Auto Brightness Control is enabled. (7) Noise Reduction Reduce undesirable video signal and improve the quality of the video. Noise Reduction uses lots of CPU resource.

  • Page 116: Advance Setting

    disabling it so that the system won’t detect it as video loss error. (3) Camera Setting Display Enable/disable to show the video. Even if the video of the selected camera is hidden you can still record the video and preview it in playback mode. Name Change the camera name.
  • Page 117 Delete event and alarm log after check box and enter the numbers of days in Days text box. (3) Video Standard Change and select the proper video system according to your camera video system. If the video system setting is wrong, the video would appear abnormal. (4) Attention Please Check the attentiveness of the person who is monitoring the system.
  • Page 118 Set the time gap of the Auto Scan function from 3 to 10 seconds. This automatically switches to the next video in cycle depending on the set time gap. Playback Mode Select the mode of playback the video. Select date and time: Select the date and time which user wants to playback. ...
  • Page 119 Camera Setting Analog Camera  Select the camera from remote DVR servers to modify settings. In the Camera Setting window, click Update to save and apply the new settings, click Cancel to exit without saving, and click Default1/ Default2 to revert back to original factory settings.
  • Page 120 only use this function when the Auto Brightness Control is enabled. (8) Enable Deinterlace To enhance the video quality. Set the deinterlace mode to #1, if you are capturing motionless picture and select #2, if it captures lots of movement. IP Camera ...
  • Page 121 Record Setting Analog Camera  In the Recording setup window, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory settings (1) Camera Icons Select the camera number you want to set the recording setting. To select all the cameras, enable the ALL check box.
  • Page 122 there is no motion, it records at the minimum frame rate setting. Set the maximum and minimum frame rate setting in (6) Frame Rate section. - Voice Detecting Recording DVR system will record the sound when the voice exceeds the intensity value in Voice Detection setting.
  • Page 123 check box. To select more than one camera, Right click on the camera icon. To select one camera only, Left click on the camera icon. The camera icon turns red when it is selected. (2) Recording Mode The blocks from 00 to 23 represent the time in 24-hour clock. To record in full 24 hours, select the recording mode and click the ...
  • Page 124 Network Setting In the Network Setting window, click Update to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory settings. For the network service ports that use by DVR server, please see Appendix (10) (1) Server Name...
  • Page 125 Enable Original Security Protocol Enable new version DVR system to accept remote software with former version. For example, if user uses CMS version 7.5 and connect to DVR server with version 7.7, and then, user has to enable this option to make it work. It is due to that DVR system has some new security protocol in DVR with version 7.3 and newer version, and it’s not compatible with old remote software.
  • Page 126 Schedule Setting Schedule to record, backup, enable network, reboot and disable alarm of all the cameras either weekly or one time. The number from 00 to 23 represent the time in 24-hour clock. The left most column display the days in a week. To Set the Schedule Setting: Select the date in the calendar.
  • Page 127 Specify to either schedule it weekly or one time. Click  to make a selection. Click on the blocks Right click the colored blocks to set the schedule. In the Select time dialog box, click to enable or disable the portion user want to set. Click OK to accept the setting and Cancel to exit without saving the setting.
  • Page 128 Alarm Setting In the Alarm Setting window, click Add to insert and set new alarm setting, click Delete to remove the selected alarm setting, click OK to exit and save the setting, Cancel to exit without saving, and Default to revert back to original factory settings.
  • Page 129 - In Audio Detection, click the camera number to the system to alarm when detect the abnormal voice. 5. In (4) Sensor, select and click on the sensor number (use  and  to select the sensor) to set the condition for the system to alarm.
  • Page 130 alarm message of manually alarm trigger. Click alarm button and select the alarm button # and fill in the description of alarm button. 6. In (5) Alarm Reset, click the camera number (use  and  to select the alarm) to set the reset condition of alarm.
  • Page 131 - Send E-mail Send an electronic text message. To setup click Detail (see also To Setup Send E-mail). - File Transmission via FTP Upload file to remote computer thru FTP (File Transfer Protocol). To setup click Detail (see also Setup FTP).
  • Page 132 To Setup FTP Setting Next to the File Transmission via FTP check box, click Detail. In the FTP Setting dialog box, enter the FTP IP, port, user ID and password. In Number of Pic text box, enter the number of sequence images that want to send when file is transmitting.

  • Page 133: Familiarizing The Webviewer Ptz Buttons

    Familiarizing the WebViewer PTZ Buttons Name Function (1) Direction buttons Adjust and position the focal point of the PTZ camera. Click the center to pan automatically. (2) Zoom +/- Zoom in and out the image. (3) Select PTZ Choose to enable/disable the PTZ camera. In the Select PTZ dialog box, Select column, click to enable/disable viewing and controlling the PTZ camera.

  • Page 134: Familiarizing The Buttons In Remote Console

    - If there are only 4 cameras, you won’t be able to switch to 9, 16, and 13 split screen mode. - The IWH3216 Touch doesn’t support 32-split screen display mode. (5) Record Start/stop video recording.

  • Page 135: To Setup Remote Console Setting

    Name Function Use the entire area of the screen to only display the video.To return, Right click the mouse or (17) Full screen press ESC on the keyboard. (18) Alarm Alert and display warning info. Only Administrator-level can reset and turn on, off and trigger the Sensor and Relay by right-clicking the item in the Sensor and Relay list.

  • Page 136: Familiarizing The Buttons In Ptz Camera Controller

    6.3.2 Familiarizing the Buttons in PTZ Camera Controller (10) Name Function (1) Close Exit PTZ camera controller. (2) Setup Select the PTZ camera channel. (3) AutoPan Operate the PTZ cameras automatically based on the selected camera group preset position number. (4) Focus +/- Adjust the focus manually to produce clear image.

  • Page 137: Using The Remote Playback

    Using the Remote Playback To use this feature, first you need to select the source of the file. In the Select Playback Mode dialog box, choose Local Playback to open the file that is recorded in the Remote Console, and Remote Playback to open the file that is recorded in the DVR server.

  • Page 138: Familiarizing The Buttons In Local Playback Mode

    6.4.1 Familiarizing the Buttons in Local Playback Mode Name Function (1) Split Screen Mode Select from 6 different split screen types to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen. If there are only 4 cameras, you won’t be able to switch to 9, 16, and 13 split screen mode.
  • Page 139 Name Function (6) Archive Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file. Also, user can open the recorded file from certain location by click OPEN FILE –...
  • Page 140 Name Function (18) Intelligent Search Search the changes in the motion detector frame (See also Chapter 3.11). The Visual and Intelligent search only available when the remote site is recording and playback from remote local hard disk. (19) Audio Enable/disable audio play (20) De-interlace To enhance the video quality.

  • Page 141: Familiarizing The Buttons In Realtime Playback Mode

    6.4.2 Familiarizing the Buttons in RealTime Playback Mode Name Function (1) Split Screen Mode Select from 6 different split screen type to playback the recorded video file of all the camera, or one camera. To zoom in an area on the screen, Right click and Drag a square on the area you want to enlarge. (2) Exit Close the program Show the progress of the file being played.
  • Page 142 Name Function Select the date on the calendar and the time from 00 to 23 to where to start playing the (6) Archive recorded video file. – Also, user can open the recorded file from certain location by click OPEN FILE button –...

  • Page 143: Familiarizing The Buttons In Download And Playback Mode

    6.4.3 Familiarizing the Buttons in Download and Playback Mode Name Function (1) Exit Close the program Show the progress of the file being played. You may move the bar to seek at any (2) Progress bar location of the track. (3) Playback Control From left to right: Buttons...
  • Page 144 Name Function (9) Visual Search Search from a specific camera by Date, Hour, Minute, 10 Seconds and Second. (See also Chapter 3.9) (10) Find Next Search for the next event or changes in the motion detector frame. You can use this when you are using Intelligent Search or Event Search function.

  • Page 145: Using Handyviewer To Access Dvr Server

    Using HandyViewer to Access DVR server Users can use a mobile phone to access the DVR through Internet. Make sure your mobile phone support IE browser and is connected to the internet. To access the DVR server, open IE browser and enter http://enter server IP or domain name here/mobile.

  • Page 146: To Install Pdaviewer From The Internet

    6.6.2 To install PDAViewer from the Internet Make sure you are connected to the internet. Open the web browser and enter the server IP. Then click the hyperlink Download PDA-Viewer. When the Download dialog box appears, enable Open file after download and click Yes.

  • Page 147: To Use The Pdaviewer

    6.6.3 To Use the PDAViewer Run the PDA-Viewer in the Programs. Familiarizing the PDAViewer buttons. (10) Name Function Hook up to the DVR server. Make sure you are connected to internet. (1) Connect When the iView screen appears, click Add to add DVR server. Enter the server IP, port, user ID, password and select the connection type.

  • Page 148: To Playback In Pdaviewer

    Name Function (9) Zoom Zoom in and out the PTZ camera image. (10) Direction buttons Adjust and position the focal point of the PTZ camera. To change the video quality, enable/disable audio, and select to display different camera, tap on the video screen longer the popup menu will appear.

  • Page 149: Using Javaviewer To Access Dvr Server

    10. The sensor and relay devices will list as below: 11. User can change the relay status. Select the relay and tap on video screen longer the popup menu will appear, and then, select the status (ON, OFF, Trigger) 6.6.5 Using JavaViewer to Access DVR Server Using the mobile phone within Symbian Smart Phone OS to access the DVR through Internet.

  • Page 150: To Use The Java-Viewer

    6.6.6 To Use the JAVA-Viewer Run the JAVA-Viewer program. Enter the DVR IP address, port number, user ID, and password. Please refer to your DVR server setting for that information. And then, select the Connect to connect to DVR server. Click Yes to accept the data from DVR server.

  • Page 151: Chapter 7 Ienhance

    Chapter 7 iEnhance The bundled iEnhance is a video editing tool and can only be used with *.dvr video file. It allows you to adjust the video picture quality, segment and save the wanted portion of the video, zoom in and out the image, and print or save the screen shot.

  • Page 152: To Use Istable

    Name Function (16) Original Screen Display the original state of the image. (17) Temporary Display the sample settings. Click the sample to apply the setting on the current video. Setting Block (18) Status Bar Display the date, and time of the video. (19) Progress Bar Show the progress of the file being played.
  • Page 153 To switch back to iEnhance interface, click iEnhance button...

  • Page 154: Chapter 8 Web Tools

    Chapter 8 Web Tools The bundled Web Tools includes Dispatch Server and Remote Backup program. To install Web Tools, place the CD into the CD-ROM drive then click Install Web Tools. Dispatch Server Dispatch is designed to reduce the network traffic of the DVR server. Instead of connecting directly to the DVR server, the client can connect to the computer that is connected to the DVR server using the Dispatch program.

  • Page 155: Remote Setup

    Remote Setup Remote Setup is a tool for configuring DVR server from remote site. To install Remote Setup application, insert the Installation CD into CD-ROM drive and click Install Web Tools. After installation, click start the Remote Setup application. 8.2.1 To Add DVR server User need to add a DVR server and make connection in order to setup remote DVR server.

  • Page 156: To Setup Remote Dvr Server

    8.2.2 To Setup Remote DVR Server Select the DVR server from listing and click Setup to configure remote DVR server. 8.2.2.1 System Setting In the System Setting windows, click Update to accept the new settings, click Exit to exit without saving, and click Default to revert back to original factory setting.
  • Page 157 Guest Mode Automatically log in Guest mode when the DVR is executed. In guest mode, the functions are limited to preview and playback only. (7) Miscellaneous Enable the conditions in Miscellaneous section you want the system to perform. Beep if no signal Make sound when the video signal is lost.
  • Page 158 iPOS Pro Setting  Enable Multiple windows for viewing multi-channels of iPOS live data. To save the iPOS live data window position on the preview mode, mark the Save window Position. To select all channels, mark All check box. (9) UPS (Uninterruptible Power Supply) Protect the system from damaging, such as power surges or brownouts.

  • Page 159: Camera Setting

    8.2.2.2 Camera Setting Analog Camera  Select the camera from remote DVR servers to modify settings. In the Camera Setting window, click Update to save and apply the new settings, click Cancel to exit without saving, and click Default1/ Default2 to revert back to original factory settings.
  • Page 160 only use this function when the Auto Brightness Control is enabled. (8) Enable Deinterlace To enhance the video quality. Set the deinterlace mode to #1, if you are capturing motionless picture and select #2, if it captures lots of movement. IP Camera ...

  • Page 161: Record Setting

    8.2.2.3 Record Setting Analog Camera  In the Recording setup window, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory settings (1) Camera Icons Select the camera number you want to set the recording setting. To select all the cameras, enable the ALL check box.
  • Page 162 there is no motion, it records at the minimum frame rate setting. Set the maximum and minimum frame rate setting in (6) Frame Rate section. - Voice Detecting Recording DVR system will record the sound when the voice exceeds the intensity value in Voice Detection setting.
  • Page 163 check box. To select more than one camera, Right click on the camera icon. To select one camera only, Left click on the camera icon. The camera icon turns red when it is selected. (2) Recording Mode The blocks from 00 to 23 represent the time in 24-hour clock. To record in full 24 hours, select the recording mode and click the ...

  • Page 164: Network Setting

    8.2.2.4 Network Setting In the Network Setting window, click Update to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory settings. For the network service ports that use by DVR server, please see Appendix (10)
  • Page 165 Enable Original Security Protocol Enable new version DVR system to accept remote software with former version. For example, if user uses CMS version 7.5 and connect to DVR server with version 7.7, and then, user has to enable this option to make it work. It is due to that DVR system has some new security protocol in DVR with version 7.3 and newer version, and it’s not compatible with old remote software.

  • Page 166: Schedule Setting

    8.2.2.5 Schedule Setting Schedule to record, backup, enable network, reboot and disable alarm of all the cameras either weekly or one time. The number from 00 to 23 represent the time in 24-hour clock. The left most column display the days in a week.
  • Page 167 Specify to either schedule it weekly or one time. Click  to make a selection. Click on the blocks Right click the colored blocks to set the schedule. In the Select time dialog box, click to enable or disable the portion user want to set. Click OK to accept the setting and Cancel to exit without saving the setting.

  • Page 168: Alarm Setting

    8.2.2.6 Alarm Setting In the Alarm Setting window, click Add to insert and set new alarm setting, click Delete to remove the selected alarm setting, click OK to exit and save the setting, Cancel to exit without saving, and Default to revert back to original factory settings.
  • Page 169 - In Audio Detection, click the camera number to the system to alarm when detect the abnormal voice. 5. In (4) Sensor, select and click on the sensor number (use  and  to select the sensor) to set the condition for the system to alarm.
  • Page 170 - Enlarge Camera View Switch to only display video in Preview/Advanced mode from where the alarm is activated. Retrieve time: set the waiting duration before system switching back to original Preview mode. If  the retrieve time is un-mark, the alarm video will keep enlarging until user switch back to Preview mode manually.
  • Page 171 To Setup Send E-mail Setting Next to the Send Email check box, click Detail. In the E-mail Setting dialog box, click OK to exit and save the setting and Cancel to exit without saving the setting. (1) Mail Server Enter the SMTP Server and port. If your e-mail system requires user identification, enable Authentication check box and enter User ID and Password.
  • Page 172 To Setup Alarm Recording Setting Next to the Start Recording check box, click Detail. In the Alarm Recording Setting dialog box, select the camera to enable/disable video recording. Enable All to select all cameras. In the Frame Rate selection, select As Setting to record the number of frames based on the Recording Setting or Max to record the maximum of frames based on the available speed.

  • Page 173: Remote Backup

    Remote Backup Remote Backup is purely for backing up the *.dvr file from the DVR sever. You can select between Auto Backup and Manual Backup. Auto Backup continuously archives one hour of the recorded data at a time, starting from the specified date. As for Manual Backup, it only archives the recorded data of selected date. To back up the data, you must have at least 2G hard disk space.
  • Page 174 - Click Delete to remove the selected storage path. - Click Schedule to select/unselect the time you want to backup. The red block turns white when it is unselected. - Enable/disable Disk Recycle check box, to automatically overwrite the oldest file when there is not enough free space to backup the file.
  • Page 175 8. For manually backup, click file select button. And then, select the date and time that user wants to backup. In Remote Backup window, click Start button to backup.
  • Page 176 If user wants to burn the back file into DVD disk, click Burn button and select the file to burn.

  • Page 177: Appendix A Registering Domain Names

    Password, E-mail, Company, and Country. And then, click OK to complete the domain name registration. Note that Host Name and Domain Name (AVerMedia.avers.com.tw) are the replacement for Internet address while a remote client tends to search a dynamic server.

  • Page 178: Appendix B Network Service Port

    Appendix B Network Service Port The following table shows the ports that DVR server uses for certain network service. Port # Variable Remote Console (CM 3000) 5550 WebCam 2-way audio 9999 Remote Control (CM3000) 5555 DVR POS 5150 DVR DDNS (Upload / Download) 53 / 1053...

  • Page 179: Appendix C Setting Up Raid

    Appendix C Setting Up RAID Please follow the below steps to setup the RAID. 1. Restart the DVR system and press Delete button to enter the BIOS setup screen. 2. Select the IDE Configuration and press Enter button. 3. In Configuration SATA#1 as, select RAID and press F10 to save and exit.
  • Page 180 4. When the below screen show up, press CTRL + I. 5. Select Create RAID Volume.
  • Page 181 6. In Create RAID Volume Menu screen, select RAID Level that user wants to create. Using up and down button to change selection.
  • Page 182 7. And then, select the Disks. Press Enter to the select disks screen. Using Space key to select the disk. The selected disk will have a green triangle mark. 8. After select the RAID level and disks press Enter key to create the RAID volume. Press Y to confirm the creation.
  • Page 183 9. After RAID volume created, user should see the RAID volume information in DISK/VOLUME INFORMATION section. 10. The RAID volume needs to be formatted before using. Please refer to Disk Management (13) System Configuration Chapter 4.1.
  • Page 184 To Delete the RAID Volume Enter BIOS setup > press Esc key > press CTRL + I Select Delete RAID Volume. Select the RAID volume if there is more than one RAID volume. Press Delete key and press Y to delete the RAID volume.

  • Page 185: Warranty Notice

    This warranty gives you specific legal rights, and you may also have other rights granted under state law. These rights vary from state to state. CONTACT INFORMATION Taiwan & International No. 135, Jian Yi Rd., Chung Ho City, Taipei, Taiwan TEL: 886-2-2226-3630 FAX: 886-2-2226-7241 Web Site: http://www.avermedia.com / http://www.averdigi.com...

Table of Contents
