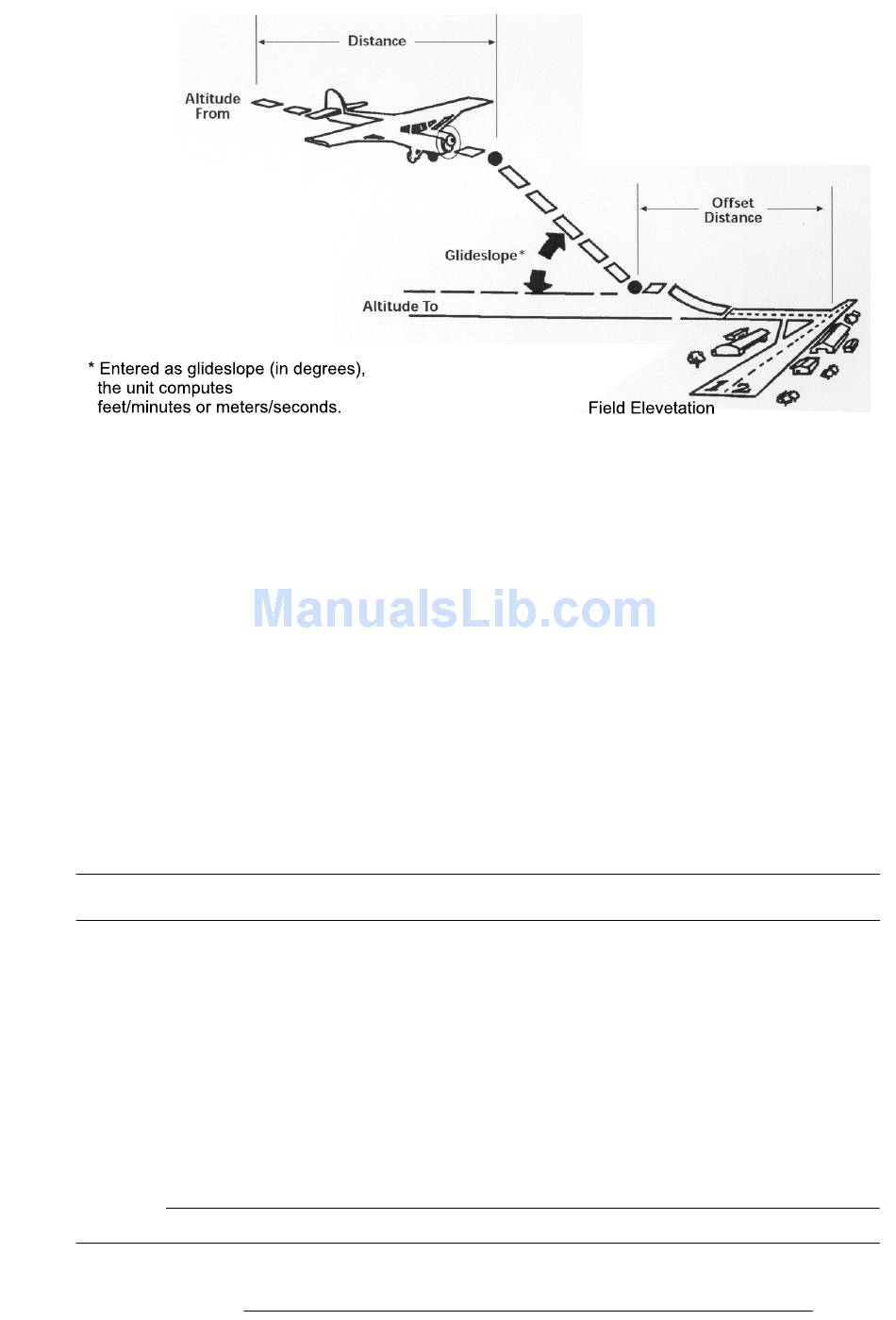

Fig. 10.4a - Vertical Navigation function
Vertical Navigation can be activated (On) only if a Flight Plan is active (desti-
nation present).
Destination point for Vertical Navigation is the last point of the Route or
destination of GoTo mode.
Prior to the Descent Point being reached the Distance To Go displays TO,
Time To Go to Descent point and Descent Rate from the current position.
After passing Descent point the system displays TO, Time To Go to the Des-
tination and Target altitude based on actual descent profile. Time To Descent
or Target ALT values can be displayed in the Data Window of Moving Map
and HSI modes.
The Vertical Navigation value displayed in the HSI is calculated as a difference
between current altitude (from GPS) and Target altitude.

10.5 WIND CALCULATION

The Wind Calculation feature computes winds aloft by comparing Ground
Speed and Track with indicated heading, indicated air speed and Outside Air
Temperature.
> 'MENU' 1 sec. + "CALCULATOR" + 'ENTER' + "WIND CALCULATION" + 'ENTER'
User data is entered in the fields at the bottom half of the screen. To set Wind
Calculation parameters use 'ENTER' to edit the selected field (a box appears
around the active field) and the cursor key to move between fields. Press
'CLEAR' to return to Calculator menu.
NOTE
This function works best when the airplane is straight and level.
User Manual 69
