Page 1: User Guide
Two-Port KVM Switch Model 300.000.4000 User Guide Part Number 15.00.040 Revision A August 2002... - Page 2 2-Port KVM User Guide Lantronix Inc. Page ii www.lantronix.com...
- Page 3 KVM 2-Port Copyright & Trademark © 2002, Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America. Also electronically distributed via Adobe PDF file format.
- Page 4 Changes or modifications to this device not explicitly approved by Lantronix will void the user's authority to operate this device. The information in this guide may change without notice. The manufacturer assumes no responsibility for any errors that may appear in this guide.
-
Page 5: Declaration Of Conformity
(according to ISO/IEC Guide 22 and EN 45014) Manufacturer’s Name & Address: Lightwave Communications, 100 Washington Street, Milford, CT 06460 USA Lightwave is a Lantronix Company. Declares that the following product: Product Name & Model: KVM 2-Port Conforms to the following standards or other normative documents:... -
Page 6: Table Of Contents
2-Port KVM User Guide Lantronix Inc. Table of Contents System Description ..................7 System Features ..................7 Installation ....................... 7 System Features ..................8 Hardware Features..................8 Mounting Instructions .................. 8 Connections....................9 Operation ...................... 10 Front Panel Button operation..............11 Keyboard operation ................... -
Page 7: System Description

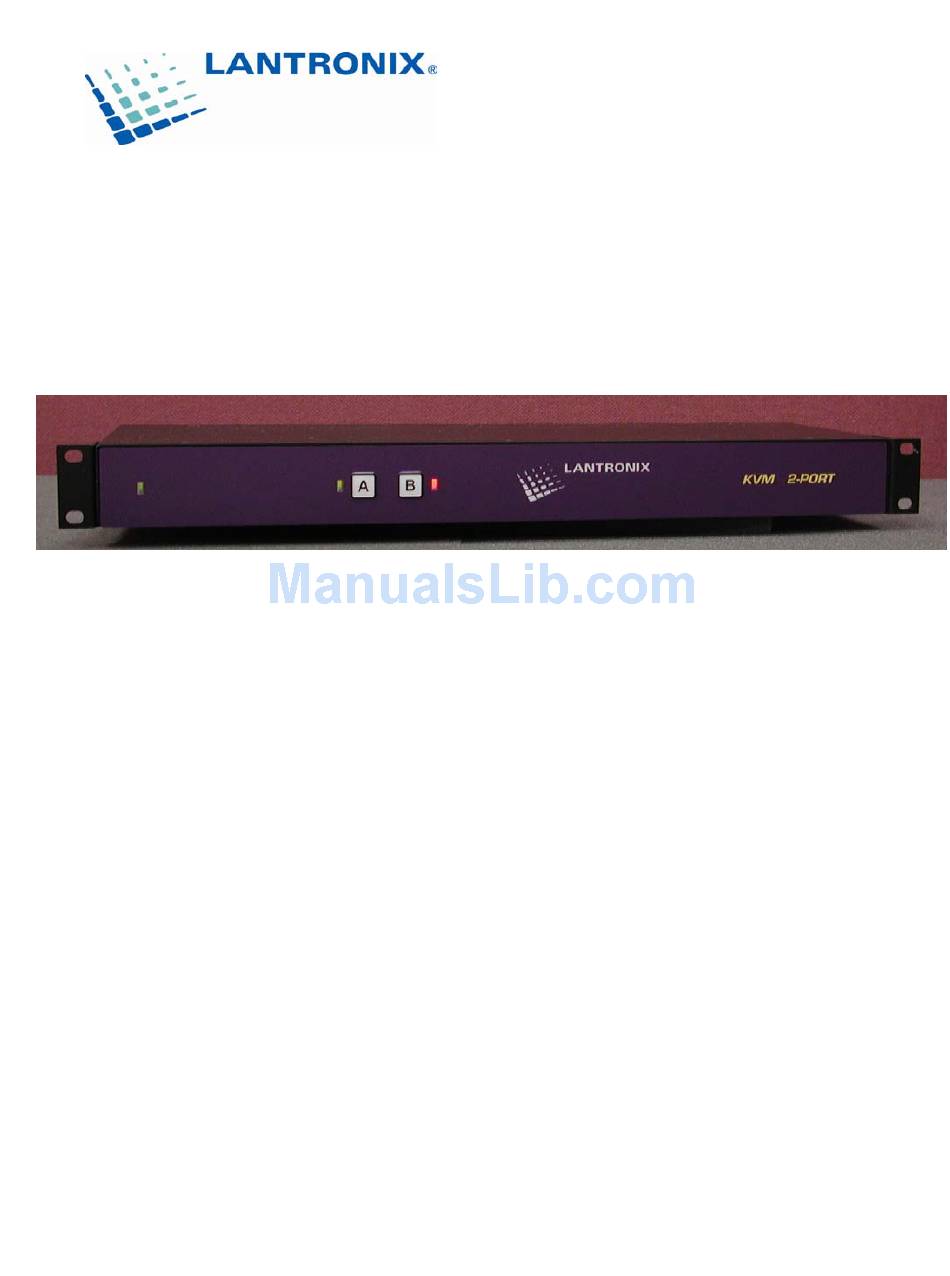

User Guide KVM 2-Port 1.0 System Description The Lantronix 2-Port KVM (300.000.4000) is a Keyboard, Mouse and Video switching system for one user and two PS/2-equipped computers. 2-Port KVM, Front View System Features Control two computers with one Keyboard, Mouse and Monitor... -
Page 8: System Features
2-Port KVM User Guide Lantronix Inc. The KVM 2-port unit has two pushbuttons and several LEDs on its front panel. The user will press the pushbuttons to switch from one server to the other. The User may also switch from server to server using keyboard commands, and need not press the front panel buttons to operate the unit. -
Page 9: Connections
User Guide KVM 2-Port KVM 2-Port, Side View, showing removable Rack Mount bracket Connections Your system is shipped with the two Video Cables and four PS/2 cables (for Mouse and Keyboard), based on your requirements. After locating the Computer equipment and the KVM 2-Port where desired: 1. -
Page 10: Operation
2-Port KVM User Guide Lantronix Inc. HD15 Video M-M Cable PS/2 Keyboard M-M PS/2 Mouse M-M PS/2 Mouse M-M Computer B PS/2 Keyboard M-M HD15 Video M-M Cable Computer A AC Power PS/2 HD15 Video Mouse Cable PS/2 Keyboard Monitor... -
Page 11: Front Panel Button Operation
User Guide KVM 2-Port Front Panel Button operation The User can switch between Computer A and Computer B by pressing the front panel button labeled 'A' or 'B'. The front panel LEDs for A and B will show GREEN for the active computer, and RED for the inactive computer.
