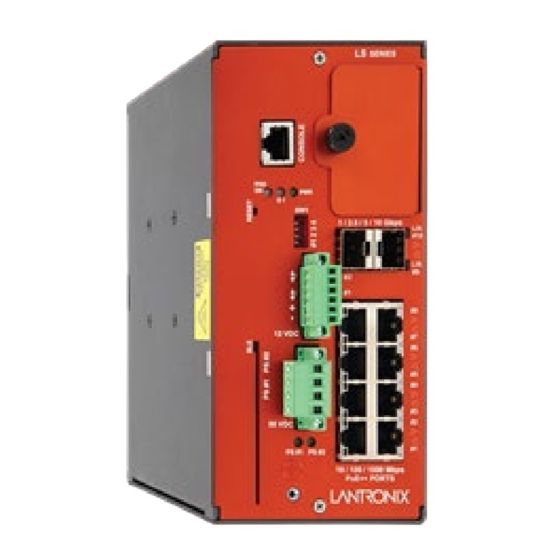

Lantronix LSS2200-8P Install Manual

Managed layer 2 gigabit ethernet poe++ switch (8) 10/100/1000base-t ieee 802.3bt + (2) 10g/5g/2.5g/1g sfp+ multi-gig slots
Hide thumbs Also See for LSS2200-8P:
Table of Contents

Advertisement

Quick Links

Download this manual
LSS2200-8P
Managed Layer 2 Gigabit Ethernet PoE++ Switch
(8) 10/100/1000Base-T IEEE 802.3bt + (2) 10G/5G/2.5G/1G SFP+ Multi-Gig Slots
Install Guide
Part Number 33860
Revision B February 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSS2200-8P and is the answer not in the manual?

Questions and answers

Related Manuals for Lantronix LSS2200-8P

Summary of Contents for Lantronix LSS2200-8P

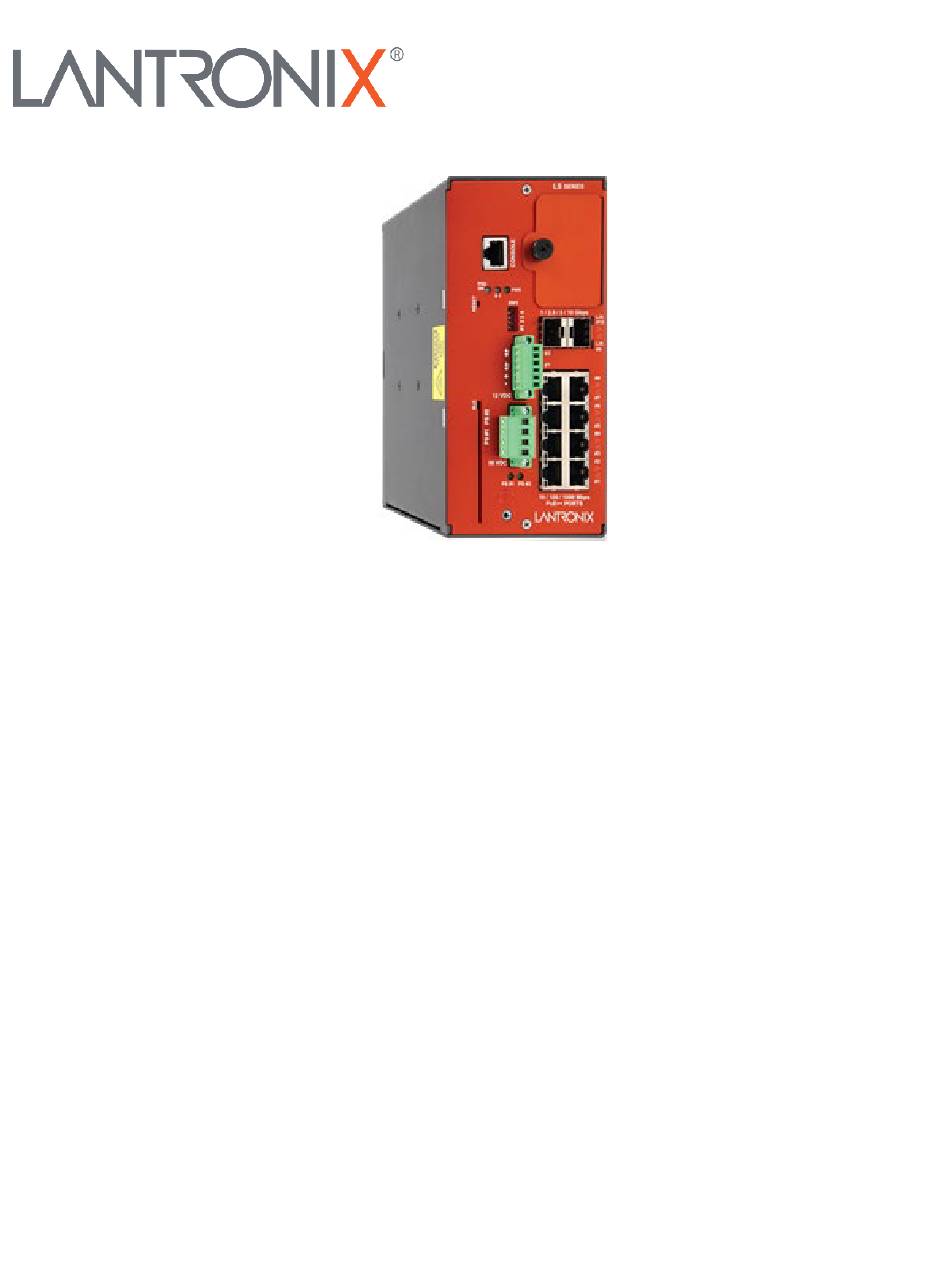

  • Page 1 LSS2200-8P Managed Layer 2 Gigabit Ethernet PoE++ Switch (8) 10/100/1000Base-T IEEE 802.3bt + (2) 10G/5G/2.5G/1G SFP+ Multi-Gig Slots Install Guide Part Number 33860 Revision B February 2023...
  • Page 2 LSS2200-8P Install Guide Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.

  • Page 3: Table Of Contents

    Ordering Information ...............................6 Services (order separately)..........................6 Features ..................................6 PoE Features ................................7 ConsoleFlow Features ............................7 Lantronix Provisioning Manager (LPM) Features ....................7 Specifications ................................8 NFC Flex Stamp Antenna ............................ 10 MobileApp ................................10 IP31 Ingress Protection ............................10 PHO (PoE Hardware Override) ........................... 10 Expansion Slot ..............................
  • Page 4 Lantronix LSS2200-8P Install Guide 25172 Weidmὕller PRO MAX 960W 48V 20A ....................29 25160 Power Supply ............................30 Digital I/O (DIO1 & DIO2) Terminal Block ......................32 Connecting to DC Power ............................. 34 Connecting the AC Power Cord .......................... 34 Last Gasp ................................

  • Page 5: Introduction

    1. Introduction Product Description The LSS2200-8P is a managed Layer 2+ Gigabit Ethernet switch offering eight (8) 1GBase-T interfaces with full IEEE 802.3bt 90W support, two (2) 10/5/2.5/1GBase-T multi-gigabit SFP+ slots, two (2) programmable Digital Input/Outputs with 12V power output, and one (1) RJ-45 console port. Through the LSS2200-8P Mobile App, the switch features Near Field Communications (NFC) support for simplified transfer of pre-configuration onto units prior to powering up and dispatching to install sites.

  • Page 6: Ordering Information

    Management (REM) and IoT Gateway products. ConsoleFlow is available as a cloud- based SAAS or On-premise. Select an annual subscription model. LSS2200-8P Android mobile application provides instant status and access to your MobileApp remote equipment conveniently from your smartphone or tablet. Contact Lantronix Technical Support for the free download.

  • Page 7: Poe Features

    Lantronix Provisioning Manager (LPM) Features • Device Discovery: LPM discovers Lantronix IoT gateways and console managers on the local subnet, as well as specified remote subnets, and presents the results for the user to choose devices to perform an action on.

  • Page 8: Specifications

    • Connectors: (8) 10/100/1000Base-T PoE++ ports, (2) 10G/5G/2.5G/1G SFP+ slots, Network Interface (1) Console RJ-45 port, (2) Digital Input/Outputs w/12VDC power output • MAC Address: 16K MAC address table • NFC (via LSS2200-8P Mobile App only) • BLE TP : 10/100/1000Mbps Data Speed SFP+ : 1G/SGMII/2.5G/5G/10G...
  • Page 9 Lantronix LSS2200-8P Install Guide 2250 VDC for DI/DOs and 1500 VDC for power output • Input: Vin low max.: 5.4V Vin high min.: 7.2V Vin max.: 34V Current: 66uA typ (Vin 5.4/100K) Isolation voltage: 2250VDC Digital I/O Isolation • Output: Drive current 60mA max Voltage: max.

  • Page 10: Nfc Flex Stamp Antenna

    6319-4/FeliCa), NFCIP-1 / ECMA 3-40, and NFC Forum Tag 4. MobileApp The LSS2200-8P MobileApp provides a mobile interface via the BLE and NFC interfaces to connect to, configure, and diagnose the switch from an Android-based smartphone or tablet. IP31 Ingress Protection The switch provides IP31 rating per IEC 60529 / EN 60529 for solid ingress protection - 2.5mm, and liquid ingress...

  • Page 11: Applications

    Lantronix LSS2200-8P Install Guide Applications • Smart buildings for connection of high power PoE security cameras/WAPs/Private LTE • Powering PoE lighting • Security and Surveillance systems Distributed PoE for Led Lighting: 33860 Rev. B https://www.lantronix.com/...
  • Page 12 Lantronix LSS2200-8P Install Guide Traffic Management: Distributed PoE for Outdoor Environments: 33860 Rev. B https://www.lantronix.com/...

  • Page 13: Dimensions

    Lantronix LSS2200-8P Install Guide Dimensions Safety Information Review the following Cautions and Warnings before starting to install the LSS2200-8P. Note that not all Cautions and Warnings apply to every switch environment and application. Cautions and Warnings Cautions indicate that there is the possibility of poor equipment performance or potential damage to the Warnings equipment.

  • Page 14: Electrical Safety Warnings

    Lantronix LSS2200-8P Install Guide Warning: Turn any external power source OFF and ensure that the switch is disconnected from the external power source before performing any maintenance. Failure to observe this warning could result in an electrical shock, even death.

  • Page 15: High Risk Activities Disclaimer

    Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems ("High Risk Activities"). Lantronix and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities.

  • Page 16: Front Panel

    Lantronix LSS2200-8P Install Guide Front Panel ① ⓪ Expansion slot/cover (for future use) SW1 : 4-position DIP Switch: #1 - Enable/Disable PHO to PoE Power interlock #2 - Input 1 relay normal state (not active) ② #3 & 4 - PoE power down selection ③④...

  • Page 17: Led Summary

    Lantronix LSS2200-8P Install Guide LED Summary Each port has one or more LEDs to indicate port and/or PoE status. The RJ-45 ports have two LEDs and the SFP+ ports have one LED. The front panel LEDs are described and shown below.

  • Page 18: Mounting Options

    Lantronix LSS2200-8P Install Guide Mounting Options Note for all mounting options: Do not block air vents. A minimum of 1 inch clearance is required on all sides of the unit when mounting either vertically or horizontally. Do not stack heat-dissipating objects on top of the unit.

  • Page 19: Mounting The Switch On A Wall

    Lantronix LSS2200-8P Install Guide Mounting the Switch on a Wall A wall mount bracket kit (WMB-LSS, optional, sold separately) with two 4-40 x 1/4 screws included which can be used to attach the bracket to the switch. Note: Due to variation in mounting surfaces, mounting screws not provided.

  • Page 20: Din Rail Mount

    Lantronix LSS2200-8P Install Guide DIN Rail Mount 1. Attach DIN Rail bracket with screws provided and ensure screws are securely tightened prior to mounting. 2. Hook the unit over the DIN rail. 3. Push the bottom of the unit towards the DIN Rail until it snaps into place.

  • Page 21: Connecting To The Console Port

    RJ45 port of the PC with an Ethernet cable (Cat 5 or better). Installing SFP+ Modules Note: see the related SFP device manual for important Safety warnings. See the Lantronix industrial SFP page for our line of SFP transceivers. See the FOA webpage for additional information.

  • Page 22: Removing Sfp+ Modules

    Lantronix LSS2200-8P Install Guide Removing SFP+ Modules 1. Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface. 2. Disconnect the cable from the SFP+ module. For reattachment, note which cable connector plug is send (TX) and which is receive (RX).

  • Page 23: Installation

    Lantronix LSS2200-8P Install Guide 2. Installation Package Contents Carefully unpack the contents. Verify that you have received the following items. Contact your sales representative if any item is damaged or missing. Please save the packaging for possible future use. One switch •...

  • Page 24: Power Supply Information

    Power Input The LSS2200-8P has a 4-pin terminal block that allows for two power inputs. The switch can be powered by a single isolated power supply that meets power input and total power output requirements, or it can be powered by dual isolated power supplies for redundant power.

  • Page 25: Setting The Power Supply Values In Switch Software

    CAUTION: Always match the PSx input supply to the Power Supply 1 and Power Supply 2 software setting. Mismatching will cause the LSS2200-8P to think it can draw more power from the external supply than it is capable of providing and results could be detrimental.

  • Page 26: For More Power Input Information

    Lantronix LSS2200-8P Install Guide For More Power Input Information For PoE power setup and status information see the LSS2200-8P Web User Guide. For PoE power CLI command information see the LSS2200-8P CLI Reference. Single Power Supply Applications If using a single power supply, either terminal block input (PS #1 or PS #2) can be used to power the switch. In the case of power supply failure, there is no backup power, and the switch will cease to operate until power is restored.

  • Page 27: Dual Power Supply Applications

    Lantronix LSS2200-8P Install Guide Dual Power Supply Applications Same Power Rating on Each Supply If using dual power supplies with the same power rating (wattage), the output voltage of each supply should be set to the same nominal voltage (within 0.5V) for current sharing. If there is a 2V difference in the setting of the power supplies, most (or all) of the power will be sourced from the higher voltage supply.
  • Page 28 Lantronix LSS2200-8P Install Guide Different Power Ratings If using dual power supplies with different power ratings (wattage), the higher wattage supply must be set as the primary supply (PS #2) and must be set at least 2V above the backup or lower wattage supply (PS #1). Most or all of the power will be sourced from the primary supply.

  • Page 29: 25172 Weidmὕller Pro Max 960W 48V 20A

    Lantronix LSS2200-8P Install Guide 25172 Weidmὕller PRO MAX 960W 48V 20A 25172 Safety Notices and Warnings: This device is only intended for use as described in the operating instructions. See the power supply product webpage. 25172 Dimensions and weight Depth 150 mm (5.905 inches) x Height130 mm (5.118 inches) x Width 140 mm (5.512 inches) Net weight 3,950 g (8.7 Lbs.)

  • Page 30: 25160 Power Supply

    Lantronix LSS2200-8P Install Guide 25160 Power Supply Hardened DIN Rail Mounted; Input 90-264 VAC, 127-370 VDC. Output: 48 ~ 55 VDC, 10A, 480 Watts. See the 25160 product page. 25160 Features 94% High Efficiency 150% Peak Load Protected against Short Circuit, Overload, Over Voltage, Overheating...
  • Page 31 Lantronix LSS2200-8P Install Guide 25160 Dimensions Width: 3.37” [85.5 mm] x Depth: 5.06” [128.5 mm] x Height: 5.99” [152.2 mm] 33860 Rev. B https://www.lantronix.com/...

  • Page 32: Digital I/O (Dio1 & Dio2) Terminal Block

    Lantronix LSS2200-8P Install Guide Digital I/O (DIO1 & DIO2) Terminal Block The front panel terminal block provides two programmable Digital I/O with 12V power output. Digital I/O can be used for dedicated PHO (PoE Hardware Override) to turn on or off banks of PoE ports in response to an external DI event. (Note: PHO is currently Disabled by default;...
  • Page 33 Lantronix LSS2200-8P Install Guide Example 2 This example has both ports configured as digital inputs and connected to external switches with Digital I/O power source providing power to multiple ports. Example 3 This example has Port 1 driving a high-power relay with external power transistor and external power supply.

  • Page 34: Connecting To Dc Power

    4. Make sure the connected devices are operating properly. 5. Set the Digital I/O Module configuration via the CLI or via the Web UI. 6. Contact Lantronix Technical Support. While in Input mode, the Digital I/O senses presence or absence of DC voltage at its input + and input - contacts, and the functionality is polarity sensitive.

  • Page 35: Initial Switch Configuration

    You can perform an initial configuration prior to power up using the NFC Configuration feature on the Mobile App (see LSS2200-8P Mobile App for details). Or, after powering up the switch for the first time, you can perform the initial switch configuration using a web browser (you must use https://). For managing other switch features, see the Web User Guide section for details.

  • Page 36: Connect And Log In To The Switch Via The Cli

    4. After a successful initial login, you are prompted to change the password. Note that all fields are required. 5. Perform initial switch configuration using the CLI (Command Line Interface). See the CLI Reference for details. CLI Login Procedure LSS2200-8P login: admin <Enter> LSS2200-8P login: ltrx-admin <Enter> --: LSS2200-8P :-- LSS2200-8P login: Login timed out Please press Enter to activate this console.

  • Page 37: Troubleshooting

    BLE LED is not as expected, check your BLE expected paired, or a BLE firmware settings in the web UI, CLI, and/or the LSS2200-8P Mobile update is in progress. App. 3. Contact Technical Support for direction. 33860 Rev. B...
  • Page 38 Lantronix LSS2200-8P Install Guide 1. Wait for the LED status to change. 2. Check the port Incorrect or unexpected RJ-45 TP port LED configuration settings and PoE configuration settings in the speed, link activity, or not as expected web UI or CLI. 3. Check the cable and connections for power status issues.

  • Page 39: Poe Deployment

    Mode B, uses the spare pairs to deliver power. Spare Pairs include pins 4,5 and 7,8. Typical PD Power Requirements • 1.8 Watts: Lantronix’ M/GE-ISW-SFP-01-PD (Class 1 Powered Device (0.44 - 3.84 Watts). • 13W: IP Camera, VoIP Phone, Wireless Access Point, Networked Audio.

  • Page 40: Poe Troubleshooting

    2. PoE cables are intended for intrabuilding use only. Connecting your Lantronix switch directly to PoE cables that run outside the building in which the switch is housed will void the user's warranty and could create a fire or shock hazard.

  • Page 41: Advanced Steps

    Lantronix LSS2200-8P Install Guide Advanced Steps 1. Get as much detail as possible regarding the symptom, including any system messages from the PoE switch. For example, does a PD not power up at all, or does it power up briefly and then power down? 2.

  • Page 42: Device Label And Box Label

    ______________________________________________________________________________________ ______________________________________________________________________________________ 4. Provide additional information to your Tech Support Specialist. See the “Troubleshooting” section above. Your Lantronix service contract number: _________________________________________________________ Describe the failure: ________________________________________________________________________ _________________________________________________________________________________________ A description of any action(s) already taken to resolve the problem (e.g., changing mode, rebooting, etc.):...
  • Page 43 Lantronix LSS2200-8P Install Guide The serial and revision numbers of all involved Lantronix products in the network: ________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ A description of your network environment (layout, cable type, etc.): ___________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ The device history (i.e., have you returned the device before, is this a recurring problem, etc.): ______________...

  • Page 44: Rma Form 02 Dec 2022

    Lantronix LSS2200-8P Install Guide RMA Form 02 Dec 2022 Return Material Authorization Request Form 2022 The address below is where the unit(s) will be returned to once completed: Customer Company Customer Street and Number Customer Town or City Customer State or County...

  • Page 45: Related Information

    Lantronix LSS2200-8P Install Guide 5. Related Information Regulatory Agency Information Emissions: EN55032-2012 FCC Class A; CE; Certifications Immunity: EN55024-2010 Safety: UL62368-1 EN 55035:2017/A11:2020 EN 55032:2015/A11:2020 Class A FCC 47 CFR Part 15 Subpart B Class A EN 55035:2017/A11:2020 EN 55032:2015/A11:2020...

  • Page 46: Declaration Of Conformity

    Declaration of Conformity Manufacture’s Name : Lantronix, Inc. Manufacture’s Address : 48 Discovery, Suite 250, Irvine, CA 92618 U.S.A. Declares that the products: ILS Series LSS2200-8P Conforms to the following Product Regulations: FCC Part 15 Class A, EN 55032:2012, EN 55024:2010...
  • Page 47 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33860 Rev. B https://www.lantronix.com/...
