Specifications - Icom MR-1000RII Specifications

MARINE RADARS
OTHER FEATURES
• The MR-1000RII/TII/TIII provides many useful features : 2 EBL's, 2 VRM's,
SEA clutter, RAIN clutter, Off center, Interference reduction, Echo stretch,
Zoom, Trail, long pulse and automatic calibration function.
• When connected to the GPS and/or compass, the MR-1000RII/TII/TIII dis-
plays the following information: Course-up, North-up, True motion indication,
own and other vessel's speed, position and course, waypoint and man over-
board point.

SPECIFICATIONS

• Display type : 10-inch monochrome green CRT
• Resolution : 640×480 dots
1
• Minimum range : 25m ( ⁄ NM range)
8
• Maximum range :
MR-1000RII 36NM
MR-1000TII 48NM
MR-1000TIII 72NM
• Measurement range : (unit:NM)
1 1 1 3
⁄ , ⁄ , ⁄ , ⁄ , 1, 1.5, 2, 3, 4, 6, 8, 12, 16,
8 4 2 4
1 2
24, 32, 36, 48* , 64* , 72*
1 2
(* MR-1000TII/III only * MR-1000TIII only)
MR-1000RII
• Model Name :
• Type : 2ft (60cm) radome scanner
• Rotation speed : 24, 36rpm typ.
• Beamwidth Horizontal beam : 4˚ typ.
Vertical beam : 22˚ typ.
• Sidelobe : –22dB typ.
• Usable temperature range : –25˚C to +70˚C; –13˚F to +158˚F
• Usable humidity range : Less than 95%
• Frequency : 9410MHz ±30MHz
• Modulation : P0N
• Peak output power : 4kW
• Pulse-width/Reception rate : 80nS/2160Hz, 80nS/1440Hz,
250nS/1440Hz, 350nS/1440Hz,
350nS/720Hz, 900nS/720Hz
• Modulator : FET switching
• Intermediate frequency : 60MHz
• IF passband width : 10MHz, 3MHz
• Tuning : Auto or manual
• System cable : 15m (49.2ft); OPC-1188A
OPTIONS
OPC-1077A
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia, Japan and/or other countries.
1-1-32, Kami-minami, Hirano-ku, Osaka 547-0003, Japan
2380 116th Avenue NE, 146A Harris Road, East Tamaki,
Auckland, New Zealand
Bellevue, WA 98004, U.S.A.
Phone : +1 (425) 454-8155
Phone : +64 (09) 274 4062
Fax : +1 (425) 454-1509 Fax
E-mail : sales@icomamerica.com E-mail : inquiries@icom.co.nz
URL
URL : http://www.icomamerica.com
Glenwood Centre #150-6165 Highway 17, Communication Equipment
Delta, B.C., V4K 5B8, Canada Auf der Krautweide 24
Phone : +1 ( 604 ) 952-4266
65812 Bad Soden am Taunus, Germany
: +1 ( 604 ) 952-0090
Fax Phone : +49 (6196) 76685-0
E-mail : info@icomcanada.com Fax
URL : http://www.icomcanada.com E-mail : info@icomeurope.com
URL
Unit 1 / 103 Garden Road, Ctra. Rubi, No. 88 "Edificio Can Castanyer"
Clayton, VIC 3168 Australia Bajos A 08174, Sant Cugat del Valles,
Phone : +61 (03) 9549 7500 Barcelona, Spain
Phone : +34 ( 93 ) 590 26 70
Fax : +61 (03) 9549 7505
E-mail : sales@icom.net.au Fax
URL : http://www.icom.net.au E-mail : icom@icomspain.com
URL
DISPLAY UNIT
• Preheat time
• Power supply
• Power consumption
MR-1000RII
MR-1000TII
MR-1000TIII
• Usable Temp. range
• Unit of distance
• Input data format
2
• Output data format
SCANNER UNIT
MR-1000TII/MR-1000TIII
4ft (120cm) open array scanner
22*, 24, 36rpm typ.
2˚ typ.
25˚ typ.
–24dB typ.
–25˚C to +70˚C; –13˚F to +158˚F
(at 40˚C) Less than 95%
9410MHz ±30MHz
P0N
4kW (MR-1000T
6kW (MR-1000T
80nS/2160Hz, 80nS/1440Hz,
250nS/1440Hz, 350nS/1440Hz,
350nS/720Hz, 900nS/720Hz,
900nS/660Hz* (* MR-1000T
FET switching
60MHz
10MHz, 3MHz
Auto or manual
20m (65.6ft); OPC-1189A
All stated specifi cations are subject to change without notice or obligation.
OPC-1077A 20m (65.6ft) SYSTEM CABLE
OPC-1078A 30m (98.4ft) SYSTEM CABLE
Phone: +81 (06) 6793 5302
Blacksole House, Altira Park,
Herne Bay, Kent, CT6 6GZ, U.K.
Phone : +44 (0) 1227 741741
: +64 (09) 274 4708 Fax : +44 (0) 1227 741742
E-mail : info@icomuk.co.uk
: http://www.icom.co.nz
URL : http://www.icomuk.co.uk
Zac de la Plaine,
1 Rue Brindejonc des Moulinais, BP 45804,
31505 Toulouse Cedex 5, France
Phone : +33 (5) 61 36 03 03
: +49 (6196) 76685-50 Fax : +33 (5) 61 36 03 00
E-mail : icom@icom-france.com
: http://www.icomeurope.com URL : http://www.icom-france.com
81-850 Sopot, ul. 3 Maja 54, Poland
Phone : +48 ( 58 ) 550 7135
Fax : +48 ( 58 ) 551 0484
E-mail : icompolska@icompolska.com.pl
: +34 ( 93 ) 589 04 46
URL : http://www.icompolska.com.pl
: http://www.icomspain.com
• Simplifi ed Automatic Tracking Aid allows you to plot up to 10 targets and the
radar automatically traces the targets.
• The CPA (Closest Point Approach) and TCPA (Time to CPA) alarm gives an au-
dible warning when the tracking targets come within the set range or time.
• Power saver function pauses the scanning for a preset time and conserves
battery consumption. When used with the zone alarm function, the CRT dis-
play is turned off until an object enters the programmed alarm zone.
: 90 seconds
: 10.2–42V DC
:
60W (approx.)
70W (approx.)
80W (approx.)
: –15˚C to +55˚C; +5˚F to +131˚F
: NM (nautical mile), km
: NMEA 0183, N+1, AUX
: NMEA 0183
(* MR-1000TIII only)
(at 40˚C)
II
)
III
)
III
only)
www.icom.co.jp/world
Fax: +81 (06) 6793 0013
6F No. 68, Sec. 1 Cheng-Teh Road,
Taipei, Taiwan, R.O.C.
Phone : +886 (02) 2559 1899
Fax : +886 (02) 2559 1874
E-mail : sales@asia-icom.com
URL : http://www.asia-icom.com

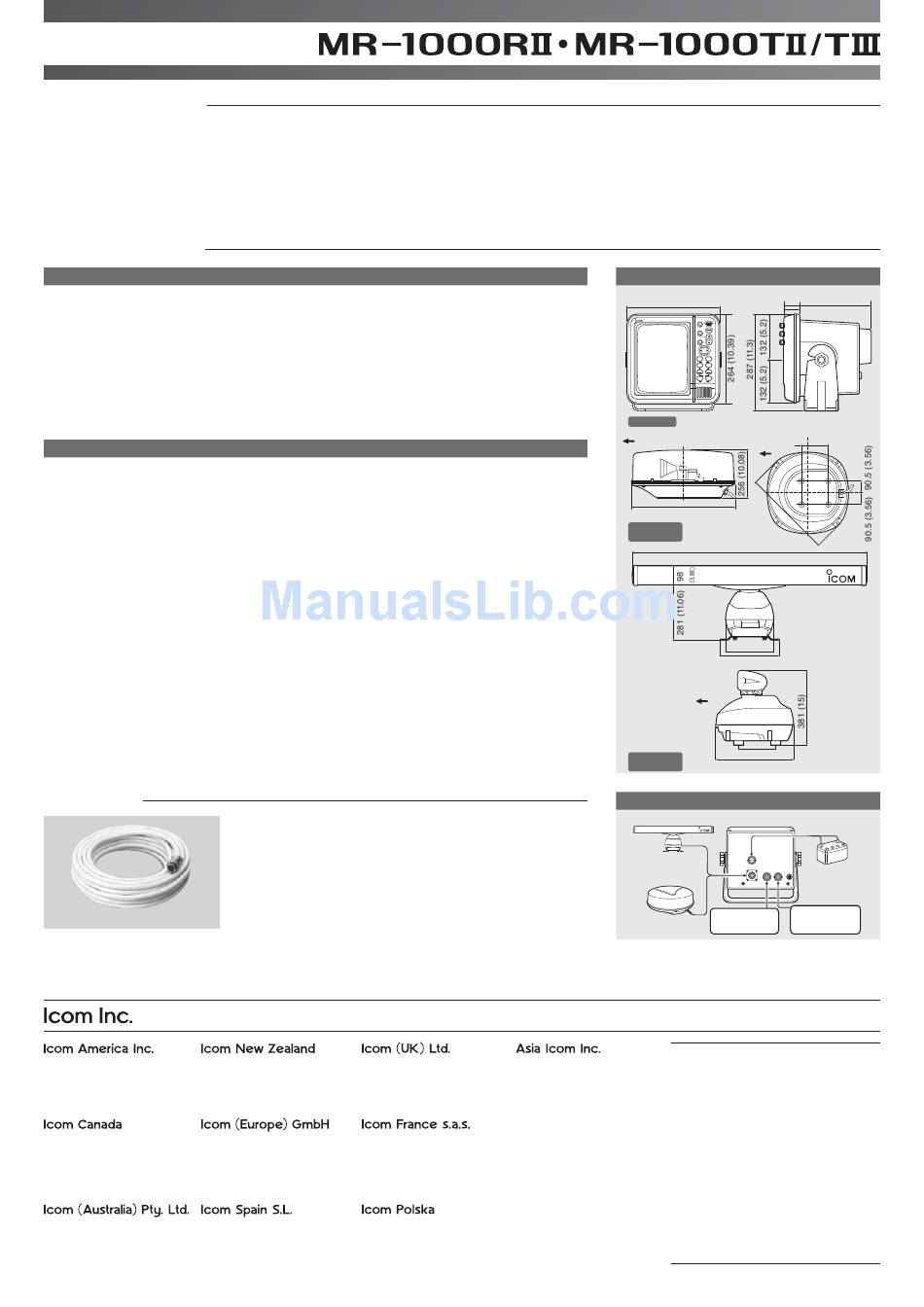

DIMENSIONS
48 (1.89)
269 (10.59)
MARINE RADAR GAIN
POWER
TX
SEA
SAVE
RAIN
MOB
TARGET TRAILS
ZOOM
ALM MODE
OFF CENT
EBL1 EBL2
VRM1 VRM2
PI
BRILL MENU
HL OFF
6.5kg; 14.3lb
Ship's bow direction
45.5 (1.79)
601 (23.66)
8kg; 17.6lb
(without cable)
640 (25.2)
1200 (47.24)
248 (9.76)
302 (11.89)
Ship's bow direction
190 (7.48)
17kg; 37.5lb
399 (15.71)
(without cable)
SYSTEM CONNECTION
Open array scanner
MR-1000TII /TIII
NMEA2:
NMEA1:
Radome scanner NMEA 0183 data input
Bearing data input
Speed sensor input
MR-1000RII
Count on us!
Your local distributor/dealer:
05HS014E* © 2005–2012 Icom Inc.
258 (10.16)
150.5 (5.93)
Unit:mm (inch)
Power supply
10.2 to 42 V DC
Printed in Japan
