OTHER FEATURES

• The MR-1200RII/TII/TIII provides many useful features : 2 EBL's, 2 VRM's,
sea clutter, rain clutter, off center, interference reduction, echo stretch,
zoom, trail, long pulse and automatic tuning calibration function.
• If a crew member falls overboard, mark the MOB (man overboard) point on
the display. The man overboard marker keeps the position on the display
and shows the bearing, distance and estimated time to the MOB point*.
* External bearing, speed and position data are required.

SPECIFICATIONS

DISPLAY UNIT

• Display type : 12.1-inch TFT LCD
• Resolution : 600×800 dots
1
• Minimum range : 25m (at
• Maximum range :
MR-1200RII 36NM
MR-1200TII 48NM
MR-1200TIII 72NM
• Range scales (NM) :
1 ⁄ , 1 ⁄ , 1 ⁄ , 3 ⁄ , 1, 1.5, 2, 3, 4, 6, 8, 12, 16,
8 4 2 4
24, 32, 36, 48 *1 , 64 *2 , 72 *2
1 2
(* MR-1200TII/TIII only * MR-1200TIII only)

SCANNER UNIT

: MR-1200RII
• Model Name
• Type : 2ft (60cm) radome scanner
• Rotation speed : 24, 36rpm typ.
• Beamwidth Horizontal beam : 4° typ.
Vertical beam 22° typ.
• Sidelobe : –22dB typ.
• Usable Temp. range : –25°C to +70°C; –13°F to +158°F
• Usable humidity range : Less than 95% (at 40°C)
• Frequency : 9410MHz ±30MHz
• Modulation : P0N
• Peak output power : 4kW
• Pulse-width/ : 80nS/2160Hz, 80nS/1440Hz,
repetition rate 250nS/1440Hz, 350nS/1440Hz,
350nS/720Hz, 900nS/720Hz
• Modulator : FET switching
• Intermediate frequency : 60MHz
• IF bandwidth : 10MHz, 3MHz
• Tuning : Auto/manual selectable
• Supplied system cable : 15m; 49.2ft; OPC-1188A
All stated specifications are subject to change without notice or obligation.

OPTIONS

• OPC-1077A 20m (65.6ft) SYSTEM CABLE
• OPC-1078A 30m (98.4ft) SYSTEM CABLE
OPC-1077A
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia, Japan and/or other countries.
1-1-32, Kami-minami, Hirano-ku, Osaka 547-0003, Japan
2380 116th Avenue NE, Communication Equipment
Bellevue, WA 98004, U.S.A. Auf der Krautweide 24
Phone : +1 (425) 454-8155
65812 Bad Soden am Taunus, Germany
Fax : +1 (425) 454-1509 Phone : +49 (6196) 76685-0
E-mail : sales@icomamerica.com Fax
E-mail : info@icomeurope.com
URL : http://www.icomamerica.com
URL
Glenwood Centre #150-6165 Highway 17,
Delta, B.C., V4K 5B8, Canada
Ctra. Rubi, No. 88 "Edificio Can Castanyer"
Phone : +1 ( 604 ) 952-4266
Bajos A 08174, Sant Cugat del Valles,
: +1 ( 604 ) 952-0090
Fax Barcelona, Spain
E-mail : info@icomcanada.com Phone : +34 ( 93 ) 590 26 70
URL : http://www.icomcanada.com
Fax
E-mail : icom@icomspain.com
URL
Rua Itororó, 444 Padre Eustáquio
Belo Horizonte MG, 80-286 Gdansk, Jaskowa Dolina St. 75, Poland
CEP: 30130-150, Brazil Phone : +48 ( 58 ) 551 0484
Phone : +55 (31) 3582 8847
Fax
: +55 (31) 3582 8987
Fax E-mail : icompolska@icompolska.com.pl
E-mail : sales@icombrazil.com
URL
• Preheat time
• Power supply
⁄ NM range) • Power consumption
8
(at zero wind velocity)
MR-1200RII
MR-1200TII
MR-1200TIII
• Usable Temp. range
• Input data format
• Output data format
MR-1200TII/MR-1200TIII
4ft (120cm) open array scanner
22*, 24, 36rpm typ. * MR-1200TIII only
2° typ.
25° typ.
–24dB typ.
–25°C to +70°C; –13°F to +158°F
Less than 95% (at 40°C)
9410MHz ±30MHz
P0N
4kW (MR-1200TII),
6kW (MR-1200TIII)
80nS/2160Hz, 80nS/1440Hz,
250nS/1440Hz, 350nS/1440Hz,
350nS/720Hz, 900nS/720Hz,
900nS/660Hz* (* MR-1200TIII only)
FET switching
60MHz
10MHz, 3MHz
Auto/manual selectable
20m; 65.6ft; OPC-1189A
Phone: +81 (06) 6793 5302
Blacksole House, Altira Park,
Herne Bay, Kent, CT6 6GZ, U.K.
Phone : +44 (0) 1227 741741
Fax : +44 (0) 1227 741742
: +49 (6196) 76685-50 E-mail : info@icomuk.co.uk
URL : http://www.icomuk.co.uk
: http://www.icomeurope.com
Zac de la Plaine,
1 Rue Brindejonc des Moulinais, BP 45804,
31505 Toulouse Cedex 5, France
Phone : +33 (5) 61 36 03 03
Fax : +33 (5) 61 36 03 00
: +34 ( 93 ) 589 04 46 E-mail : icom@icom-france.com
URL : http://www.icom-france.com
: http://www.icomspain.com
Unit 1 / 103 Garden Road,
Clayton, VIC 3168 Australia
Phone : +61 (03) 9549 7500
: +48 ( 58 ) 551 4720
Fax : +61 (03) 9549 7505
E-mail : sales@icom.net.au
URL : http://www.icom.net.au
: http://www.icompolska.com.pl
• When used with an external AIS data, the position and course information of
the other vessels are overlaid on the radar image. Detail of the selected AIS
target vessel information is displayed on the bottom of the display.
• Simplified ATA (Automatic Tracking Aid) allows you to plot up to 10 targets
and the radar automatically tracks the targets.
• The CPA (Closest Point Approach) and TCPA (Time to CPA) alarm gives an
audible warning when the tracking targets come within the set range or time.
: 90 seconds
: 10.2–42V DC
:
60W (approx.)
70W (approx.)
80W (approx.)
: –15°C to +55°C; +5°F to +131°F
: NMEA 0183, N+1, AUX
: NMEA 0183
Fax: +81 (06) 6793 0013
146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : +64 (09) 274 4062
Fax : +64 (09) 274 4708
E-mail : inquiries@icom.co.nz
URL : http://www.icom.co.nz
6F No. 68, Sec. 1 Cheng-Teh Road,
Taipei, Taiwan, R.O.C.
Phone : +886 (02) 2559 1899
Fax : +886 (02) 2559 1874
E-mail : sales@asia-icom.com
URL : http://www.asia-icom.com

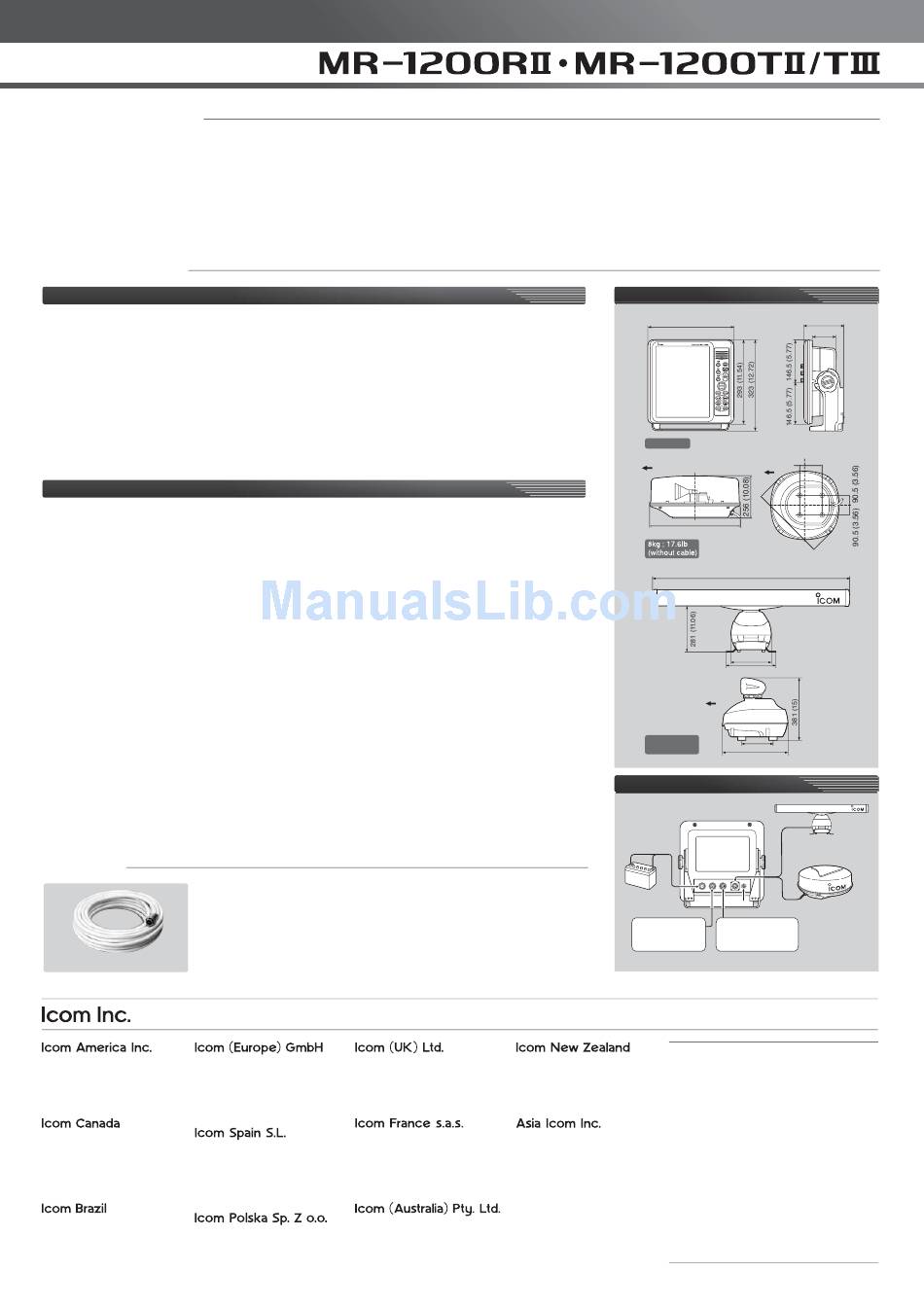

DIMENSIONS

300 (11.81)
30 (1.18)
4.3kg ; 9.5Ib
45.5 (1.79)
Ship's bow direction
601 (23.66)
640 (25.2)
1200 (47.24)
248 (9.76)
302 (11.89)
Ship's bow direction
17kg ; 37.5Ib
(without cable) 190 (7.48)
399 (15.71)

SYSTEM CONNECTION

Power supply
10.2 to 42 V DC
GND
NMEA2:
NMEA1:
NMEA 0183 input/output
AIS data input*
Speed sensor input
Bearing data input
* AIS data input: IEC 61162-2 38400bps
Count on us!
www.icom.co.jp/world
Your local distributor/dealer:
10YS027C © 2010–2013 Icom Inc.
119.2 (4.69)
74 (2.91)
150.5 (5.93)
Unit:mm (inch)
Open array scanner
MR-1200TII/TIII
Radome scanner
MR-1200RII
