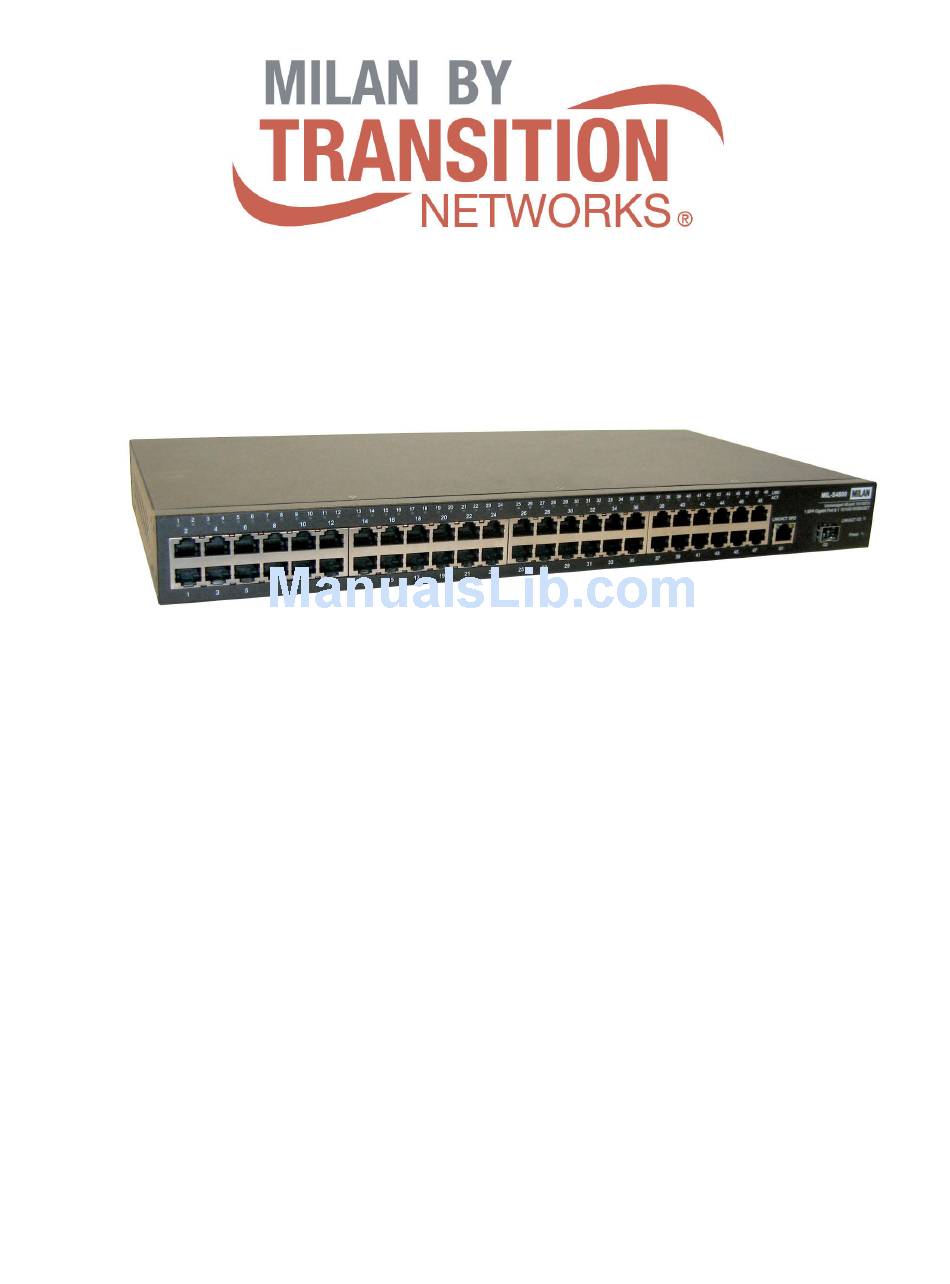

- Page 1 48-port 10/100TX + 1 SFP Gigabit Port and 1 10/100/1000BASET Port Unmanaged Switch MIL-S4800 User Manual...
- Page 2 Transition Networks will in no case cover damages arising out of the product being used in a negligent fashion or manner. Trademarks The MiLAN logo and Transition Networks trademarks are registered trademarks of Transition Networks in the United States and/or other countries. To Contact Transition Networks...
-
Page 3: Fcc Warning
FCC Warning This Equipment has been tested and found to comply with the limits for a Class- A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Package Contents
Introduction The MIL-S4800 Switch is a multi-port Switch that can be used to build high-performance switched workgroup networks. This switch store-and-forward device that offers low latency for high-speed networking and is targeted at workgroup, department or backbone computing environment. The MIL-S4800 Switch has 48 auto-sensing 10/100Base-TX RJ-45 ports, 1 10/100/1000T port and 1 SFP port for higher connection speed. -
Page 5: Hardware Description
Hardware Description This Section mainly describes the hardware of the MIL-S4800 Switch and gives a physical and functional overview on the certain switch. Physical Dimension The MIL-S4800 Switch’s physical dimension is 440mm x 225mm x 44mm (W x D x H). -
Page 6: Front Panel
Front Panel The Front Panel of the MIL-S4800 Switch consists of 48x 10/100Base-TX RJ-45 ports (Auto MDI/MDIX), 1 10/100/1000T port and 1 SFP port. The LED Indicators are also located on the front panel of the Switch. RJ-45 Ports (Auto MDI/MDIX): 48x 10/100 N-way auto-sensing for 10Base-T or 100Base-TX connections. -
Page 7: Rear Panel
The Description of LED Indicators Rear Panel The 3-pronged power plug is located at the rear Panel of the MIL-S4800 Switch as shown in Figure. The Switch will work with AC in the range of 100-240V and Frequency of 50-60Hz/0.26A. The power plug includes a fuse that it can be replaced when fuse is burned. -
Page 8: Desktop Installation
Rack-mounted Installation The MIL-S4800 Switch comes with a rack-mount kit and can be mounted in an EIA standard size, 19-inch Rack. The Switch can be placed in a wiring closet with other equipment. Perform the following steps to rack mount the switch: Position one bracket to align with the holes on one side of the switch and secure it with the smaller bracket screws. -
Page 9: Troubleshooting
Troubleshooting This section is intended to help you solve the most common problems on the MIL-S4800 Switch. Incorrect connections The switch port can auto detect straight or crossover cable when you link switch with other Ethernet device. For the RJ-45 connector should use correct UTP or STP cable, 10/100Mbps port use 2 pairs twisted cable and Gigabit 1000T port use 4 pairs twisted cable. -
Page 10: Diagnosing Led Indicators
Non-Standard cables Non-Standard and miss-wired cables may cause numerous network collisions and other network problem, and can seriously impair network performance. A category 5-cable tester is a recommended tool for every 100Base-T network installation. RJ-45 ports: use unshielded twisted-pair (UTP) or shield twisted-pair ( STP ) cable for RJ-45 connections: 100 Category 3, 4 or 5 cable for 10Mbps connections or 100... -
Page 11: Technical Specification
If the problem still cannot be resolved, please contact the local dealer for assistance. Technical Specification This section provides the specifications of the MIL-S4800 Switch. IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX Standard IEEE802.3ab 1000Base-T... - Page 12 Packet buffer 6Mbits Power AC 100~240V and 50/60Hz/0.26A 0 ~45 , 5%~95%RH Operating environment Storage environment -10 ~60 , 95%RH Power Consumption 21Watts(Maximum) Ventilation 1 Fan 440mm(W) x 225mm(D) x 44mm(H) Dimensions FCC Class A Safety CE/EN60950...
