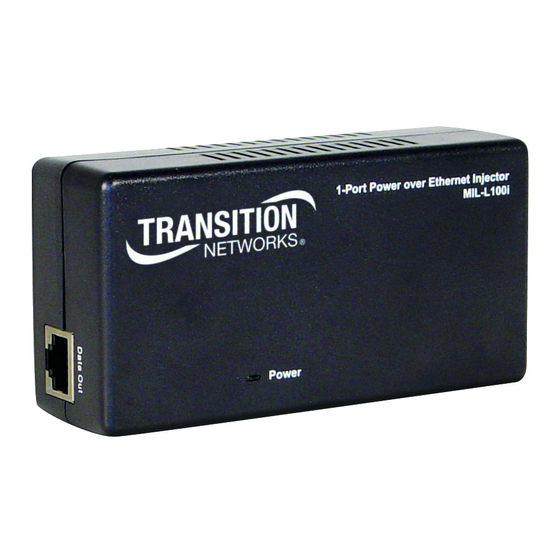

Single-port power over ethernet mid-span injector
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
MIL-L100i
Single-Port Power over Ethernet Mid-span Injector

User Guide

 Ensures uninterrupted network operation
 Intelligent endpoint detection process
 Easy, cost-effective installation
 Provides a secure central power location
Contents
1. Introduction ............................................................................................................................................... 1
Regulatory Approvals ............................................................................................................................... 3
Features.................................................................................................................................................... 4
Package Contents .................................................................................................................................... 4
2. Hardware Description................................................................................................................................ 5
3. Installation ................................................................................................................................................. 6
4. Technical Specifications............................................................................................................................ 7
Contact Us ................................................................................................................................................ 8
Compliance Information............................................................................................................................ 8
Record of Revisions.................................................................................................................................. 9

1. Introduction

Thank you for purchasing MILAN by Transition's MIL-L100i Single Port Power over Ethernet (PoE)
Injector. The MIL-L100i provides data and AC power through the Ethernet cable to PoE enabled devices,
such as AP, a network camera, or other equipment supporting IEEE 802.3af. The injector is typically
installed near the Ethernet switch.
MILAN by Transition's new EmPowered Ethernet
supply of data, voice, and video as well as electrical power through a single source by sending power
over standard Category 5 and above twisted pair cables. Power over Ethernet simplifies installation and
eliminates the need to run separate power cords and LAN cables to each Access Point or port locations.
Our new PoE products provide organizations with affordable, easy-to-use solutions that enable them to
migrate their network infrastructure to support a growing number of advanced cost-saving, performance
enhancing applications, such as streamlining wireless, VOIP, Network IP camera deployments, and
centralized power backup solutions. Whether on a factory floor or in an enterprise facility, running power
to hard-to-reach locations with our Power over Ethernet solution significantly reduces cabling and outlet
requirements while providing the lowest total cost of ownership.
90000430 Rev. C
™
Series Power over Ethernet solutions deliver unified
http://www.transition.com/
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIL-L100i and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks MIL-L100i

Summary of Contents for Transition Networks MIL-L100i

  • Page 1: Table Of Contents

    Thank you for purchasing MILAN by Transition's MIL-L100i Single Port Power over Ethernet (PoE) Injector. The MIL-L100i provides data and AC power through the Ethernet cable to PoE enabled devices, such as AP, a network camera, or other equipment supporting IEEE 802.3af. The injector is typically installed near the Ethernet switch.
  • Page 2 Transition Networks MIL-L100i User Guide The figure below shows a sample of a Power over Ethernet Injector application. Figure 1-1. Power over Ethernet Injection Application 90000430 Rev. C http://www.transition.com/ Page 2 of 9...

  • Page 3: Regulatory Approvals

    In no event shall Transition Networks be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder. Transition Networks will in no case cover damages arising out of the product being used in a negligent fashion or manner.

  • Page 4: Features

     Plug-and-Play Package Contents Unpack the contents of the package and verify them against the checklist below.  One MIL-L100i Power over Ethernet Injector  Power Cord  User Manual  Post Card If any item is missing or damaged, please contact your local dealer for service.

  • Page 5: Hardware Description

    Transition Networks MIL-L100i User Guide 2. Hardware Description The Power over Ethernet Injector has three connection ports and one LED indicator.  Data In port: RJ-45 Ethernet interface port for data transmitting from the switch to the PoE Injector. Figure 2-1. Data In and PowerIn ports ...

  • Page 6: Installation

    Transition Networks MIL-L100i User Guide 3. Installation To install the Power over Ethernet Injector, please follow these steps. 1. Use RJ-45 cable from the Data in port on the Power over Ethernet Injector to the Ethernet Switch. 2. Use RJ-45 cable from the Data out port on the Power over Ethernet Injector to the network camera, PD (Such as Router, Access Point, etc.) or PoE Hub.

  • Page 7: Technical Specifications

    Transition Networks MIL-L100i User Guide 4. Technical Specifications The following table provides the Power over Ethernet Injector technical specifications. Standard IEEE802.3/3u 10BASE-T/100BASE-TX IEEE802.3af Power over Ethernet Connector DC out: Power pin: 4,5(V+), 7,8(V-) Network Cable 10BASE-T: 2-pair UTP/STP Cat.3, 4,5 cable EIA/TIA-568 100-ohm (100m) 100BASE-TX: 2-pair UTP/STP Cat.5 cable...

  • Page 8: Contact Us

    Technical support Technical support is available 24-hours a day US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 Transition now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-based seminars Transition Networks provides seminars via live web-based training.

  • Page 9: Record Of Revisions

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
