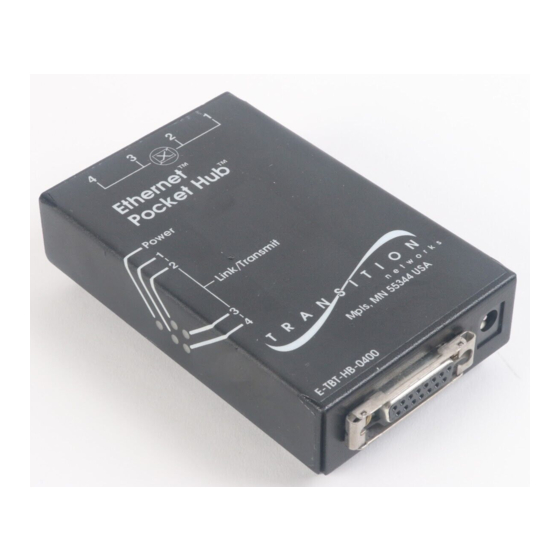

Transition Networks E-TBT-HB-0400 Manual

Ethernet pocket hub
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
MODEL 0400 ETHERNET POCKET HUB

SPECIFICATIONS

Standards
IEEE 802.2, 802.3
Physical
Dimensions
4.80" X 2.77" X 0.95"
Power Supply Adapter
AC Input:
PN
Requirement
3518
120 volts, 60 hertz, 28 watts
3516
230 volts, 50 hertz, 28 watts
3514
100 volts, 50-60 hertz, 28 watts Japan
3517
240 volts, 50 hertz, 28 watts
3515
240 volts, 50 hertz, 28 watts
DC Output:
12 volts at 500 mA maximum.
MTBF
47,000 hours
Environment
Temperature:
0-50°C (32° to 122° F )
Humidity
10-90%, non condensing
Altitude
0-10,000 feet
Warranty
5 years
17
(122mm x 70mm x 24mm)
Location
USA/Canada/Mexico
Europe
United Kingdom
Australia
Model 0400
™
Ethernet
Pocket Hub
Model 0400
(E-TBT-HB-0400)
For assistance in installing, using, or
maintaining the TRANSITION Networks
Model 0400 Ethernet Pocket Hub,
contact TRANSITION Networks
Technical Support
at:
(800) 260-1312
or contact your local distributor.
™
7333.D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-TBT-HB-0400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks E-TBT-HB-0400

Summary of Contents for Transition Networks E-TBT-HB-0400

  • Page 1: Specifications

    Europe United Kingdom Australia Model 0400 ™ Ethernet Pocket Hub Model 0400 (E-TBT-HB-0400) 7333.D For assistance in installing, using, or maintaining the TRANSITION Networks Model 0400 Ethernet Pocket Hub, contact TRANSITION Networks Technical Support (800) 260-1312 or contact your local distributor.
  • Page 2 CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in damage to the public telephone network. Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen...

  • Page 3: Table Of Contents

    ETHERNET CABLE SPECIFICATIONS Maximum number of terminal devices on Ethernet network: 10Base5 Cable and Connector Specifications The physical characteristics of the 10Base5 cable must meet or exceed IEEE 802.3 10Base5 specifications. 10Base5 Cable Characteristics: Cable type: RG8 Solid Coaxial (ThickNet) Impedance: Capacitance: 26pF/ft...

  • Page 4: Introduction

    LANs, is assumed. The 0400 Ethernet Pocket Hub The Model 0400 10BaseT 4-Port Ethernet Hub (E-TBT-HB-0400), is a low cost Ethernet repeater. Designed to meet IEEE 802.3 10BaseT standards, the 0400 Pocket Hub is a fully functional repeater in a compact (4.80"...

  • Page 5: Networking The 0400 Pocket Hub

    Warranty Statement A. Five Year Warranty Transition Networks, Inc. (TN) warrants, for a period of five years, that TN products (with the exception of power supplies and fans that TN warrants for two years) will be free from defects in materials and workmanship, and will be in conformity with TN’s specifications. TN’s warranty on products manufactured by or assembled for TN in accordance with a customer’s specifications, is a five-year warranty that the goods conform to such specifications.

  • Page 6: 0400 Ethernet Pocket Hub Connectors And Status Leds

    0400 Ethernet Pocket Hub Connectors and Status LEDs RJ-45 Connectors Four (4) 10BaseT RJ-45 jack connectors are located at one end of the 0400 Pocket Hub. The RJ-45 jacks support connection to shielded or unshielded 100 ohm twisted pair 10BaseT cable.

  • Page 7: Operation

    4. OPERATION The 0400 Pocket Hub normally requires no intervention beyond occasionally monitoring the Power and Link/Transmit LEDs. Power LED Link/Transmit LEDs Monitoring Power LED The green Power LED is illuminated when the Pocket Hub is connected to power. Monitoring Link/Transmit LEDs Each of the green Link/Transmit LEDs , associated with one of the eight RJ-45 ports: •...

  • Page 8: Ensuring Correct Segment Number

    Ensuring Correct Segment Number Ethernet 802.3 specifications define segment number, as well as cable characteristics. (A segment is the cable connection between cable interfaces in an Ethernet LAN. Up to one-hundred 10Base5 connections can be made in one segment.) When connecting Pocket Hubs, the transmission path between any two Data Terminating Equipment (DTE) terminals can consist of no more than five segments.

  • Page 9: Ensuring Correct 10Baset Configuration

    Connecting 10BaseT Cable (continued) Connecting to External Hub through Wall Outlet Use a crossover cable to connect Pocket Hub to the wall plate. Use a straight through cable to connect Pocket Hub to terminal devices. wall plate Straight-through 10BaseT Crossover 10BaseT Connecting two Pocket Hubs Use a crossover cable to connect Pocket Hubs.

  • Page 10: Connecting 10Baset Cable

    Unpacking the 0400 Pocket Hub The 0400 Ethernet Pocket Hub packing contents should include the following: Item Part Number 0400 Pocket Hub E-TBT-HB-0400 Power Supply Adapter 3518, 3517, 3516, 3515, or 3514, (depending upon power configuration in country where installed) User’s Guide...
