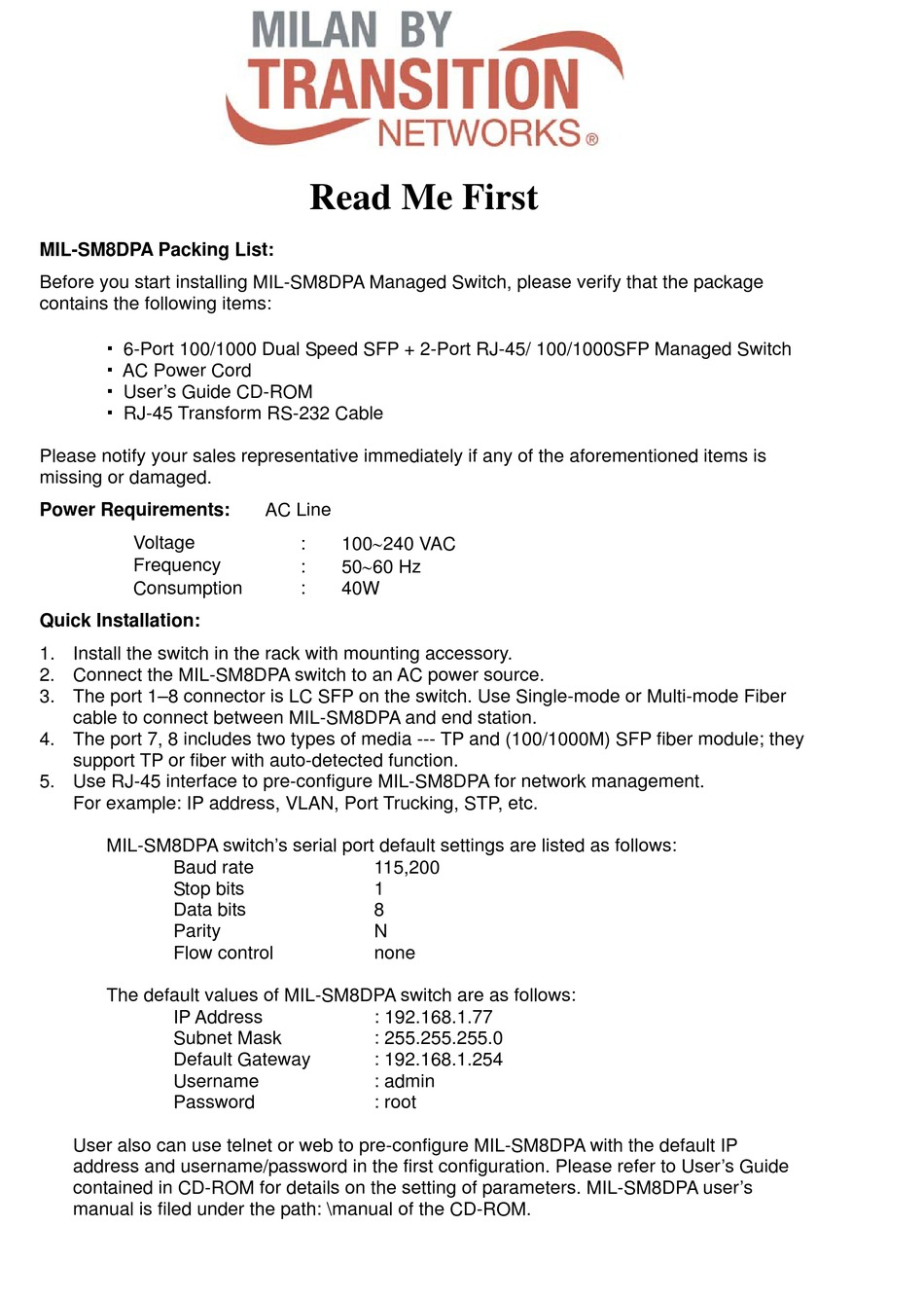

Transition Networks MIL-SM8DPA Read Me First

MIL-SM8DPA Packing List:

Before you start installing MIL-SM8DPA Managed Switch, please verify that the package
contains the following items:

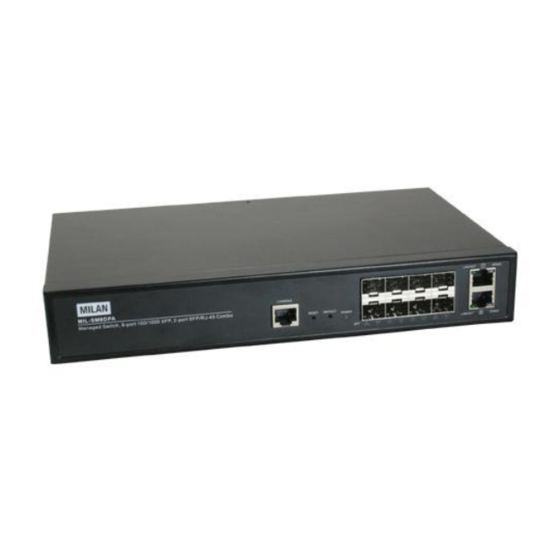

 6-Port 100/1000 Dual Speed SFP + 2-Port RJ-45/ 100/1000SFP Managed Switch
 AC Power Cord
 User's Guide CD-ROM
 RJ-45 Transform RS-232 Cable
Please notify your sales representative immediately if any of the aforementioned items is
missing or damaged.

Power Requirements:

Voltage
Frequency
Consumption

Quick Installation:

1. Install the switch in the rack with mounting accessory.
2. Connect the MIL-SM8DPA switch to an AC power source.
3. The port 1–8 connector is LC SFP on the switch. Use Single-mode or Multi-mode Fiber
cable to connect between MIL-SM8DPA and end station.
4. The port 7, 8 includes two types of media --- TP and (100/1000M) SFP fiber module; they
support TP or fiber with auto-detected function.
5. Use RJ-45 interface to pre-configure MIL-SM8DPA for network management.
For example: IP address, VLAN, Port Trucking, STP, etc.
MIL-SM8DPA switch's serial port default settings are listed as follows:
Baud rate
Stop bits
Data bits
Parity
Flow control
The default values of MIL-SM8DPA switch are as follows:
IP Address
Subnet Mask
Default Gateway
Username
Password
User also can use telnet or web to pre-configure MIL-SM8DPA with the default IP
address and username/password in the first configuration. Please refer to User's Guide
contained in CD-ROM for details on the setting of parameters. MIL-SM8DPA user's
manual is filed under the path: \manual of the CD-ROM.
Read Me First
AC Line
: 100240 VAC
: 5060 Hz
: 40W
115,200
1
8
N
none
: 192.168.1.77
: 255.255.255.0
: 192.168.1.254
: admin
: root
