Connecting Optional Extension Microphones

www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846
3. Connect the 25-foot Network Cable to the Multi-Interface Module.
4. Connect the other end of the 25-foot Network Cable to an available
LAN port on the wall or hub/switch device port.
5. Connect the Power Adapter to the Multi-Interface Module.
6. To connect phones, plug one end of the Console Interconnect Cable into
one of the microphone connectors on the first phone and the other end of
the cable into one of the microphone connectors on the second phone.
7. Connect the other end of the Power Adapter (with the attached
Regional Power Cord) to the wall outlet.
You can connect extension microphones (analog) to the phone. Connect the
free end of an extension microphone cable to one of the microphone
connectors on the phone. You can connect two extension microphones to one
phone.

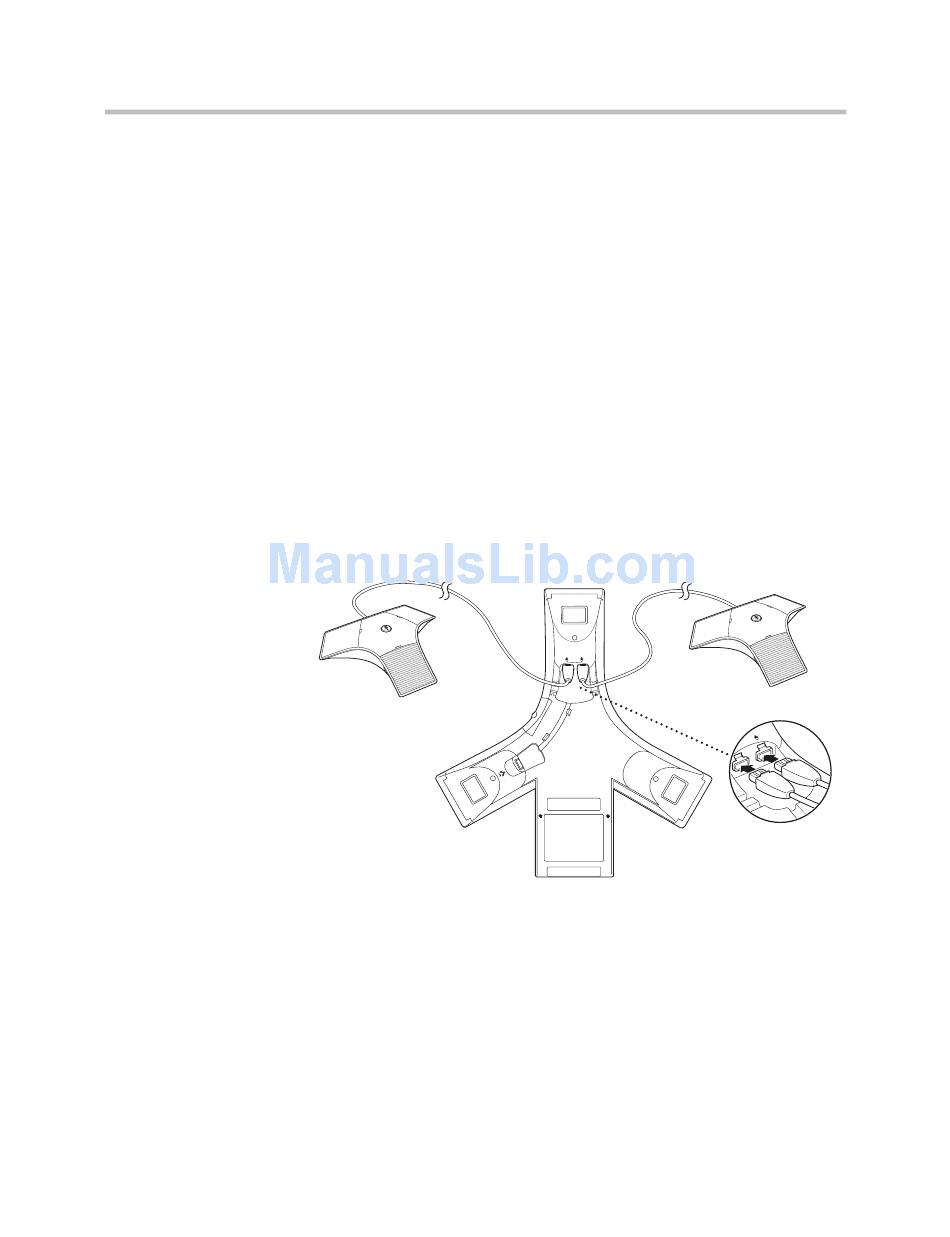

The following figure shows the optional extension microphones connected to
a single phone.
If your conference room setup has two connected phones, you can only
connect one extension microphone to one phone (you cannot connect an
extension microphone to each phone). Connect the free end of an extension
microphone cable to the available microphone connector on one of the phones.
It does not matter which phone you attach the extension microphone to.
Getting Started with Your Phone
1 - 7
