User Guide for the SoundStation IP 7000 Phone
Console
Interconnect Cable
1
Warning
1 - 6
www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846

AC Power (Two Phones, with Multi-Interface Module)

If you have a larger room configuration, you can connect up to two phones
together. In this case, the phones act as one phone and display the same
information. For more information on how to use your phone when two
phones are connected, see your system administrator.
Before you connect two phones together, make sure you have the optional
Multi-Interface Module Package (containing a Multi-Interface Module, 12-foot
Network Cable (10-pin), Power Adapter, and Regional Power Cord) and the
optional Console Interconnect Cable.

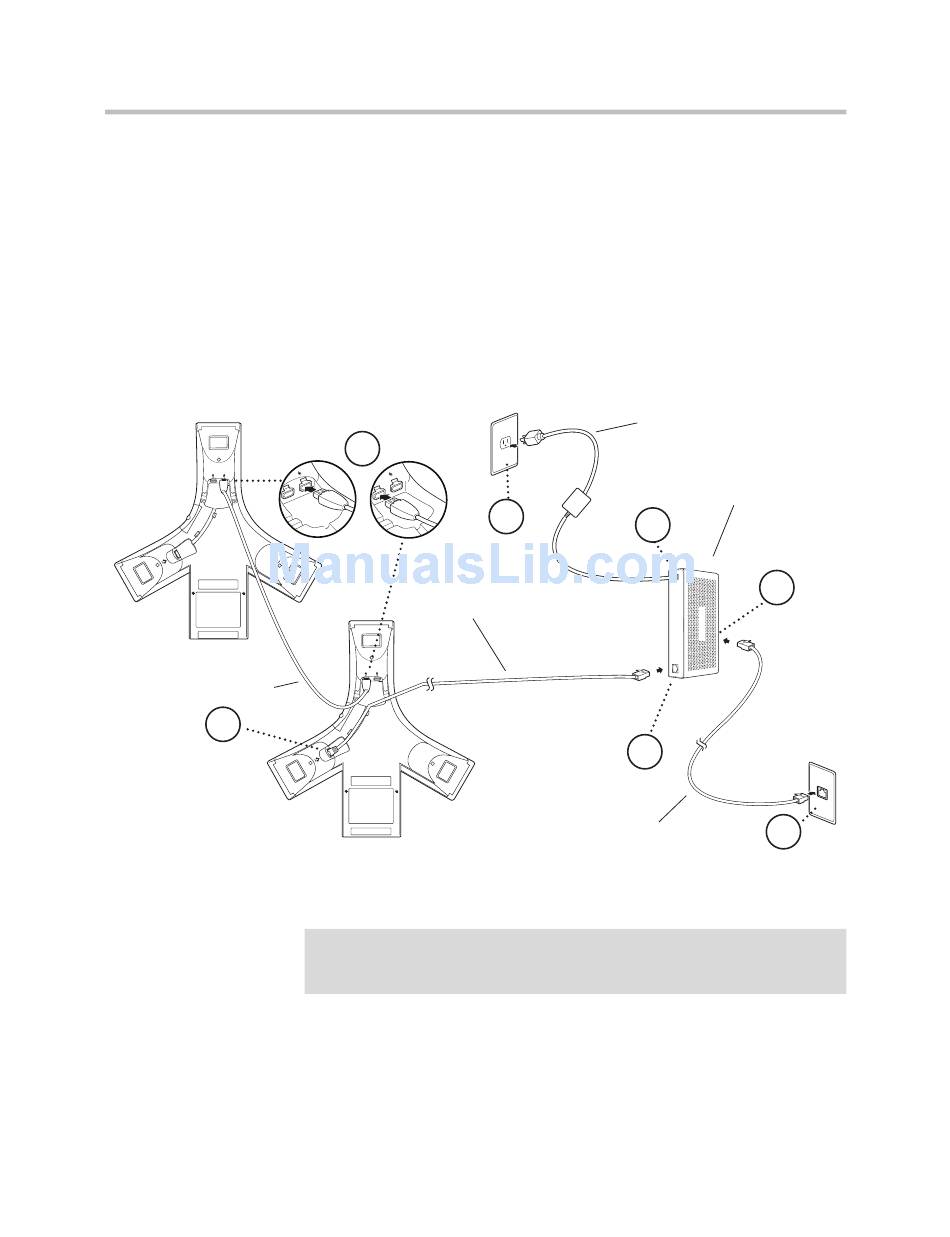

The following figure shows how to connect two phones to the network using
AC power.
6
12-foot
Network Cable (10-pin)
To connect two phones to an AC power source:
Make sure you connect the two phones and the Multi-Interface Module before you
connect the Power Adapter (with the attached Regional Power Cord) to the wall
outlet.
1. Connect the 12-foot Network Cable (10-pin) to the LAN jack on the first
phone.
2. Connect the other end of the 12-foot Network Cable (10-pin) to the
Multi-Interface Module.
Power Adapter
7
5
2
25-foot
Network Cable
Multi-Interface
Module
3
4
