AC Power (One Phone, with Multi-Interface Module)

You can connect one phone to an AC power source and the Multi-Interface
Module. In this way, you have access to the auxiliary audio connectors on the
module so you can connect speakers, wireless (lapel) microphones, and
recording devices and computers (to record phone calls).
Before you set up a phone using the Multi-Interface Module, make sure you
have the optional Multi-Interface Module Package (containing a
Multi-Interface Module, 12-foot Network Cable (10-pin), Power Adapter, and
Regional Power Cord).

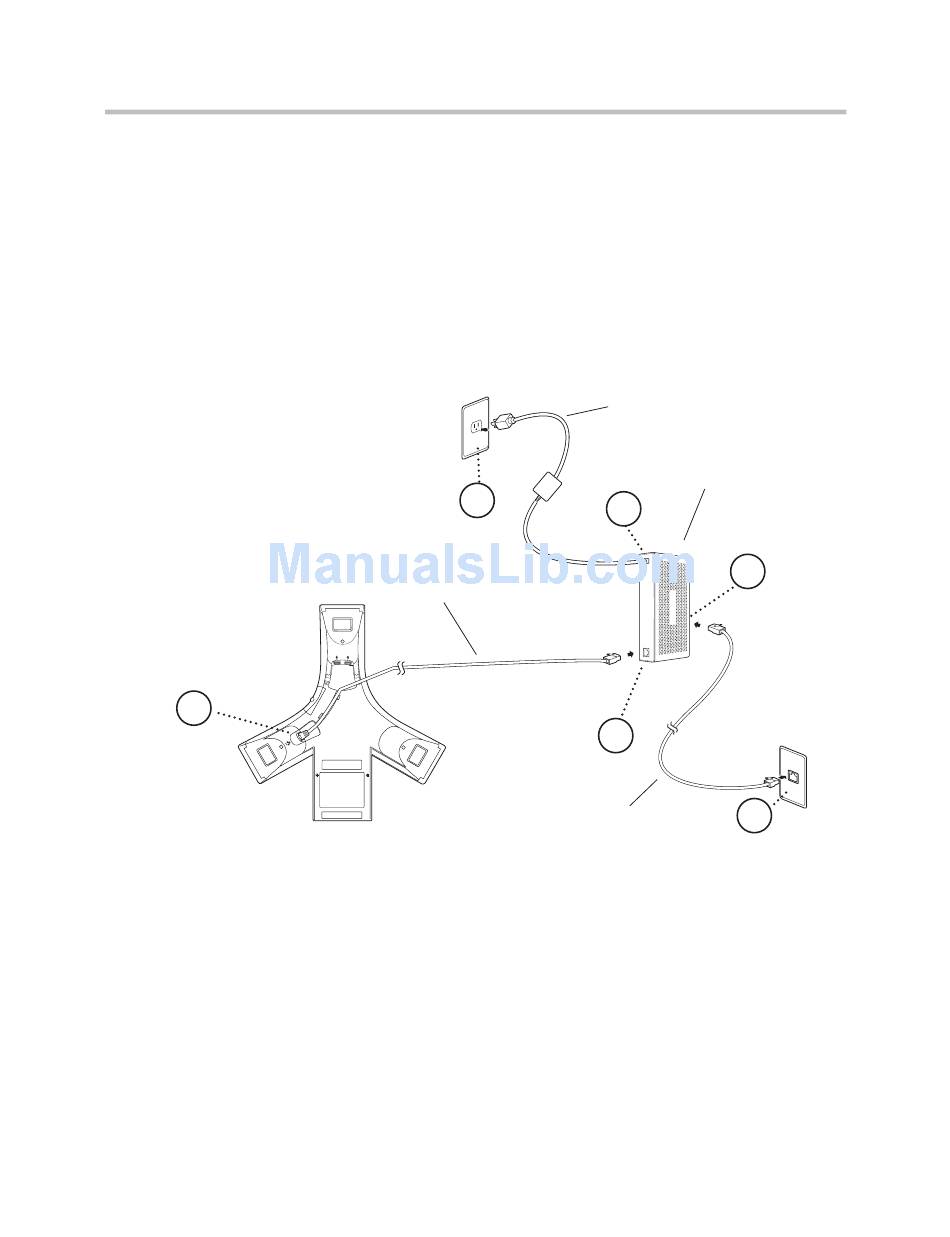

The following figure shows how to connect the phone to an AC power source
and the Multi-Interface Module.
1
To connect the phone to an AC power source and the Multi-Interface Module:
1. Connect the 12-foot Network Cable (10-pin) to the LAN jack on the
phone.
2. Connect the other end of the 12-foot Network Cable (10-pin) to the
Multi-Interface Module.
3. Connect the 25-foot Network Cable to the Multi-Interface Module.
4. Connect the other end of the 25-foot Network Cable to an available
LAN port on the wall or hub/switch device port.
5. Connect the Power Adapter to the Multi-Interface Module.
6. Connect the other end of the Power Adapter (with the attached
Regional Power Cord) to the wall outlet.
www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846
6
12-foot
Network Cable (10-pin)
25-foot
Network Cable
Getting Started with Your Phone
Power Adapter
Multi-Interface
Module
5
3
2
4
1 - 5
