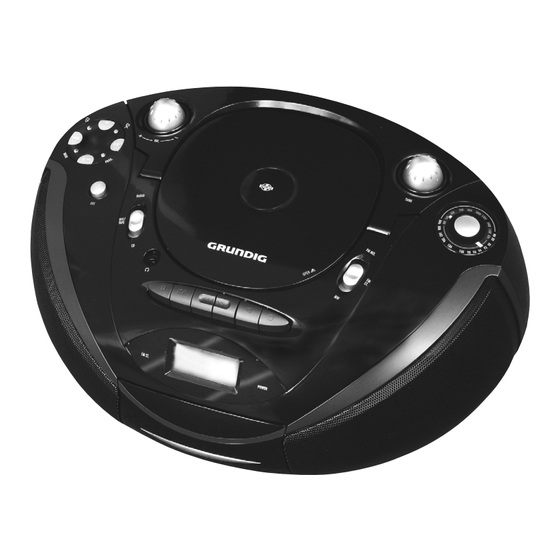

- Page 1 RADIO CASSETTE RECORDER WITH CD RRCD 2700 MP3 RRCD 3700 MP3...
- Page 2 __________________________________________________________________________ Sicherheit und Pflege CD-Betrieb DEUTSCH Auf einen Blick Cassetten-Betrieb Allgemeine Funktionen Informationen Radio Betrieb Care and safety CD mode ENGLISH Overview Tape mode General functions Information Radio mode Sécurité et entretien Fonction CD FRANÇAIS Vue d’ensemble Fonctions lecteur de cassettes Fonctions générales Informations Fonction radio...
-
Page 3: Care And Safety
CARE AND SAFETY ________________________________________ ENGLISH To ensure that this device provides you with long-term satisfaction and enjoyment, please observe the following instructions. This device is designed for the playback of audio signals. Any other use is expressly prohibited. Protect the device and the CDs from rain, moisture (dripping or splashing water), sand and heat. -
Page 4: General Information
Switches the Ultra Bass System on and off. Headphone jack for connecting a headphone set with a jack plug (ø 3.5 mm) on the left side of the device for RRCD 2700 MP3). This automatically switches off the loudspeakers. Socket for connecting the power cord on the back of the device. - Page 5 OVERVIEW ______________________________________________________ RRCD 3700 Sets radio stations. TUNE Wavelength and frequency display. 530 ... 1600 kHz 88 ... 108 MHz CD unit OPEN Opens and closes the CD compartment. Starts and pauses playback. Press briefly to select the next or previous track. Press and hold down to start a forward or reverse search.
- Page 6 OVERVIEW ______________________________________________________ RRCD 2700 Press repeatedly to select the following operating modes during CD MODE playback: normal playback, repeat current track, repeat all tracks of the CD, repeat folder (MP3/WMA only), play introductions to all tracks (CD-DA only) and normal playback again. When stopped, the random playback operating mode is also available.
- Page 7 OVERVIEW ______________________________________________________ RRCD 3700 Tape unit Tape compartment. Press here to close. Cassetten-Fach Pauses recording and playback. Ends playback/recording of the tape and opens the tape compartment. Fast forwards the tape to the end. Rewinds the tape to the beginning. Starts playback.
- Page 8 OVERVIEW ______________________________________________________ Displays WMA RANDOM INTRO PROG In CD-DA mode: shows the total number of tracks and the current track. In MP3/WMA mode: displays the total number of tracks, displays the number of the current folder and the current track. In CD-DA and MP3/WMA mode: displays the playlist memory position when creating a playlist.
-
Page 9: Battery Operation
(»S«). Insert six batteries (RRCD 2700 MP3: 6 x 1,5 V, type LR14/AM2/C size; RRCD 3700: 6 x 1,5 V, type LR20/AM1/D size), observing the polarity marked in the battery compart- ment. -
Page 10: General Functions
GENERAL FUNCTIONS __________________________________ Switching on and off Switch on the device with the input source by moving the »RADIO OFF/TAPE CD« switch to the corresponding position. Move the »RADIO OFF/TAPE CD« switch to the »OFF/TAPE« position to switch off the device. Selecting the input source Select the input source (CD, TAPE or RADIO) using »RADIO OFF/TAPE... -
Page 11: Radio Mode
RADIO MODE _________________________________________________ Stereo/mono reception • If the device receives an FM stereo station, »FM ST. « appears in the display. However, if the signal from the FM stereo station is weak, you can improve the sound quality by switching to mono reception. -
Page 12: Selecting The Cd Input Source
CD MODE ________________________________________________________ Selecting the CD input source Move the »RADIO OFF/TAPE CD« switch to the »CD« position. Press »OPEN « to open the CD compartment. Insert a CD in the compartment with its label facing upwards. Close the lid of the CD compartment by pressing »OPEN «. -
Page 13: Playing Back Tracks In Random Order
CD MODE ________________________________________________________ Press » « or » « to select the track. – Playback of the track starts automatically after a short time. Notes: You can also select folders and tracks in the stop position. However, you must then start playback of the file with »... -
Page 14: Creating A Playlist
CD MODE ________________________________________________________ Creating a playlist You can create a playlist of up to 20 files on different albums (MP3/WMA) or up to 20 tracks (CD-DA) for the current CD in any order you choose and then play them back in that sequence. -
Page 15: Tape Playback
CD MODE ________________________________________________________ Deleting the playlist The CD must be in the stop position. Press »OPEN « to open the CD compartment in »PROG« mode (playlist playback) press » « twice move the »RADIO OFF/TAPE CD« switch to the »RADIO« or »OFF/TAPE« position. TAPE MODE _____________________________________________________ Selecting the tape input source... - Page 16 TAPE MODE _____________________________________________________ If you wish to record on a protected tape, seal the corresponding opening with adhesive tape. Notes: Only use NORMAL-type cassettes (IEC I) for recording. CHROME (IEC II) or METAL (IEC IV) tapes are not suitable. The Ultra Bass System does not affect recording. Recording from the radio Insert a tape without deletion protection and search for the desired tape position with »...
-
Page 17: Cleaning The Tape Drive
Mains operation: 230 V~, 50/60 Hz Playback formats: (MPEG1/2/3 layer3),WMA Battery operation: RRCD 2700 MP3: 6 x 1,5 V (LR14/AM2/C size); Maximum number of folders: RRCD 3700 MP3: 6 x 1,5 V (LR20/AM1/D size) Maximum number of tracks: File system: ISO 9660 level 1 compatible Max. -
Page 18: Troubleshooting
INFORMATION _______________________________________________ Troubleshooting If a fault occurs, first refer to this information before you take the device for repair. If you are unable to rectify the fault using the information given here, contact your local deal- er or service specialist. Under no circumstances should you attempt to repair the radio recorder yourself, as this would invalidate the guarantee. -
Page 19: Environmental Note
INFORMATION _______________________________________________ Environmental note This product has been made from high-quality parts and materials which can be reused and recycled. Therefore, do not throw the product away with normal household waste at the end of its service life. Take it to a collection point for recycling electrical and electronic devices. This is indicated by this symbol on the product, in the operating manual and on the packaging. - Page 20 Grundig Multimedia B.V. Atrium, Strawinskylaan 3105 NL-1077 ZX Amsterdam http://www.grundig.com • •...
