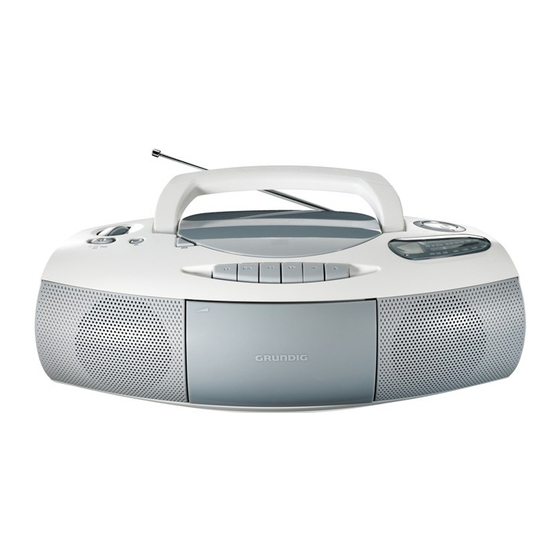

- Page 1 RADIO CASSETTE RECORDER WITH CD RRCD 1200...
- Page 2 _______________________________________________________________________________ ANTENNA STOP BEAT CUT 0 1/MONO STEREO MODE OPEN PROG. – PLAY/PAUSE • rr ee r TUNING FM MW CD TAPE OFF / RADIO...
- Page 3 _______________________________________________________________________________ DEUTSCH NEDERLANDS Sicherheit und Pflege Veiligheid en onderhoud Auf einen Blick In een oogopslag Stromversorgung Stroomtoevoer Allgemeine Funktionen Algemene functies Radio Betrieb Radio-mode CD-Betrieb Cd-mode Cassetten-Betrieb Cassette-mode Informationen Informatie ENGLISH POLSKI Care and safety Bezpieczeństwo, czyszczenie Overview Przegląd funkcji Power supply Zasilanie General functions...
- Page 4 CARE AND SAFETY -------------------------------------------------------------------------------- To ensure that this device provides you with long- Please note when deciding where to put the █ term satisfaction and enjoyment, please observe device that furniture surfaces are covered by the following instructions. various types of lacquer and plastic, most of which contain chemical additives.
- Page 5 OVERVIEW ------------------------------------------------------------------------------------------------------- Controls CD unit See the figure on page 2. OPEN Opens the CD compartment. General information PLAY/PAUSE Starts and pauses playback. Press briefly to select the Headphone jack for next or previous track. connecting a headphone set Press and hold down to start with a jack plug a forward or reverse search.
- Page 6 OVERVIEW ------------------------------------------------------------------------------------------------------- Displays • • • • • PLAY REPEAT PROG. FM.ST FM 88 92 94 98 100 104 106 108 MW 530 600 1200 1600 • PROG. In CD mode: shows the total In CD mode: flashes when number of tracks and the a track memory is saved.
- Page 7 POWER SUPPLY ---------------------------------------------------------------------------------------- Battery operation Mains operation Open the battery compartment on the bot- Note: tom of the device by pressing the mark and Check that the mains voltage on the removing the lid. type plate (on the bottom of the device) Insert six batteries (6 x 1.5 V, type corresponds to your local mains supply.
- Page 8 GENERAL FUNCTIONS --------------------------------------------------------------------- Switching on and off Switching the Ultra Bass System on and off Switch on the device with the required input source by moving the switch to the This function boosts the bass frequencies. »CD TAPE/OFF RADIO« position. Switch the Ultra Bass System on and off with »CD TAPE/OFF RADIO«...
- Page 9 RADIO MODE ----------------------------------------------------------------------------------------------- Stereo/mono reception Antennas If the radio is receiving FM stereo stations, the For FM stations (VHF) extend the telescopic • stereo indicator »FM.ST « lights up. antenna »ANTENNA«. However, if the signal from the FM stereo station Note: is weak, you can improve the sound quality by If the FM signal is too strong, it is advisable...
- Page 10 CD MODE ------------------------------------------------------------------------------------------------------------ The device is suitable for CD playback music CDs displaying the II« to start play- Press »PLAY/PAUSE logo shown here (CD-DA) back. and for CD-Rs and CD- – Playback begins with the first track. RWs with audio data. –...
- Page 11 CD MODE ------------------------------------------------------------------------------------------------------------ Changing the track selection Repeating a track (Repeat One) In stop mode, keep pressing »PROG.« until During playback, press »MODE« once. the number of the track you want to replace – The current track is repeated. appears in the display. To quit the function, press »MODE«...
- Page 12 TAPE MODE ----------------------------------------------------------------------------------------------------- Selecting the tape input source Tape recording »CD TAPE/OFF RADIO« Move the switch to the »TAPE« position. Press » « to open the tape compartment. Insert a tape in the compartment with the Erase protection open side facing up and the full reel on the Every new recording overwrites the existing re- right side.
- Page 13 TAPE MODE ----------------------------------------------------------------------------------------------------- Cleaning the tape drive Recording from a CD To guarantee good recording and playback Put in a cassette with the protection tabs in- quality, clean the parts shown (1, 2, 3) after tact and press » « or » «...
- Page 14 INFORMATION ------------------------------------------------------------------------------------------ Technical data Power supply This device is noise-suppressed Mains operation: 230 volts, 50/60 Hz according to the applicable EU Battery operation: 6 x 1.5 V IEC directives. (R20/UM1/D-Size) This product fulfils the European Max. power consumption directives 2004/108/EC, 2005/32/EC and Operation: 13 W 2006/95/EC.
- Page 15 CDs and flat batteries for the remote control will impair functioning. If the following measures do not resolve the problem satisfactorily, please visit www.grundig.com, product range: hi-fi, micro CD stations or contact your specialist dealer. PROBLEM POSSIBLE CAUSE...
- Page 16 27/10 72011 410 1000...
