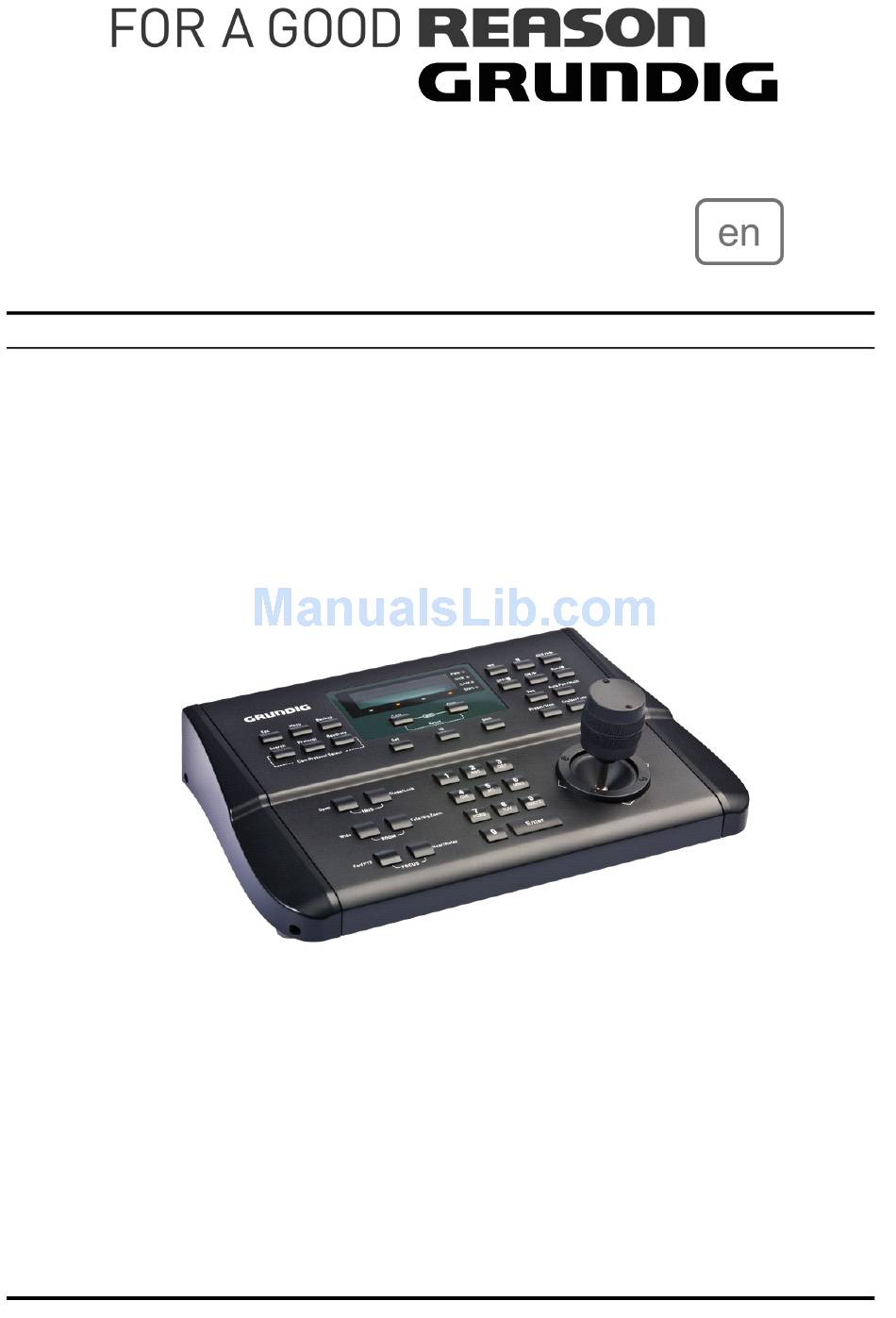

- Page 1 Owner's Manual Digital Recording Systems GKB-A0110M Keyboard with 3D joystick GKB-A0110M.62.1.04.06.2012 © ASP AG...
-
Page 3: Table Of Contents
2. Key Features of the Keyboard 7. Camera Protocol Setup 3. Important Safety Instructions 8. DVR Protocol Setup 4. Package Contents 9. Keyboard Setup in a GRUNDIG DVR 5. Installation 1. Part Names and Functions 6. DVR Control 7. Camera Control 2. -
Page 4: Key Features Of The Keyboard
2. Key Features of the Keyboard - Full control over GRUNDIG Recorders of the GRH or GDV series and GRUNDIG Motordome Cameras of the GCA and GCH series - Auto-protocol search function for easy installation of Motordome Cameras - Multiple protocols implemented: Pelco-D, Pelco-P, Panasonic, Sony, Samsung, etc. -
Page 5: Installation
5. Installation 5.1. Part Names and Functions Top View: English... - Page 6 English...
- Page 7 English...
-
Page 8: System Setup
Rear View: 1) DC12V power port：Power supply connection 2) RS-485 communication port：Camera and/or DVR connection 3) RS-232 communication port：Firmware update or DVR connection 5.2. System Setup The CCTV System Control Keyboard can connect and control various front-end/terminal equipment such as Motordome Cameras, DVRs and Decoders via the RS-485 communication port. -
Page 9: Connection To A Grundig Dvr
5.4. Connection to a GRUNDIG DVR Connect a GRUNDIG Recorder directly to the Keyboard by connecting the + and – of the RS-485 port with the corresponding + and – ports of COM Port of the GRUNDIG DVR. Set the serial settings of the corresponding COM port of the DVR to GKB-A0110M or WKC-100 (depending on the firmware). -
Page 10: Connection To Dvrs And Motordomes
If the Motordome Camera is connected to the DVR and not directly to the Keyboard, you do not need to setup the protocol and baud rate. The Keyboard will use the GRUNDIG protocol to send the commands to the DVR, which will forward them to the Motordome Camera. -
Page 11: Dvr Protocol Setup
Serial connection (Com1 (RS232), or Com2 and Com3 (RS485)). Just select the serial connection to which the keyboard is attached to and change the protocol to WKC100 or GKB-A0110M (depending on the firmware version). Under default settings the baud rate is set to 9600. If you have changed the baudrate of the keyboard under DVR mode, please adjust the DVR correspondingly. - Page 12 If the Channel is a Motordome Camera, you will directly access the Pan, Tilt and Zoom functionality of the camera, without switching to CAM mode. To get access to more functionalities, like loading presets and sequences, you will need to switch to CAM mode by pressing the [CAM] button. English...
- Page 13 English...
-
Page 14: Camera Control
Under CAM mode you will be able to access more functions of the Motordome Camera depending of the protocol that is used in the Motordome Camera. With GRUNDIG cameras and the PELCO-D protocol you can load Presets, Sequences, Auto-Pans and Cruises. It is also possible to save Presets, Auto-Pans and Cruises. Of course you can also access the OSD of the camera and do all the configuration of the Motordome Camera from remote. - Page 15 English...
- Page 16 Note: If you have the Motordome Camera connected directly to the Keyboard using the PELCO-D protocol, all of the functions of the above table will work, only the functionalities in the table below are different. English...
- Page 17 Serial Interface(s) 1x RS-232, 1x RS-485 Protocol GRUNDIG proprietary Multi protocol (camera) Pelco-D, Pelco-P, Panasonic, Samsung, DM, SonyD70, VCL, MIKAMI, CBC, B01, B02, SonyD70_R, GRUNDIG, VC, LILIN Baud Rate 1,200 ~ 19,200bps Control Up to 99 DVRs LCD Panel size...
-
Page 18: Ec Declaration Of Conformity
EC Declaration of Conformity GKB-A0110M Keyboard with 3D joystick It is hereby certified that the products meet the standards in the following relevant provisions: EC EMC Directive 2004/108/EC Low Voltage Directive 2006/95/EC Applied harmonised standards and technical specifications: EN 55022: 2003,...
